HobbyWing

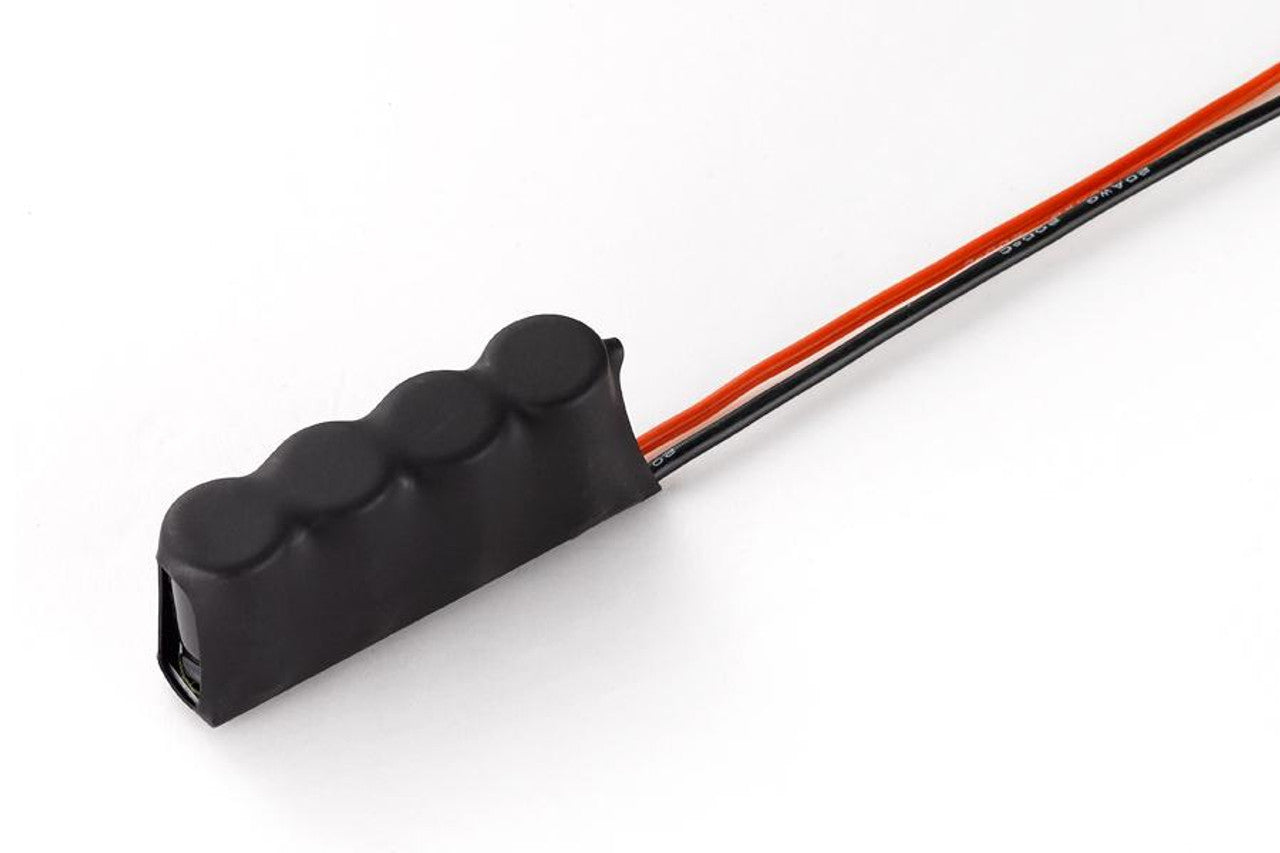

1:8 Electronic Power Switch for XR8

This Electronic Power Switch controls the ON/OFF of current flow electronically. This helps solving problems caused by vibration or oxidation of contacts conventional mechanical switches have.

Designed for Extremely High-Level Racing. The KV & torque have been increased by 16% and 4% respectively, compared to the V10 G2 Stock motor.

Application: 1/10 Scale 4WD Off-Road Racing

Features:

Specifications:

This is a replacement Hobbywing 1/8 Electric Motor Bearing Set. This package includes one front bearing and one rear bearing intended for the Xerun line of Hobbywing motors.

Features:

• Made in Germany
• High Quality

• Long Performance Life
• Suitable for High Speed Motors

A1 Combo, EzRun 18A SL ESC, EzRun Series 12T/2030(7800Kv) Motor, Digital LED Program Card

 Weight & Dimensions:

Length: 5.750"   Width: 6.250"
Height: 1.810"   Weight: 0.46 lbs

What's in the box

• 1x AXE R2 FOC ESC
• 1x AXE 540L FOC motor


Features

• Word's First FOC brushless system for Rock Crawler.  Field-Oriented Control for Super Linearity & High Torque & Extreme Silence.

• The chip-type magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs the pure and precise signals indicating the rotor position.

• Polarity Protection:  Yes. it is not a typo.  No more "oops" moment. The chip-type magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs the pure and precise signals indicating the rotor position.

• The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without any issue of damage caused to the system from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.

• Intelligent torque output & speed closed-loop control for easy control, and consistent motor RPM under all loads.

• The adjustable drag brake & drag brake rate control with the maximum drag brake of up to 200% (that’s near twice the drag brake of standard brushless power systems) can provide

  unprecedented parking capacity on slopes, with no jerky stops.

• The innovative built-in Bluetooth connectivity. allows users to read ESC data or update ESC firmware via a smartphone (installed with the HW LINK app).

• The motor with 4 poles & 12 magnets, featuring Hobbywing’s “staggered pole” patent has zero cogging effect & torque ripple. It can work smoothly at low speeds. This greatly improves the maneuverability of rock crawlers at low speeds.

• The new sensor harness, which features the plug-and-screw design, has a silicone O ring inside. The new design & O ring not only provide a firm connection between motor and ESC but solve the “waterproof” challenge for sensor ports.

• The advanced and secure electronic switch features a waterproof, dust-proof, and shock-resistant design.

• Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent.

What's in the box
1x AXE R2 FOC ESC
1x AXE 540L FOC motor
XERUN AXE R2 FOC ESC Specification
p/n 30112102
Cont./Peak Current 80A/480A
Input Voltage 2-3S LiPo, 6-9S NiMh
BEC Output 6V/7.4V Switchable, Continuous Current of 6A (Switch-mode)
Input wires Red-Black-12AWG-200mm
Input connector XT60
Programming Port Built-in Bluetooth
Firmware iOS or Android smartphone (installed with the HW LINK app)
Size / Weight 47.4(L)x36.2(W)x26.5(H)mm/ 108g (Included input wires)

XERUN AXE 540L Motor-Specification
1/10-1/8th FOC brushless motor (Patented)
Waterproof,
Motor Diameter: 36.0mm(1.42in)
Length (mm): 57.8mm(2.28in)
Shaft Diameter: 3.175(0.125in)
Pole: 4

IMPORTANT Note:
Xerun AXE series is a closed-system: Due to its advanced technology, HOBBYWING Xerun AXE ESC works exclusively with Xerun AXE brushless motor.

Features:

Features

-Word's First FOC brushless system for Rock Crawler. Field-Oriented Control for Super Linearity & High Torque & Extreme Silence.

-The chip-type magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs the pure and precise signals indicating the rotor position.

-Polarity Protection: Yes. it is not a typo. No more "oops" moment. The chip-type magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs the pure and precise signals indicating the rotor position.

-The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without any issue of damage caused to the system from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.

-Intelligent torque output & speed closed-loop control for easy control, and consistent motor RPM under all loads.

-The adjustable drag brake & drag brake rate control with the maximum drag brake of up to 200% (that's near twice the drag brake of standard brushless power systems) can provide unprecedented parking capacity on slopes, with no jerky stops.

-The innovative built-in Bluetooth connectivity. allows users to read ESC data or update ESC firmware via a smartphone (installed with the HW LINK app).

-The motor with 4 poles & 12 magnets, featuring Hobbywing's "staggered pole" patent has zero cogging effect & torque ripple. It can work smoothly at low speeds. This greatly improves the manoeuvrability of rock crawlers at low speeds.

-The new sensor harness, which features the plug-and-screw design, has a silicone O ring inside. The new design & O ring not only provide a firm connection between motor and ESC but solve the "waterproof" challenge for sensor ports.

-The advanced and secure electronic switch features a waterproof, dust-proof, and shock-resistant design.

-Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent.

IMPORTANT:
Xerun AXE series is a closed-system: Due to its advanced technology, HOBBYWING Xerun AXE R2 ESC works exclusively with Xerun AXE R2 brushless motor.

Packed with Technologies:

-Word's First FOC brushless system for Rock Crawler. Field-Oriented Control for Super Linearity & High Torque & Extreme Silence.
The chip-type magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs the pure and precise signals indicating the rotor position.

-"POLARITY PROTECTION". No more "oops" moments. The chip-type magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs the pure and precise signals indicating the rotor position.

-The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without any issue of damage caused to the system from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.

-Intelligent torque output & speed closed-loop control for easy control, and consistent motor RPM under all loads.

-The motor with 4 poles & 12 magnets, featuring Hobbywing's "staggered pole" patent has zero cogging effect & torque ripple. It can work smoothly at low speeds. This greatly improves the manoeuvrability of rock crawlers at low speeds.

-The new sensor harness, which features the plug-and-screw design, has a silicone O ring inside. The new design & O ring not only provide a firm connection between motor and ESC but solve the "waterproof" challenge for sensor ports.

Features:

Specifications:

Packed with Technologies:

-Word's First FOC brushless system for Rock Crawler. Field-Oriented Control for Super Linearity & High Torque & Extreme Silence.
The chip-type magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs the pure and precise signals indicating the rotor position.

-"POLARITY PROTECTION". No more "oops" moments. The chip-type magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs the pure and precise signals indicating the rotor position.

-The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without any issue of damage caused to the system from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.

-Intelligent torque output & speed closed-loop control for easy control, and consistent motor RPM under all loads.

-The motor with 4 poles & 12 magnets, featuring Hobbywing's "staggered pole" patent has zero cogging effect & torque ripple. It can work smoothly at low speeds. This greatly improves the manoeuvrability of rock crawlers at low speeds.

-The new sensor harness, which features the plug-and-screw design, has a silicone O ring inside. The new design & O ring not only provide a firm connection between motor and ESC but solve the "waterproof" challenge for sensor ports.

Features:

Specifications:

What's in the box
1x AXE R2 FOC ESC
1x AXE 550 R2 FOC motor
AXE 550 R2 Combo p/n
AXE550 R2-3300KV-FOC System 38020314

XERUN AXE R2 FOC ESC Specification
p/n 30112102
Cont./Peak Current 80A/480A
Input Voltage 2-3S LiPo, 6-9S NiMh
BEC Output 6V/7.4V Switchable, Continuous Current of 6A (Switch-mode)
Input wires Red-Black-12AWG-200mm
Input connector XT60
Programming Port Built-in Bluetooth
Firmware iOS or Android smartphone (installed with the HW LINK app)
Size / Weight 47.4(L)x36.2(W)x26.5(H)mm/ 108g (Included input wires)

XERUN AXE 550 R2 Motor-Specification
1/10-1/8th FOC brushless motor (Patented)
Waterproof,
Motor Diameter: 36.0mm(1.42in)
Length (mm): 63.8mm(2.51in)
Shaft Diameter: 5(0.197in)
Shaft Length: 16mm(0.63in)
Pole: 4

IMPORTANT Note:
Xerun AXE series is a closed-system: Due to its advanced technology, HOBBYWING Xerun AXE ESC works exclusively with Xerun AXE brushless motor.

Features:

Over-The-Air Programming Device fits in your pocket

OTA Programmer is a module which adopted the Bluetooth communication technology for transferring data between an ESC and a smart device (Android phone, tablet, and etc). It makes the wireless communication between ESC and smart device possible; the user can easily program and upgrade ESC and monitor data transferring via this unit.

Features / Why you need this?

• HOBBYWING over-the-air firmware update.
• Programming through a smartphone, smart devices
• Access to HW Support*  User Manual, Profile manager, etc
• Fail-safe feature ( Disable a throttle control when OTA programming is enabled)

*Recommend removing the unit before the official event.

The OTA Programmer module works with the following products of HOBBYWING.

• Some of XERUN series & EZRUN series of car ESCs.
• Some of PLATINUM series of aircraft ESCs.
• Some of SEAKING series of boat ESCs.
• For details, please refer to ESC manual to ensure if the ESC can work with OTA Programmer.

Specification:

• Working Voltage: 5V-12.6V.
• Supported Bluetooth Version : ≥ 4.0 • Effective Range: 0-3m (Open Field).
• Size: 30.0x25.5x8.5mm (LxWxH).
• Weight: 10.2g.

• Apps: HW Link V2


  • Apple IOS
  • Android GoodPlay






This is an optional Hobbywing C1 Motor Heatsink and Fan Combo. This aluminum housing heatsink will fit any motor with a diameter of 36mm and will help dissipate heat away from the motor.

Specifications:
Voltage: 5V
Size:  48 x 48 x 16mm
Heat Sink Diameter: 36 x 55mm

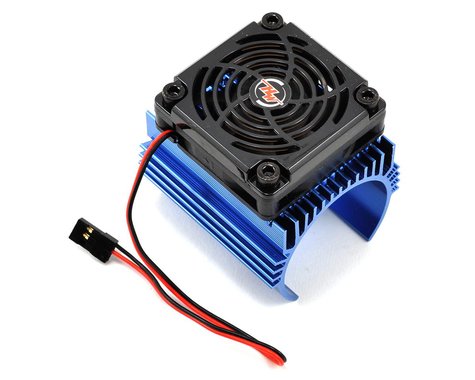

This is an optional Hobbywing C4 Motor Heatsink and Fan Combo. This aluminum housing heatsink will fit any motor with a diameter of 44mm and will help dissipate heat away from the motor.

Specifications:
Voltage: 5V
Size:  48 x 48 x 16mm
Heat Sink Diameter: 44 x 66mm

High performance cooling fan designed for the EzRun Max5 ESC.

6V-8000RPM@6V-0.30A-BLACK

Specifications:

This is the Hobbywing EZRun 18A Sensorless Brushless ESC and Motor Combo, with an included Program Box. This combo combines an 18 Amp Brushless/Sensorless ESC with a 18.0 Turn, 5200kV Brushless/Sensorless Motor for an electronic package suitable for 1/18 and 1/16 scale on-road and off-road sport fun.

Features:

• Compatible with sensorless brushless motors.
• High quality components, big current endurance.
• Excellent start-up, acceleration and linearity features.
• Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
• Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
• Internal timing can be changed easily to make the ESC suitable for various of motors.
• Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
• ESC firmware can be updated through the USB adapter in the LCD Program Box.
• Top quality motor:
• Aluminum shell (case)
• High quality magnets
• Copper wires of high temperature endurance
• Good quality bearings

ESC Specifications:
Output: Continuous 18A, burst 50A.
Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.
BEC: 6V/1A (Linear mode built-in BEC).
Resistance: 0.01 Ohm.
Motor Supported: Sensorless Brushless Motor.
Suitable Motor:

• With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road≥12T,  Off-Road≥8T;
• With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road≥18T,  Off-Road≥24T;

Suitable Car: 1/18 on-road sport.
Cooling Fan: Not included.
Size: 31.5mm(L) * 27.5mm(W) * 15mm(H).
Weight: 19g (Without wires)

Motor Specifications:
kV: 5200
Motor Diameter: 20mm
Motor Length: 30
Shaft Diameter: 2mm
Shaft Length: 10mm
Weight: 46g

Programmer Specifications:
Size: 88x58x14mm
Weight: 40g
Input Weight: 4.8-6V

Includes:

• EZRun 18A Brushless/Sensorless ESC
• EZRun 2030 18.0T/5200kV Brushless/Sensorless Motor
• LED Program Box

Note: The battery lead coming off the ESC uses a Mini Tamiya male plug. You will either need a battery with a Mini Tamiya female plug, or solder on new connectors.

The 4 pole design will produce very large amounts of torque, faster acceleration response, and a very smooth power output. The patented 4-pole 8-magnet design has very low cogging effect (85% less than conventional 1/10 4-Pole motors). When paired with a Hobbywing EzRun MAX10-SCT or MAX10 ESC,
the built-in temperature sensor and sensor port make motor thermal protection available to protect the motor from damage due to overheating.

The use of double insulated windings, high-intensity
adhesive, Japanese bearings, and silicon steel sheets guarantees outstanding performance and super durability.

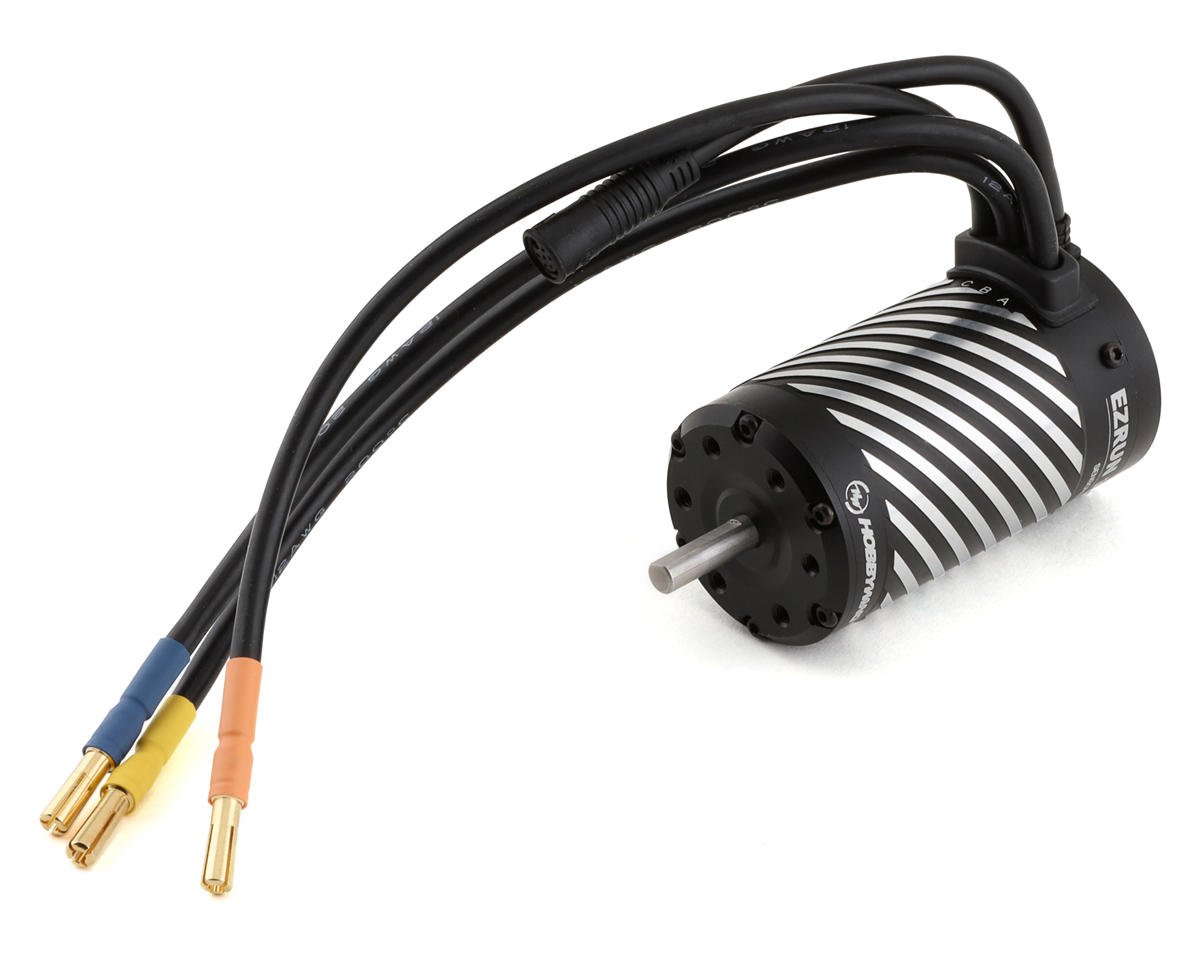

This is the Hobbywing EZRUN 3660 G2 4-Pole Sensorless Brushless Motor. The 4-pole design of the 3660 series will guarantee the motor produces large amounts of torque, a much faster acceleration response and a very stable output of power to the drivetrain.

NOTE: This motor features a 5mm output shaft and is only compatible with 5mm bore pinion gears.

In-Depth Features:

• Low Cogging Torque: The first motor adopted the innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented design) (in the RC field) has the extremely low cogging effect and low torque pulsation (it's reduced by 85% when comparing with conventional 1/10th scale 4-pole motors).
• Motor Thermal Protection: When pairing the EzRun 3652/3660 G2 with a Hobbywing EzRun MAX10-SCT or MAX10 ESC, the built-in temperature sensor and sensor port at the load end (for connecting to ESC) will make the motor thermal protection available to protect the motor from damage due to overheat.
• High Efficiency: Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90%, a leading level in the RC world.
• Quality Materials & Excellent Design: The use of double insulated windings (240℃ R-leveled), high-intensity adhesive (340℃), Japanese bearings and silicon steel sheets guarantees users the outstanding performance and super durability. The wheel hub design of the front & rear end bells reduces the motor weight.
• Compatible (with the EZRUN MAX10-SCT/MAX10 ESC): When pairing the EzRun 3652/3660 G2 motor with a Hobbwing EzRun MAX10-SCT/ MAX10 ESC, the excellent match between ESC and motor will give you large torque plus a very smooth and linear power band.

Specifications:

• Type:
• Scale: 1/10th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Pole Count: 4
• Relevant Parameters:
• KV Rating: 4000
• LiPo Cells: 2-3S
• No Load Current (A): 5.7V
• Size & Weight:
• Outer Diameter: 36mm
• Length: 60mm
• Shaft Diameter: 5mm
• Weight: 268 grams
• Other Parameters:
• Timing: 0
• Applications: 1/10 short course truck, truck, monster truck (4wd)

Includes:

• (1) 23 Tooth, 48 Pitch Pinion gear w/ 5mm bore

The 4 pole design will produce very large amounts of torque, faster acceleration response, and a very smooth power output. The patented 4-pole 8-magnet design has very low cogging effect (85% less than conventional 1/10 4-Pole motors). When paired with a Hobbywing EzRun MAX10-SCT or MAX10 ESC,
the built-in temperature sensor and sensor port make motor thermal protection available to protect the motor from damage due to overheating.

The use of double insulated windings, high-intensity
adhesive, Japanese bearings, and silicon steel sheets guarantees outstanding performance and super durability.

This is the Hobbywing 2200kV EZRun 4274 Sensorless Brushless Motor. This powerful motor is compatible with 2-6S LiPo batteries and can provide a great upgrade for all popular 1/8 scale electric monster trucks such as the Traxxas Revo, E-Maxx, HPI Savage and Thunder Tiger E-Mat, plus many other trucks and buggies.

High Torque
The 4-pole design will guarantee the motor to produce very large amounts of torque, a much faster acceleration response and a very stable output of power to the drivetrain.

High Efficiency
Hobbywing's temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an effieciency rate of up to 90% meaning that if the nergy consumption of the motor is at 1000 watts your guaranteed that 900 watts of that power will be available and no less.

Great Construction
The motor housing is made from hard anodized aluminum, motor windings are wound from pure oxygen-free double insulated copper wire and the advanced rotor structure is designed to handle high temperature from the use of rare earth magnets. The output shaft is made from high quality polished alloy steel and the imported bearings are high precision metal caged from a minimum to zero friction which in turn will guarantee strength, outstanding performance, high durability and smoothness of the motor.

Compatible with the EZRun MAX8 ESC
When pairing the EZRun 4274 motor with the Hobbywing EZRun MAX8 (150A) ESC, the excellent match between ESC and motor will give you large torque plus a very smooth and linear power band.

Specifications:
KV (No-load): 2200
R. (Ω): 0.0058
Current No-load（A）: 5
Max. Output Power（W）: 3000
C.at the point of M.O.P *（A）: 120
Motor Diameter x Length （mm）: 42x74
Shaft Diameter x Length （mm）: 5x18.5
LiPo (S): 2-6
W (g): 418g
Application: 1/8th Monster Truck / Truck
Sensored: No

Hobbywing EZRUN 4985SL 4-Pole 1/6-1/7 Scale Sensorless Brushless Motor.

Hobbywing EZRUN 5687SL 4-Pole 1/5 Scale Sensorless Brushless Motor.

This is the Hobbywing EZRun MAX6 V3 1/6 Scale Waterproof Brushless ESC. Compatible with 3-8S LiPo power, the MAX6 is a great choice for 1/6 and 1/7 scale vehicles like the Traxxas XO-1, but is also suitable for various 1/8 scale heavy vehicles like the E-REVO and CEN GST-E Monster Trucks. It's the ideal option for high-end aggressively powered builds.

Features:

• High Reliability & Durability: Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRun MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
• Great Flexibility & Versatility: With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
• Applicable for All Weather Conditions: The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
• High Voltage Built-in BEC: The MAX6 has adopted the world's first HV built-in BEC with an output current of up to 25Amps and a switchable output voltage of 6-7.4V. The high voltage BEC is designed to handle today's high voltage servos on demand used by large scale vehicles.
• Advanced & Secure Electronic Switch: The MAX6 features an electronic switch with a lifespan of over 50,000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
• Regular Firmware Updates Free of Charge: You can upgrade the MAX6 with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates it's ESC firmware regularly giving you upgraded features more often when available.
• Maintenance Free: The ESC, minus the cooling fan, is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle big jumps and landings on hard surfaces.
• Built-in Anti-Spark System: The MAX6 is built wit an internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).


Specifications:
Continuous Current: 160A
Peak Current: 1,050A
Motor Type: Sensorless Brushless Motor
Applications: 1/6th Touring Car, Buggy, Truggy and Truck
Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size (LxWxH): 70x56x46.5mm
Weight: 240g
Programming Port: FAN /PRG Port

Includes:

• (1) Ezrun MAX6 ESC
• (3) 10 AWG, 200C Black wires for a brushless motor
• (1) Double side tape
• (2) Heat shrink tube
• (1) Manual
• (1) Hobbywing decal

Recommended Hobbywing Programmers:

• HWA30502000014: Hobbywing Multifunction LCD Program Box
• HWA86020010: Hobbywing Program Box

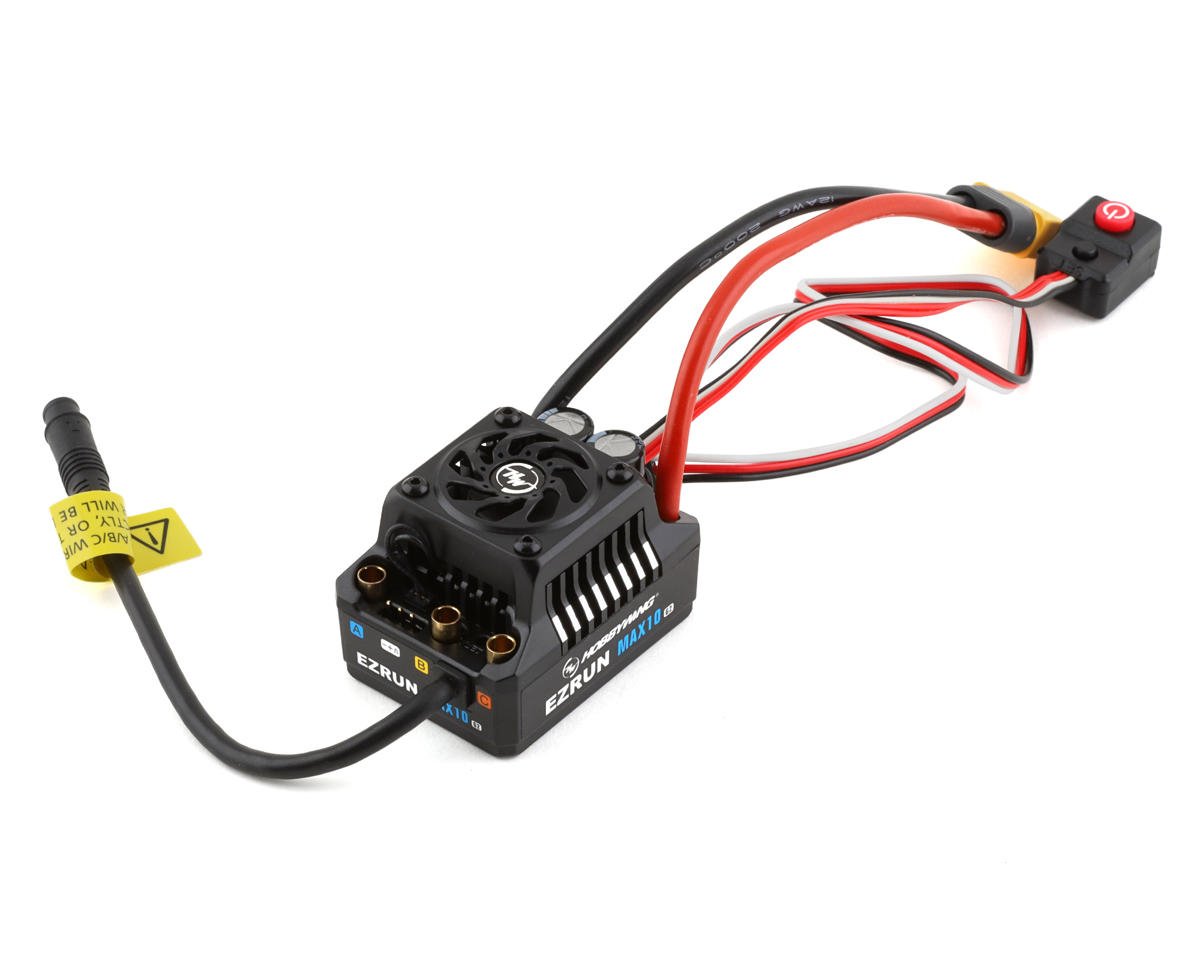

This is the Hobbywing EZRun MAX10 SCT V3 1/10 Scale Waterproof Brushless ESC. Compatible with 3-4S LiPo power, the MAX10 SCT provides the ultimate power upgrade solution for many popular 1/10 scale vehicles.

Features:

• High Reliability & Durability: Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
• Great Flexibility & Versatility: With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
• Applicable for All Weather Conditions: The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
• High Voltage Built-in BEC: The MAX10 SCT has adopted the world's first HV built-in BEC with an output current of up to 3 Amps and a switchable output voltage of 6-7.4V. The high voltage BEC is designed to handle today's high voltage servos on demand used by 1/10 scale vehicles.
• Advanced & Secure Electronic Switch: The MAX10 SCT features an electronic switch with a lifespan of over 50,000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
• Regular Firmware Updates Free of Charge: You can upgrade the MAX10 SCT with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates it's ESC firmware regularly giving you upgraded features more often when available.
• Maintenance Free: The ESC, minus the cooling fan, is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle big jumps and landings on hard surfaces.

Specifications:

• Continuous Current: 120A
• Peak Current: 760A
• Motor Type: Sensorless Brushless Motor
• Applications: 1/10th Short Course Trucks, Stadium Trucks, Monster Trucks
• Motor Limit:
• 2S LiPo: KV ≤6000
• 3S LiPo: KV ≤4000
• 4S LiPo: KV ≤3000
• LiPo/NiMH Cells: 9-12S NiMH, 3-4S LiPo
• BEC Output: 6V/7.4V Switchable, Continuous Current of 3A (Switch-mode BEC)
• Cooling Fan: Powered by the stable BEC voltage of 5V/7.4V
• Connectors: Input End: None, Output End: Female 4.0mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
• Size (LxWxH): 49.0x39.5x34.7mm
• Weight: 105g
• Programming Port: FAN/PRG Port

Includes:

• (1) MAX10 SCT ESC
• (3) 12 AWG, 200C Black wires for a brushless motor
• (1) 12 AWG, 200C Red & Black wires for battery input
• (1) Double side tape
• (2) Heat shrink tube
• (1) Manual

Recommended Hobbywing Programmers:

• HWA30502000014: Hobbywing Multifunction LCD Program Box
• HWA86020010: Hobbywing Program Box

MAX10 SCT ESC Specifications:

Continuous Current: 120A
Peak Current: 760A
Motor Type: Sensorless Brushless Motor
Applications: 1/10th Short Course Trucks, Stadium Trucks, Monster Trucks
Motor Limit:
2S LiPo: KV =6000
3S LiPo: KV =4000
4S LiPo: KV =3000
LiPo/NiMH Cells: 9-12S NiMH, 3-4S LiPo
BEC Output: 6V/7.4V Switchable, Continuous Current of 3A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 5V/7.4V
Connectors: Input End: None, Output End: Female 4.0mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size (LxWxH): 49.0x39.5x34.7mm
Weight: 105g
Programming Port: FAN/PRG Port


3660SL 4000KV Brushless Motor Features:

- Innovative 4-pole-8-magnet "staggered pole" rotor
- Built-in temperature sensor and sensor port
- O-ring seal fitted between the front end bell and motor case
- Special design implemented by the motor case
- Special technology for temperature control
- CNC machined aluminum housing
- Rebuild-able design (partially rebuild-able) for routine maintenance
- Excellent match between EZRUN 3660 G2 with EZRUN MAX10 SCT

This is the Hobbywing EZRun MAX10 SCT 1/10 Waterproof Brushless ESC and 3660SL Motor Combo. This combo is compatible with up to 2S LiPo power when using the included 4600kV motor, and is the perfect upgrade for your 1/10 scale 4WD truck and monster truck vehicles.

NOTE: This motor included in this combo requires 5mm bore pinion gears.

ESC Features:

• High Reliability & Durability: Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
• Great Flexibility & Versatility: With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
• Applicable for All Weather Conditions: The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
• High Voltage Built-in BEC: The MAX10 SCT has adopted the world's first HV built-in BEC with an output current of up to 3 Amps and a switchable output voltage of 6-7.4V. The high voltage BEC is designed to handle today's high voltage servos on demand used by 1/10 scale vehicles.
• Advanced & Secure Electronic Switch: The MAX10 SCT features an electronic switch with a lifespan of over 50,000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
• Regular Firmware Updates Free of Charge: You can upgrade the MAX10 SCT with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates it's ESC firmware regularly giving you upgraded features more often when available.
• Maintenance Free: The ESC, minus the cooling fan, is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle big jumps and landings on hard surfaces.

Motor Features:

• Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
• Built-in temperature sensor and sensor port protect the motor from damage due to overheat when pairing EZRUN 3660 G2 with a EZRUN MAX10 SCT ESC.
• O-ring seal fitted between the front end bell and motor case isolates screw holes from inner parts to prevent liquid or dust from getting inside and protect motor from damage.
• Special design implemented by the motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws.
• Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
• CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
• Excellent match between EZRUN 3660 G2 with EZRUN MAX10 SCT guarantees users large torque plus a very smooth and linear power band.

ESC Specifications:

• Continuous Current: 120A
• Peak Current: 830A
• Motor Type: Sensorless Brushless Motor
• Applications: 1/10th Short Course Trucks, Stadium Trucks, Monster Trucks
• Motor Limit:
• 2S LiPo: KV ≤6000
• 3S LiPo: KV ≤4000
• 4S LiPo: KV ≤3000
• LiPo/NiMH Cells: 6-12S NiMH, 2-4S LiPo
• BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode BEC)
• Size (LxWxH): 49.0x39.5x34.7mm
• Weight: 105g
• Programming Port: FAN/PRG Port

Motor Specifications:

• kV: 4600
• LiPo: 2S
• No-Load Current: 7.2A
• Motor Diameter & Length: 36mm & 60mm
• Shaft Diameter & Length: 5mm & 18.5mm
• Pole: 4
• Weight: 262 grams


Includes:

• EZRun Max10 SCT ESC
• EZRun 3660SL Brushless Motor (4600kV)


Recommended Hobbywing Programmers:

• HWA30502000014: Hobbywing Multifunction LCD Program Box
• HWA86020010: Hobbywing Program Box
