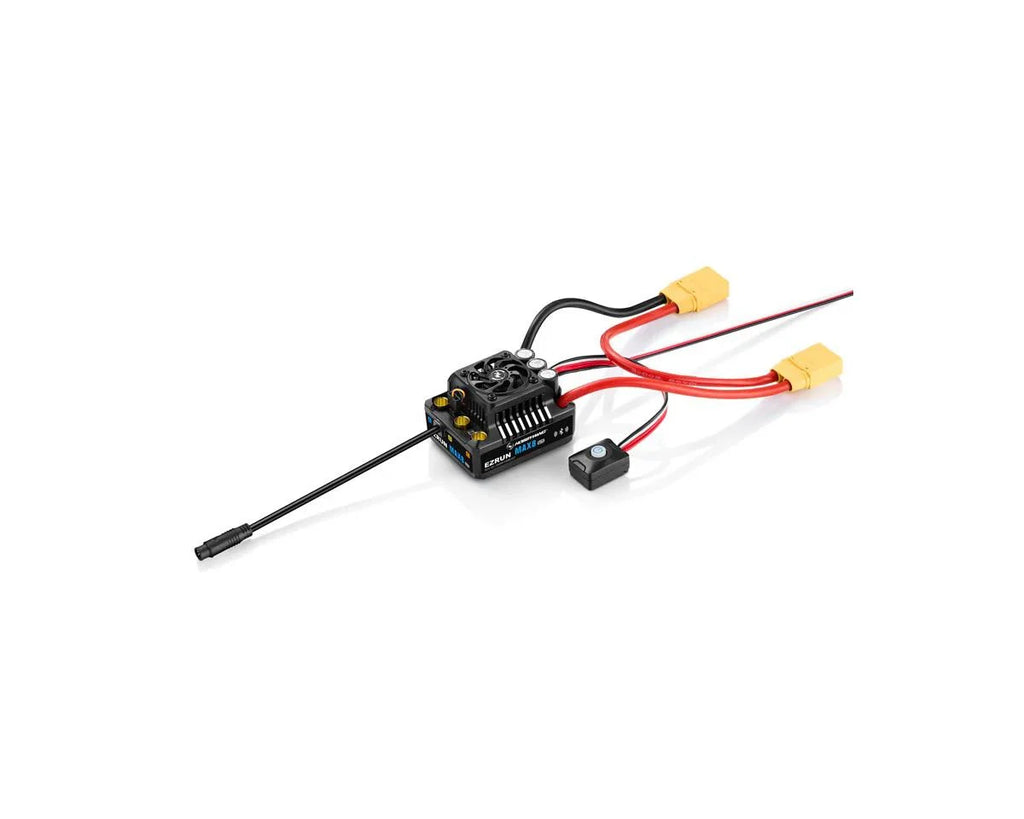

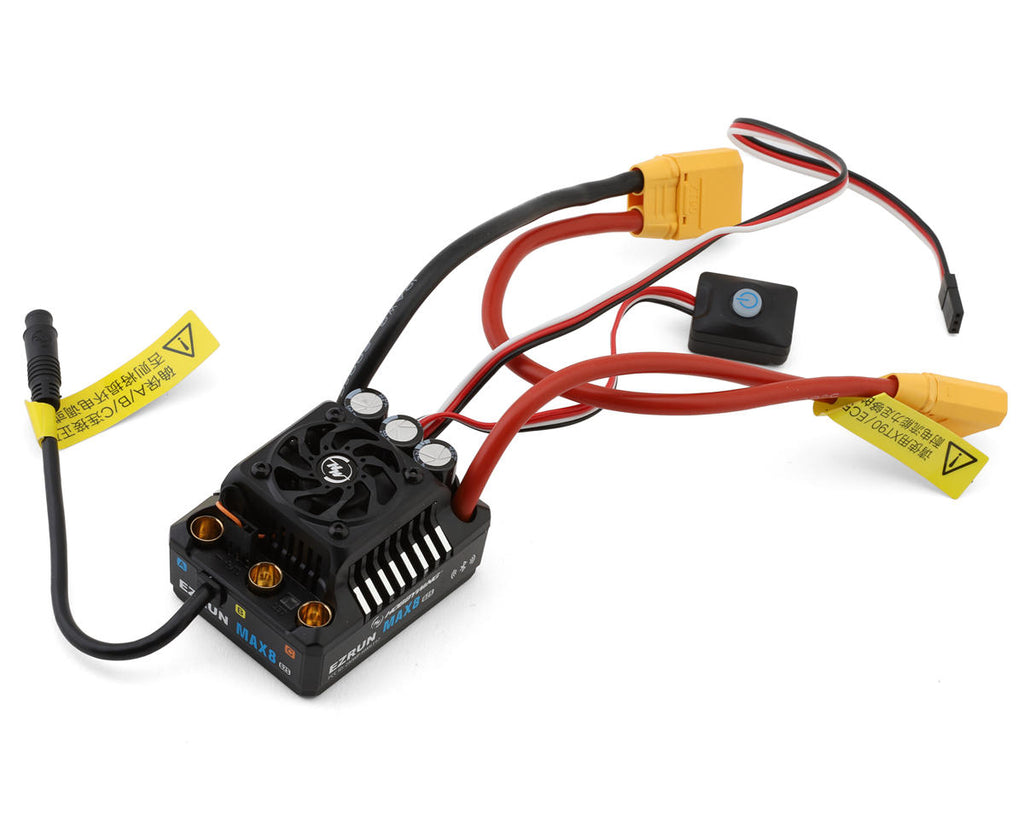

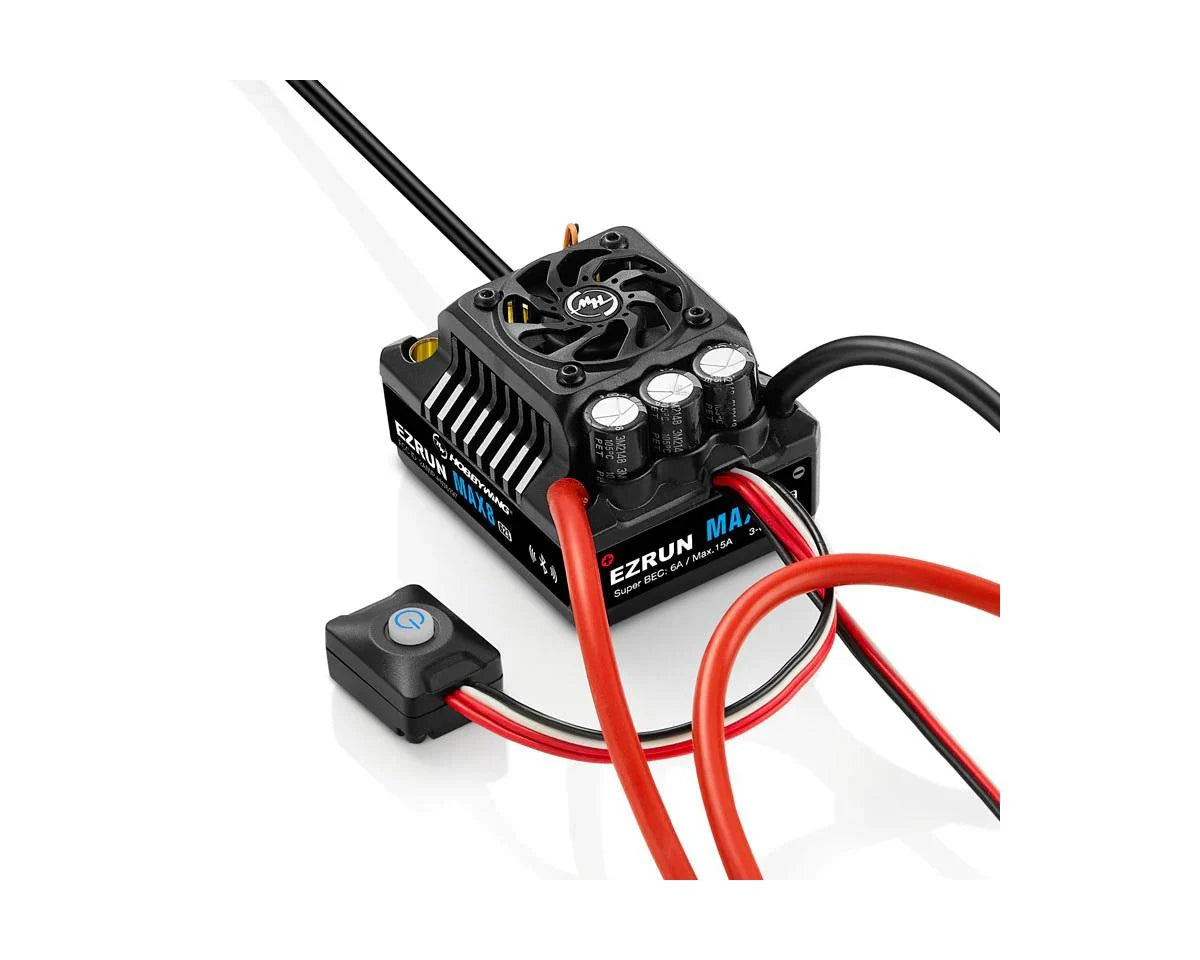

ESC Overview
The EZRun Max8 G2s Brushless ESC delivers upgraded performance with three built-in 680uF capacitors—boosting capacity by 74% compared to the original MAX8 ESC. These integrated capacitors eliminate the need for external ones, simplifying installation and improving reliability. A patented frameless fan design, combined with a built-in aluminum heatsink and copper thermal conduction plate, provides rapid heat dissipation to maintain peak performance. High side airflow ensures optimal cooling, even under intense driving conditions.
Key Features:
-
Fully waterproof and dustproof for all-weather use
-
Built-in 6A/15A switch-mode BEC supports 6V, 7.4V, and 8.4V servos
-
Durable electronic switch resists moisture, dust, and physical impact
-
32° turbo timing boosts motor RPM by up to 25% with supported motors
-
Bluetooth connectivity for real-time data logging and firmware updates via the HW LINK app
Specifications:
-
Scale: 1/8
-
Motor Type: Brushless, sensored
-
Input Voltage: 4S–6S LiPo
-
BEC Output: 6V–8.4V
-
Motor Limit:
-
4S: Up to 3000kV
-
6S: Up to 2400kV
-
Programmable: Yes
-
Dimensions: 60 x 48 x 40.5 mm
-
Weight: 6.84 oz (194g)

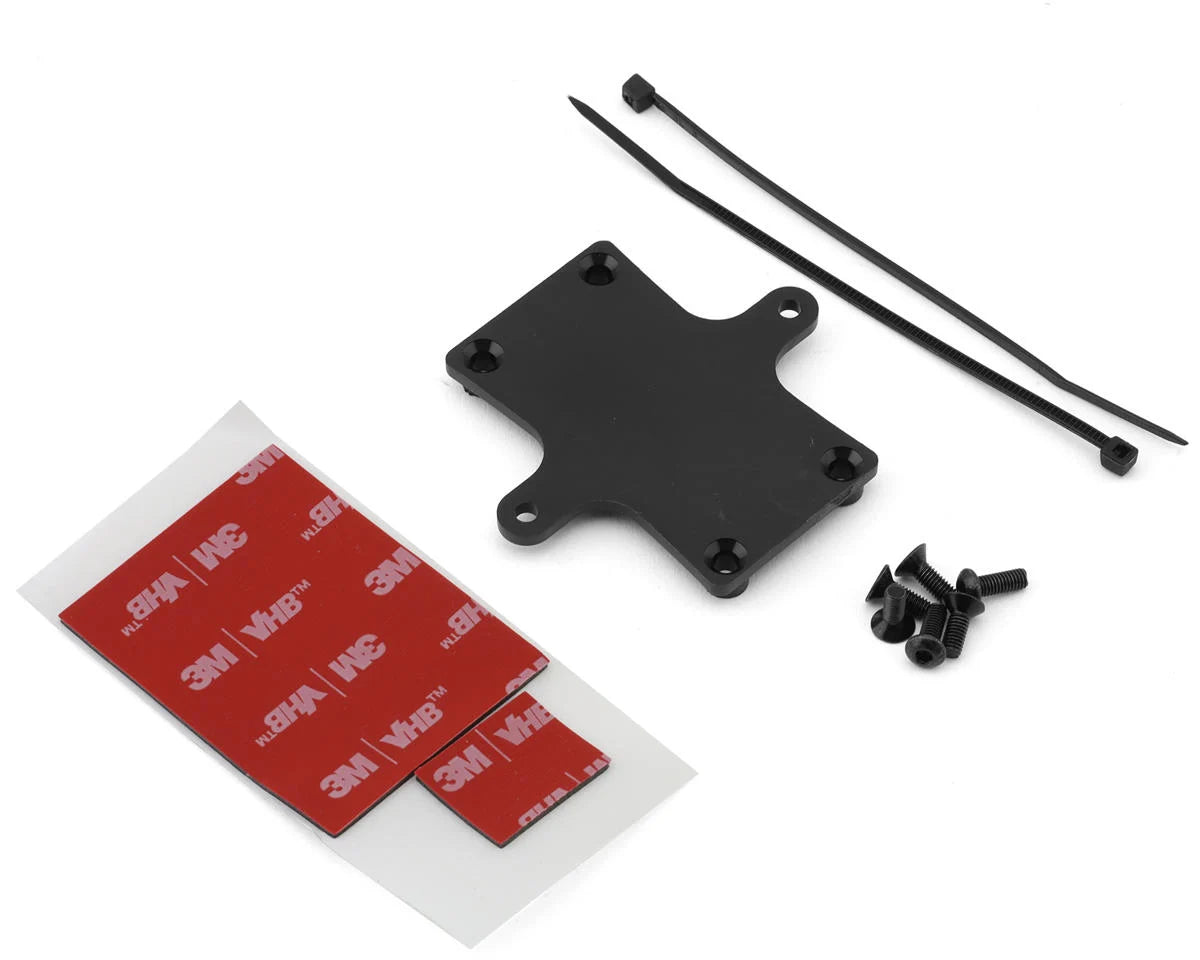

Includes:
