The ProTek RC 30x30x10mm Aluminum High Speed HV Cooling Fan is a great option to keep your ESC and motor temps in check. The fan features a machined aluminum case that helps to dissipate heat, allowing cooler operation of the fan motor at high voltage specs. Plus the aluminum frame work adds strength to the assembly, helping protect the fan blades in the event of a crash.

The fan is a true 2S HV component, that has been built to last with dual ball bearings, and pre-wired 30mm long 2 pin JST connector. Plus, we include a 200mm long adapter plug that allows you to connect the fan directly to the receiver or another source of power. The fan can be mounted directly to the chassis with double side tape, or by using an optional fan mount (not included).

NOTE: This fan should be installed at least 5mm away from the motor to allow sufficient air flow and prevent magnet interference.

Features:

• 30mm aluminum cooling fan
• Ideal for ESC and motor applications
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Anodized black with blue chamferred edges
• Perfect for 1/12, 1/10 and 1/8 scale platforms
• 2 pin JST connector and included extension for easy installation

Compatibility:

• Team Associated RC10B6.2
• Team Associated RC10B6.2D
• Team Associated RC10B6.3
• Team Associated RC10B6.3D

Heat Sink features a lightweight aluminum construction with a dual cooling fan design. The heat sink is compatible with 1/8 scale motors around 40.8mm diameter and 57.9mm in length and includes two 30x30x10mm high-speed fans that peak around 18,000RPM @6v

The fans can be installed directly to the heatsink or you can use the included 10mm spacers between the fans and the heatsink for enhanced airflow.

Features:

Fits 1/8 motors with 40.8mm diameter and 57.9mm length
Lightweight aluminum construction
Dual fan design
Excellent airflow
Includes two 30x30x10mm cooling fans

Includes:

(1) Heat Sink - Big
(1) Heat Sink - Small
(4) M3 x 6mm Round Head Screws
(4) M3 x 14mm Round Head Screws
(4) M3 x 25mm Round Head Screws
(4) 10mm Washers
(2) 30x30x10mm Turbo High Speed Fan

This is the Yeah Racing 30x30x10mm Tornado High Speed Cooling Fan in Black color. This fan features dual ball bearings and is great for motors, ESC's and multiple other applications. This fan is capable of use with a 2S LiPo (8.4V), but no higher.

Specifications:
Dimensions: 30x30x10mm
Bearing: Dual Ball Bearing
Operating: Voltage 5V
Start-up Voltage: 3V
Power: 1.40W
Fan Speed: approx. 14,000 RPM
Max Air Flow: 5.501 CFM
Current: 0.28A
Weight: 9.0g
Connector: JST

Note: For the best performance, Yeah Racing recommends you continuously run this fan for 2 - 3 hours to break it in.

The ProTek RC 30x30x10mm Aluminum High Speed HV Cooling Fan is a great option to keep your ESC and motor temps in check. The fan features a machined aluminum case that helps to dissipate heat, allowing cooler operation of the fan motor at high voltage specs. Plus the aluminum frame work adds strength to the assembly, helping protect the fan blades in the event of a crash.

The fan is a true 2S HV component, that has been built to last with dual ball bearings, and pre-wired 30mm long 2 pin JST connector. Plus, we include a 200mm long adapter plug that allows you to connect the fan directly to the receiver or another source of power. The fan can be mounted directly to the chassis with double side tape, or by using an optional fan mount (not included).

NOTE: This fan should be installed at least 5mm away from the motor to allow sufficient air flow and prevent magnet interference.

Features:

• 30mm aluminum cooling fan
• Ideal for ESC and motor applications
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Anodized black with silver chamferred edges
• Perfect for 1/12, 1/10 and 1/8 scale platforms
• 2 pin JST connector and included extension for easy installation

This powerful waterproof ESC from HobbyWing is specifically designed with rock crawlers and scale trucks in mind. It features an aluminum case for better cooling under hard use, its small size will allow easy mounting options, and it is completely waterproof for adverse weather conditions. It features 15 programmable catagories includuing PWM and drag brake performance and can be easily tuned using the included LED program box. This will allow you to fine tune the ESC to your drive style and braking performance to meet your demands.

Features:

Specifications:

This is a ProTek R/C Braided Brushless Motor Sensor Cable. This sensor cable is intended for use with any sensor-based brushless system that uses a replaceable sensor wire harness.

The ProTek R/C sensor cable features flexible silicone wire shielding on each of the six sensor wires, with a black braided nylon protective sheath surrounding the sensor wires. Additionally, the braided sheath is shrink wrapped at each end providing complete protection to the cable. This protection and flexibility leads to a free moving and shock absorbing sensor cable while ensuring smooth, consistent and reliable data transfer between your ESC and motor. Choose from between 90mm and 300mm lengths.

The Velineon® VXL-3s Accessory Cooling Fan reduces ESC temperatures during extended operation for maximum power flow. It securely clips onto the VXL-3s heatsink for easy installation. Wires are neatly routed thanks to the integrated connector clip. Simply plug the accessory cooling fan into the Velineon VXL-3s accessory power connector and clip the fan onto the heatsink for increased cooling.

Compatibility:

• Traxxas Bandit
• Traxxas Drag Slash
• Traxxas Hoss
• Traxxas Rally
• Traxxas Rustler 4x4
• Traxxas Slash 2wd
• Traxxas Slash 4x4
• Traxxas Slash 4x4 Ultimate
• Traxxas Stampede 4x4

This is a ProTek R/C Braided Brushless Motor Sensor Cable. This sensor cable is intended for use with any sensor-based brushless system that uses a replaceable sensor wire harness.

The ProTek R/C sensor cable features flexible silicone wire shielding on each of the six sensor wires, with a black braided nylon protective sheath surrounding the sensor wires. Additionally, the braided sheath is shrink wrapped at each end providing complete protection to the cable. This protection and flexibility leads to a free moving and shock absorbing sensor cable while ensuring smooth, consistent and reliable data transfer between your ESC and motor. Choose from between 90mm and 300mm lengths.

Heat is the enemy, especially when it comes to electric motors. Keep your temperatures in check and your motor running efficient and cool with our Motor Heatsink with Twin Cooling Fan. The motor heatsink clips right onto your 540 or 550-sized motor, and features an anodized coating and multiple heatsink fins for added cooling surface area. The cooling fan is powered through a standard 2-pin Rx plug.

NOTE: All heatsink cooling fans, unless specified otherwise, are designed to be powered by DC voltage only between 5.0V and no more than 6.0V MAXIMUM! If you choose to power our cooling fans with voltage exceeding 6.0V you are doing so at your own risk! Please make sure that your power source (battery pack, receiver, etc.) is able to supply consistent voltage no lower than 5.0V and no higher than 6.0V. If powering from an ESC, check with the ESC manufacturer to make sure if your ESC is capable of providing enough auxiliary power to handle the added load of extra cooling fans; some ESCs that have built-in fans may not be able to reliably power any additional cooling fans.

Includes : One Cooling Fan

This is a ProTek R/C Braided Brushless Motor Sensor Cable. This sensor cable is intended for use with any sensor-based brushless system that uses a replaceable sensor wire harness.

The ProTek R/C sensor cable features flexible silicone wire shielding on each of the six sensor wires, with a black braided nylon protective sheath surrounding the sensor wires. Additionally, the braided sheath is shrink wrapped at each end providing complete protection to the cable. This protection and flexibility leads to a free moving and shock absorbing sensor cable while ensuring smooth, consistent and reliable data transfer between your ESC and motor. Choose from between 90mm and 300mm lengths.

This is the Yeah Racing 25x25x10mm Tornado High Speed Cooling Fan in Black color. This fan features dual ball bearings and is great for ESC's and other applications.

Specifications:
Dimensions: 25x25x10mm
Bearing: Dual Ball Bearing
Operating: Voltage 5V ~ 7.2V
Start-up Voltage: 3V
Power: 1.40W
Fan Speed: approx. 15000 R.P.M after 5~10 min. rotating.
Max Air Flow: 5.13CFM.
Current: 0.28A
Weight: 7.0g
Connector: JST

The key to the Velineon's brushless power system's extreme power output is total system optimization. The Velineon VXL-3s electronic speed control and 3500kV brushless motor are carefully engineered to work seamlessly together for maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control with Traxxas EZ-Set^® one-button convenience.

Compatibility:

• Traxxas 4-Tec 3.0
• Traxxas Drag Slash
• Traxxas Rally
• Traxxas Rustler 4x4
• Traxxas Slash 4x4
• Traxxas Slash 4x4 Ultimate
• Traxxas Stampede 4x4

MAMBA MONSTER X 8S ESC COMES WITH:

This is a ProTek R/C Braided Brushless Motor Sensor Cable. This sensor cable is intended for use with any sensor-based brushless system that uses a replaceable sensor wire harness.

The ProTek R/C sensor cable features flexible silicone wire shielding on each of the six sensor wires, with a black braided nylon protective sheath surrounding the sensor wires. Additionally, the braided sheath is shrink wrapped at each end providing complete protection to the cable. This protection and flexibility leads to a free moving and shock absorbing sensor cable while ensuring smooth, consistent and reliable data transfer between your ESC and motor. Choose from between 90mm and 300mm lengths.

Introducing the Mamba XLX2, an ESC that will redefine the limits of 1/5th scale R/C! Engineered from the ground up, the Mamba XLX2 is packed with a potent combination of hardware and software advancements, sensored performance, CRYO-DRIVE and waterproof design that will set a new standard for high performance power systems. The Mamba XL family is well known for its extreme performance capabilities. The XLX2 pays homage to the legacy of its predecessors and exceeds their performance on all levels.

CRYO-DRIVE, Castle's proprietary breakthrough technology integrates unique software and dedicated hardware to reduce heat and dramatically increase performance. Thousands of times per second, the XLX2 software minimizes the amount of time the electrical components spend generating heat. These software advancements work in parallel with an open housing design which enables increased directional airflow to cool critical components. With the combination of a new 50mm fan and forged elliptical fin heatsink, the XLX2 maximizes airflow throughout the system, taking thermal performance to a whole new level. The results are more power handling, cooler ESC temperatures and longer runtimes and for ultra-high performance.

You can easily optimize the ESC for any driving condition, from rugged terrain to smooth pavement to the perils of rock and gravel. Create, save and download setup profiles through the Castle Link Programming Suite on your Windows PC, or wirelessly with the convenience of the new B-Link Bluetooth Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly adjustments from your transmitter via the Auxiliary wire. Simply connect the white signal wire to an open radio channel, and enable the feature in Castle Link by selecting what Auxiliary function you would like to use. Access programming parameters such as Torque Control, Max Brake or Max Throttle.

Sensored 1/5th scale is here! Pairing the Mamba XLX2 with the Castle 4-POLE 12-SLOT SENSORED 2028-800KV or the 2028-1100KV will allow heavy, high speed rigs to experience controllable low-end ranges without sacrificing power, punch or speed. SmartSense mode uses the motor's sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is spinning, it seamlessly transitions to Castle's ultra-efficient sensorless mode. You'll put more power to the ground, where it should be, instead of wasting it through raw heat and RPMs.

MAMBA XLX 2 FEATURES:
Input Voltage Range 3S-8S LiPo (33.6v max)
Sensorless, Sensored, SmartSense and Brushed Running Modes
Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)
CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 50MM cooling fan
Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
Mounting holes located in bottom of aluminum case for affixing to your vehicle
Waterproof design for all weather conditions
Data logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Easily tune and update ESC with USB and Bluetooth programming options
Castle Link USB programming kit (coupon included with purchase)
Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately and Castle Link all available on Google Play or Apple App Store)
Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

MAMBA XLX2 ESC COMES WITH:
300mm Direct Connect Sensor Wire
Mamba Decals
Coupon for free Castle Link USB
Motor connection wire, bullets and shrink
Mamba XLX2 Quick Start Guide
Sensor port dust cover

Features:

This is the Yeah Racing 40x40x10mm Tornado High Speed Cooling Fan in Black color. This fan features dual ball bearings and is great for motors, ESC's and multiple other applications. This fan is capable of use with a 2S LiPo (8.4V), but no higher.

Specifications:
Fan Size: 40x40x10mm
Operating voltage: 5-8.4V
Start-up voltage: 3V
Weight: 13.0g
Material: Plastic Blade and Frame Housing
Bearing: Dual ball
Shaft Core: Stainless steel
Wire Length: 250mm
Connector: JST

This is the Hobbywing EZRun MAX6 V3 1/6 Scale Waterproof Brushless ESC. Compatible with 3-8S LiPo power, the MAX6 is a great choice for 1/6 and 1/7 scale vehicles like the Traxxas XO-1, but is also suitable for various 1/8 scale heavy vehicles like the E-REVO and CEN GST-E Monster Trucks. It's the ideal option for high-end aggressively powered builds.

Features:

• High Reliability & Durability: Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRun MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
• Great Flexibility & Versatility: With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.
• Applicable for All Weather Conditions: The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
• High Voltage Built-in BEC: The MAX6 has adopted the world's first HV built-in BEC with an output current of up to 25Amps and a switchable output voltage of 6-7.4V. The high voltage BEC is designed to handle today's high voltage servos on demand used by large scale vehicles.
• Advanced & Secure Electronic Switch: The MAX6 features an electronic switch with a lifespan of over 50,000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
• Regular Firmware Updates Free of Charge: You can upgrade the MAX6 with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates it's ESC firmware regularly giving you upgraded features more often when available.
• Maintenance Free: The ESC, minus the cooling fan, is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle big jumps and landings on hard surfaces.
• Built-in Anti-Spark System: The MAX6 is built wit an internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).


Specifications:
Continuous Current: 160A
Peak Current: 1,050A
Motor Type: Sensorless Brushless Motor
Applications: 1/6th Touring Car, Buggy, Truggy and Truck
Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size (LxWxH): 70x56x46.5mm
Weight: 240g
Programming Port: FAN /PRG Port

Includes:

• (1) Ezrun MAX6 ESC
• (3) 10 AWG, 200C Black wires for a brushless motor
• (1) Double side tape
• (2) Heat shrink tube
• (1) Manual
• (1) Hobbywing decal

Recommended Hobbywing Programmers:

• HWA30502000014: Hobbywing Multifunction LCD Program Box
• HWA86020010: Hobbywing Program Box

Ultra Flexi 125mm Flat Sensor Wire with Trinity Logo (White)

Product Specifications

The ProTek RC 35x35x10mm Aluminum High Speed HV Cooling Fan is a great option to keep your ESC and motor temps in check. The fan is a true 2S HV component that has been built to last with dual ball bearings and machined aluminum case. The case allows cooler operation of the fan motor, while also adding strength to the assembly, helping to protect the fan blades in the event of a crash.

A pre-wired 30mm long 2 pin JST connector is used for connection, and we include a 170mm long JST/JR adapter plug that allows you to connect the fan directly to the receiver or another source of power. The fan is ideal to keep ESC's or motors cool, and can be mounted to an ESC that is compatible with a 35mm fan, directly to the chassis with double side tape, or to the motor using an optional 35mm fan mount (not included).

NOTE: This fan should be installed at least 5mm away from the motor to allow sufficient air flow and prevent magnet interference.

Features:

• 35mm aluminum cooling fan
• Ideal for ESC and motor applications
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Anodized black with silver chamferred edges
• Perfect for 1/10, 1/8 and Large Scale platforms
• 2 pin JST connector and included extension for easy installation

This is an optional Hot Racing Velineon VXL-3s ESC Heat Sink with a High Velocity Cooling Fan.

Features:

• Forced air increases heat transfer and provides enhanced cooling for ESC
• Clamps securely to ESC heatsink
• Simple installation; directly compatible with Traxxas Velineon VXL-3s ESC

Specifications:
Length: 39mm
Width: 30mm
Height: 25mm

Compatibility:

• Traxxas Bandit
• Traxxas Drag Slash
• Traxxas Hoss
• Traxxas Rally
• Traxxas Rustler 4x4
• Traxxas Slash 2wd
• Traxxas Slash 4x4
• Traxxas Slash 4x4 Ultimate
• Traxxas Stampede 4x4

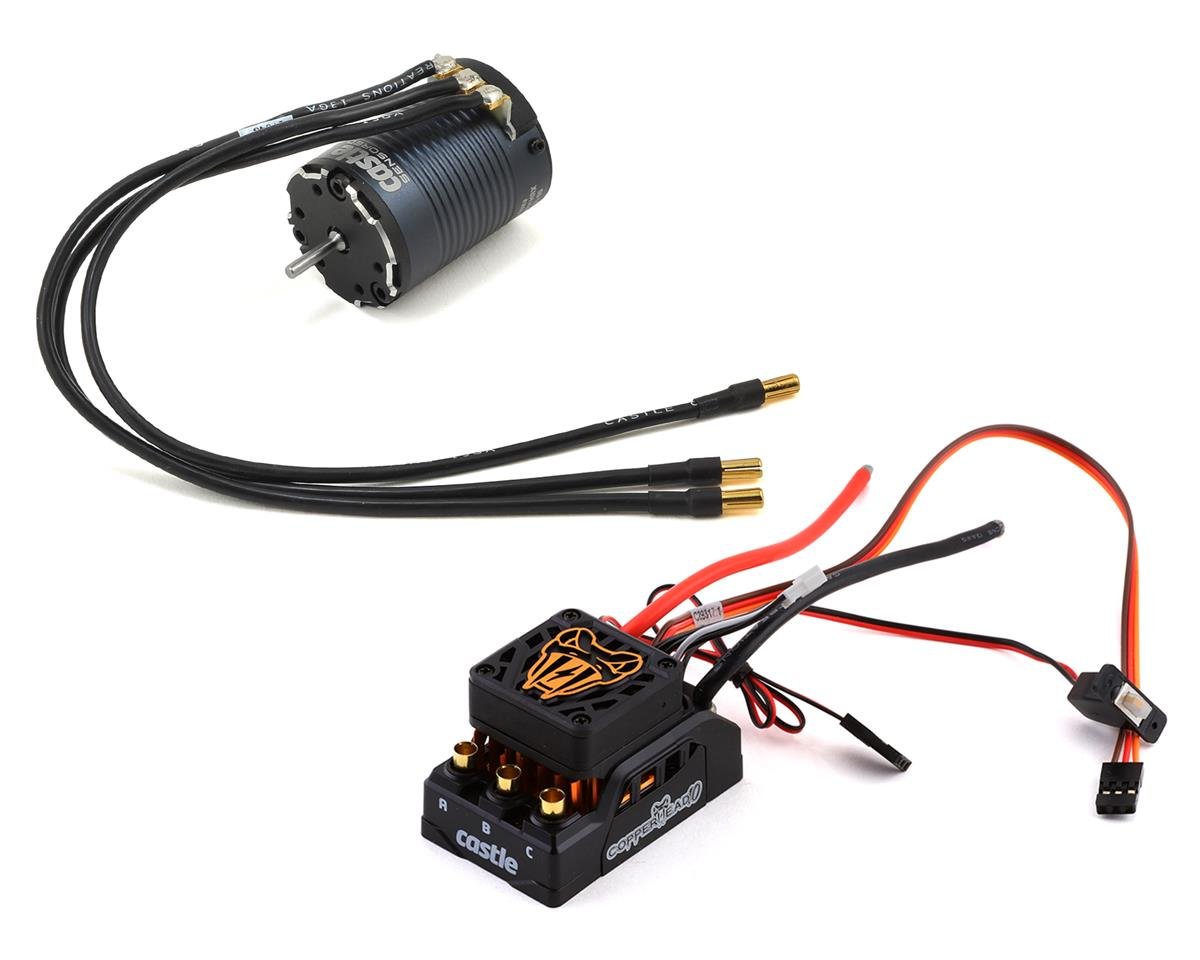

Castle Creations Monster X 1/8th Scale Brushless Car Package takes Castle’s legendary “monster” performance to the next level in an all inclusive combo. This combo package includes the sensored 1515 2200KV motor and is recommended for 1/8 trucks and buggies, on road vehicles and monster trucks weighing up to 15 pounds running up to 6S LiPo batteries.

Why sensored? It can provide a smoother more linear throttle feel and eliminate power surges when coming out of the corners. The waterproof Monster X ESC can run between 2S and 6S LiPo and is a great “power up” upgrade system for 1/8th scale off-road and on-road vehicles. It is also a perfect option for 1/10th scale monster trucks and custom RC monstrosities weighing up to 15 lbs!

Extreme Power • Extreme Control • Extreme Fun!
The Monster X provides even more extreme performance than the Monster 2. Most notable is the addition of a programmable Auxiliary Wire that allows users to make “on-the-go” adjustments to several settings, such as torque control and max throttle. The Auxiliary Wire allows users to fine-tune the performance of their Monster X ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link. Once the user has programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter. The Monster X also features updated Audible Alerts that will notify drivers of possible issues with their calibrations and error conditions to help diagnose problems in the field.

Extreme Power
The Monster X is capable of running from 2S to a maximum of 6S LiPo power, but now features an improved heavy-duty adjustable Battery Eliminator Circuit (BEC) to provide plenty of power for today’s power hungry servos. The Monster X BEC voltage is adjustable from 5.5V, 6.0V, 7.5V and 8.0V with an 8 AMP peak. The Monster X also comes standard with a highly efficient, 30mm ESC cooling fan.

Monster X Data Logging
The Monster X also has the ability to capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the upcoming Castle Quick Connect Duo (sold separately) that allows the user access to both wires into the single Castle Link connection. The user can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.

Telemetry Ready (Compatibility Coming Soon for Futaba T4PX Transmitters!)
The Monster X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations S.BUS Telemetry Link when it is released. Real-time data such as ESC temperature, voltages and RPM can be monitored to ensure performance advantages and spare you the “unknown” parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection, can increase your “tuning awareness” and in turn, let you have more time having fun.

Castle Link Adjustable Settings for Monster X include:

• Brake/Reverse Type
• LiPo Cutoff Voltage
• Brake Amount
• Drag Brake
• Motor Type

Additional Castle Link Benefits include:

• Access all firmware updates, included added feature sets released from Castle Engineering FREE of charge.
• Intuitive Demo Mode
• Ability to save basic to complex setup profiles for later use.

Specifications:

• ESC:
• Input Voltage Range: MIN: 2S LiPo; MAX: 6S LiPo (25.2V)
• BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
• Operating Environment: Waterproof* design allows for use in nearly any environment. (*See Product Use Statements)
• Brake: Proportional
• Reversible: Yes - with lockout
• On/Off Switch: Yes
• ESC Cooling Fan: Yes, factory equipped (30mm), fully removable and replaceable. (**See Product Use Statements)
• Size: 5.3cm x 4.9cm
• Weight: 3.93oz / 111.5g (w/o battery connector soldered to ESC)
• Application Guidelines: Up to 6S (25.2 Volt) operation in vehicles weighing less than 15 lbs, with batteries, ready-to-run.
• Items Needed for Operation: Battery Connector required, Castle 6.5mm Connectors are recommended.
• Motor:
• Input Voltage Range: 2-6S LiPo
• Kv: 2200
• Max. RPM: 60,000
• Length: 75.4mm

• Diameter: 40mm (41.1mm w/fins)
• Weight (w/wires): 429 g / 15.1oz
• Shaft Size: 20mm
• Diameter: 5mm
• Mounting Hole Specifications: M3 & M4 @ 25mm
• Cooling Fan: Optional - Coming Soon
• Connectors: 6.5mm male Castle Bullet Connectors
• Application Guidelines: Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale Monster Trucks up to 15lbs.
• Recommended ESC(s): Mamba Monster X
• Max. Recommended Vehicle Weight: Up to 15lbs
• Tech Notes: Running modes: SMARTSENSE™, Sensored, Sensorless

Product Use Statements:

• *Although Mamba Monster X and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, Castle suggests users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
• **The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
• Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Mamba Monster setups frequently hit 100+ amps in peaks. Castle strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas® Power Cells®). Castle's experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.

The AE-6 ESC/Receiver features a jumper for setting one of two brake options (brakes, or instant reverse), two LED light ports, an auxiliary port (channel 3), a channel 2 port, and a steering servo port.

Compatibility:

• Axial SCX24

Hobbywing EZRun MAX5 V3 1/5 Scale Waterproof Brushless ESC. The MAX5 provides the ultimate power upgrade solution for many popular 1/5 scale vehicles. It is also suitable for various other brands of 1/5 scale on-road cars, buggies and truggies.

Features:

Specifications:

This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.

FEATURES

Fitted with reliable IC3 connector - Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions - Cool-looking integrated red anodized heatsink for increased heat dissipation - Durable motor and battery connection cables for safe and reliable power transfer - Waterproof power switch - Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit  - Etched 'ARRMA' livery for cool looks and quality assurance

INCLUDES

1 x ARRMA MEGA Brushed ESC

Compatibility:

• Arrma Granite 4x4 550
• Arrma Infraction MEGA
• Arrma Senton 4x4 550
• Arrma Typhon 4X4 550

The Castle Creations Mamba Monster X 8S 1/6 ESC/Motor Combo with 1717 Sensored Motor is an incredible combo developed specifically for high voltage large scale applications. The MAMBA MONSTER X 8S ESC utilizes Castle’s proprietary CRYO-DRIVE technology helping to reduce the heat generated, and remove heat more efficiently. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm cooling fan and a forged elliptical fin heatsink, the design maximizes airflow throughout the system, taking thermal performance to a level never seen before.

Mamba Monster X 8S is a workhorse that will dominate in the harshest of environments. Designed with durability in mind, this ESC features a robust aluminum case, combined with epoxy potting helps to guarantee protection around the circuitry, as well as allowing all-weather use. You can easily optimize the ESC for any driving condition - rugged terrain, smooth pavement, or rock and gravel, the MMX8S can handle it all. Plus, the Castle Link Programming Suite will allow the user to create, save and download setup profiles using a Windows™ PC, or wirelessly with the convenience of the B-Link™ Bluetooth™ Adapter and Castle Link app for Android or iOS. The MMX8S also allows tuning on-the-fly via the Auxiliary wire, allowing access to programming parameters such as Torque Control, Max Brake or Rock Race Mode, further optimizing your vehicle for any racing or bashing application you can imagine!

When paired with the included Castle 1717-1650KV sensored motor, heavy, high speed rigs will experience controllable low-end control without sacrificing power, punch or speed. This motor is a blast from the past with the added benefit of sensored capabilities! It is the perfect upgrade for any 1/6th scale vehicles weighing up to 20 lbs and running up to 8s LiPo; it is also a great upgrade for drivers looking for a reliable, high torque 8s motor for their 1/8th scale vehicles! The Castle 1717 1650KV sensored motor features an improved 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. SmartSense™ mode uses the motor’s sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is spinning, it seamlessly transitions to Castle’s ultra-efficient sensorless mode. You’ll put more power to the ground, where it should be, instead of wasting it through raw heat and RPMs.

Application Guidelines: Mamba Monster X 8S and 1717-1650Kv motor is intended for use in 1:6 scale vehicles weighing up to 20 lbs. and running up to 8S LiPo. Also a great upgrade for heavier 1/8th vehicles.

Features:

• ESC:
• Input Voltage Range 2S-8S LiPo
• Sensorless, Sensored and SmartSense™ Running Modes
• Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
• CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
• Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
• Oversized factory equipped thermally controlled 40MM cooling fan
• Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
• Waterproof design for all weather conditions
• Data logging capability to capture and record performance data from your vehicle
• Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
• Easily tune and update ESC with USB and Bluetooth™ programming options
• Castle Link USB programming kit (coupon included with purchase)
• Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
• Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
• Motor:
• 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
• Proprietary stator winding produces low internal resistance for a cooler running motor
• Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
• High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs


Specifications:

• ESC:
• Input Voltage Range: MIN: 2S LiPo , MAX: 8S LiPo 33.6V
• BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
• Operating Environment: Waterproof* design allows for use in nearly any environment.
• Brake: Proportional
• Reversible: Yes, but may be disabled for racing.
• On/Off Switch: Yes, waterproof
• Cooling Fan: Yes, factory equipped (40MM), fully removable** (see Product Use Statements below)
• Size: L x W x H 69.5mm x 54.1mm x 47mm
• Weight (with no battery connector): 5.75 oz. (163 grams)
• Connectors: 6.5mm female bullets for motor connection.
• Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
• Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Link included) and freely downloadable Castle Link Windows™ software, or the Castle Link iOS® or Android® app with B-LINK™ Bluetooth™ Adapter (sold separately).
• Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX transmitters.
• Motor:
• Input Voltage Range: 3S-8S LiPo
• Kv: 1650
• Max. RPM: 56,000
• Size: Length: 3.35" (85.1mm) Diameter: 1.87" (47.6mm)
• Weight (w/wires):  21.08oz. /597.6g
• Shaft Diameter: 5mm
• Mounting Hole Specifications: M3 and M4@25.4mm (1.0") Diameter
• Cooling Fan: Not available
• Connectors: 6.5mm male connectors
• Application Guidelines: Ideal for vehicles up to 20lbs running 6s – 8s LiPo.  Examples include Losi LST2-E; Arrma™: Limitless™, Typhon™ 6s, Infraction™, Talion™ 6s; Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™


ESC Product Use Statements:

• Recommended battery capacity for 1:6th scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries.
• Surge ratings should never be used to determine a pack’s suitability for a brushless application.
• Castle recommends a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
• Applying voltages higher than 33.6V will cause irreparable damage to ESC.
• Although Mamba Monster X 8S is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
• The ESC cooling fan must be removed prior to driving in wet conditions. It is not waterproof.


Tech Notes:

• This motor includes 10AWG wire and 6.5mm connectors for use specifically this ESC/Motor combo.
• Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
• Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

• Mamba Monster X 8S ESC
• 4-POLE Sensored 1717-1650KV Motor
• Castle Sensor Harness Adapter
• 200mm Sensor Wire
• Mamba Decals
• Coupon for free Castle Link USB
• ESC Quick Start Guide
• Motor Quick Start Guide

Compatibility:

• Arrma Felony 6S BLX
• Arrma Infraction 6S BLX
• Arrma Infraction V2 6S BLX
• Arrma Limitless
• Arrma Outcast 8S BLX

• Capacitor Thermal Protection: The capacitor thermal protection first implemented in the MAX10 will effectively protect capacitors from diaelectric failure causing irreversible damage to the ESC due to overload.
• Motor Thermal Protection circuit (in Sensorless Mode): When pairing the MAX10 with a Hobbywing matching motor (i.e. EzRun 3652/3660 G2 motor), the temperature sensor cable on the ESC will monitor the motor temperature and protect the motor from irreversible damage due to overheating in real time.
• High Reliability & Durability: Built with high-quality components and coupled with cutting-edge firmware, the MAX10 is able to deliver unmatched power and performance for even the most extreme racing applications, but it is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
• Super Internal BEC: The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various high voltage servo
• Applicable to All Weather Conditions: The waterproof and dust-proof design allows the MAX10 to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.
• Advanced and Secure Electronic Switch: The MAX10 features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.
• Regular Firmware Updates Free of Charge: You can upgrade the MAX10 with the Hobbywing WiFi/USB LINK software, a WiFi module/ LED or LCD program box and a smartphone/laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.

• Scale: 1/10th
• Brushed/Brushless: BL
• Sensored/Sensorless: SL
• Waterproof: Yes
• Cont./Peak Current: 60A/450A
• Input Voltage: 2-3S LiPo/6-9 Cells NiMH
• BEC Output: Switch Mode: 6V/7.4V,3A
• Wires & Connectors
• Input Wires: Red-14AWG-200mm*1/Black-14AWG-200mm*1
• Output Wires: Black-14AWG-200mm*3
• Input Connectors: No
• Output Connectors: 3.5 Bullet Connectors (Female)
• Note: All the wire length above is the original length not the length you see from the outside.
• Fan
• Size: 25.0x25.0x10.0mm
• Voltage Range: 5-7.4V
• Powered by: BEC
• ESC Programing via
• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• Program Port: PRG/Fan Port
• Firmware Upgrade: Supported
• Size & Weight
• Size: 39.4x32.8x23.1mm
• Weight: 67.8g
• Applications
• Motors: SL BL Motors/SD BL Motors (only in SL mode)
• Vehicles: 1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck
• KV Rating/T Count: 2S LiPo: KV≤6000;3S LiPo: KV≤4000 (3652 Series of Motors)

XL-5™ Waterproof FWD/REV ESC
with Low Voltage Detection (LVD)

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-7 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. XL-5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-5 is backed by the Traxxas Lifetime Electronics Warranty.

Traxxas High-Current Connector*
The XL-5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

Patented Training Mode™
An exclusive feature that places the XL-5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model.  When they're ready, simply change profiles to unleash full-throttle action.  Only Traxxas has it!

XL-5 LVD Waterproof ESC Features

• Built-in two-stage low voltage detection (LVD)
  for Lithium Polymer (LiPo) battery use
• Innovative watersealed design
• 15-turn motor limit for 540 size motors
• 12-turn motor limit for 550 size motors
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
  • Sport Mode – Fwd / Brake / Rev
  • Race Mode – Fwd / Brake
  • Training Mode* – 50% Fwd / Brake / 50% Rev
• EZ-Set^® push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty

1:8 Electronic Power Switch for XR8

This Electronic Power Switch controls the ON/OFF of current flow electronically. This helps solving problems caused by vibration or oxidation of contacts conventional mechanical switches have.
