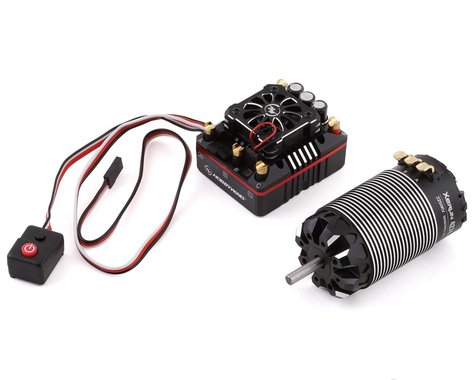

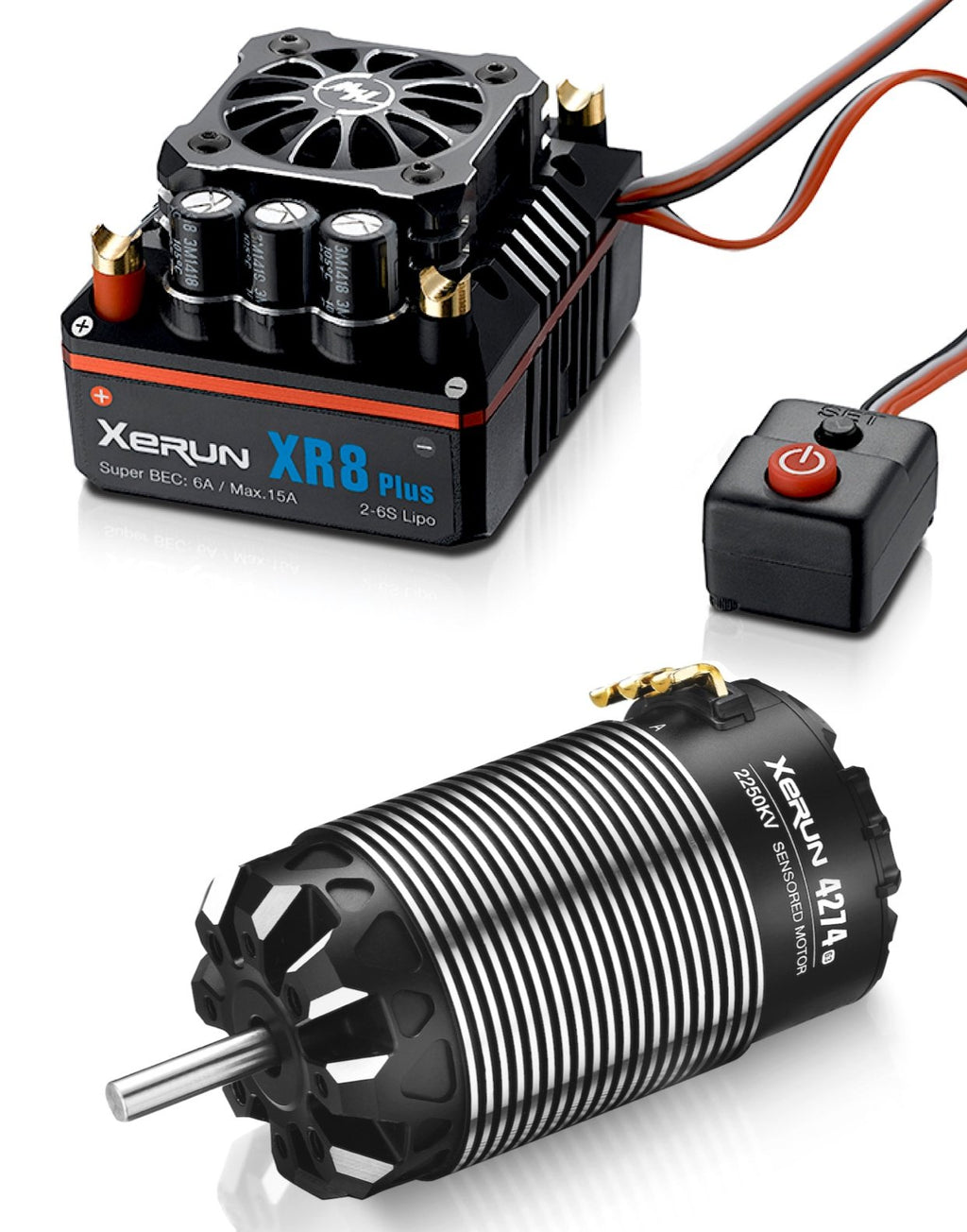

The Hobbywing Xerun XR8 Plus Brushless ESC/Motor Combo includes the awesome 4274SD G3 2250kV 1/8 Scale Sensored Brushless Motor to deliver unmatched power, performance and reliability for demanding 1/8 scale racing applications. Built with high quality components and loaded with cutting edge firmware, the XR8 Plus is responsive enough to protect itself from damage due to abuse, overuse, or even human error. With it's incredible power output and adjustable parameters, the XR8 Plus will deliver the smooth throttle response and linear throttle/brake qualities that discriminating drivers demand. Combine this incredible ESC with the Hobbywing Sensored Brushless Motor and you have an incredible combo package for 1/8 Off-Road Buggy applications.
Built In High Voltage BEC: The XR8 Plus is the first 1/8 ESC that includes an integrated HV BEC with 15 Amp output current, and adjustable output voltage from 6 to 7.2V. This BEC is designed to handle power hungry servos with ease.
Reliable Cooling System: Patented cooling technology utilizes proprietary heat conductive copper bars to rapidly and effectively transfer all internal heat from the MOSFET board to the integrated CNC machined billet aluminum heatsink housing. The cooling fan utilizes a shock proof mounting system that reduces the possibility of fan damage due to the repeated shock of landing jumps in an 1/8 scale off road environment.
Coasting: The XR8 Plus provides exceptionally smooth off throttle coasting function (patent pending), which simulates the feeling of inertia and momentum of a large scale car driving experience. This greatly improves the performance of builds that utilize large high powered motors, as electromagnetic drag becomes a substantial factor in sudden deceleration when in the off throttle position, adversely affecting race performance and handling.
Advanced and Secure Electronic Switch: The XR8 Plus features an electronic switch that has been rated with a lifespan of over 50,000 on/off cycles. The switch is completely waterproof, dust proof and shock resistant.
Virtually Maintenance Free: Thanks to the well thought out design, the XR8 Plus is virtually maintenance free. Advanced error sensing and thermal protection, an exceptionally rugged housing, the ultimate in heat dissipation technology and shock proof fan mounting make this ESC able to withstand anything a racer can throw at it.
High Performance Dynamic Timing Algorithm: The XR8 is the worlds first competition level 1/8 scale ESC that has dynamic timing technology. This expands the adjustable power output range of the ESC while still maintaining system efficiency and smoothness.
Included Accessories: Includes 10awg wire, and mounting hardware. Does not include programming box.
2250Kv recommended for 1/8 truck off road
Turbo Timing Technology
Full Sensored mode (when paired with XR8 ESC)
Adjustable Timing (Bi-Directional) 20-40 degrees
Advanced Hall Sensor System
4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
Guarantees users the effective heat dissipation and dust prevention
The use of double insulated windings (240C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340C) guarantees users the outstanding performance and super durability
