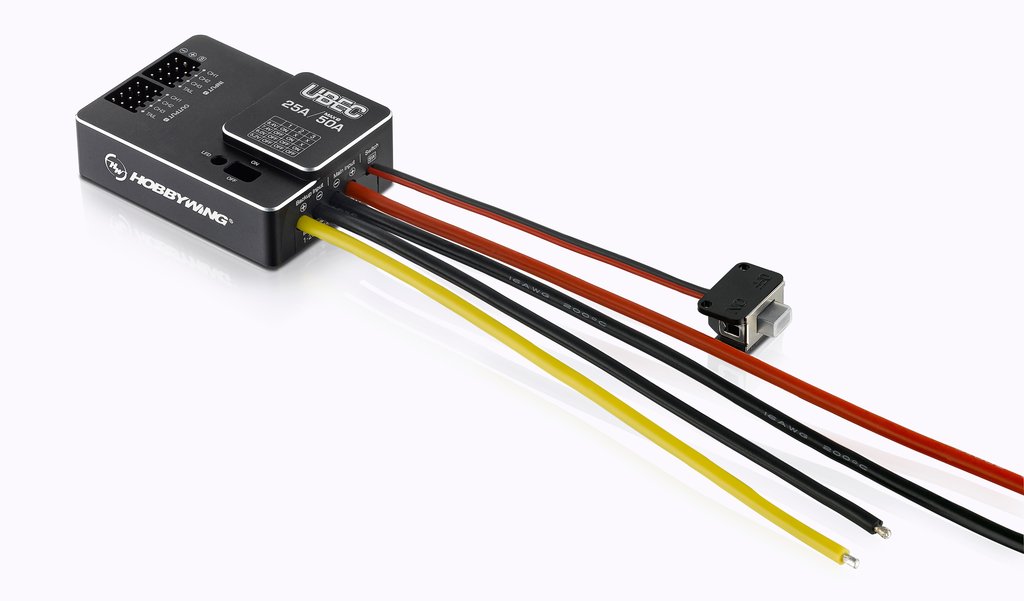

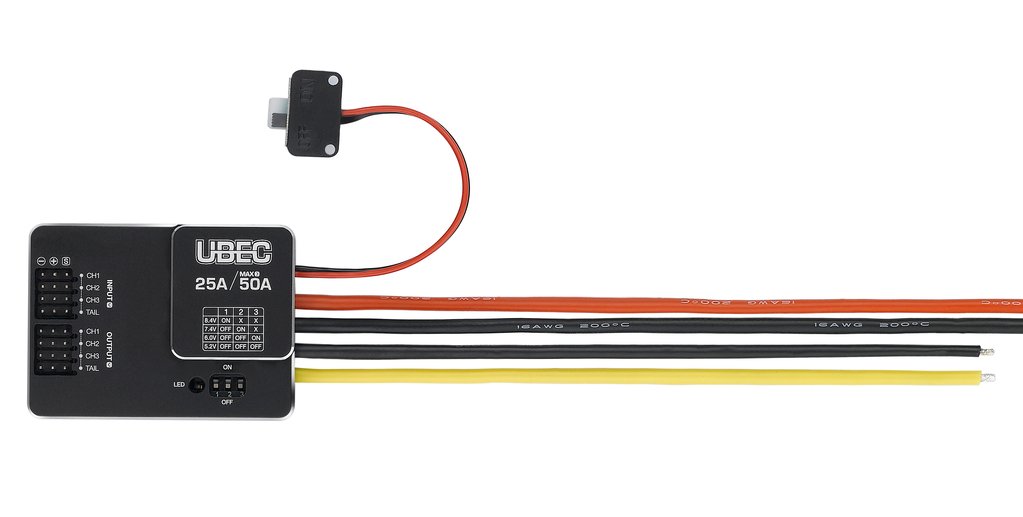

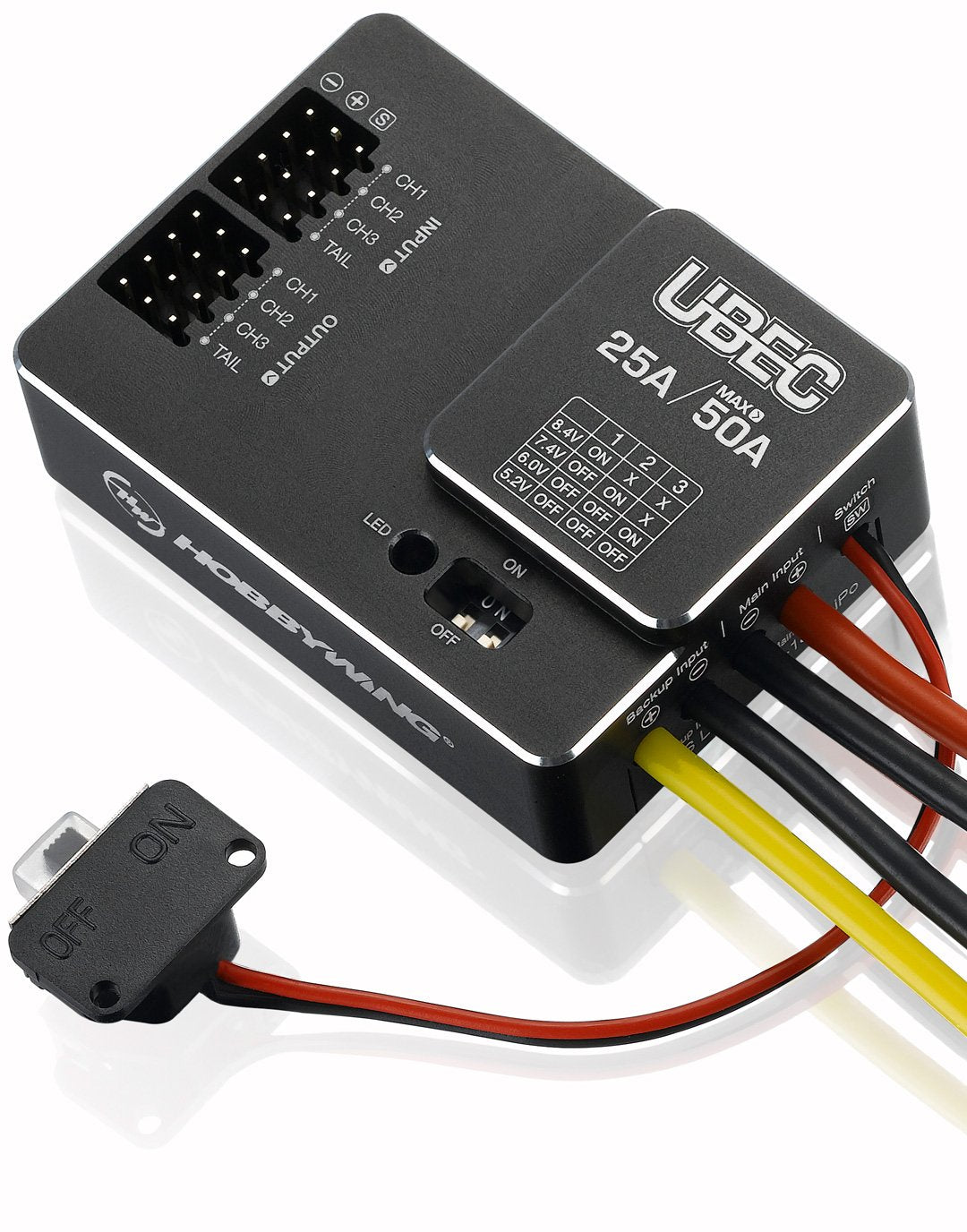

Metal case helps dissipate heat and reduce electromagnetic interference. The highly efficient DC voltage-regulating chip pairs with the specially designed circuit hardware for conversion efficiency over 90%. Continuous current of 25A (w/ peak current of up to 50A) meets various application requirements.
Input Voltage (of the Main Power Supply): 3S-18S LiPo (9V-80V)
Input Voltage (of the Backup Power Supply): 1S-2S LiPo (3-9V)
Output Voltage: 5.2V/6.0V/7.4V/8.4V Adjustable
Input Wires: Main Power Supply: Red and Black, 16AWG-270mm
Output Wires: 3P Vertical Pin Header, 60-strand PVC Wire, w/ Two 3P-JR Male Connectors
Size: 55 x 40.2 x 17.6mm
