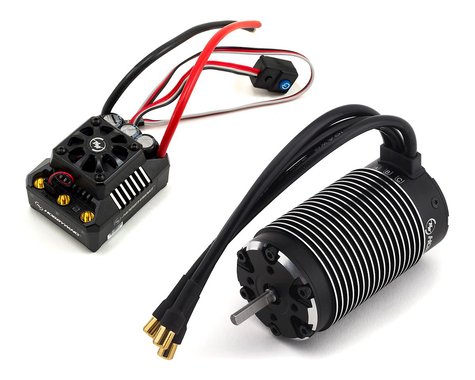

The Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo includes the 4985SL 1/7 scale, 1650kV motor and is a great option for high-end, aggressively powered 3S - 6S builds.
Specifications:
-
Motor:
-
Model: 4985SL-1650KV
-
Pole: 4
-
KV (No-load): 1650KV
-
Resistance: 0.0053 Ω
-
Current (No-load): 5.4 A
-
Max. Output Power: 5700 W
-
Current at the point of M.O.P: 160 A
-
Motor Diamter: 49mm
-
Motor Length: 86.5mm
-
Shaft Diameter: 5.0mm
-
Shaft Length: 21.5mm
-
LiPo Cells: 3-6
-
Weight: 587g (20.71oz)
-
Applications: 1/6th & 1/7th RC Vehicles
- ESC:
- Continuous Current: 160A
Peak Current:
- Peak Current:
- Peak Current: 1,050A
- Motor Type: Sensorless Brushless Motor
- Applications: 1/6th Touring Car, Buggy, Truggy and Truck
- Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
- LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
- BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
- Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
- Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
- Size (LxWxH): 70x56x46.5mm
- Weight: 240g
- Programming Port: FAN /PRG Port
