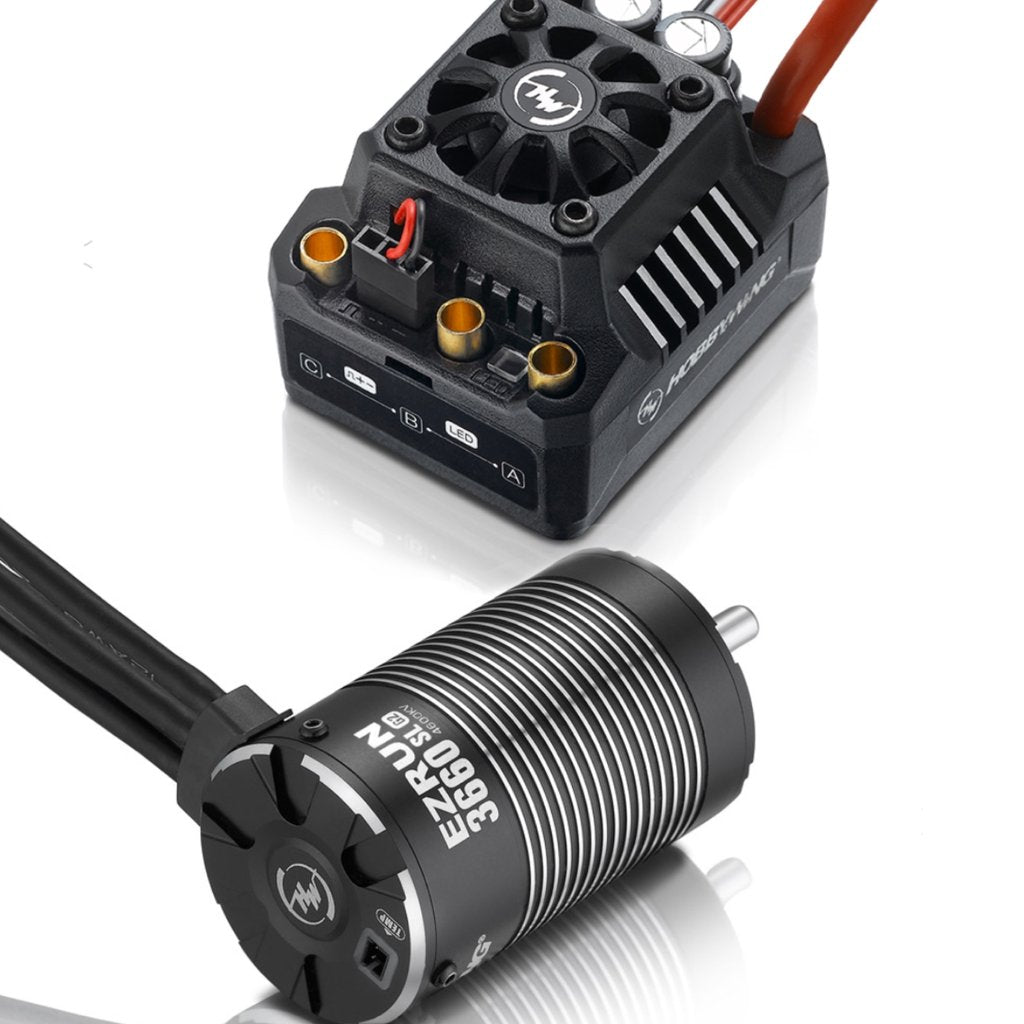

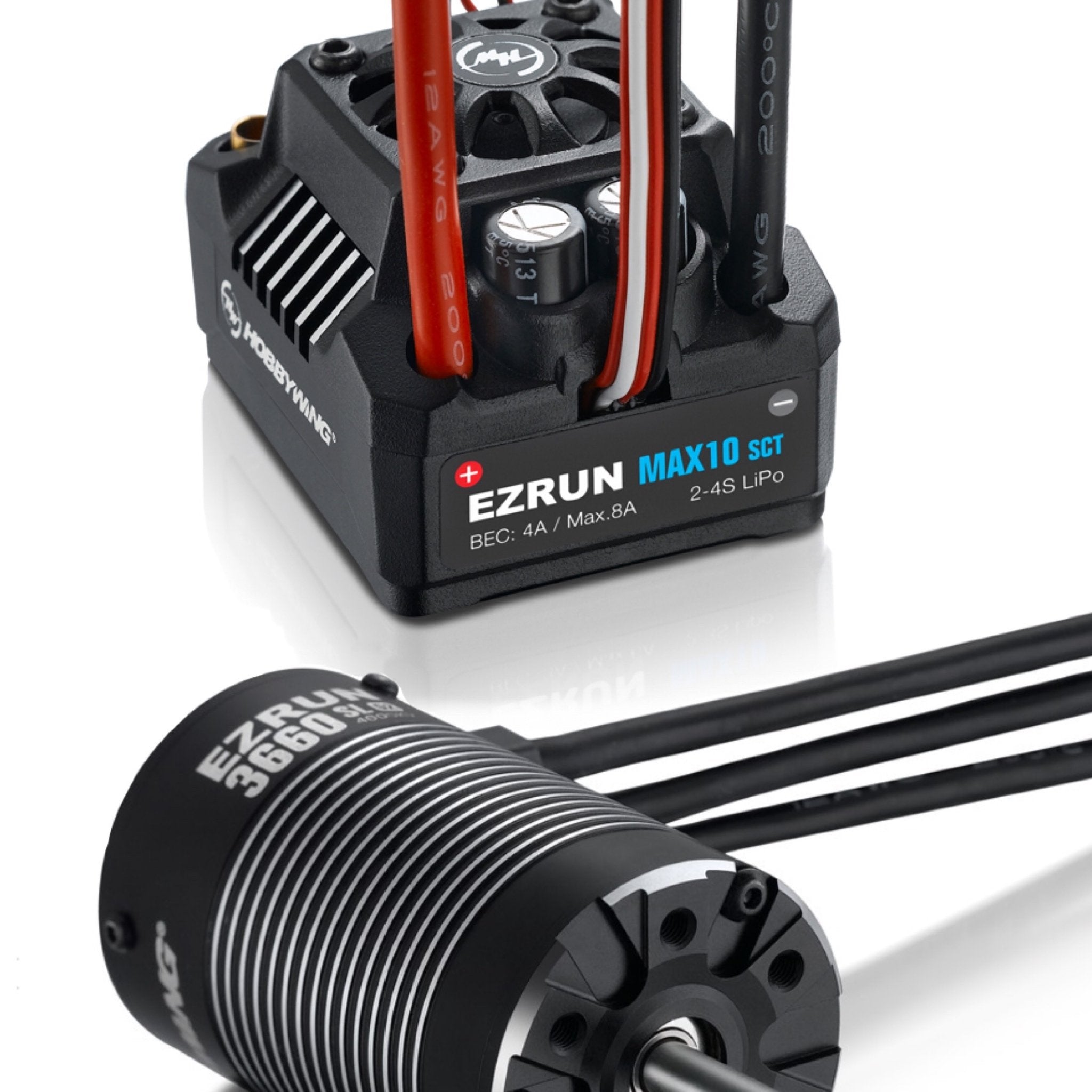

HobbyWing MAX10 SCT ESC, w/ 3660SL 3200kv Sensorless Motor Combo *Archived

Discontinued
HobbyWingSKU: HWI38010200
No reviews

Price:
Sale price$ 143.99
Stock:
Sold out

Description

MAX10 SCT ESC Specifications:

Continuous Current: 120A
Peak Current: 760A
Motor Type: Sensorless Brushless Motor
Applications: 1/10th Short Course Trucks, Stadium Trucks, Monster Trucks
Motor Limit:
2S LiPo: KV =6000
3S LiPo: KV =4000
4S LiPo: KV =3000
LiPo/NiMH Cells: 9-12S NiMH, 3-4S LiPo
BEC Output: 6V/7.4V Switchable, Continuous Current of 3A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 5V/7.4V
Connectors: Input End: None, Output End: Female 4.0mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size (LxWxH): 49.0x39.5x34.7mm
Weight: 105g
Programming Port: FAN/PRG Port


3660SL 3200KV Brushless Motor Features:

- Innovative 4-pole-8-magnet "staggered pole" rotor
- Built-in temperature sensor and sensor port
- O-ring seal fitted between the front end bell and motor case
- Special design implemented by the motor case
- Special technology for temperature control
- CNC machined aluminum housing
- Rebuild-able design (partially rebuild-able) for routine maintenance
- Excellent match between EZRUN 3660 G2 with EZRUN MAX10 SCT
