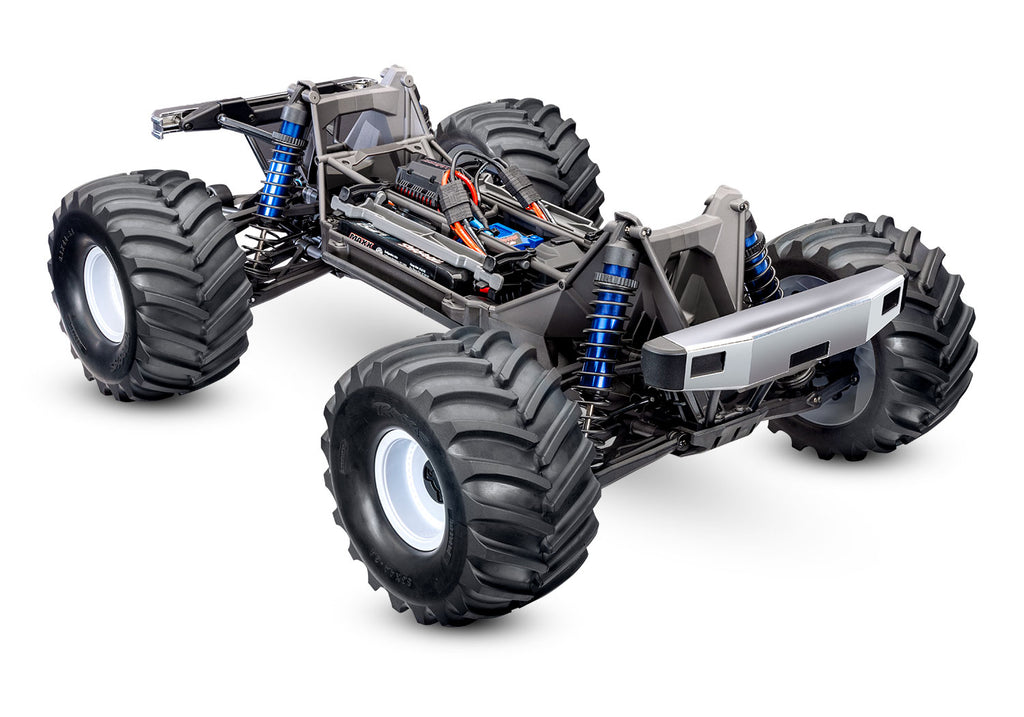

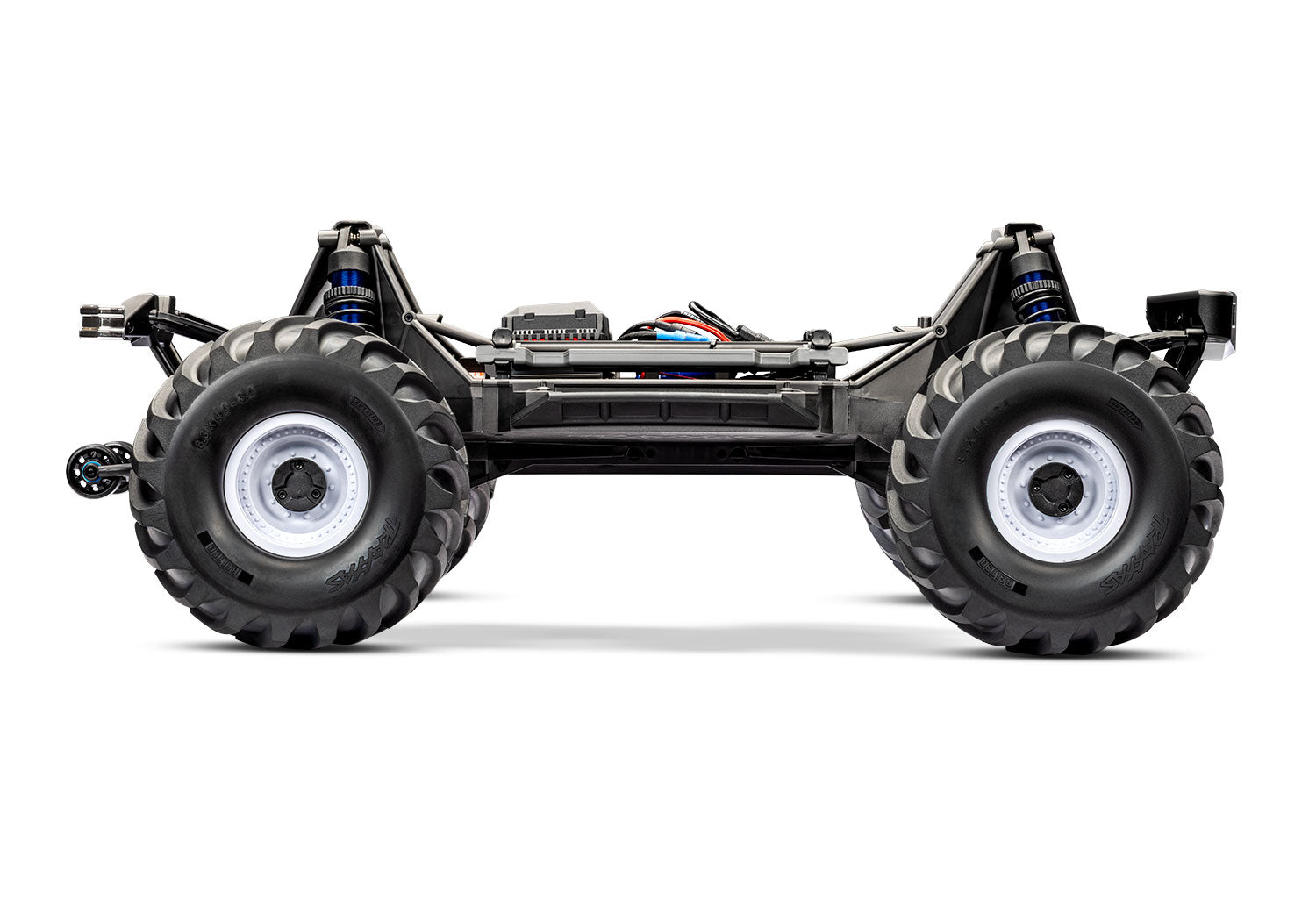

Traxxas X-Maxx MT Chassis

New
TraxxasSKU: TRA77036-4
No reviews

Price:
Sale price$ 1,099.95
Stock:
Only 2 units left

This item is available in-store only.

Call for Availability

703-631-8820

📂 Manuals & Support

Description

TRA77036-4 (WB)

Model Name: X-Monster Chassis
Type: Monster Truck
Speed: 50+ mph with two 4s LiPo batteries and optional speed gear (sold separately)
Skill Level: 6
Scale: X-Truck
Weight: 19.1 pounds (8.66 kg)
Length: 30.67 inches (779 mm)
Width: 21.3 inches (540 mm)
Front Track: 21.3 inches (540 mm)
Height: 13.99 inches (355 mm)



Wheelbase: 18.92 inches (480 mm)
Center Ground Clearance: 4.2 inches (107 mm)
Drive System: Shaft-driven 4WD
Drivetrain: Shaft-driven 4WD
Transmission: Single speed
Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: 1.0 metric pitch
Servo: 2085XL metal gear ultra-high-torque waterproof
Radio System: TQi™ 2.4 GHz 2-channel
Battery Compartment Specs: 197 mm X 52 mm X 44 mm



MOTOR SPECS

Motor Name: Velineon 1200XL
Type: 1275 Kv sensorless brushless
Weight: 23.44 ounces (665 g)
Length: 4.32 inches (110 mm)
Diameter: 1.88 inches (48 mm)
Shaft Size: 5 mm
Connector Type: 6.5 mm bullet connector



MOTOR SPECS

Motor Name: Velineon 1200XL
Type: 1275 Kv sensorless brushless
Weight: 23.44 ounces (665 g)
Length: 4.32 inches (110 mm)
Diameter: 1.88 inches (48 mm)
Shaft Size: 5 mm
Connector Type: 6.5 mm bullet connectors


ESC SPECS

ESC Name: Velineon VXL-8s
Type: Brushless
Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
Weight: 7.60 ounces (215.5 g)
Motor Connectors: 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10 gauge Maxx® Cable



  • Choose from Several Clipless Monster Truck Bodies (sold separately)
    • Quick one-hand installation and removal
    • Pivoting rear latch mechanism
    • Eliminates body posts and clips
    • Reinforced for extra protection
  • VXL-8s™ Waterproof Electronic Speed Control
    • 8s LiPo compatible
    • Built-in cooling fan
    • Machined heat sinks
    • 10-gauge silicone wire
    • Integrated protection circuits
    • LED status lights
  • Velineon® 1200XL Brushless Motor
    • 4-pole 1275 Kv
    • 5 mm output shaft
    • Aluminum slip-on heat sink
    • Dual motor cooling fans
  • 50+ mph with Two 4s LiPo Batteries and Included Optional Pinion Gear
  • Traxxas Stability Management® (TSM)
    • Helps prevents spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz High Output Radio System
    • Traxxas Link™ enabled
    • 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity
    • BEC Voltage and Motor Temperature Sensor installed
    • 8s Driveline
      • Steel pinion and spur gear
      • Full-time shaft-driven 4-wheel drive
      • Heavy-duty steel CV driveshafts
      • Beefed-up steel differential output cups
      • Splined aluminum center driveshaft
      • Machined aluminum stub axles
      • Torque-Biasing Center Drive™ absorbs shocks and distributes power to all four wheels
      • 24 mm splined wheel hexes
      • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
    • Fixed Motor Mounting System
    • Preset gear mesh adjustments
    • No manual adjustments required
    • Motor retention separate from gear mesh

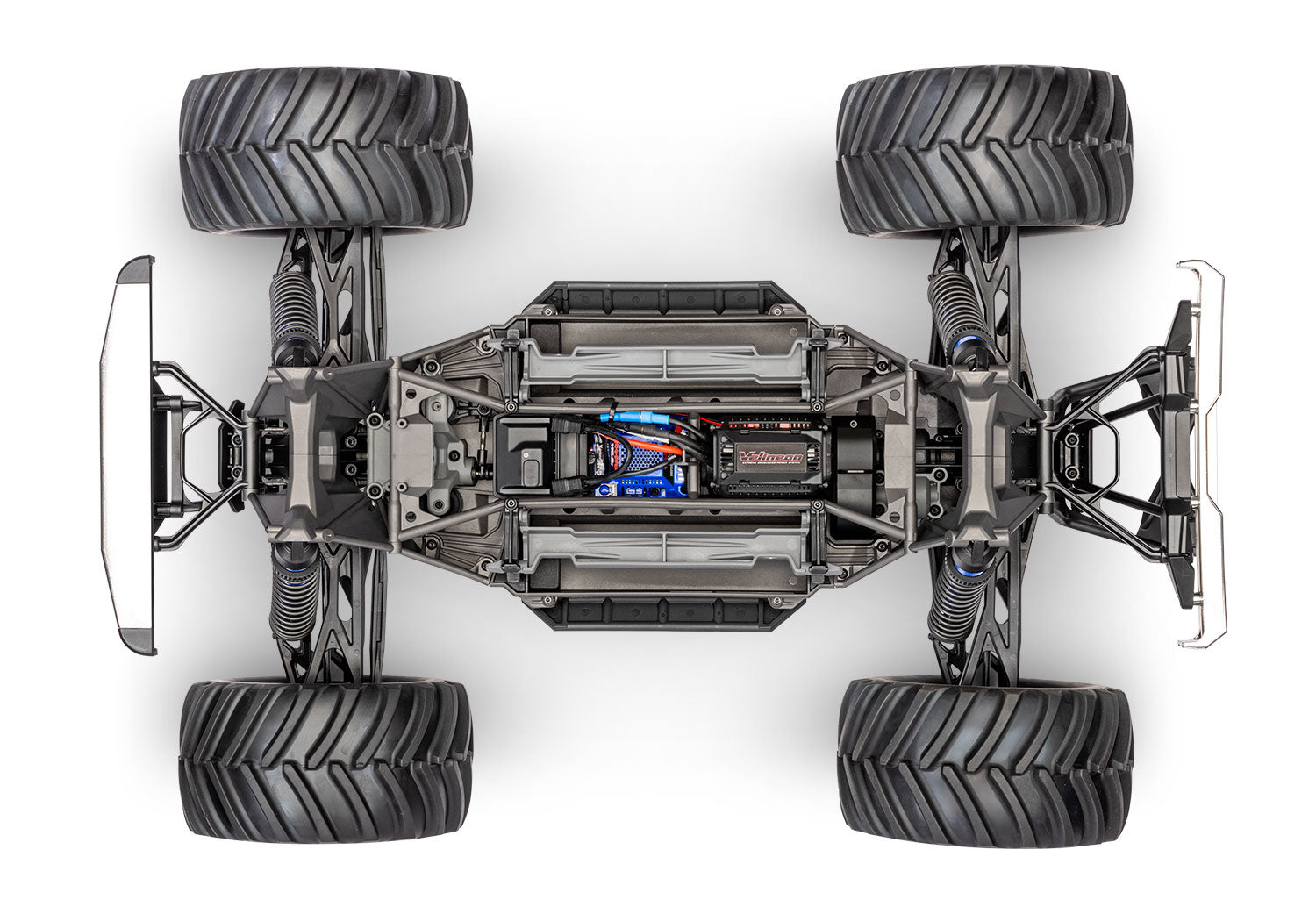

    • Heavy-Duty Modular Composite Chassis
    • Interlocking front and rear bulkheads
    • Motor mounts to rear bulkhead to eliminate gear crunching flex
    • Easy to service and access components
    • Driveline is sealed in the chassis to keep out dirt and grit
    • Snap-Lock Battery Retention System
    • No body clips or hook and loop straps
    • Battery hold-downs pivot for easy access
    • Adjustable for battery size
    • More secure than conventional retention systems
    • Integrated into chassis top brace for improved battery tray and chassis stiffness

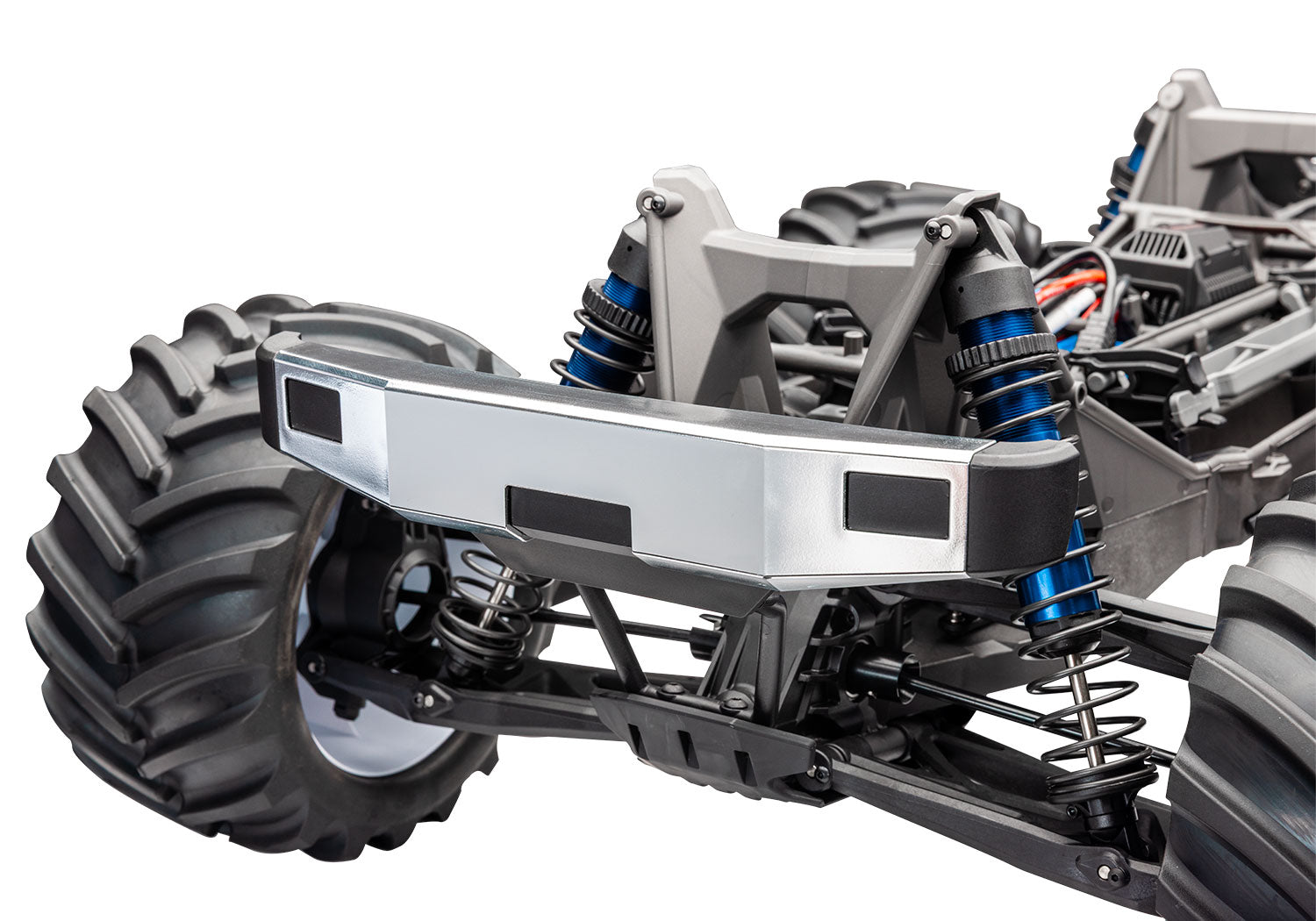

    • Bumpers & Skid Plates
    • Front energy absorbing rubber impact cushion
    • Lower front and rear skids for impact and abrasion resistance
    • Integrated nerf bars for side impact resistance
    • Steering

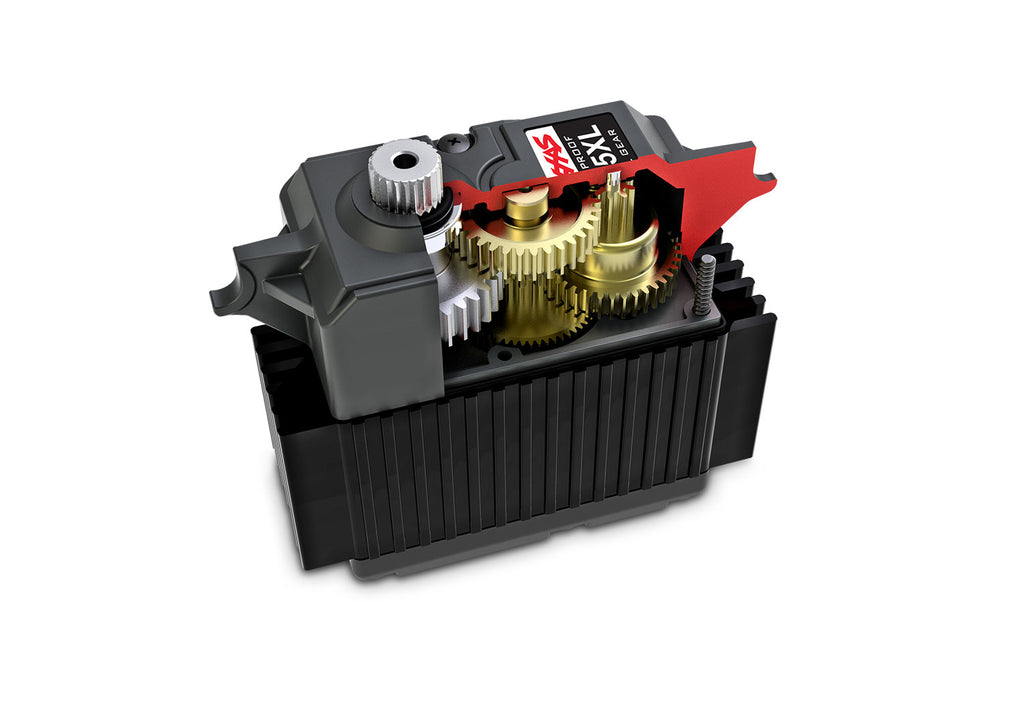

      • 2085XL high-output metal-gear steering servo
        • 450 oz-in torque
        • Aluminum cooling fins
      • Fully-supported case mounting
      • Double-shear, bearing supported servo horn
    • Suspension

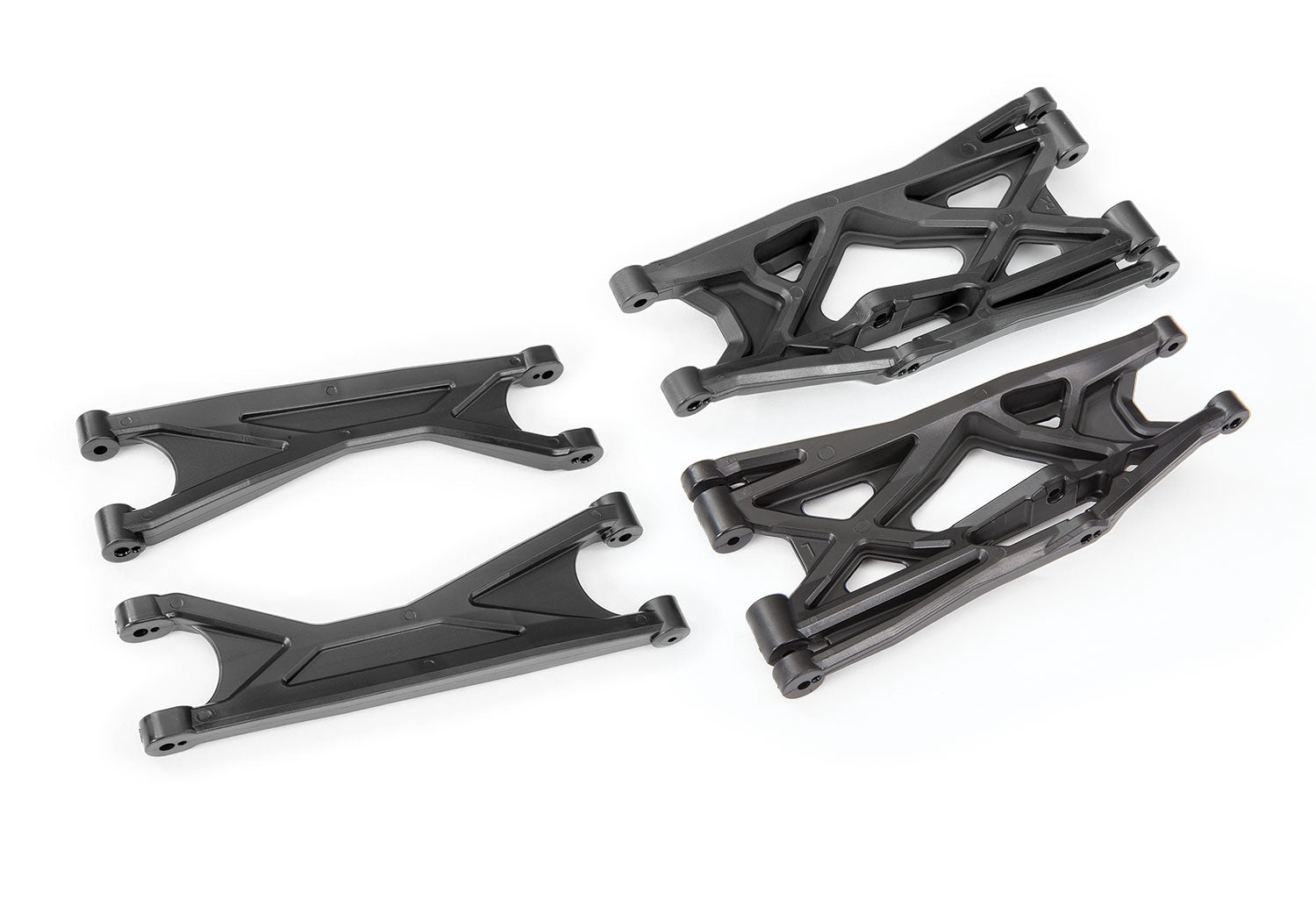

      • Heavy-duty suspension arms with double-shear connections
      • High strength steel suspension pins used throughout
      • Captured outer lower suspension pins with locknuts
      • C-hub and steering block geometry maximizes steering angle
      • Adjustable roll center
      • Steel upper and lower tie bars
      • Full contact sealed bearings used in exposed locations

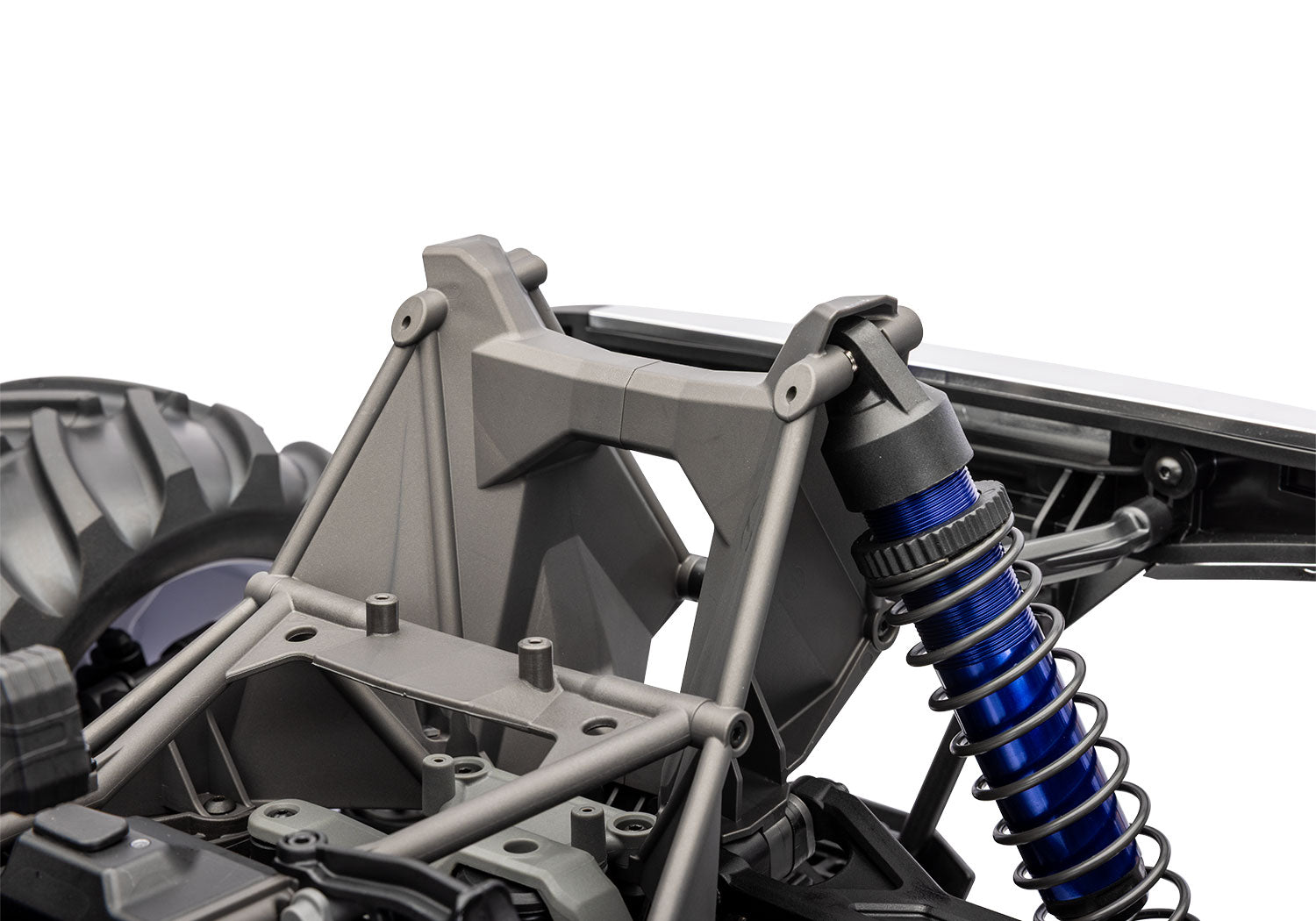

    • Aluminum GTX™ Shocks
      • Machined aluminum threaded body
      • Extra-large bore and capacity
      • 5.2 mm damper shaft
      • Lower seal cartridge includes integrated wiper seal combination
      • Adjustable upper spring retainer
      • Plastic shock caps with pivot balls
      • Fixed shock locations
      • Lower spring perches bolted on

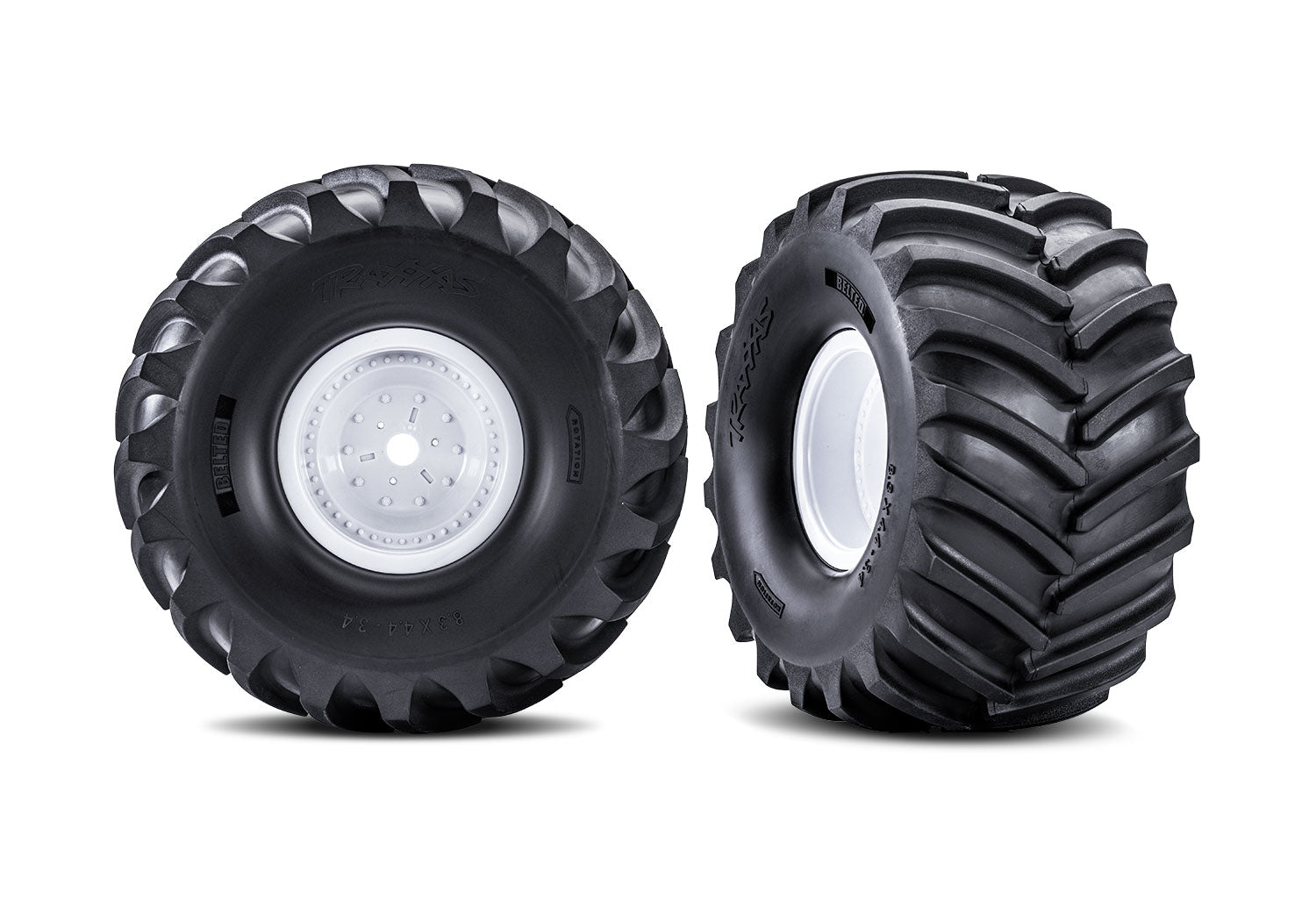

    • Wheels & Tires
      • Dual-profile white monster truck wheels
        • Replica military-style axle hubs
      • Huge 8.6" belted chevron-pattern monster truck tires
        • Super-soft rubber compound for exceptional grip
        • Internal belting virtually eliminates ballooning
