A Note about this item:
Description
| Name: | Slash 2WD XL-5 HD Kit |
|---|---|
| Type: | Short Course Truck |
| Speed: | 30+ mph with 7-cell NiMH battery |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 4.81 pounds (2.18 kg) |
| Length: | 22.8 inches (578 mm) |
| Width: | 11.65 inches (296 mm) |
| Front Track: | 11.65 inches (296 mm) |
| Rear Track: | 11.65 inches (296 mm) |
| Height: | 7.60 inches (193 mm) |
MOTOR SPECS
| Name: | Titan® 12T 550 |
|---|---|
| Type: | High-speed brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
- Clear Clipless Short Course Body
- Includes window masking, decals, and custom masking decals
- Tough front and rear tube-style bumpers
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
- Waterproof XL-5™ Electronic Speed Control
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Titan® 550 Motor
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- Molded wire retainer keeps motor wires secure
- Extreme Heavy Duty Parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- HD suspension arms
- Extreme heavy duty driveshafts
- Extra material for improved strength
- TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- O-ring sealed watertight receiver box keeps the receiver dry
- Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2S LiPo battery configurations
- Transmission and Driveline
- Velineon®-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
- Heavy-duty telescoping U-joint driveshafts and yokes
- Tough Fiber-Composite Monocoque Chassis
- Long 13.2″ wheelbase for increased stability
- Over 3.5″ ground clearance
- Steering
- Digital High-torque waterproof Traxxas 2075 steering servo
- High-performance bellcrank system minimizes bump steer
- Suspension
- Adjustable steel turnbuckles
- Captured rod ends won't pop off
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Race-tuned progressive rate white powder-coated springs
- Wheels and Tires
- Pre-glued BFGoodrich® Mud Terrain™ T/A® tires with performance foam inserts
- 2″ outer diameter, 3″ inner diameter dual-profile SCT wheels

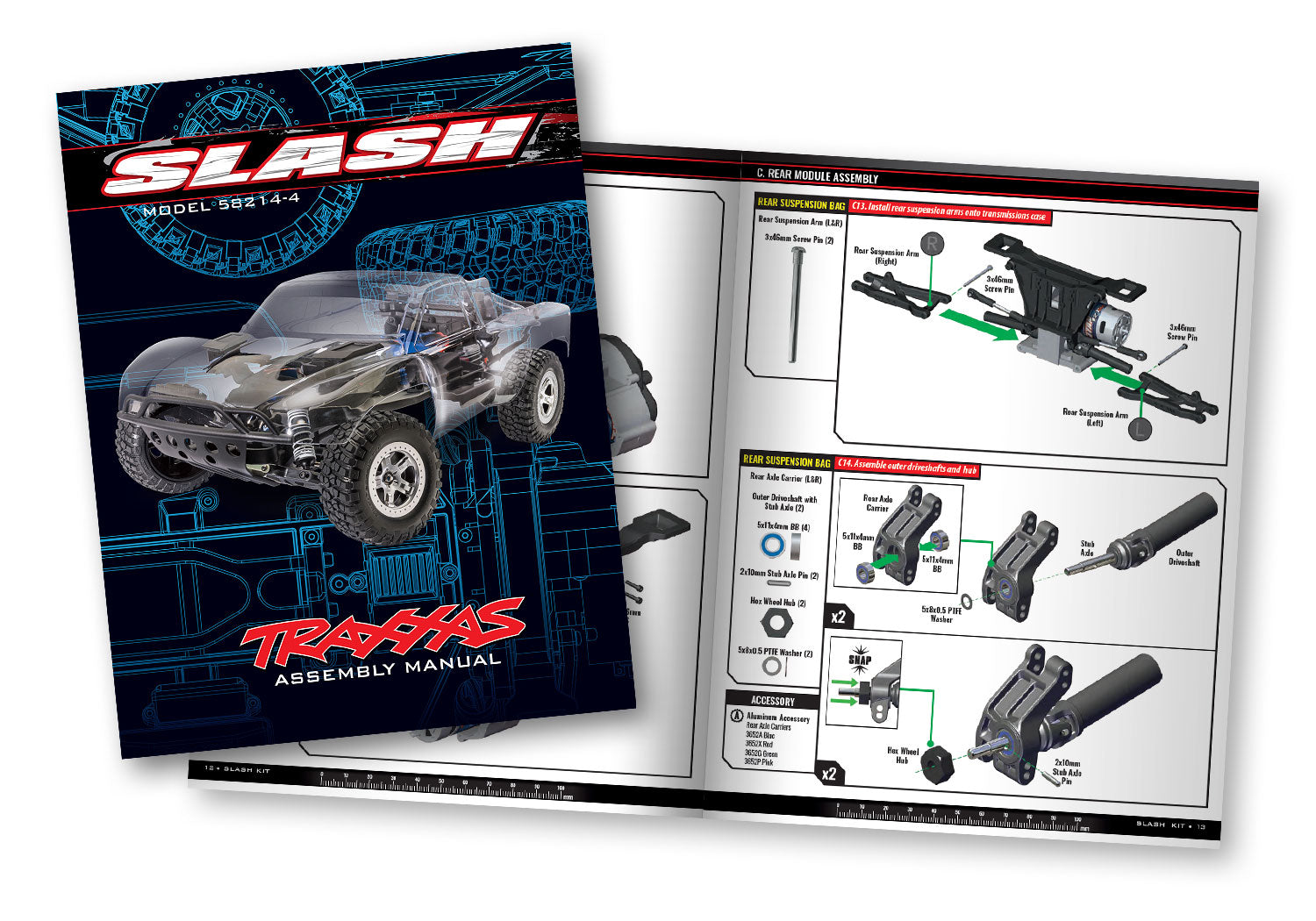

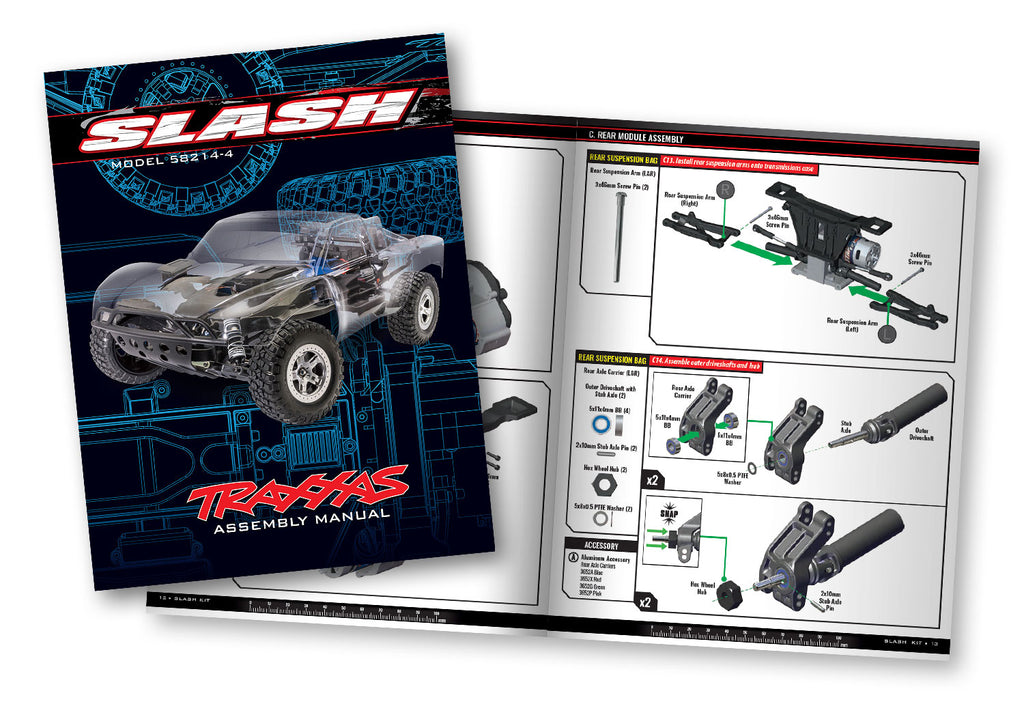

- Includes Full-Color Step-By-Step Assembly Manual
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Battery and Charger Sold Separately
MODEL 58314-4: 1/10 scale Slash® 2WD short course truck assembly kit with with factory-installed Extreme HD components, TQ 2.4 GHz radio system, XL-5™ electronic speed control, clipless clear body, and full-color step-by-step assembly manual. Requires: battery, and charger.

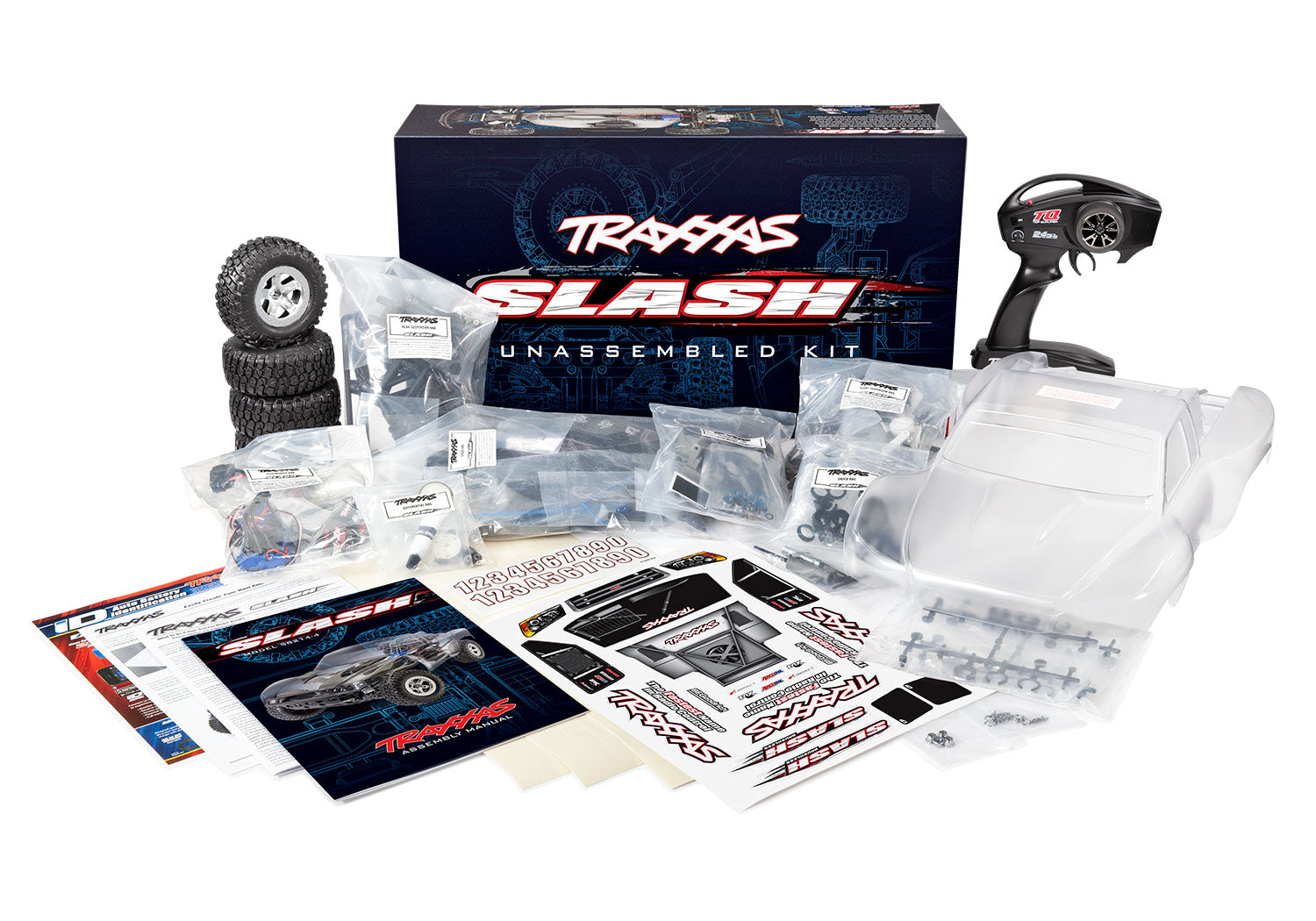

What’s In The Box:
- Slash 2WD short course truck assembly kit
- XL-5 ESC and Titan® 550 Motor
- Clipless clear body with window masking, decals, and custom masking decals
- Full-color step-by-step assembly manual
- TQ™ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Slash requires a single NiMH or LiPo battery. See full list of batteries.
- Charger
Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
