Description
RAPTOR R STYLING. PRO SCALE® PERFORMANCE.

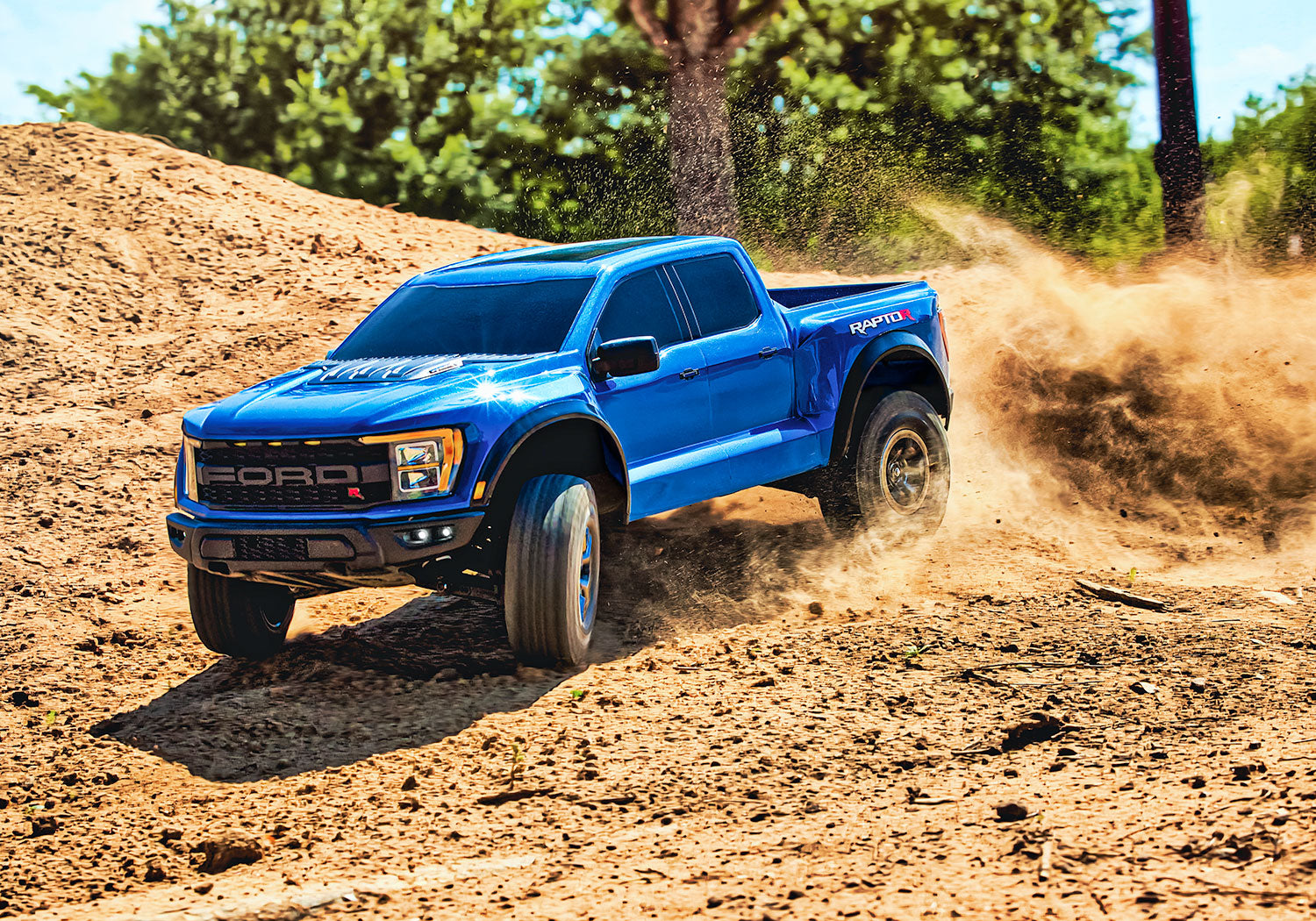

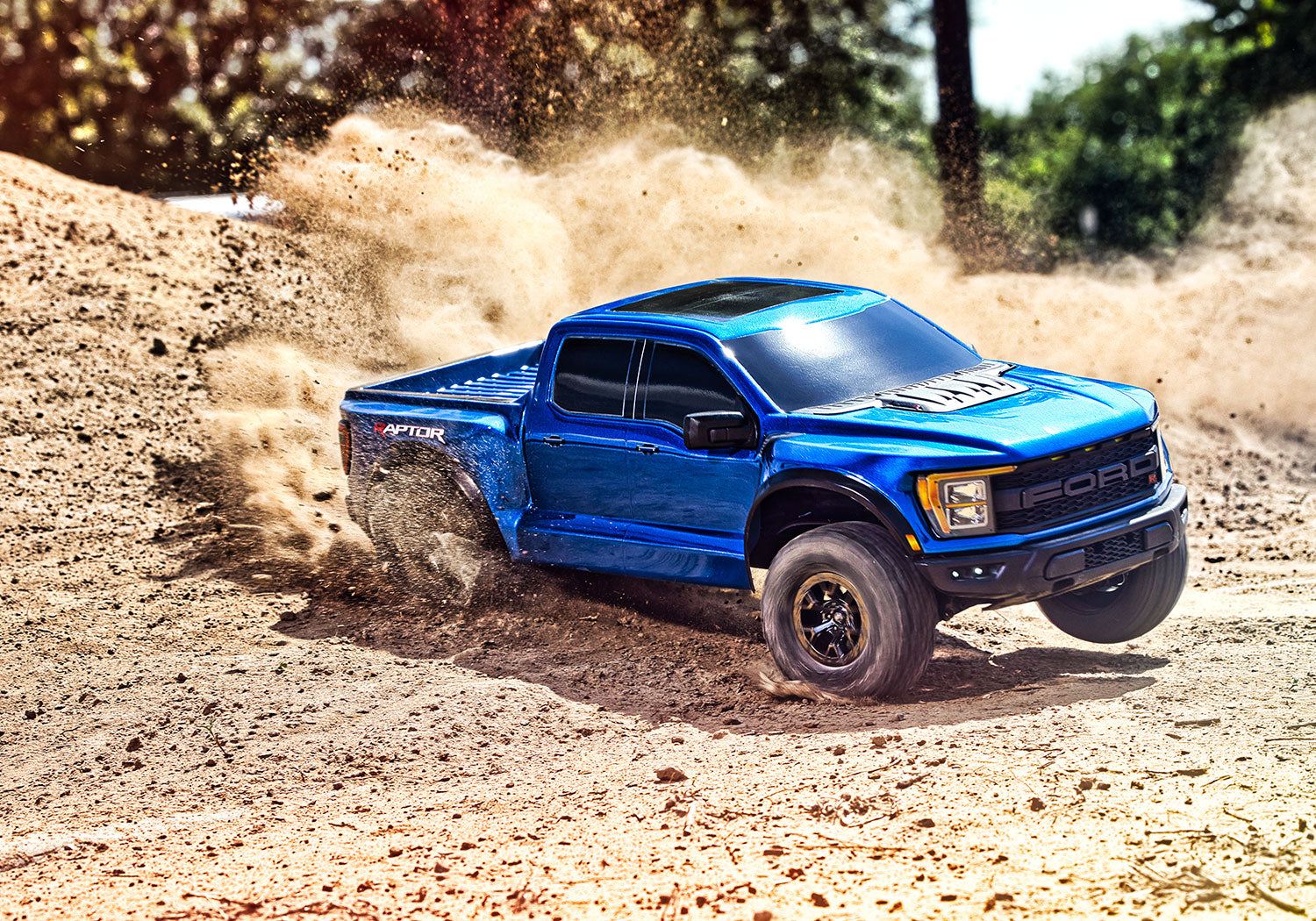

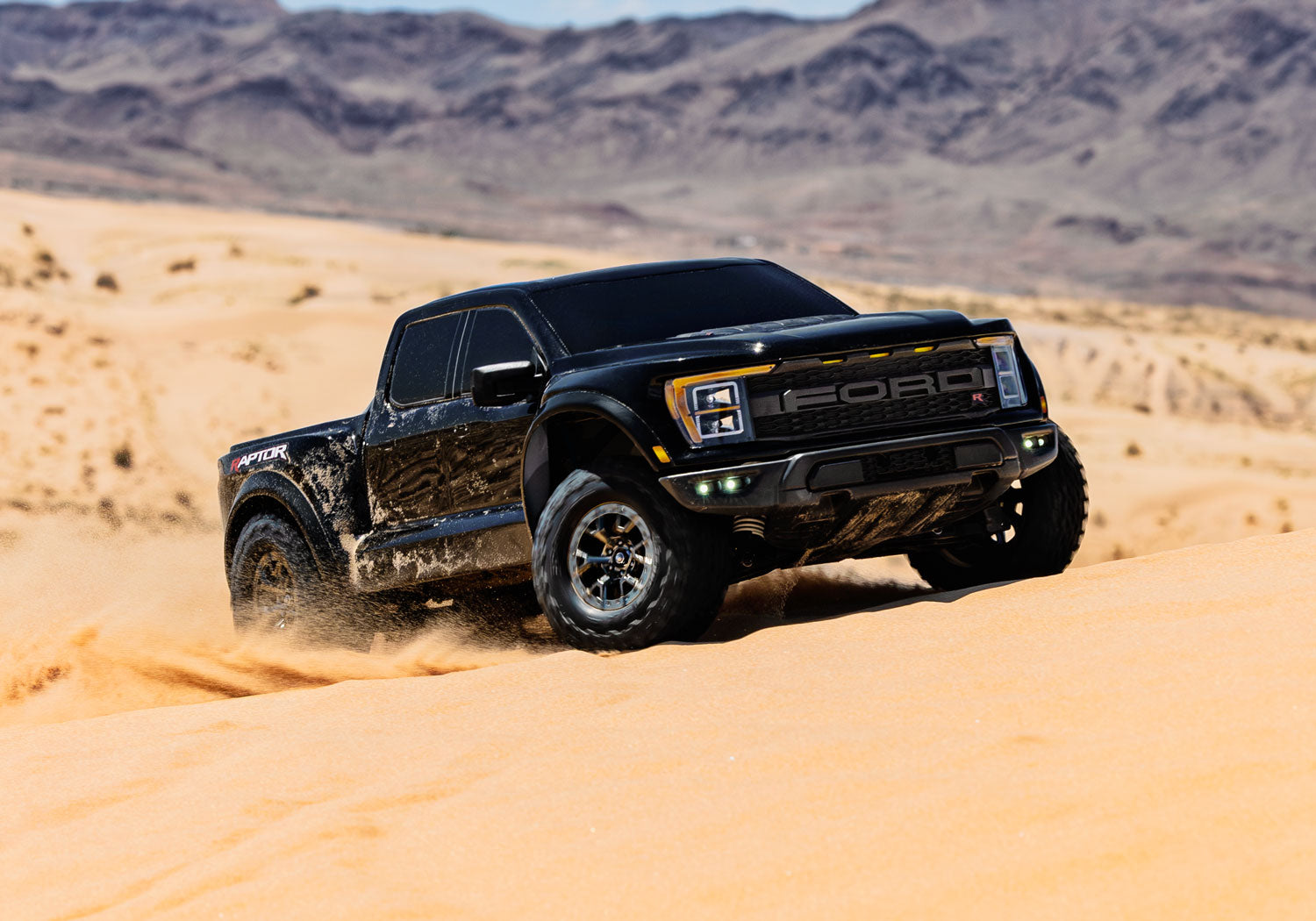

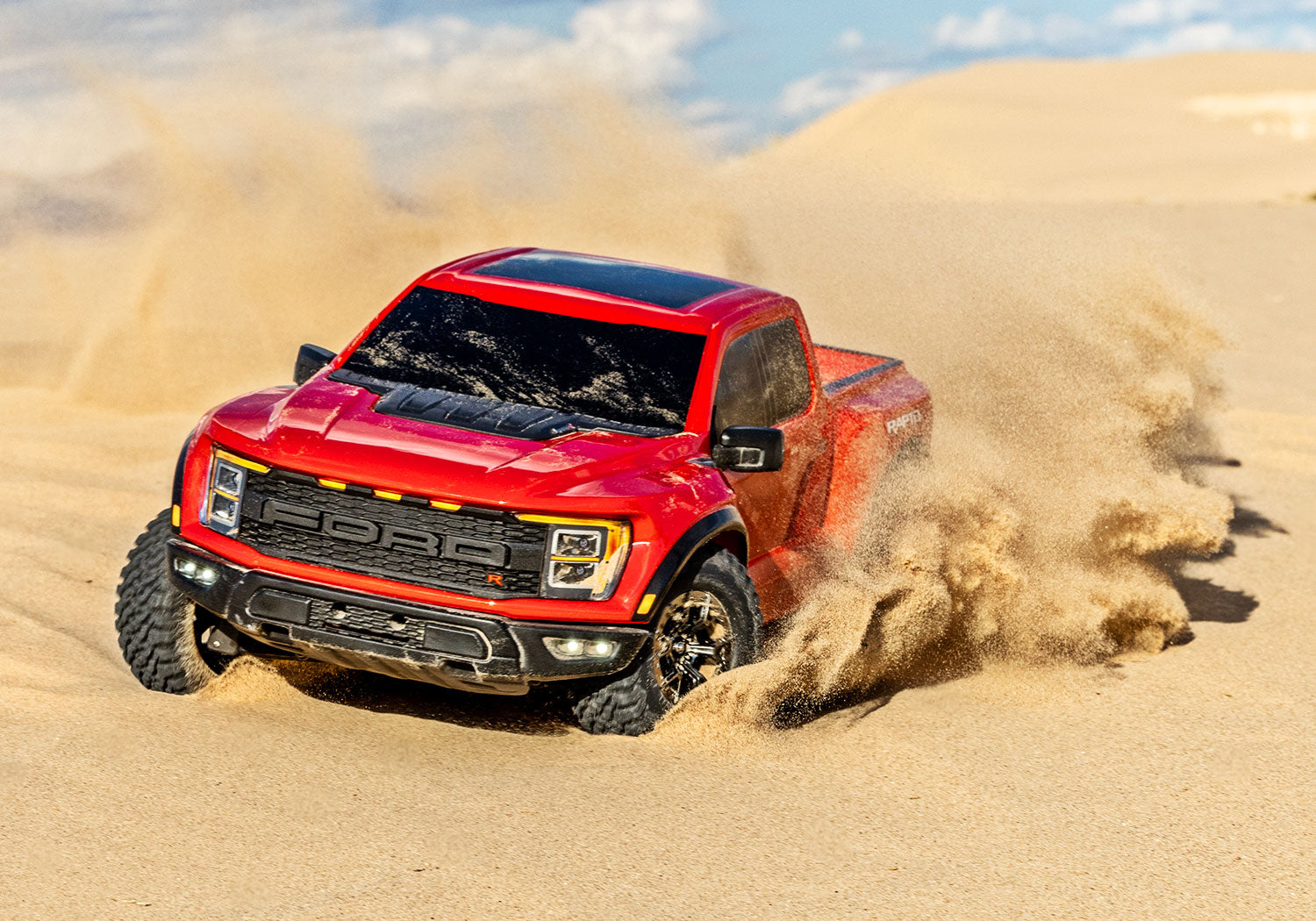

The Traxxas Raptor R™ is the newest member of the innovative Traxxas Pro Scale® lineup. Superb scale detail and proportion combine with 4x4 traction and extreme Velineon brushless horsepower to faithfully capture the Raptor R™ driving experience. Only Traxxas Pro Scale® delivers both the exacting realism and unbeatable speed and durability performance drivers demand.
PRO SCALE DESIGN
Only Traxxas Pro Scale combines pro-level performance with the look and feel of a real Ford Raptor R. The Traxxas Raptor R stops the show with a Ford-licensed body and molded replica parts for maximum scale authenticity. Velineon® brushless horsepower and an extreme heavy duty 4WD driveline give Raptor R performance credentials to match its stunning looks.
EXTREME HEAVY DUTY UPGRADES
The Extreme Heavy Duty Upgrade Kit comes pre-installed on Raptor R to withstand the brutal punishment of high-power brushless systems. Made from our toughest cold-weather material, Raptor R’s driveshafts and suspension components are beefed up with extra material and overbuilt construction to form a nearly indestructible driveline.
CLIPLESS BODY MOUNTING
High-flying stunts and 60+mph desert speed runs won’t upset Raptor R’s tough clipless body. Locking tabs hold the body tightly, but release in just seconds to access the chassis. Raptor R’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.
A NEW LEVEL OF PERFORMANCE
New on the Traxxas Pro Scale Raptor R: extended Slash 4X4 chassis, clipless body mounting, extreme heavy duty suspension and driveline, Velineon brushless power, LED lighting, and larger 2.2″ BFGoodrich. All Terrain T/A. KO2 tires on replica black chrome wheels.

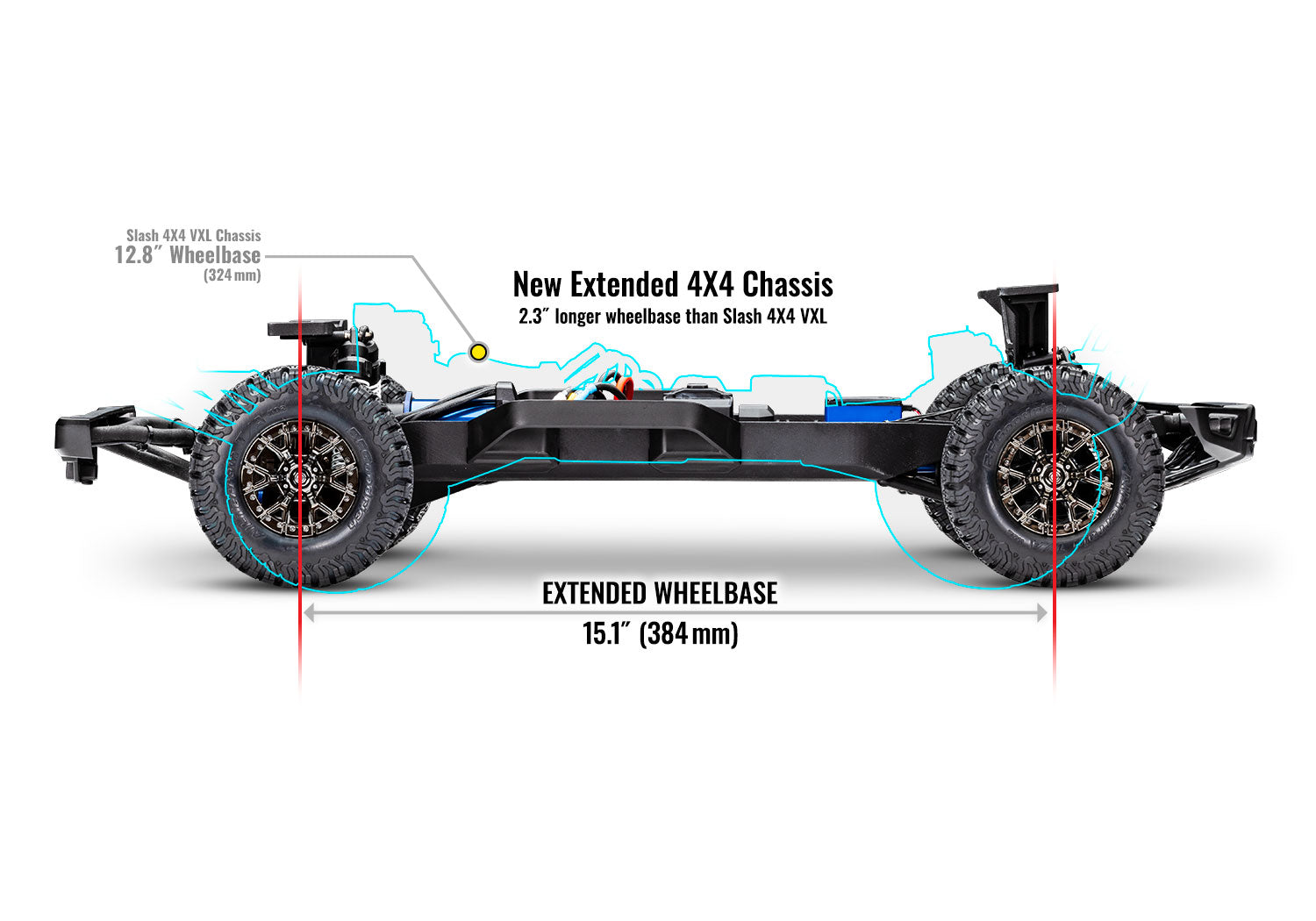

NEW EXTENDED 4X4 CHASSIS
PROVEN 4X4 DRIVETRAIN
60+ MPH VELINEON BRUSHLESS POWER
EXTREME HEAVY DUTY UPGRADE KIT
CLIPLESS BODY MOUNTING
LARGER DIAMETER BFGOODRICH® TIRES
MOLDED SCALE DETAILS & LED LIGHTING
Model Specs
| Model Name: | Ford Raptor R 4X4 VXL: 1/10 Scale 4X4 Brushless Replica Truck |
|---|---|
| Model Type: | Short Course Trucks |
| Model Speed: | 60+ mph with optional gearing and 3s LiPo battery (items sold separately) |
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 6.05 pounds (2.74 kg) |
| Length: | 24.98 inches (637 mm) |
| Width: | 11.63 inches (289 mm) |
| Front Track: | 11.63 inches (289 mm) |
| Rear Track: | 11.63 inches (289 mm) |
-

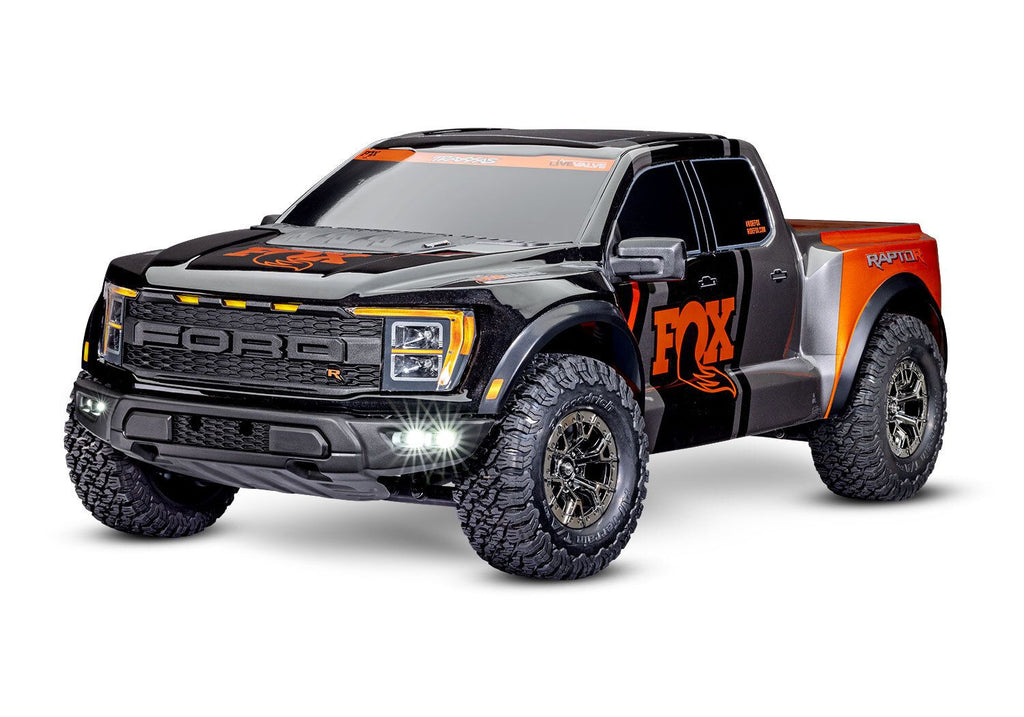

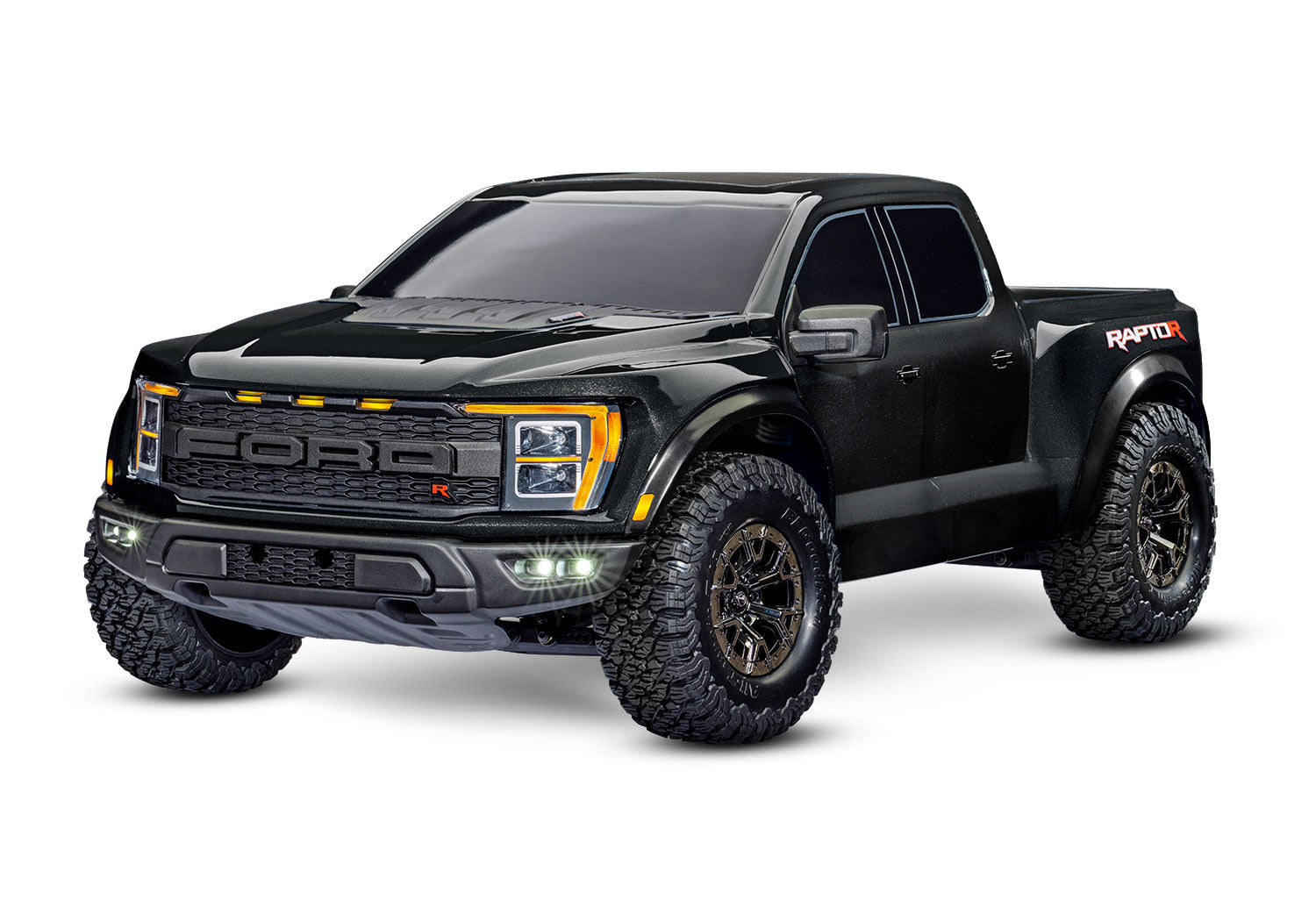

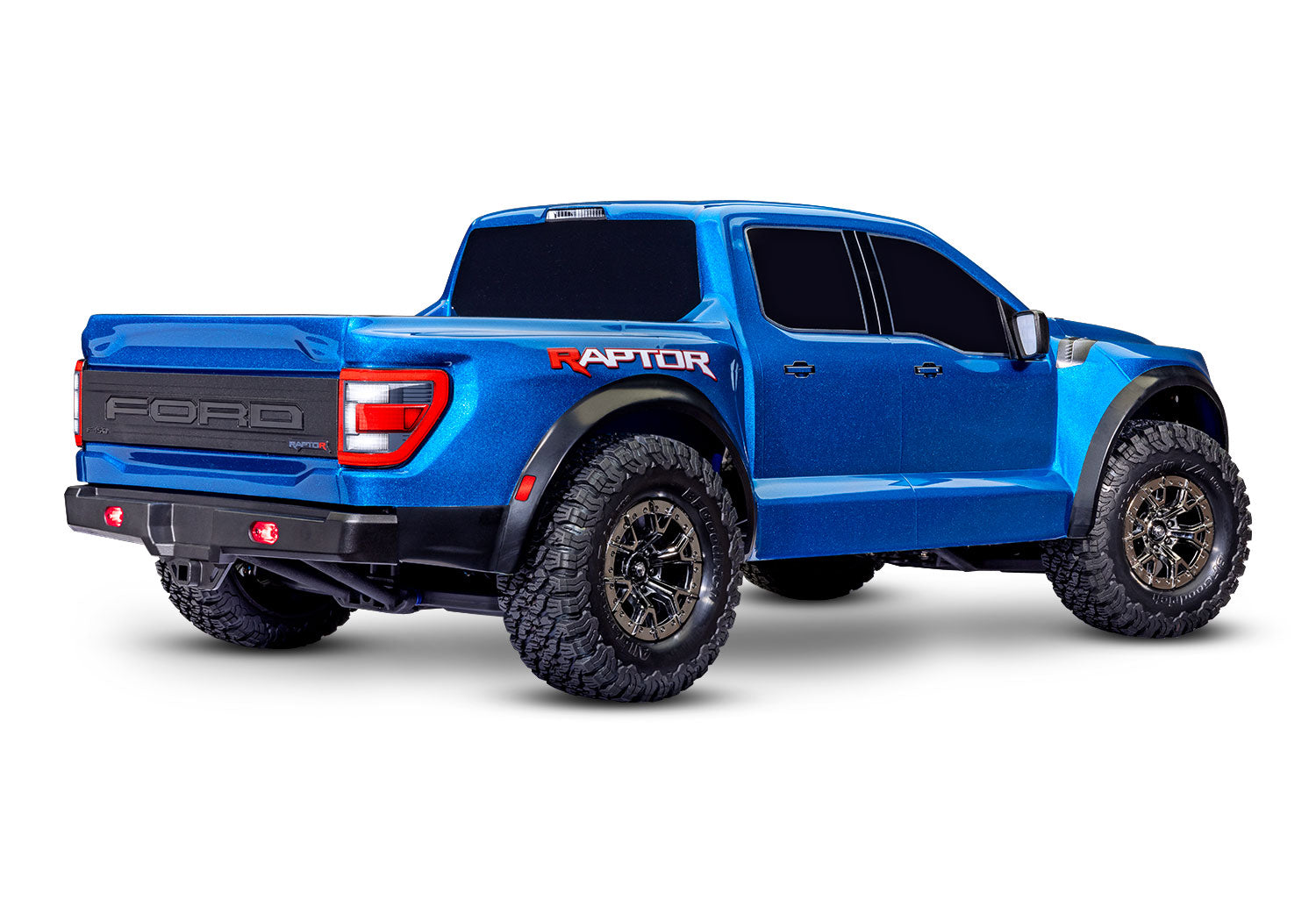

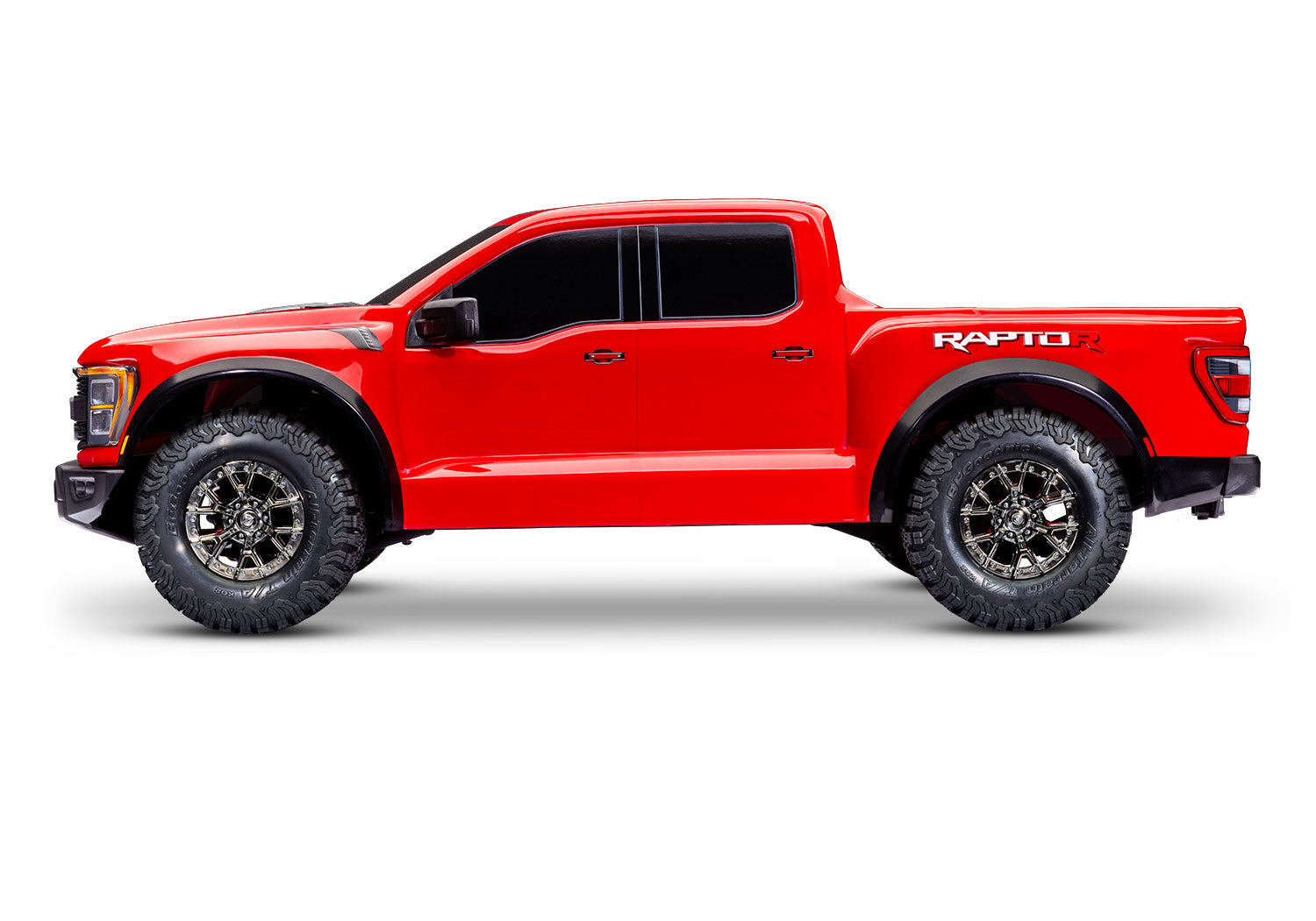

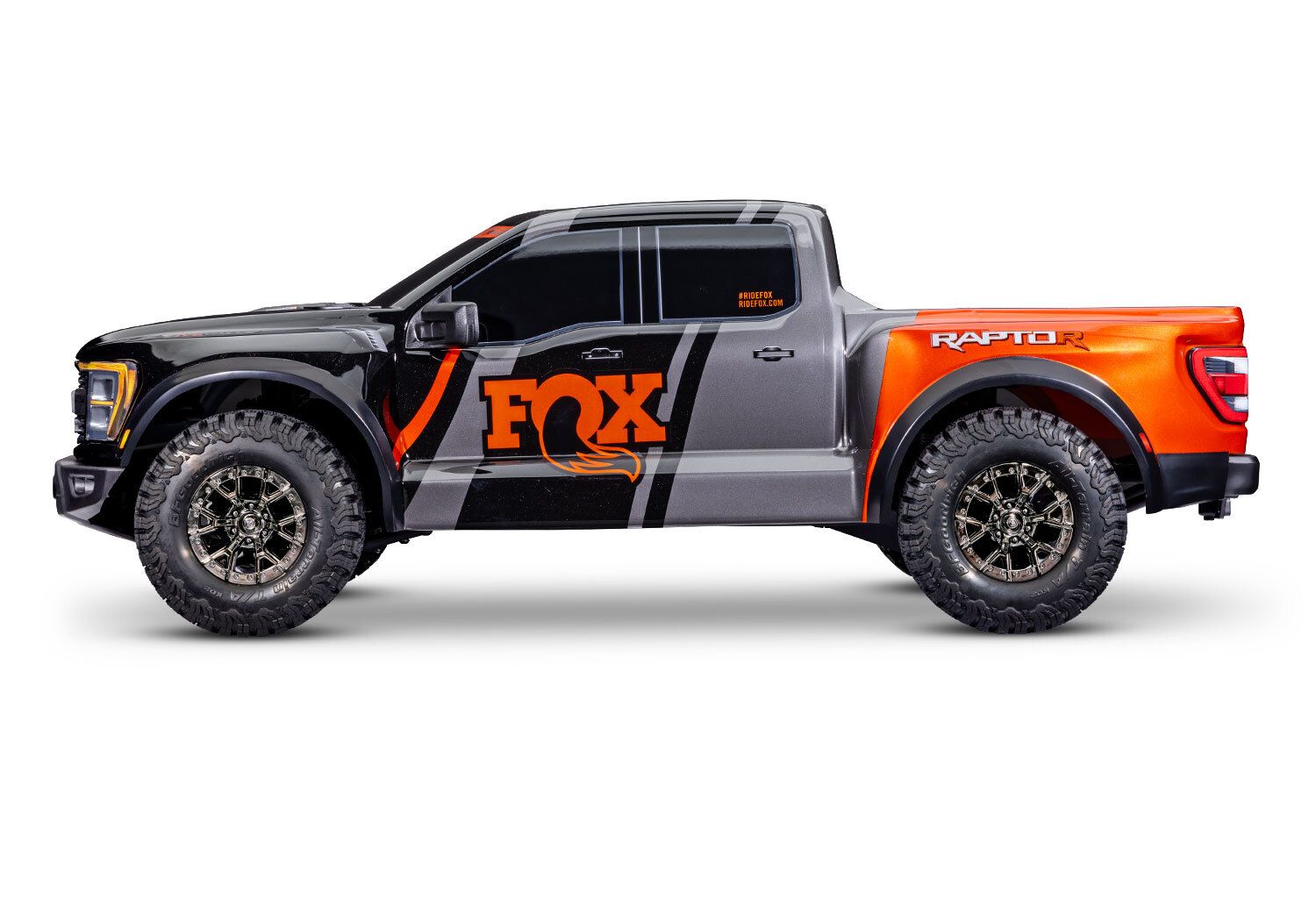

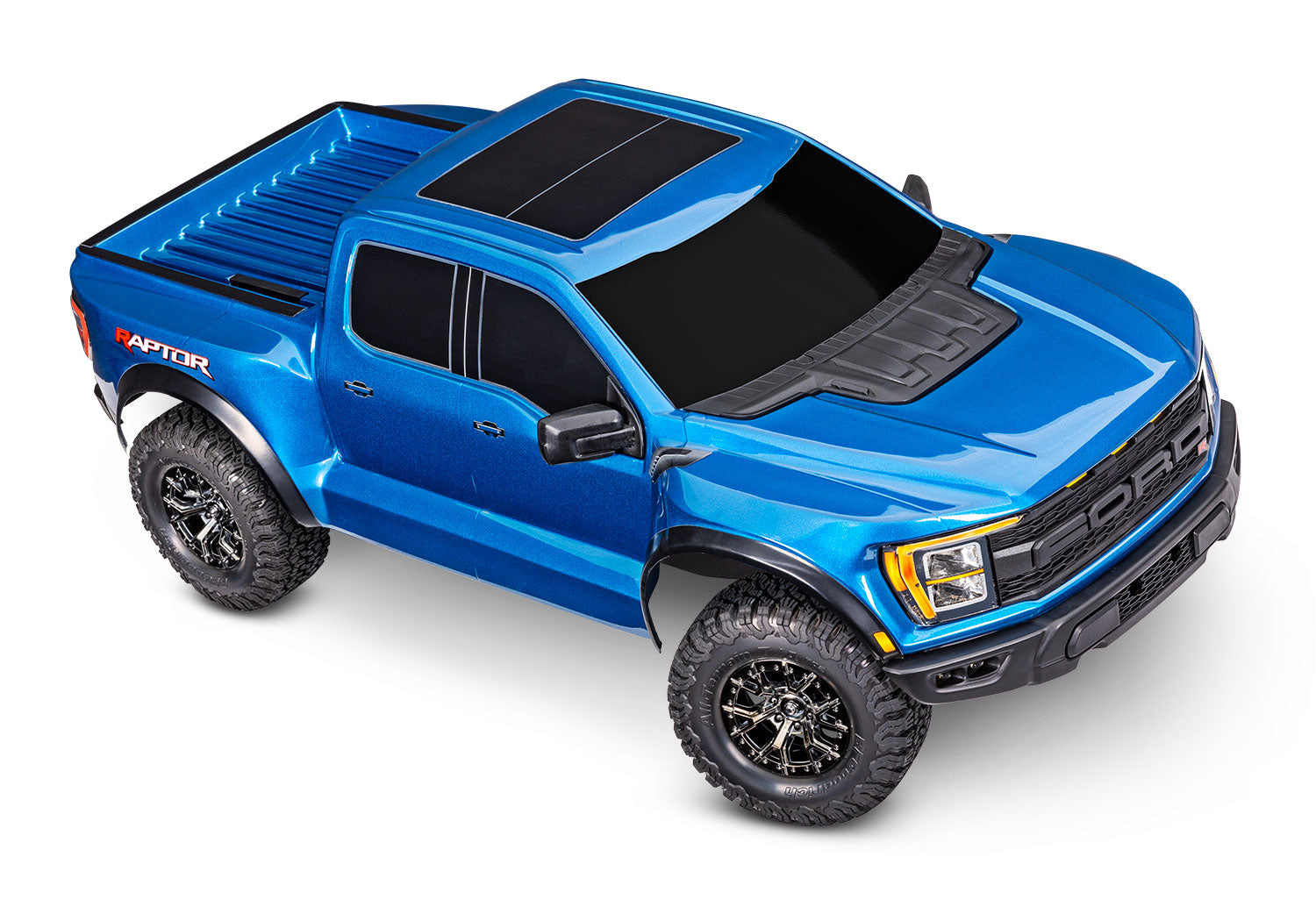

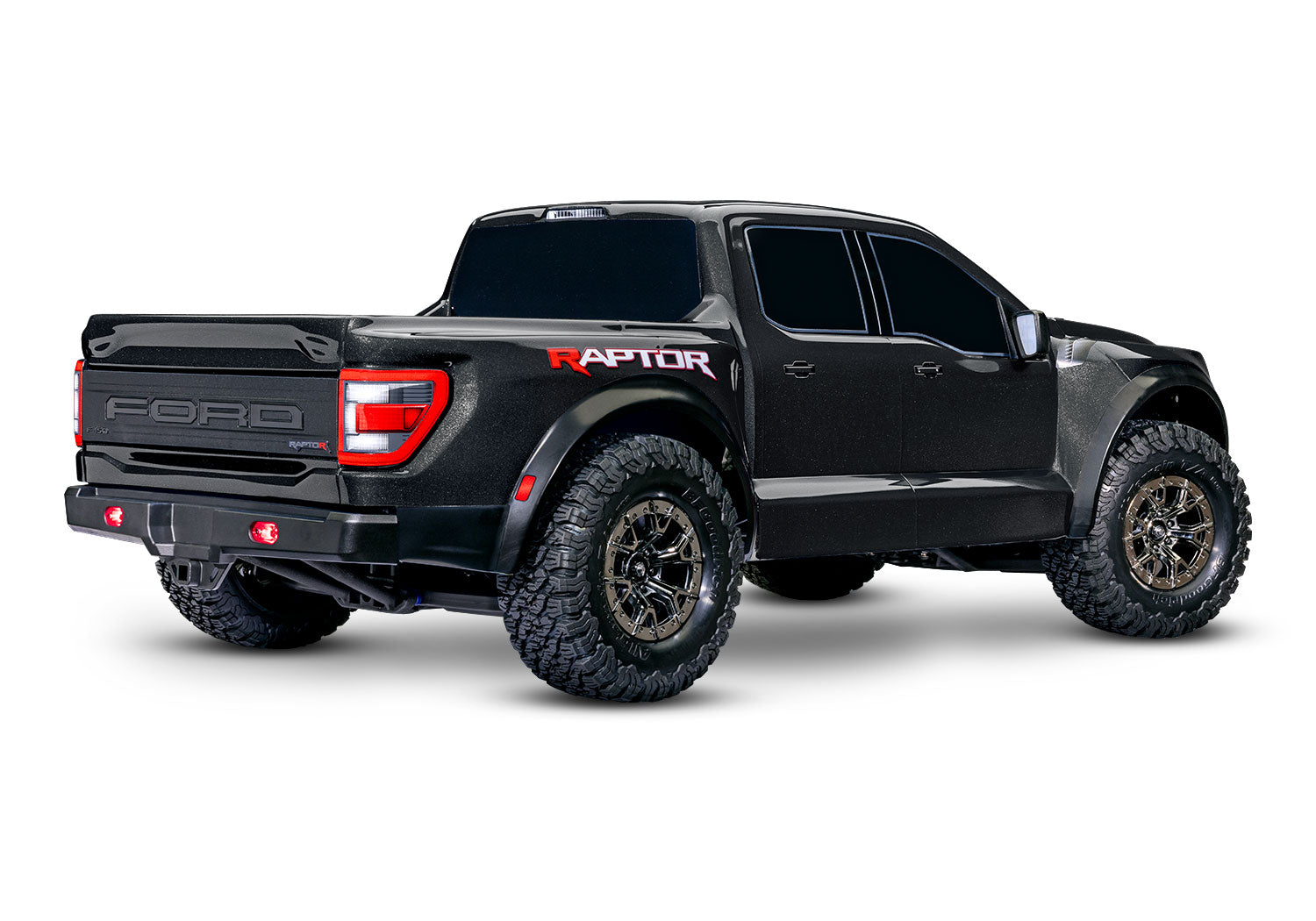

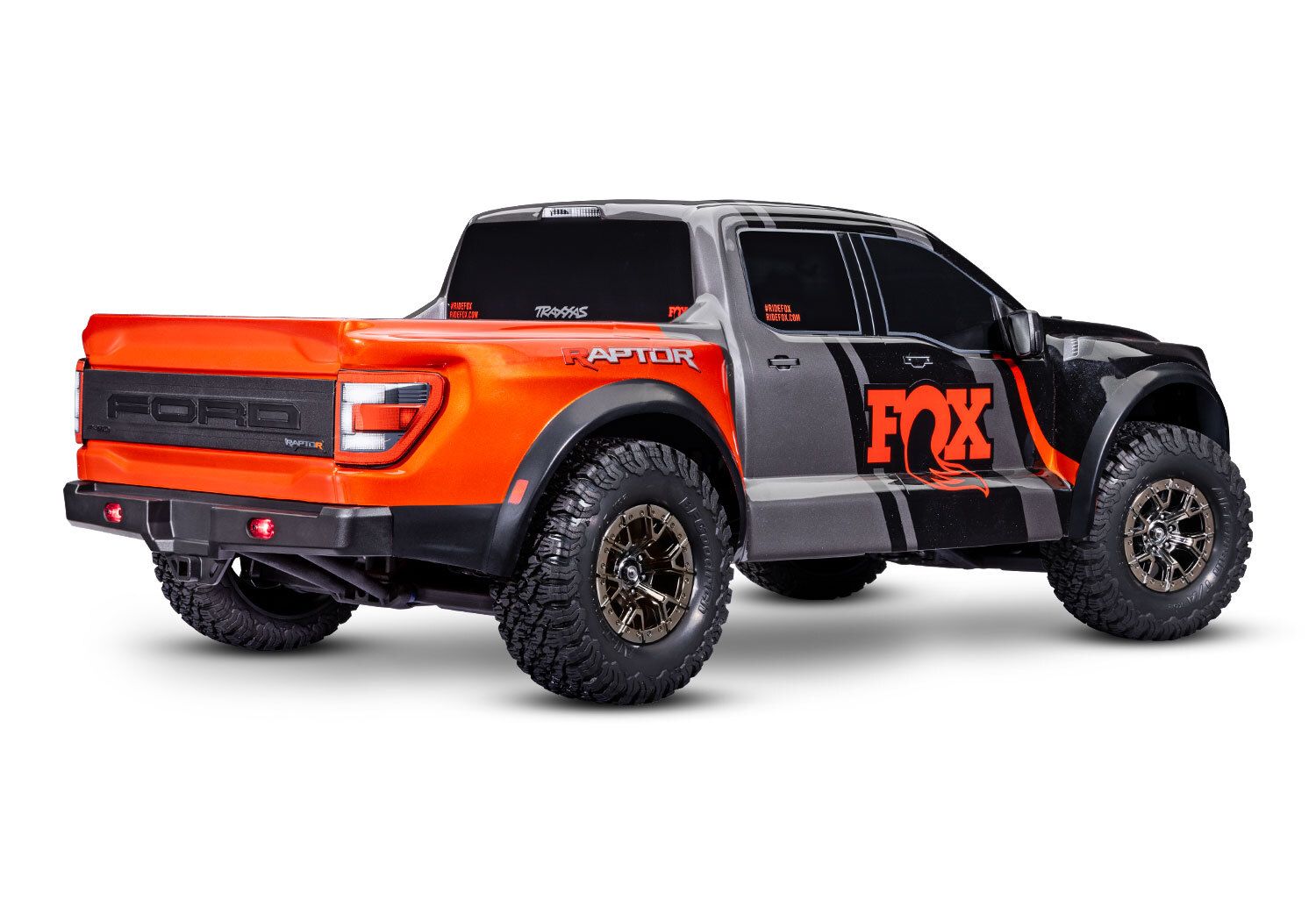

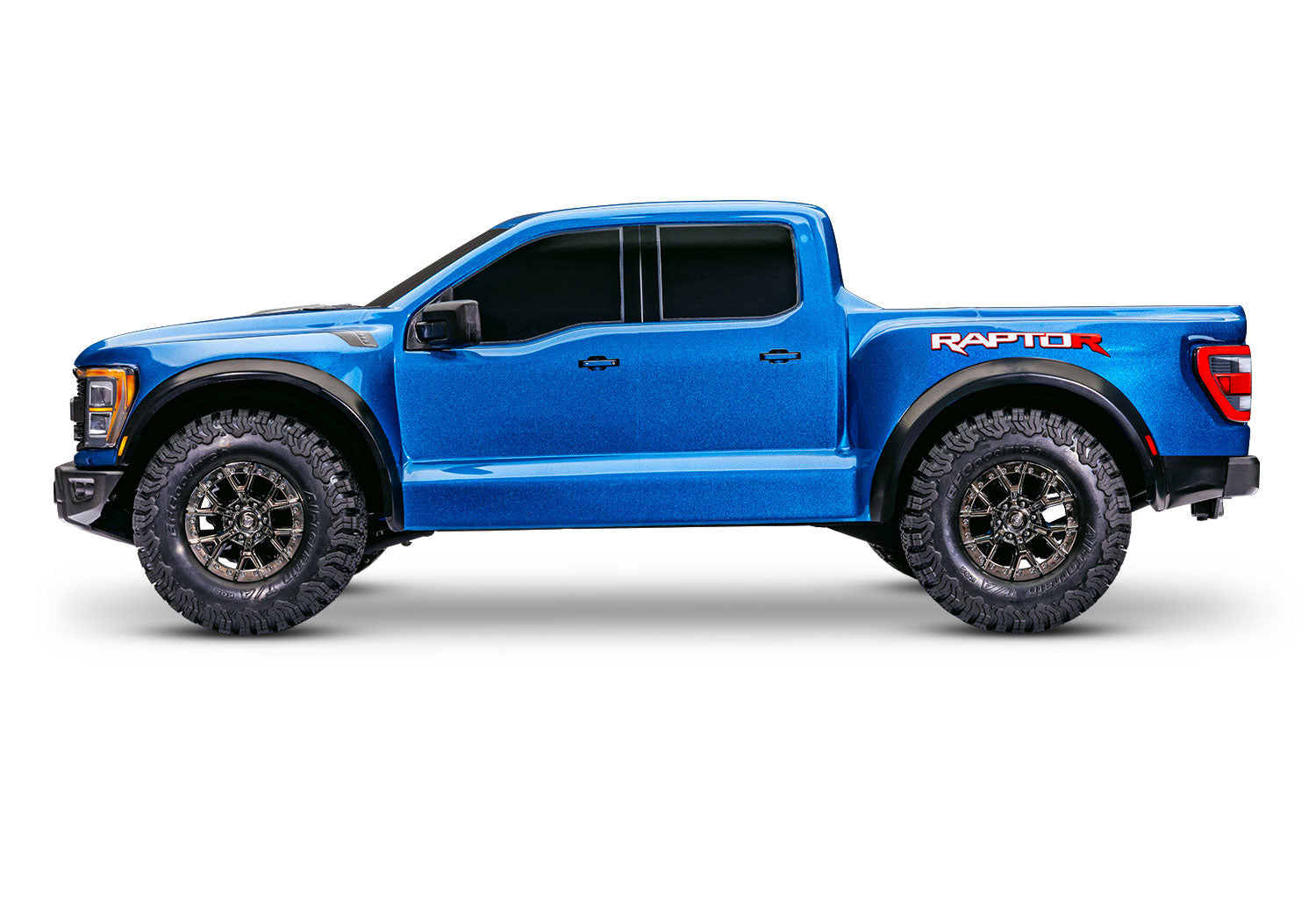

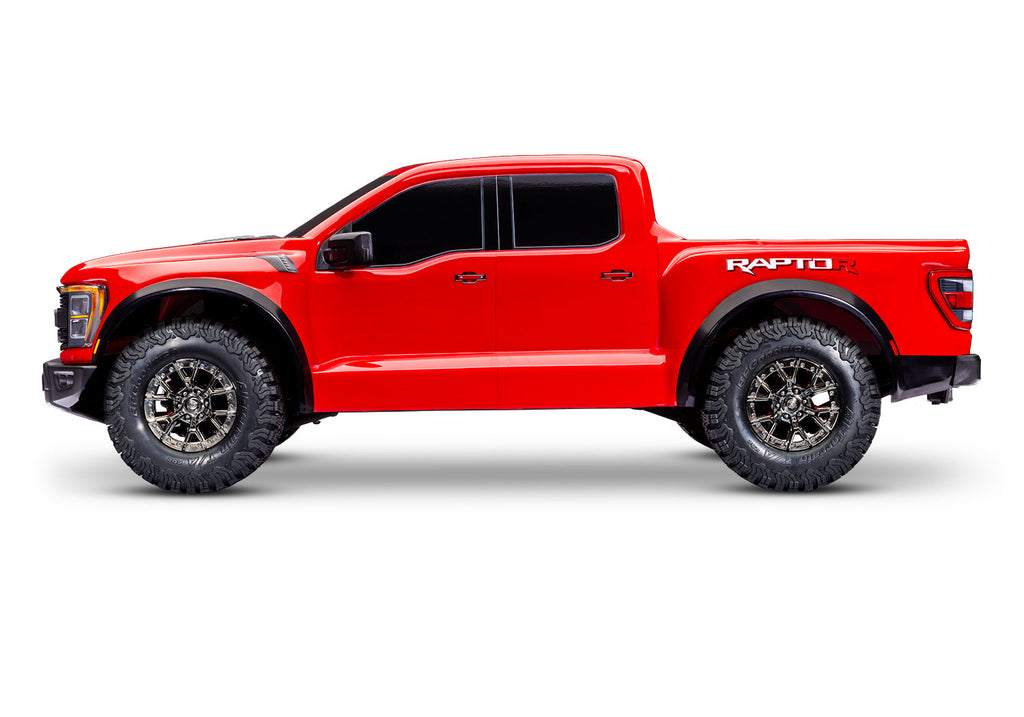

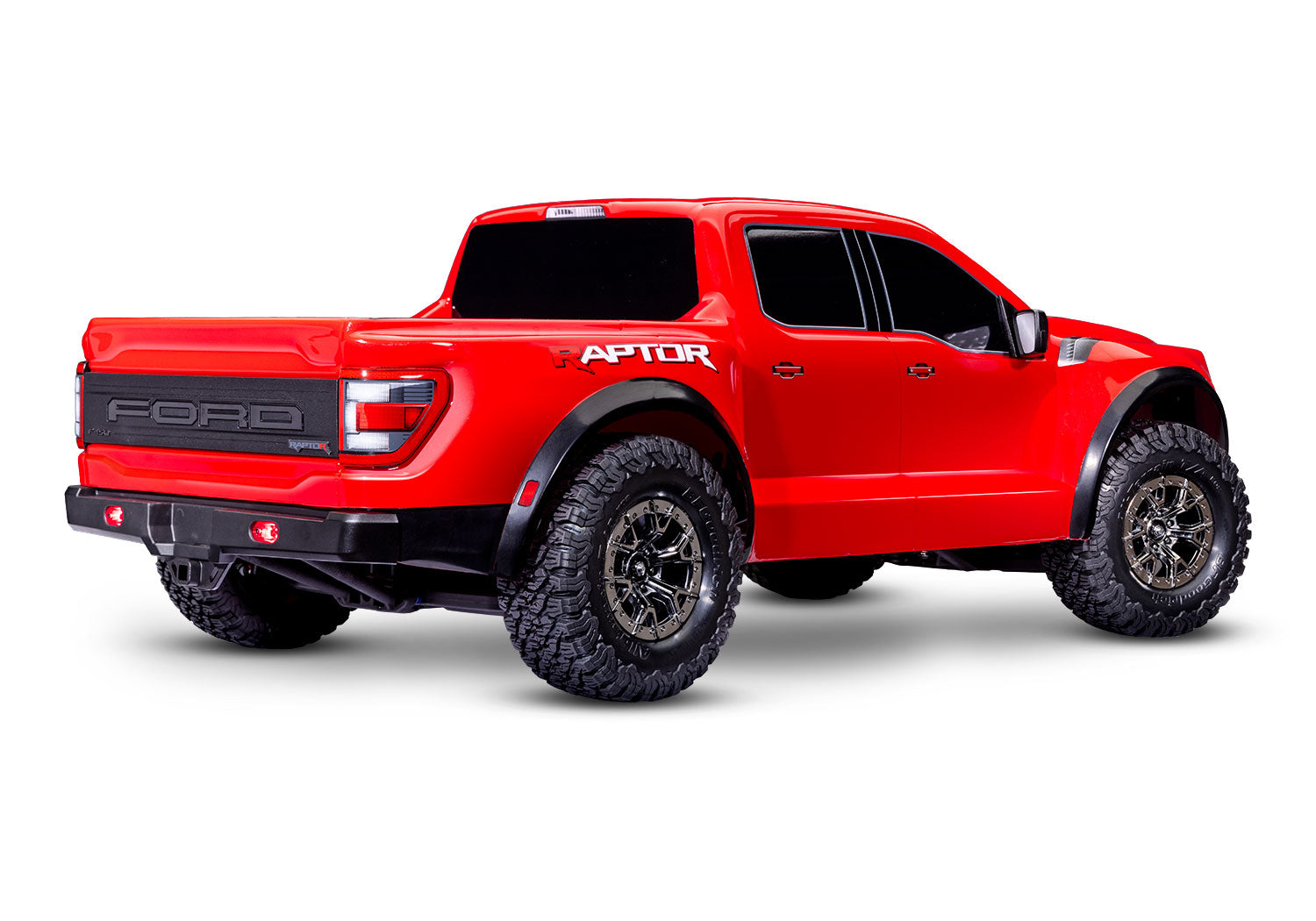

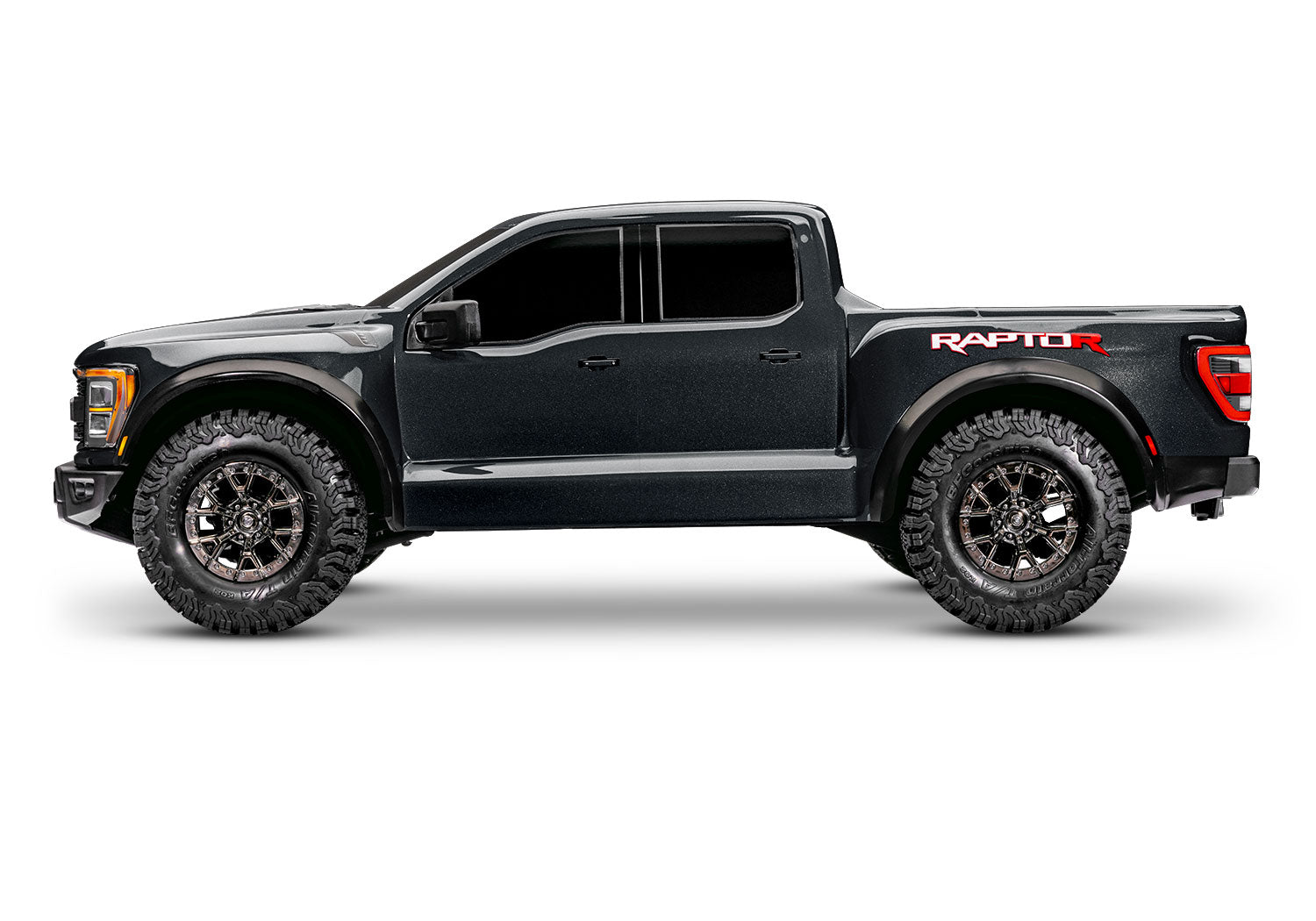

Officially Licensed Ford® F-150® Raptor R™ Pro Scale® Clipless Body and Graphics
- Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent

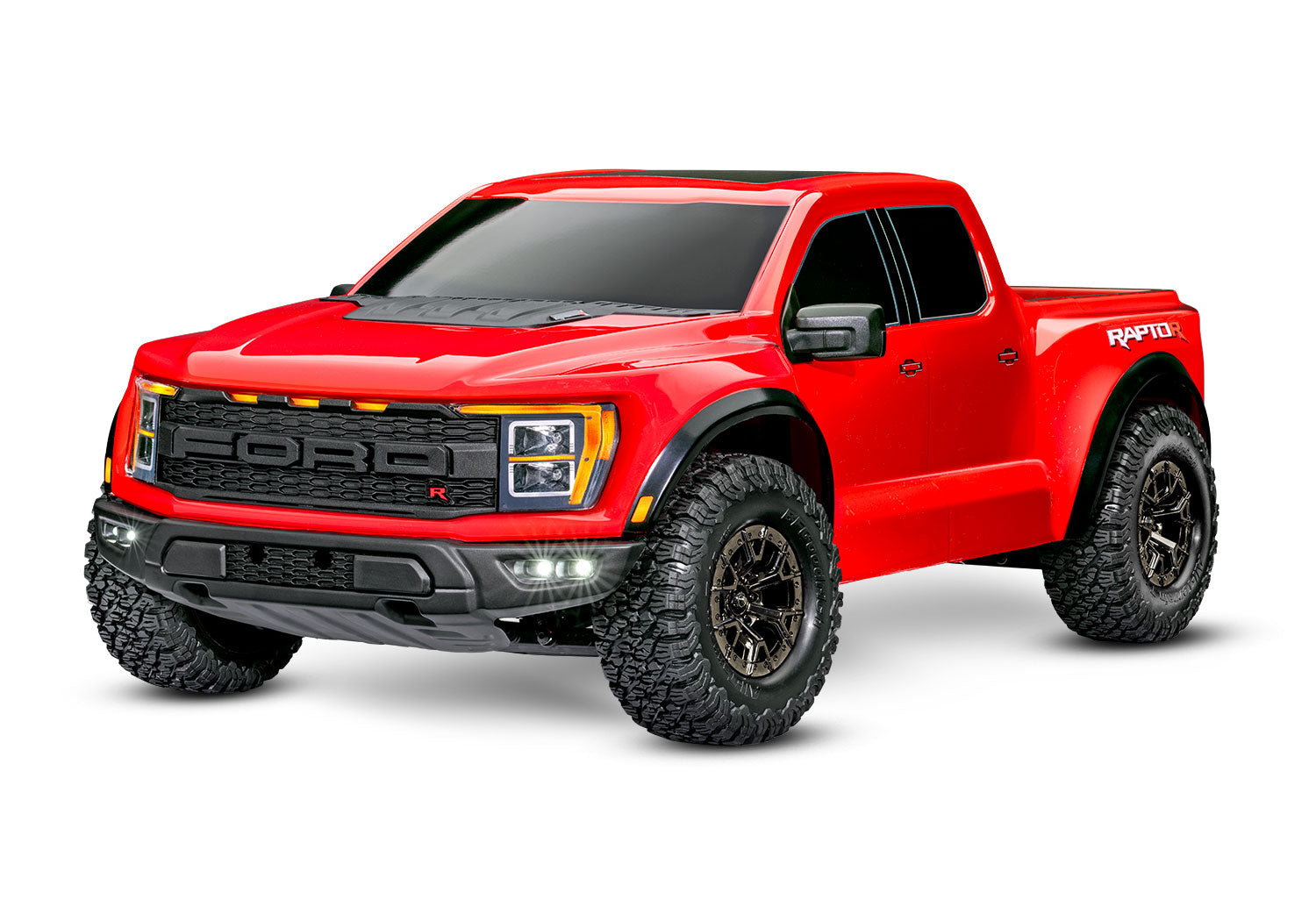

- LED lighting in front and rear bumpers
- Body reinforcements to prevent pull-through damage
-
Clipless Body Mounting
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
-

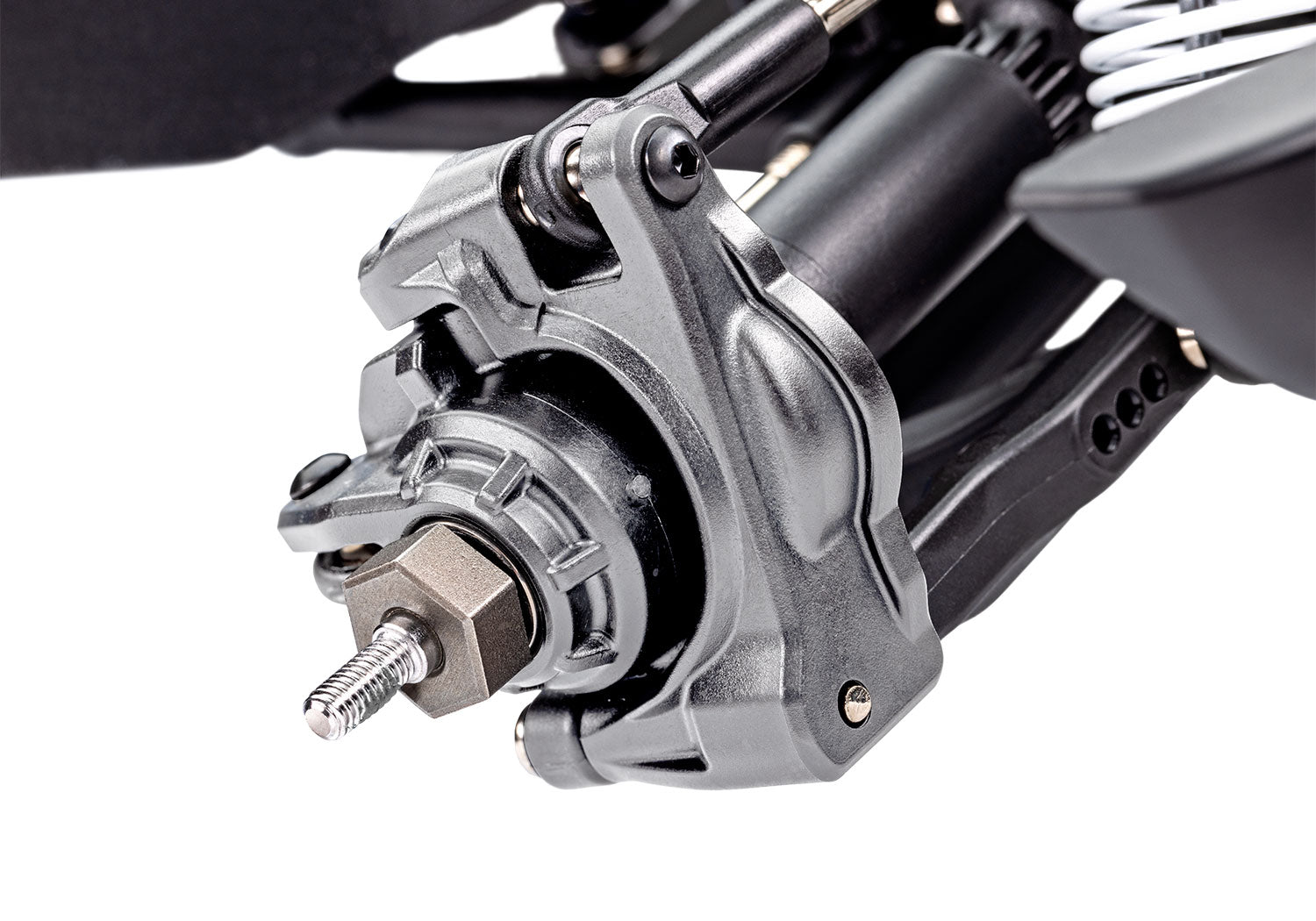

Extreme Heavy-Duty Upgrade Kit Installed
- Made from our toughest cold-weather resistant composite
- Strengthened C-hubs, axle carriers, steering blocks, and shock towers

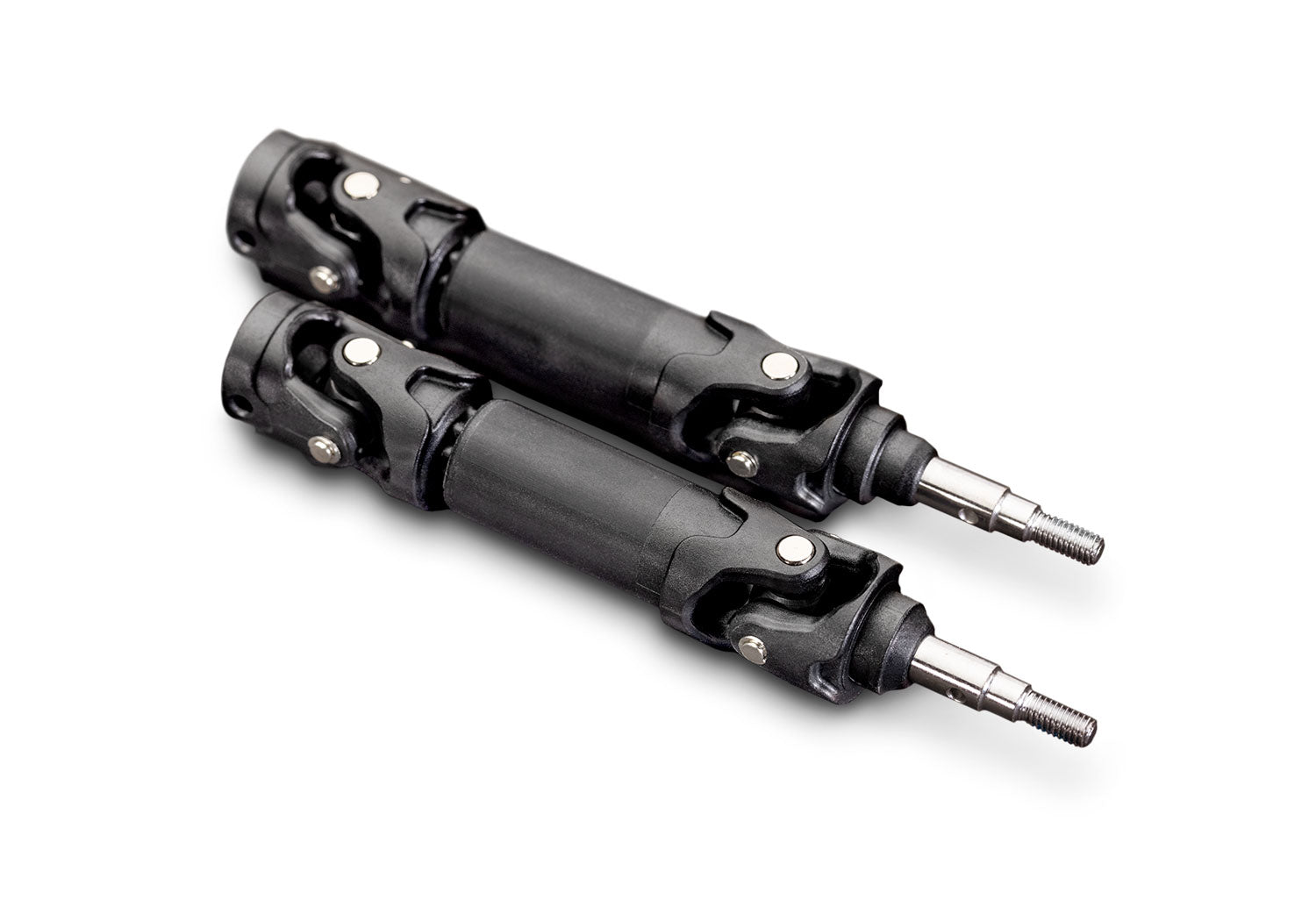

- Extreme heavy-duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
-
VXL-3s™ Waterproof Electronic Speed Control
- Cooling fan with large heat sink
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Up to 60+ mph with 3s LiPo battery
-
Velineon® 3500 kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish
-
Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
-
TQi™ 2.4GHz High Output Radio System
- TQi™ 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
-

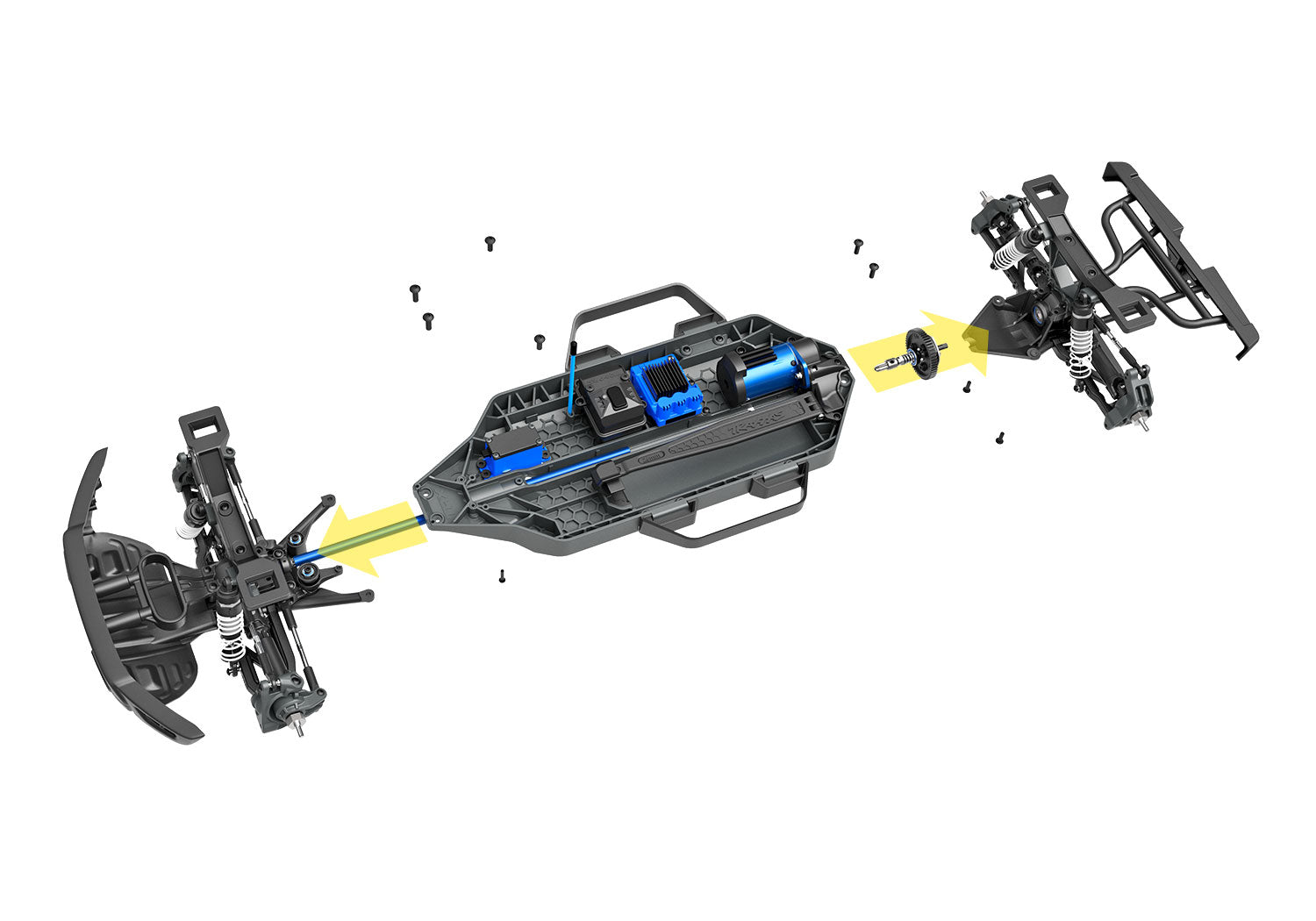

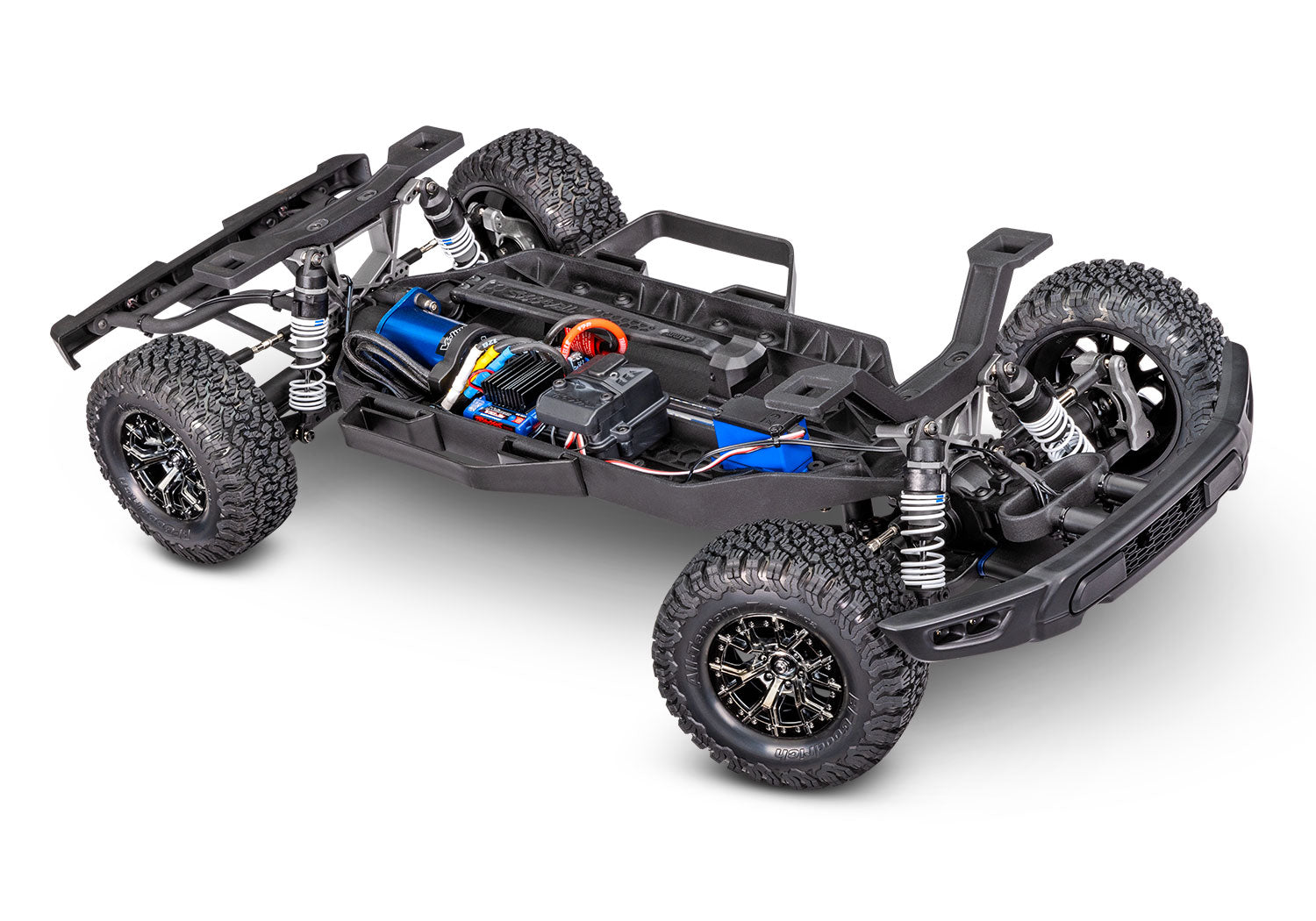

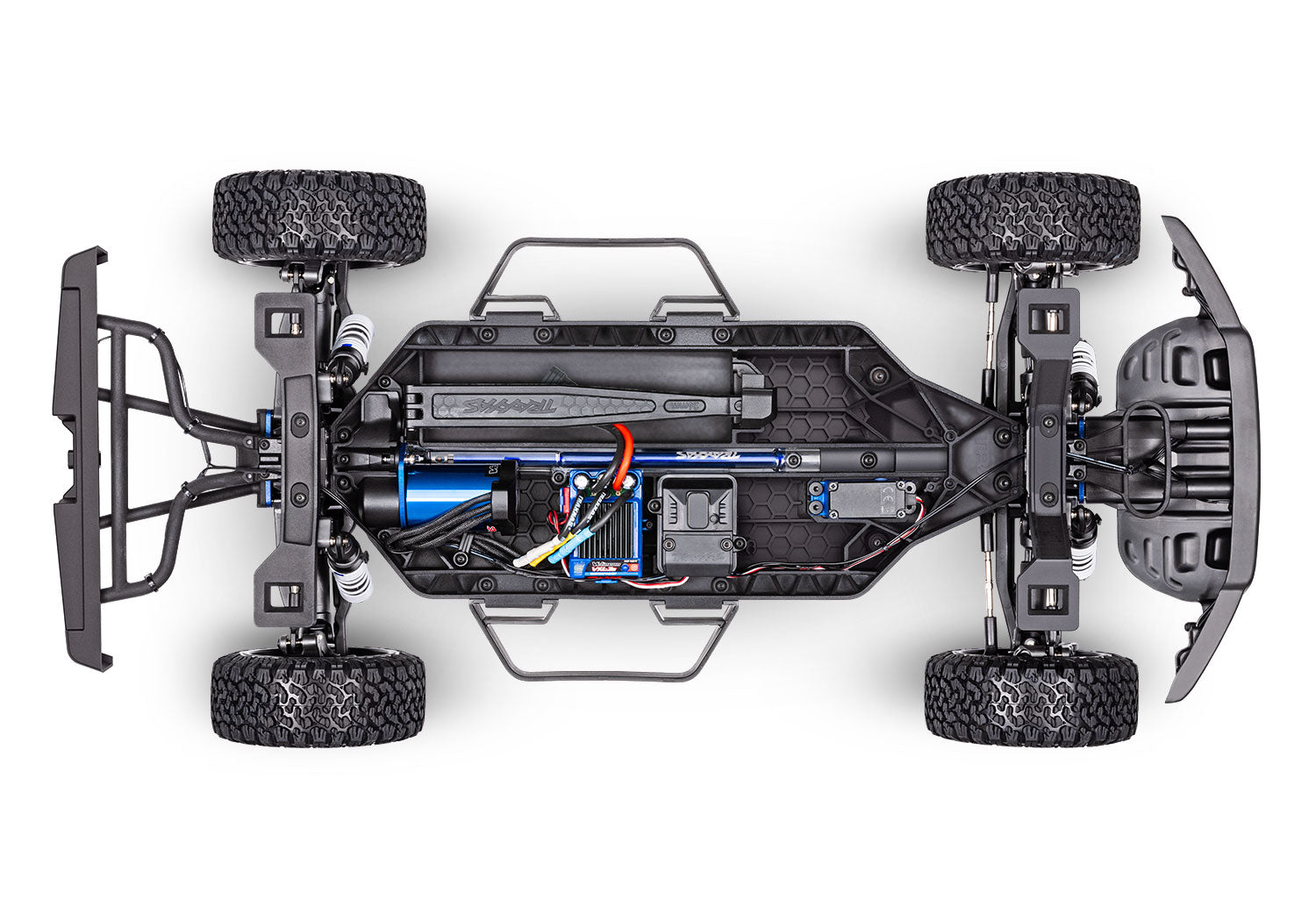

Chassis
- Extended modular composite tub design
- Secure battery hold-down latch
- Side nerf bars for impact resistance
-

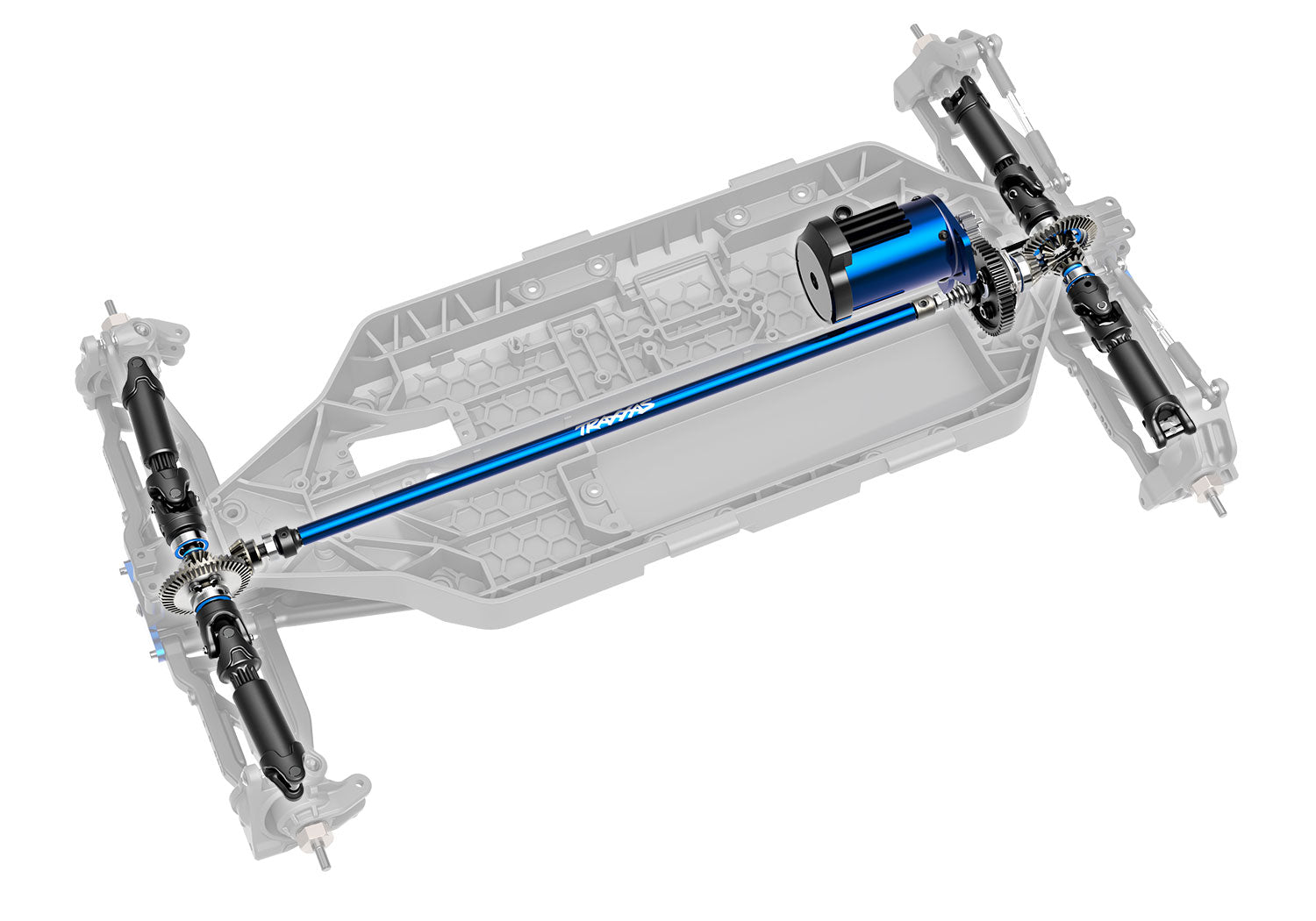

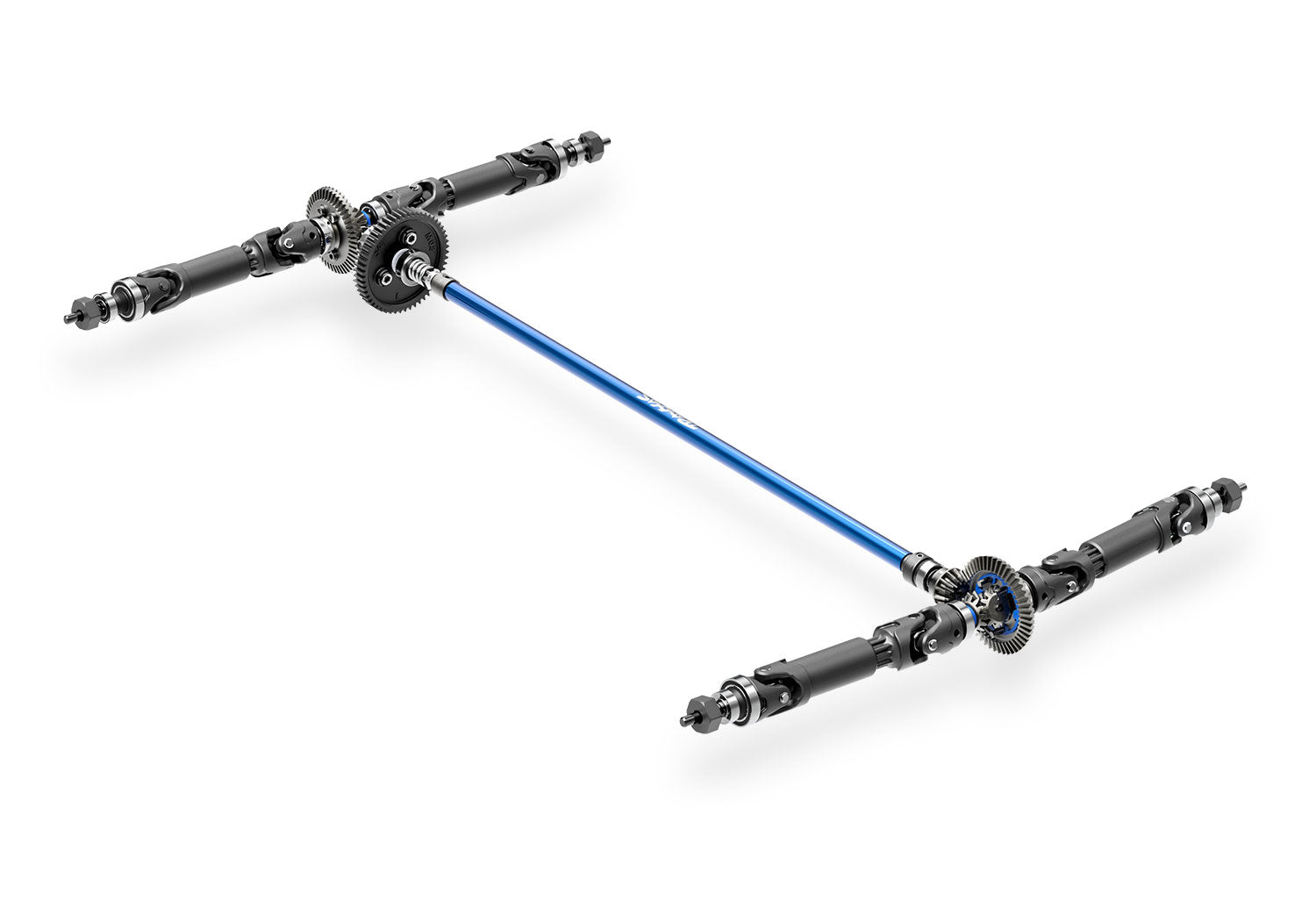

Drivetrain
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch steel spur gear
- Anodized-aluminum center driveshaft
-
Steering
- Chassis-mounted 2075 servo

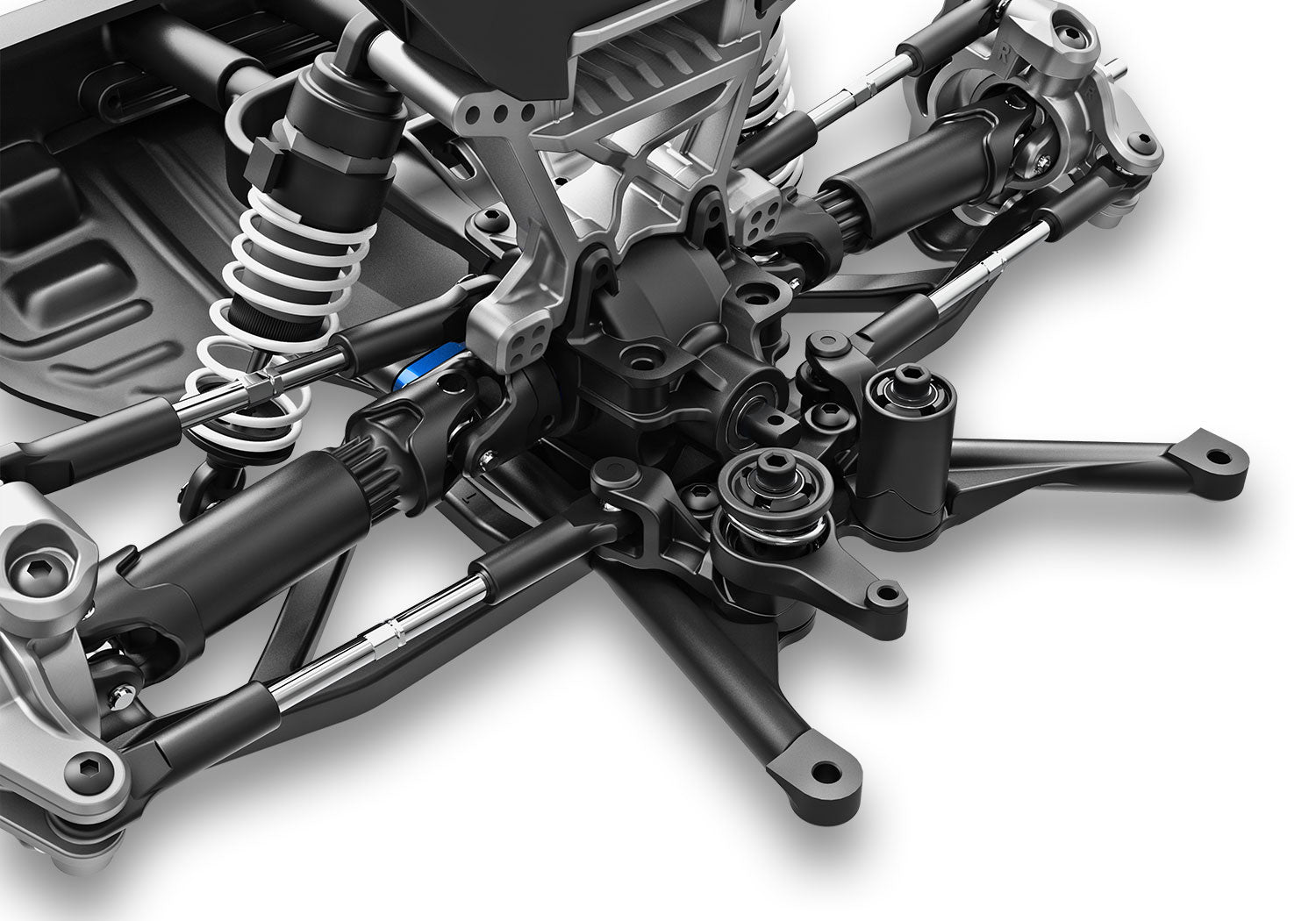

- Dual bellcrank design with integrated servo saver
-

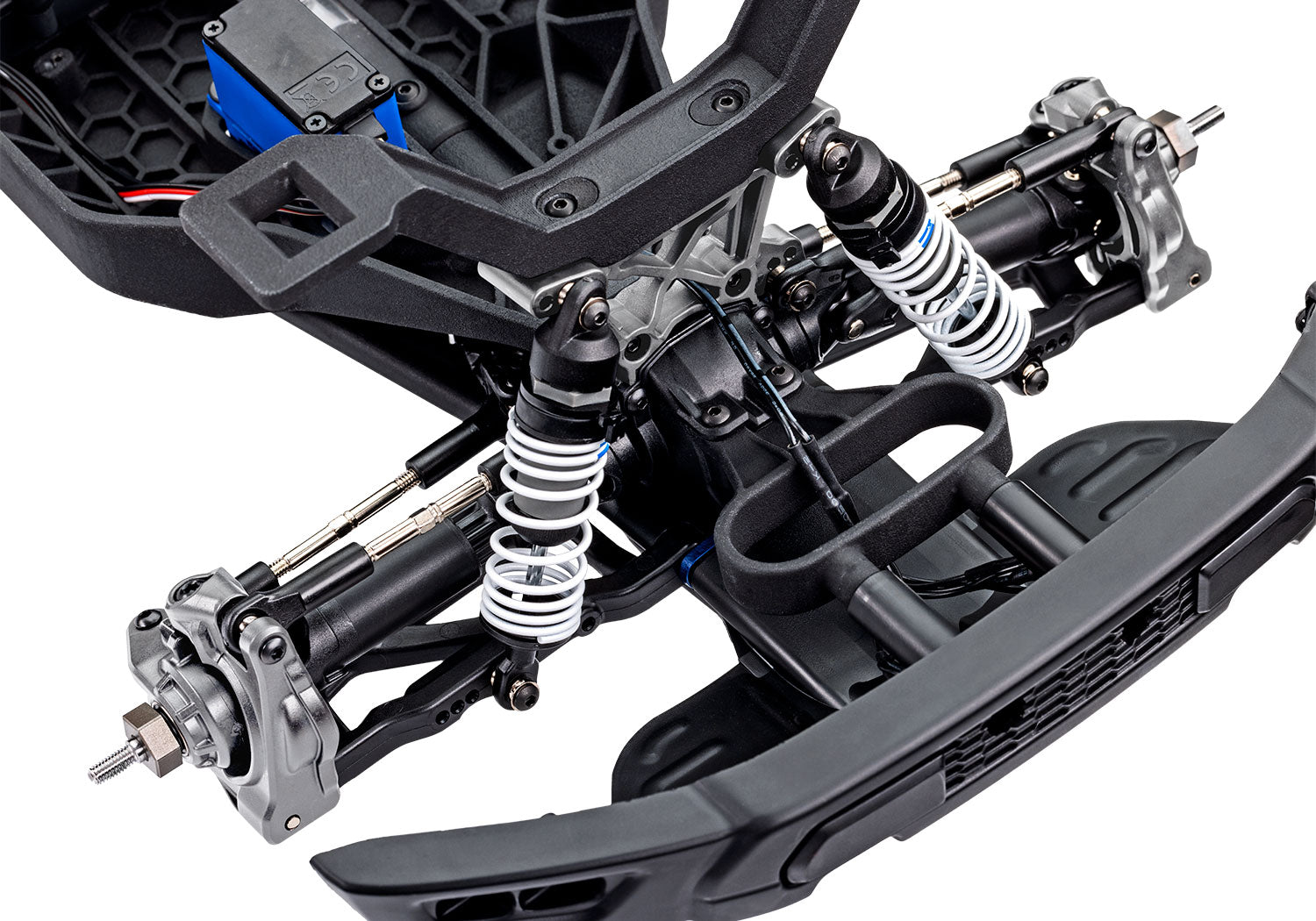

Suspension
- Heavy-duty suspension arms
- Adjustable 4 mm steel toe and camber links
- Oil-filled Ultra Shocks
- White powder-coated progressive springs
-

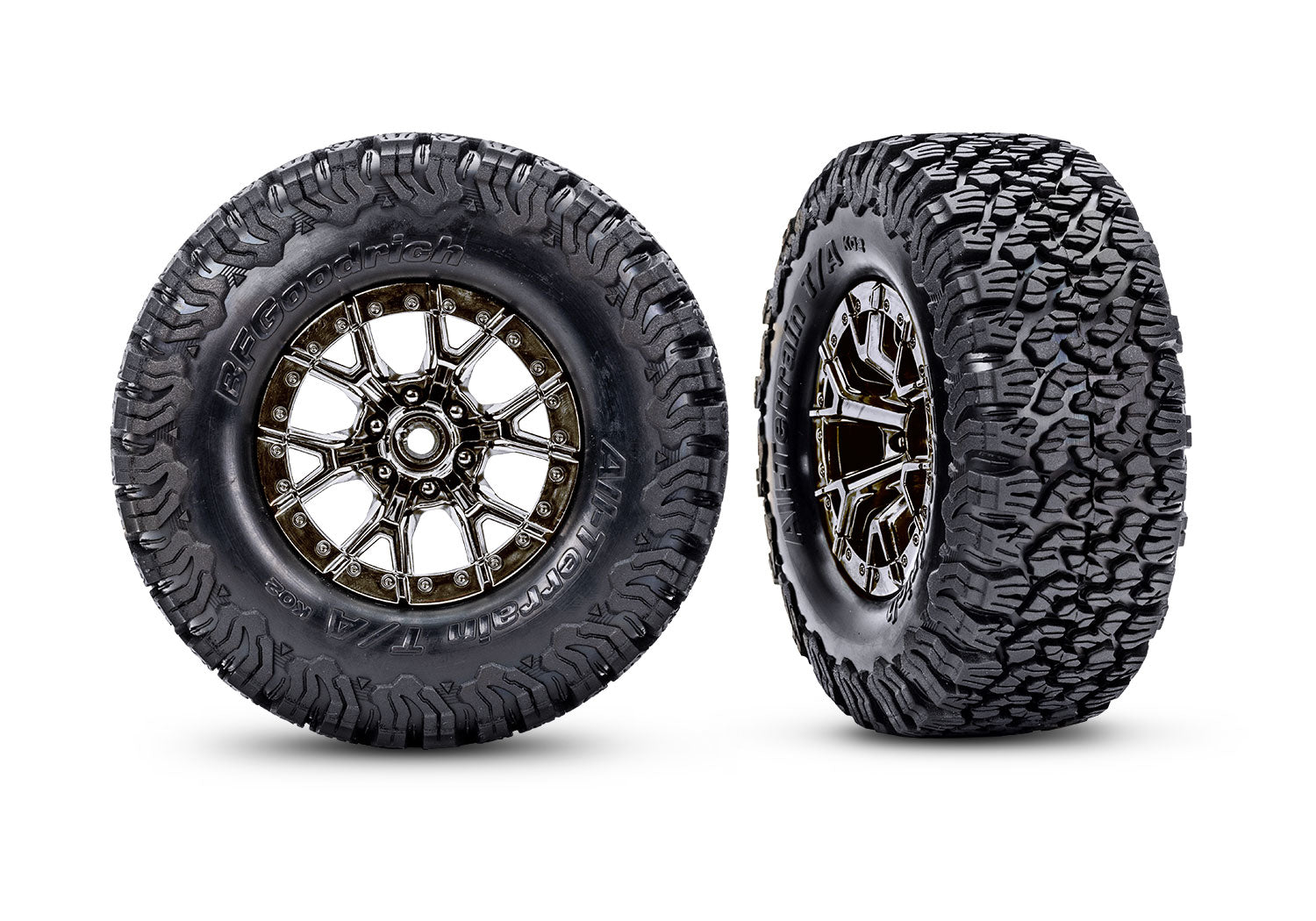

Wheels and Tires
- Licensed Ford® replica option wheels
- 2″ outer diameter, 3″ inner diameter
- Licensed BFGoodrich® All-Terrain T/A® KO2 tires
- Larger114 mm diameter
- Licensed Ford® replica option wheels
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
