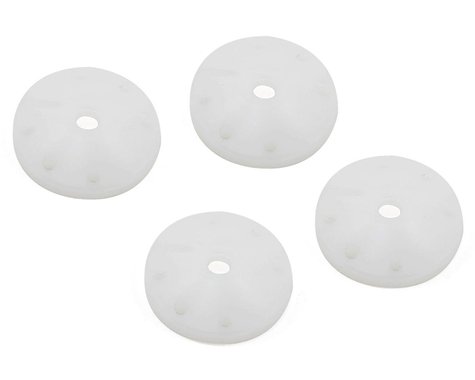

Made from self lubricating POM material and with Tekno's exclusive cone shape, these CNC pistons have six 1.5mm holes and are machined to perfection. Total piston hole area is 10.6mm². Tekno recommends that these pistons are installed with the convex cone facing down for most track conditions to provide faster rebound and slower compression. But, they can also be run with the convex side facing up for extremely smooth, high traction tracks, but will limit the overall shock travel.
For the EB48.2/NB48 and SCT410, Tekno recommends starting with 450-500 cst oil in front and 350-400 cst in the rear. Tekno also recommends using the outermost hole on the arm to mount the shocks (front and rear).
For the ET48 and NT48, Tekno recommends starting with 550-600 cst oil in front and 450-500 cst in the rear. Tekno also recommends using the outermost hole on the arm to mount the shocks (front and rear)
Tekno Shock Piston Rates:
- Most Pack
- TKR6050: 10x1.1mm
- TKR6051: 8x1.3mm
- TKR6052: 10x1.2mm
- TKR6053: 8x1.4mm
- TKR6054: 10x1.3mm
- TKR6063: 6x1.5mm
- TKR6064: 6x1.6mm
- Least Pack
Compatibility:
- Tekno RC EB48
- Tekno RC EB48.2
- Tekno RC EB48.3
- Tekno RC EB48SL
- Tekno RC ET48
- Tekno RC ET48.3
- Tekno RC MT410
- Tekno RC NB48
- Tekno RC NB48.3
- Tekno RC NT48
- Tekno RC NT48.3
- Tekno RC SCT410
- Tekno RC SCT410.3
