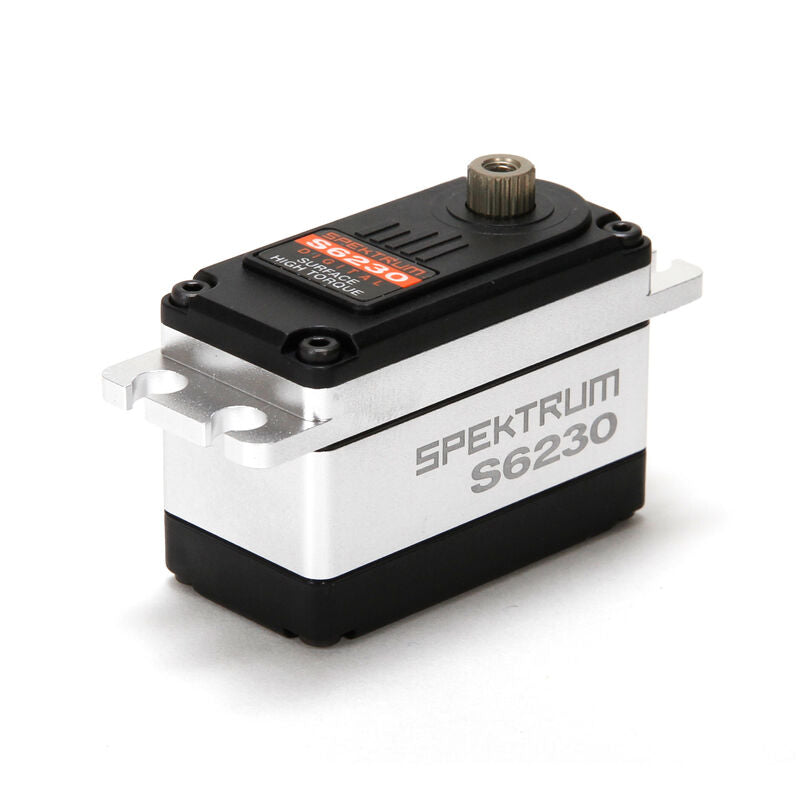

Spektrum S6230 Standard Digital High Torque Metal Gear Surface Servo

SpektrumSKU: SPMSS6230
No reviews

Price:
Sale price$ 89.99
Stock:
Only 1 unit left

Pickup available at Chantilly Store

Usually ready in 1 hour

Description

Key Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof
  • 1-Year Limited Warranty

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Product Specifications

Maximum Servo Torque 311 oz-in (22.4kg-cm) @ 6.0V
Input Voltage 6.0V
Part Type Electronics
Product Application Surface
Product Height 1.18 in (30mm)
Servo Type Digital
Application Surface
Product Weight 2.1 oz (59.5g)
Spline Count 23 Teeth
Current Draw Stall 4900mA @ 6.0V
Servo Operating Voltage 6.0V
Product Length 1.61 in (41mm)
Rotation Range 120 deg
Product Width 0.82 in (20.8mm)
Bearing Dual
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 22 AWG
Programmable No
Servo Size Category Standard
Material Metal / Plastic
Connector Wire Length 7.87 in (200mm)
Current Draw Idle 9.8 mA @ 6.0V
