Key Features
- Equivalent to a 15-size glow engine for sport and scale airplanes weighing 36–56 oz (1020–1590 g)
- Ideal for 3D airplanes weighing 32–40 oz (910–1135 g)
- Ideal for models requiring up to 575 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors

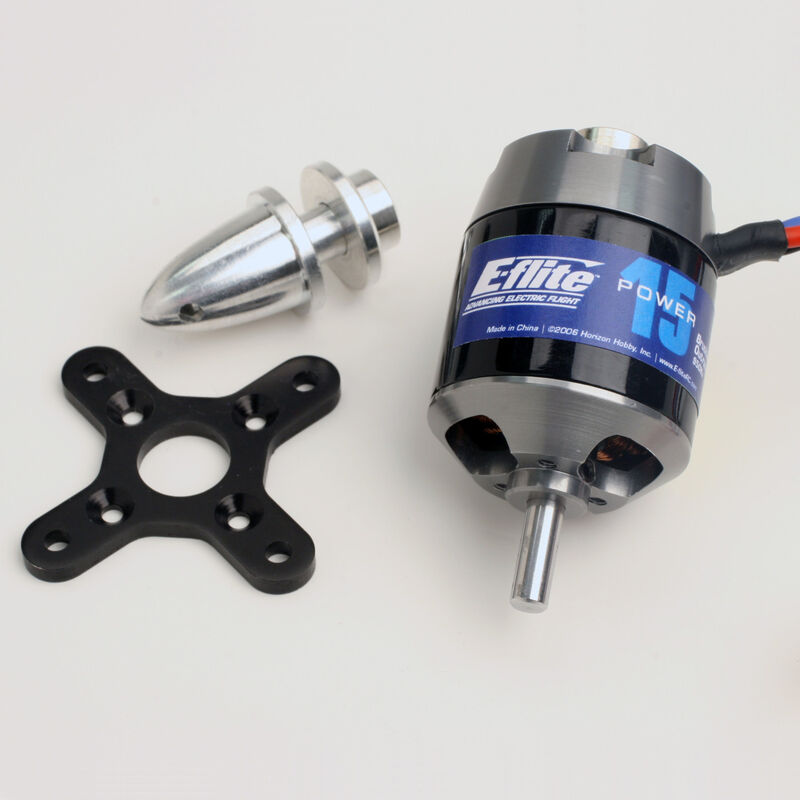

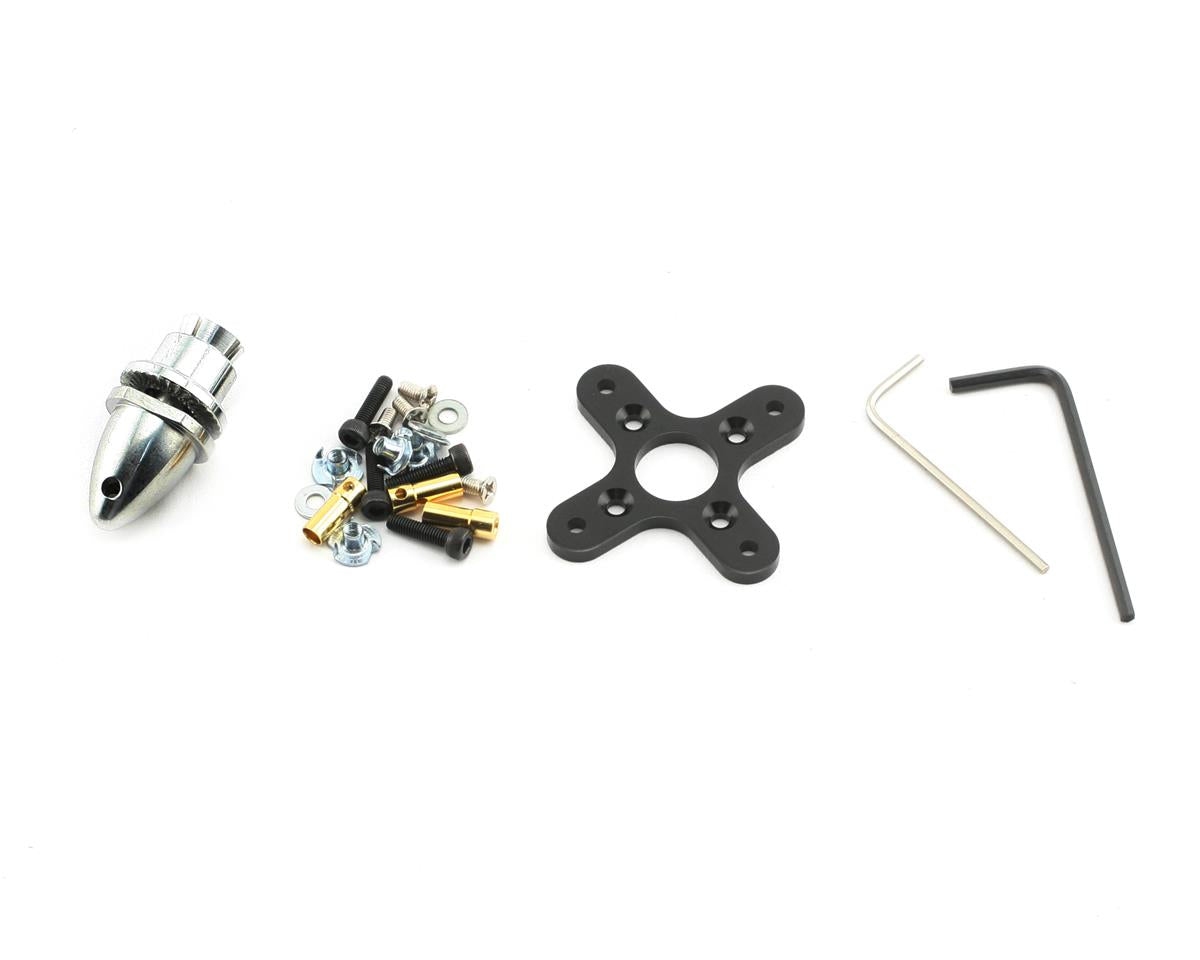

- Includes mount, prop adapters and mounting hardware
- External rotor design—5mm shaft can easily be reversed for alternative motor installations
- Slotted 14-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quiet, lightweight operation
Needed To Complete
40A–45A brushless ESC
8-to 12-cells Ni-MH/Ni-Cd or 3–4S Li-Po
10x6 to 13x6.5 electric prop
Overview
The Power 15 is designed to deliver clean and quiet power for 15-size sport and scale airplanes weighing 36 to 56 ounces (1020 to 1590 grams), 3D airplanes weighing 32 to 40 ounces (910 to 1135 grams), or models requiring up to 575 watts of power.
Specs
| Bushing Or Bearing | Bearing |
| Cells | 8–12 Ni-MH/Ni-Cd or 3-4S Li-Po |
| Connector Type | 3.5mm Bullet |
| Idle Current (Io) | 2.00A @10V |
| Motor Design | Outrunner |
| Motor Type | Brushless |
| Recommended Prop Range | 10x6–13x6.5 |
| RPM/Volt (Kv) | 950 |
| Shaft Diameter | 5mm (.20 in) |
| Voltage | 7.4–14.4V |
| Wire Gauge | 16 AWG |
