E-flite now brings you a small lightweight outrunner motor that is the perfect replacement for Speed 280 and Speed 370 applications for small 3D and scale park flyers weighing 10–20 ounces.
- Quiet operation\low noise compared to gearbox systems
- Excellent motor for small 3D and scale park flyers weighing 10–20 oz (280–560 g)

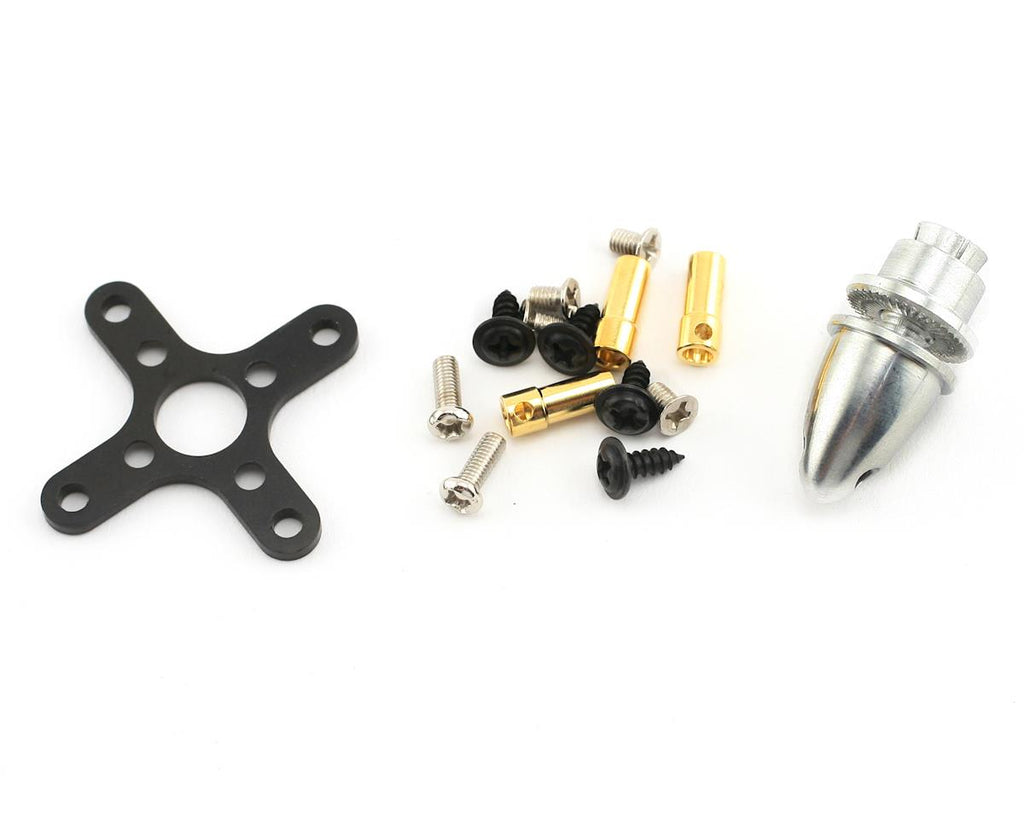

- Motor mount included
- Slotted 12-pole outrunner design
- Prop adapter (EFLM1923) and gold-plated connectors included
- Replacement for Speed 370 and Speed 400 applications
Key Features
- Slotted 12-pole outrunner design
- Prop adapter (EFLM1923) and gold-plated connectors included
- Excellent motor for small 3D and scale park flyers weighing 10–20 oz (280–560 g)
- Motor mount included
- Replacement for Speed 370 and Speed 400 applications
- Quiet operation\low noise compared to gearbox systems
Needed To Complete
10–20A brushless ESC
10x7 to 12x3.8 prop
7.4V or 11.1V 860–1320mAh Li-Po
Overview
The great performance and small size of this engine makes it perfect for small 3D and other park flyer models. The external rotor design eliminates the need for a gearbox, saving you valuable weight to get the maximum performance out of the model.
Product Specifications
| Motor Design |
Outrunner |
| Connector Type |
3.5mm Bullet |
| Voltage |
7.2–12 |
| Adjustable Timing |
No |
| Recommended Prop Range |
10x4.7-12x3.8 |
| Bushing Or Bearing |
Bearing |
| Resistance |
.26 ohms |
| Shaft Diameter |
1/8 in (3.17mm) |
| Idle Current (Io) |
.55 @ 10V (no load current) |
| RPM/Volt (Kv) |
740 (rpms per volt) |
| Motor Type |
Brushless |
