Key Features
- Great upgrade for Speed 280 and Speed 370 applications
- Excellent motor for small 3D airplanes weighing 7–14 oz (200–400 g)
- Slotted 12-pole outrunner design
- Extremely lightweight—just 1.6 ounces
- High-torque, direct-drive motor—no gearbox necessary
- Motor mount, prop adapter and all hardware included
- External rotor design with front shaft for easy mounting
- Includes gold bullet connectors
- Ideal for models requiring up to 150 watts of power
Needed To Complete
10–20A brushless ESC
8x3.8 to 10x4.7 prop
7.4–11.1V 480–1320mAh Li-Po
Overview

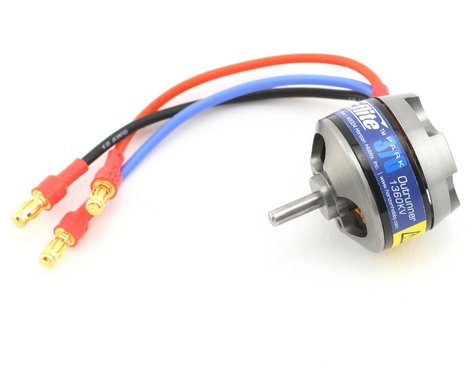

E-flite’s new Outrunner series of high-quality brushless motors provides great efficiency and light weight—just 1.6 ounces. They’re ideal for small electric airplanes. such as the E-flite Tensor 4D.
Specs
Motor Type Brushless
Outer Diameter 1.1 in (28 mm)
Recommended Prop Range 8 x 3.8 to 10 x 4.7
RPM/Volt (Kv) 1360Kv
Shaft Diameter 3.17mm (1/8 in)
Voltage 7.2–12
Cells 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
Connector Type 3.5mm Bullet
Idle Current (Io) 1.00A @ 10V
Motor Design Outrunner
Bushing Or Bearing Bearing
