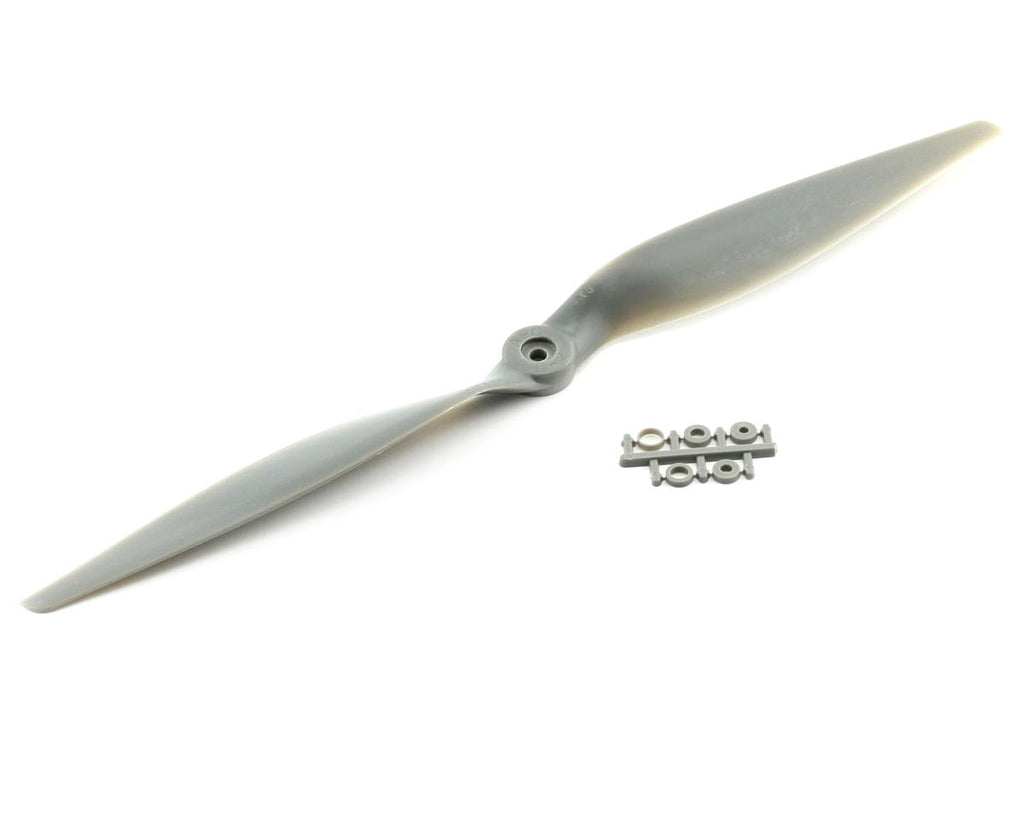

This is the APC 16x8 Thin Electric Propeller. APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.
Features:
- Computer-optimized design gives these props a thinner profile and more "bite" with less noise
- Lightweight molded nylon construction reduces rotating mass for higher output and longer life
- Reinforcing fibers help maintain true, constant pitch at any RPM
Specifications:
-
Propeller Diameter: 16in (406.4mm)
-
Pitch: 8in (203.2mm)
-
Hub Diameter: 1in (25.4mm)
-
Hub Thickness: 0.47in (11.938mm)
-
Shaft Diameter: 0.25in (6.35mm)
-
Weight: 1.83oz (51.88g)
-
Rotation: CCW (Standard/Tractor)
Product Specifications
| Propeller Size |
16 x 8 |
| Number of Blades |
2 Blade |
| Material |
Plastic |
