Description
Axial 1/10 SCX10 III Motobilt Waypoint Jeep JT Gladiator 4X4 RTR Brushed Rock Crawler

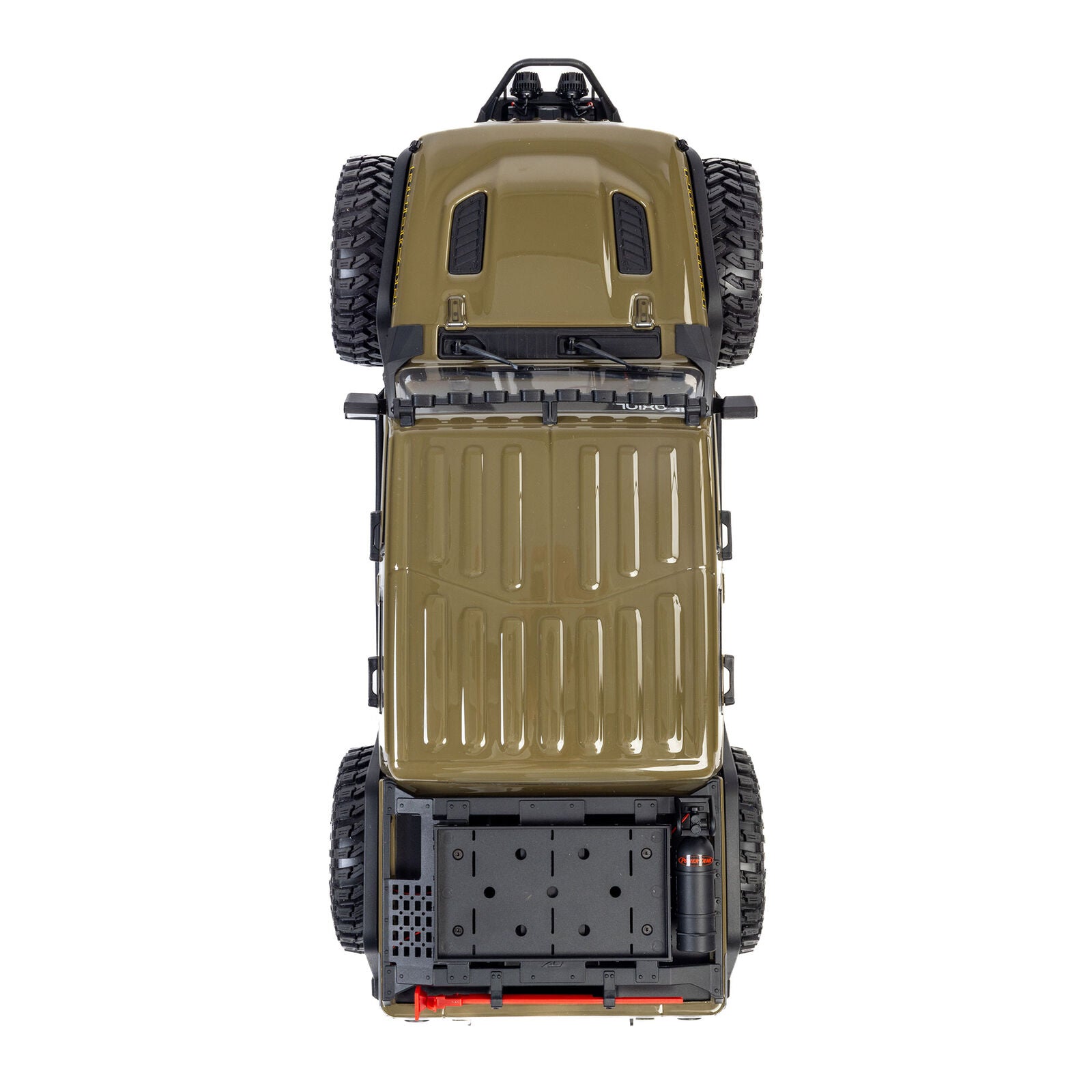

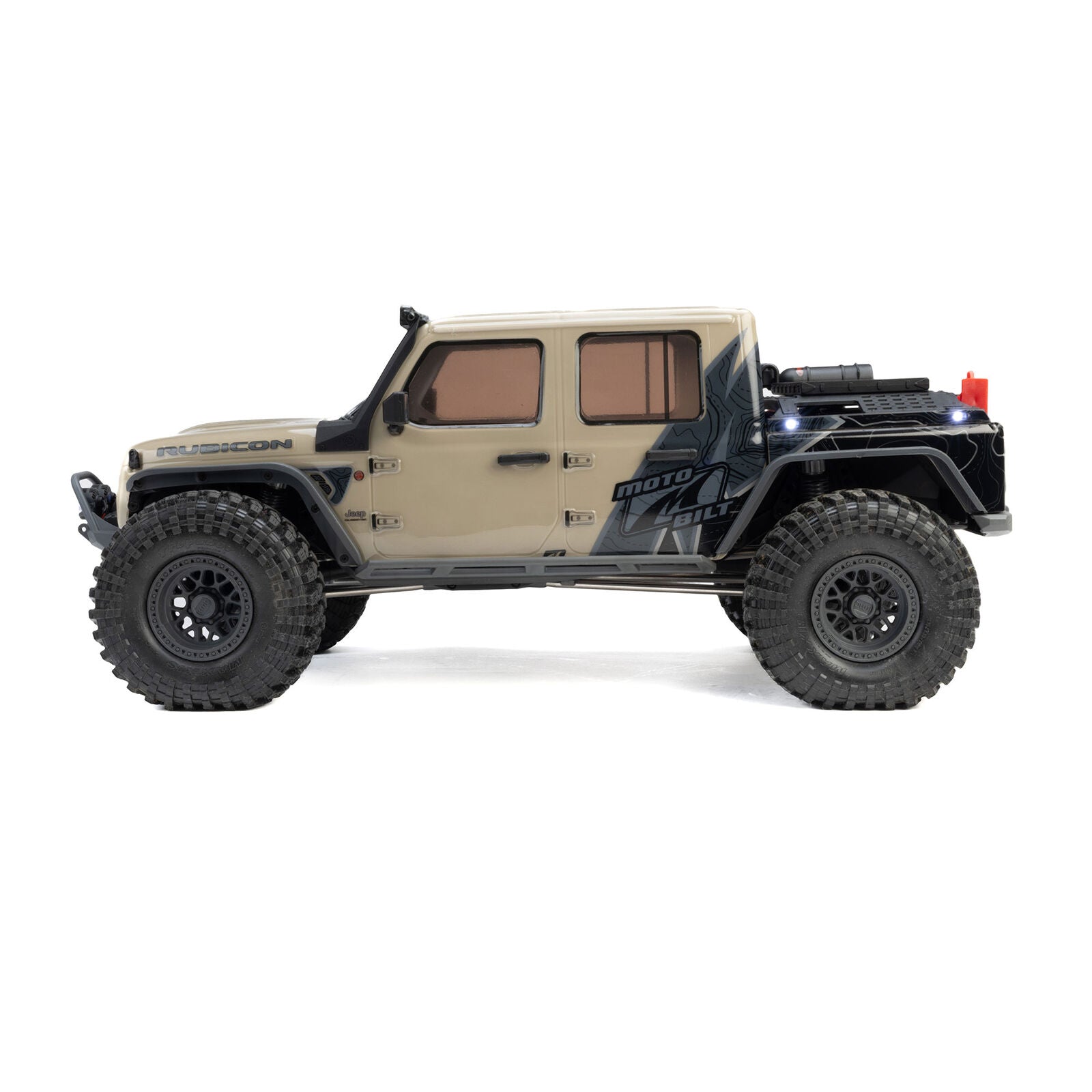

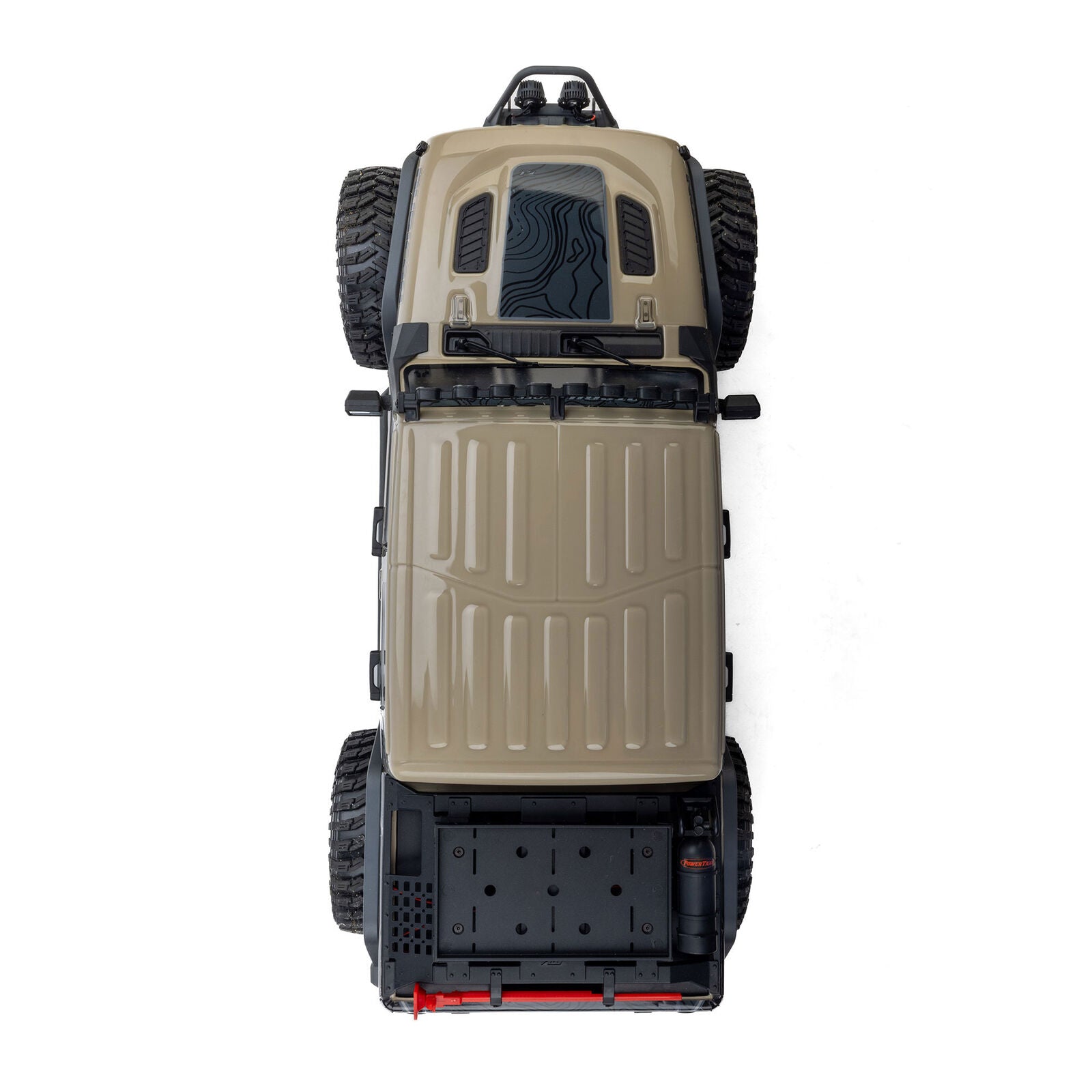

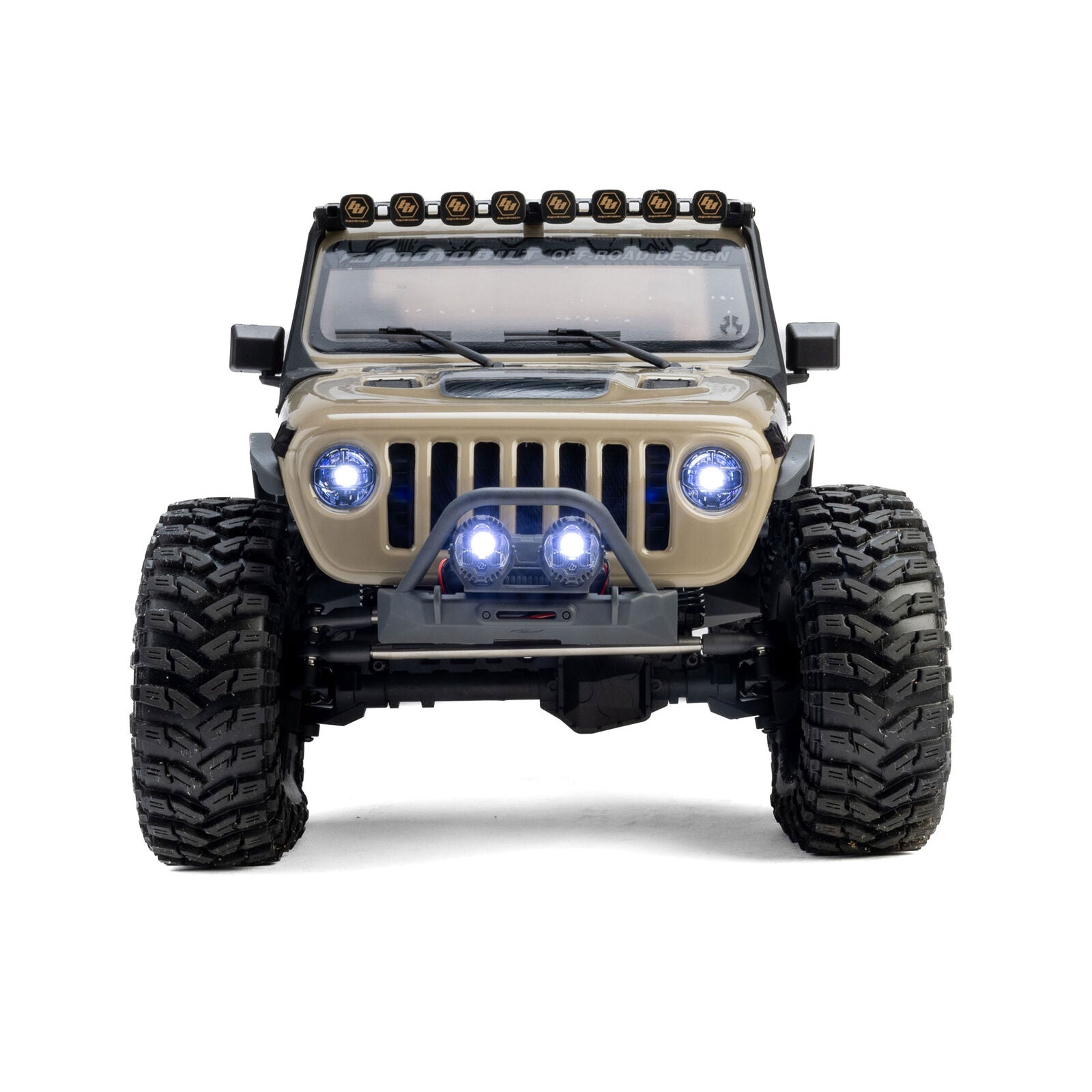

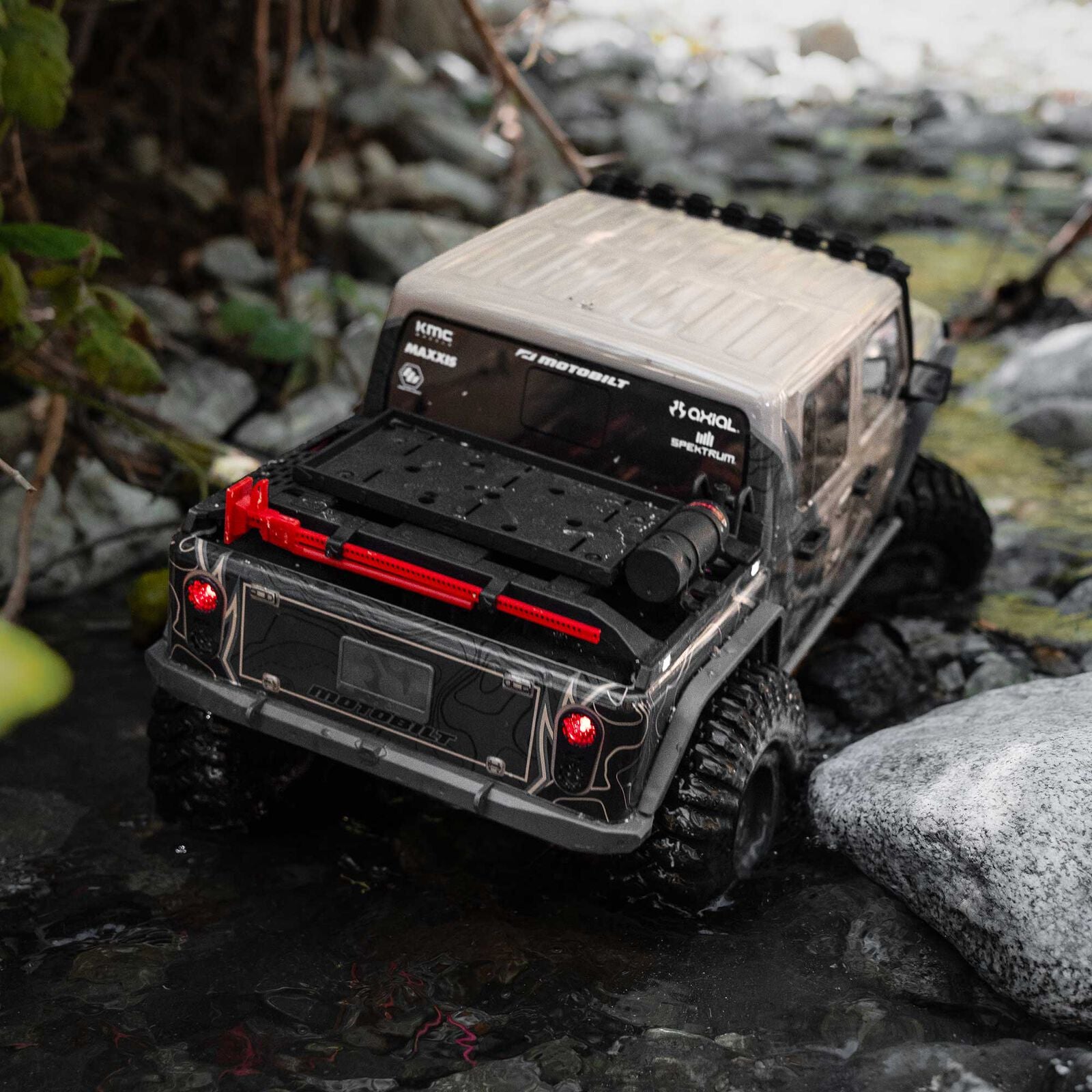

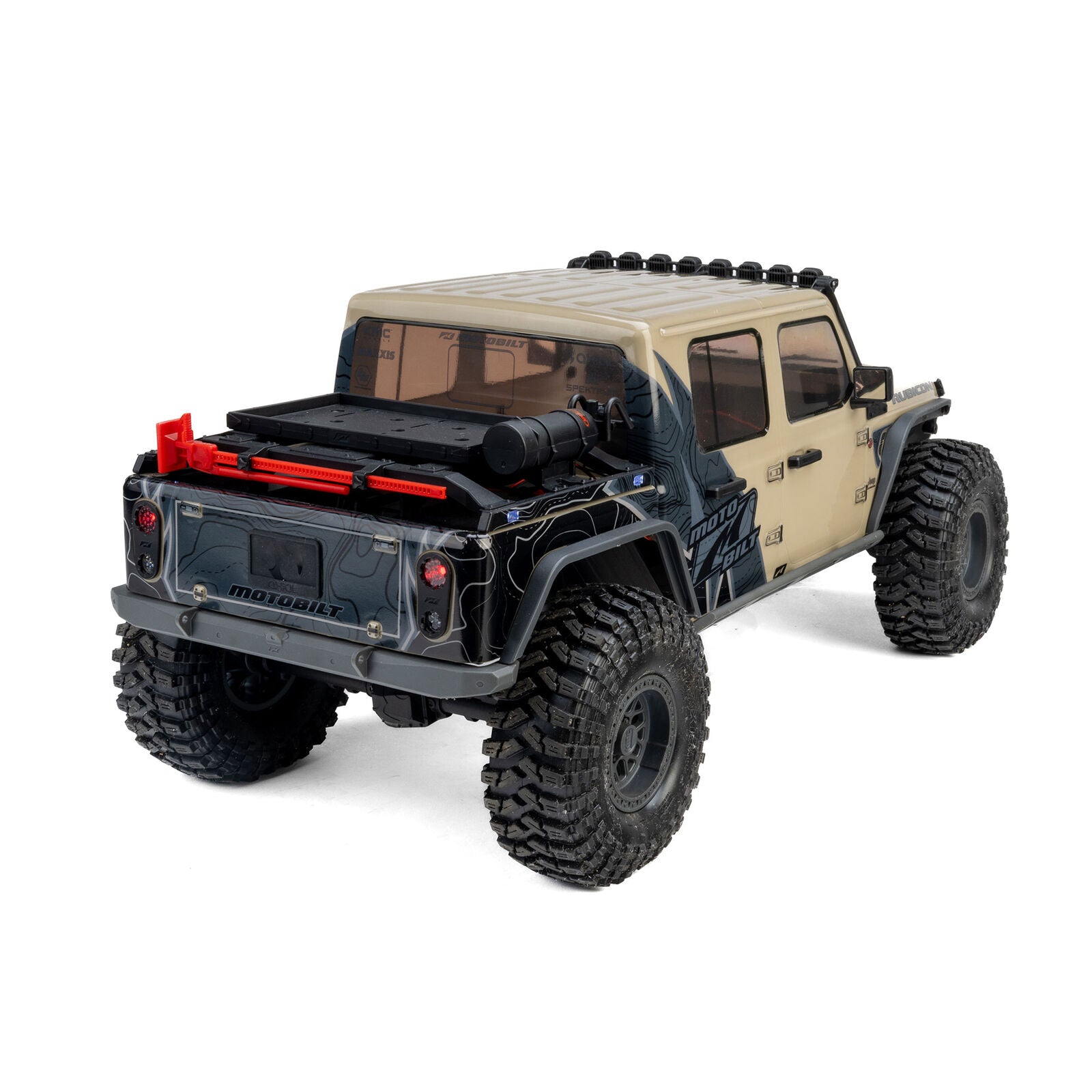

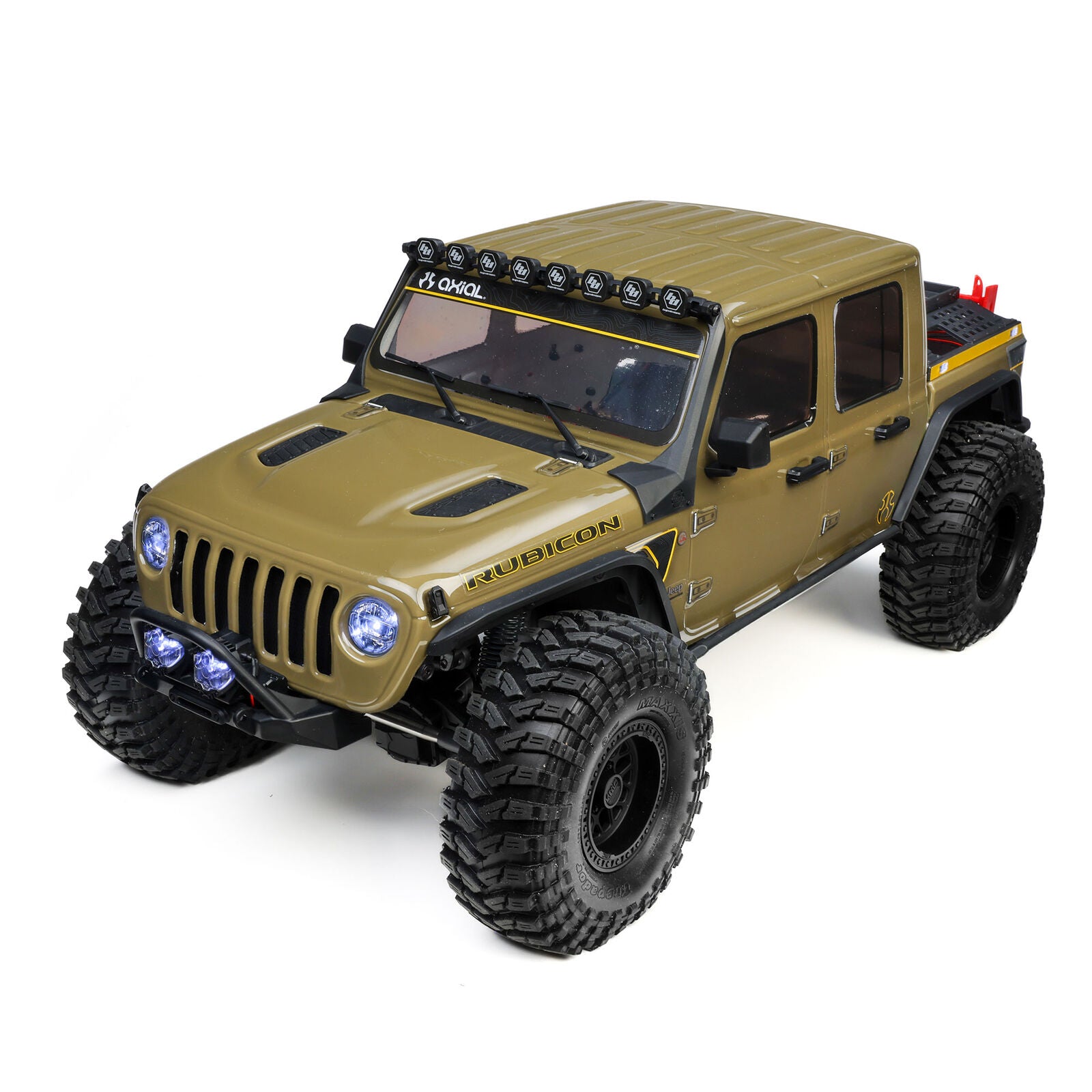

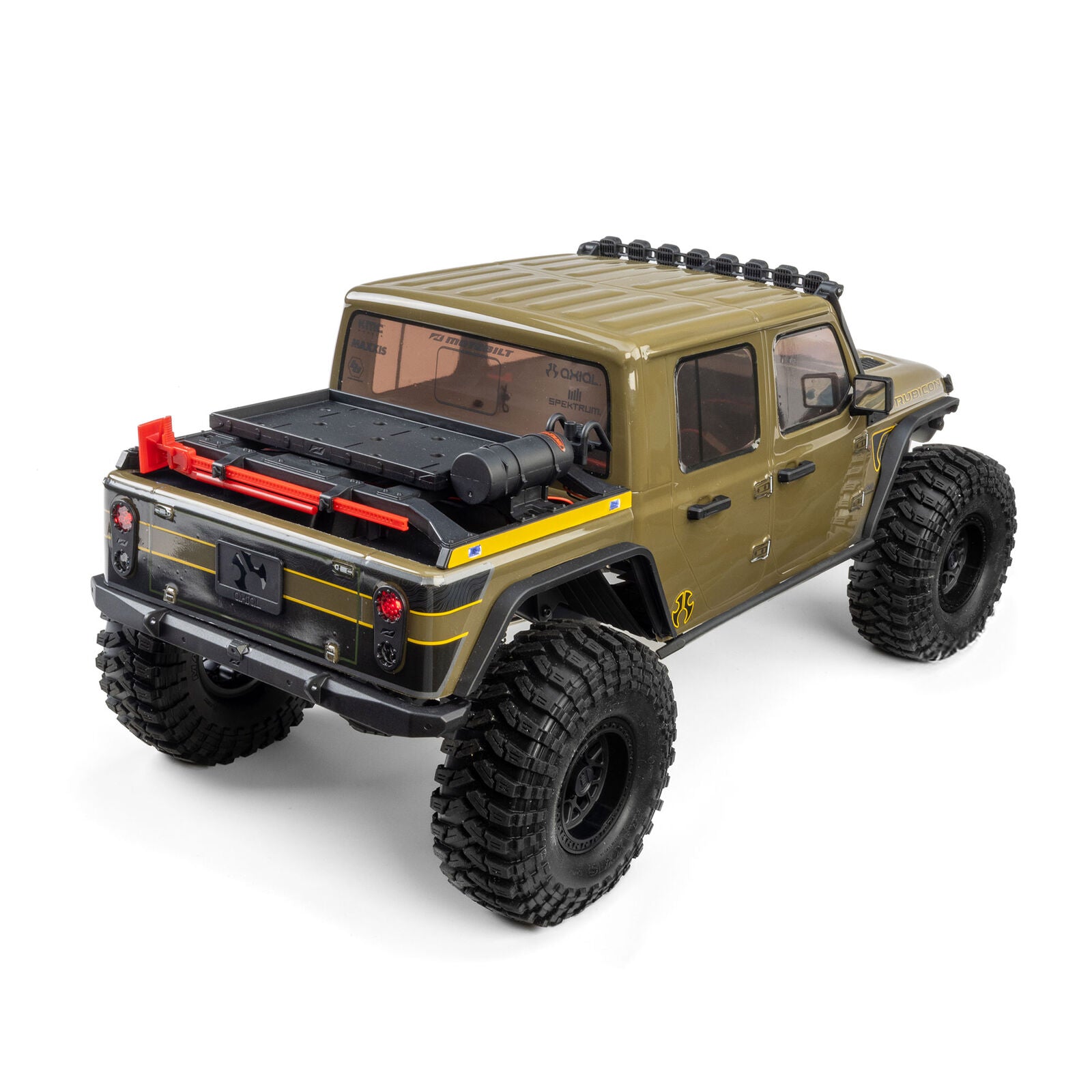

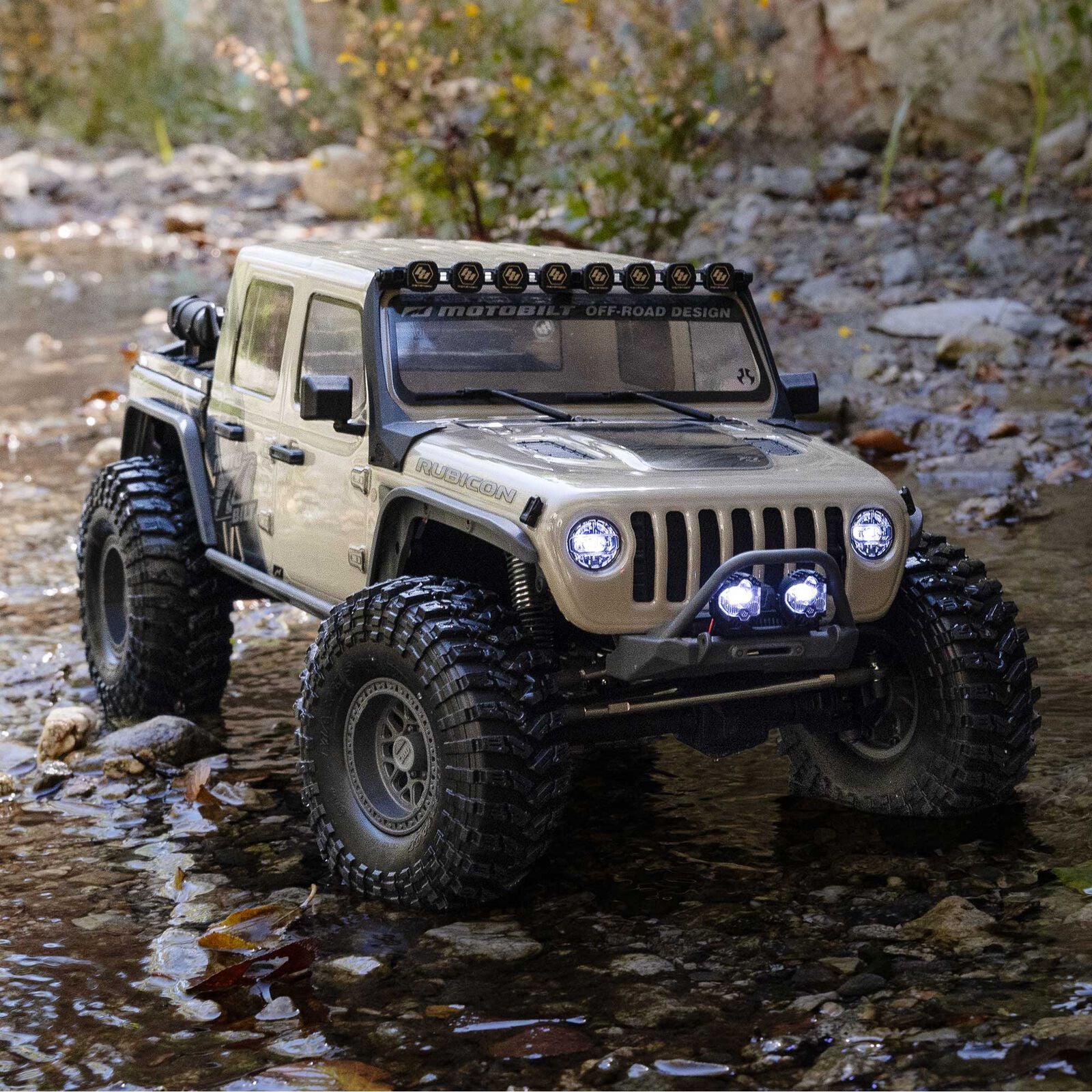

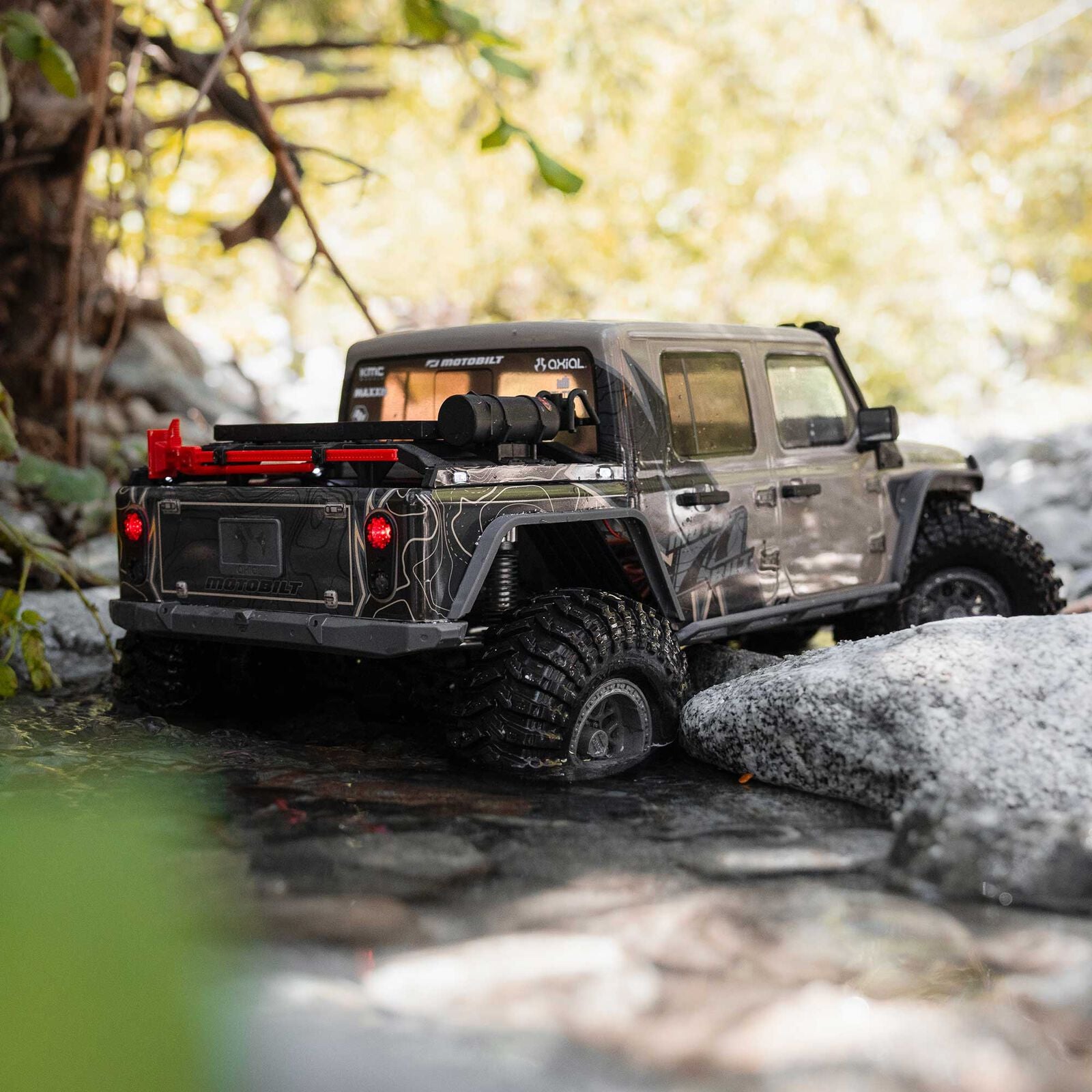

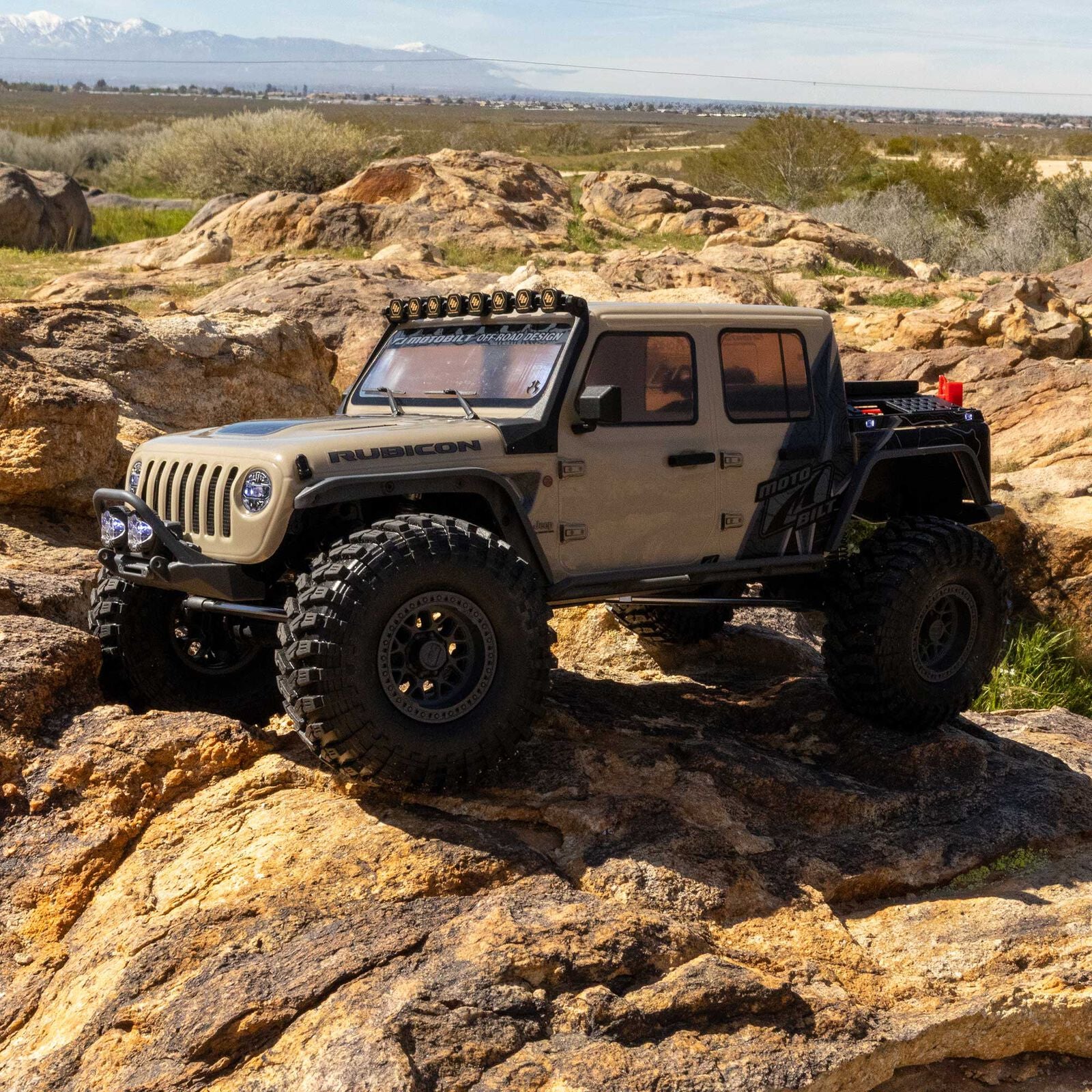

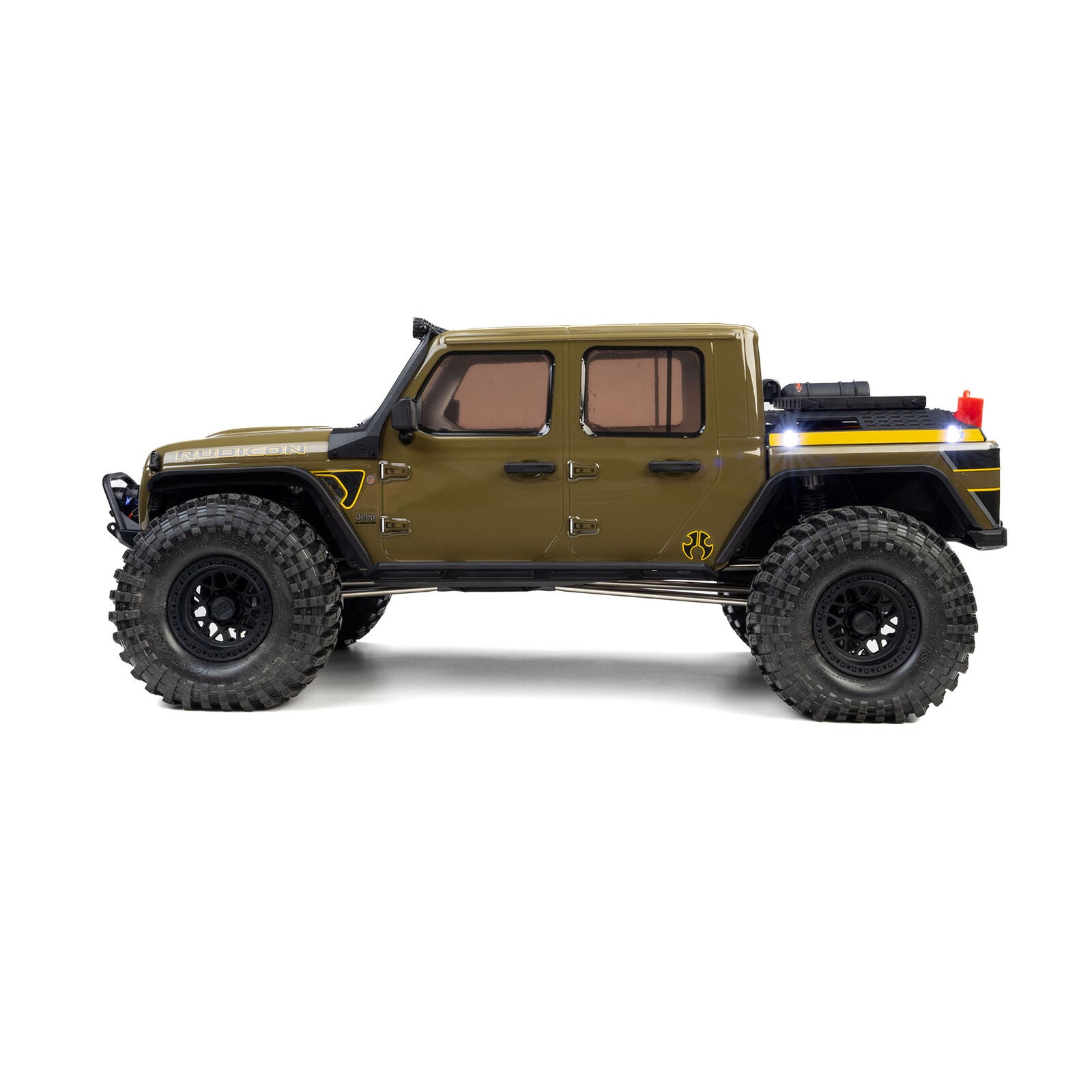

Built for the late-night garage diehards and weekend trail warriors who demand more from their scale builds, the Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator is a 1/10 scale recreation of one of the most extreme purpose-built off-road machines on the planet. Developed in partnership with Motobilt, this officially licensed Jeep JT Gladiator captures every defining detail of the Waypoint build — from the Motobilt front and rear bumpers with Baja Designs LP6 bumper lights and S2 bed rail lights, to the scale 15 lbs. CO2 tank and Hi-Lift jack mounted in the bobbed bed. Jeep's iconic 7-slot grille, detailed fender flares, molded door handles, hood vents, side mirrors, and inner fender wells bring authentic JT Gladiator character to the polycarbonate shell, while the official Jeep production color scheme and bright LED lighting across bumpers, headlights, taillights, and bed rack complete a scale presentation that turns heads on the trail and on the shelf.

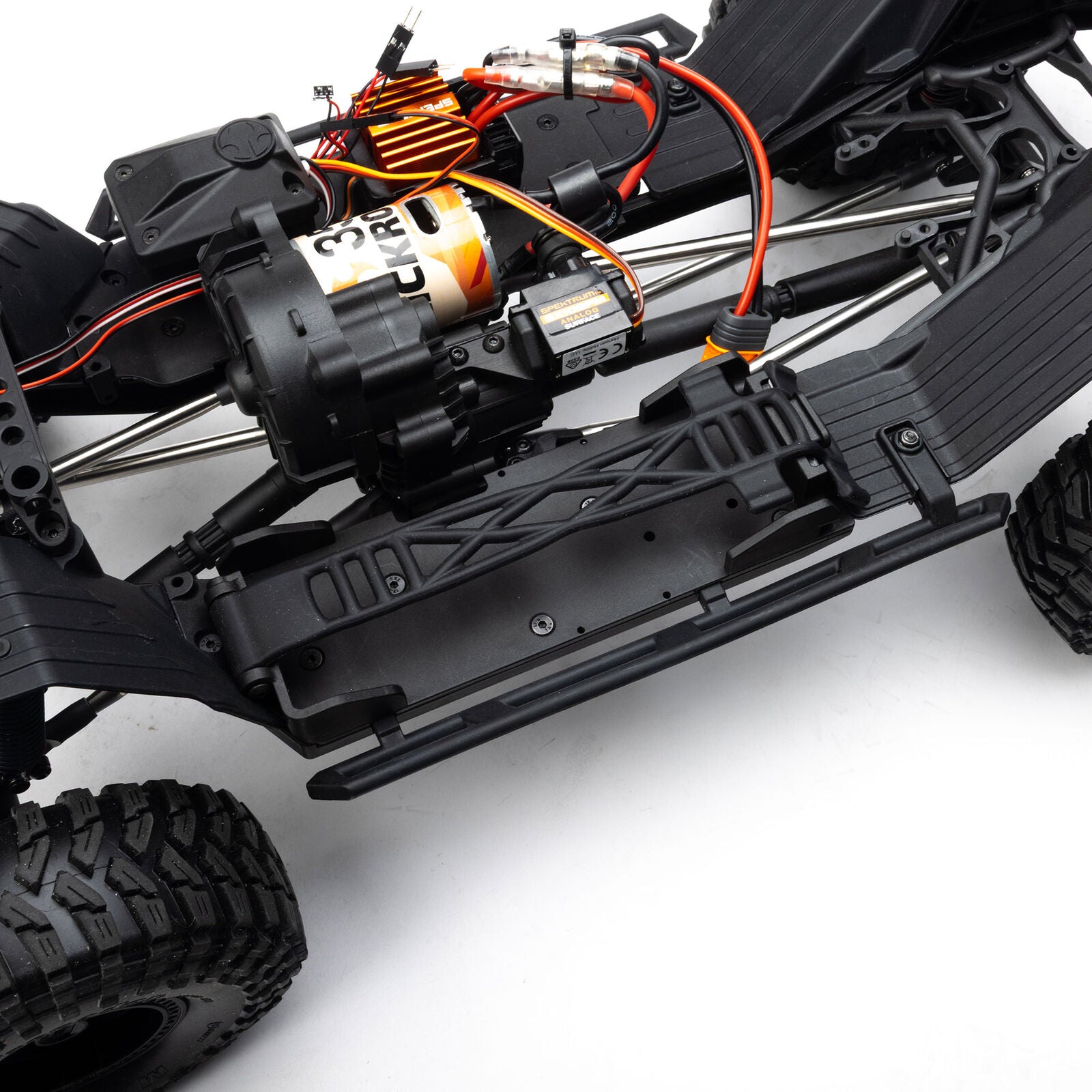

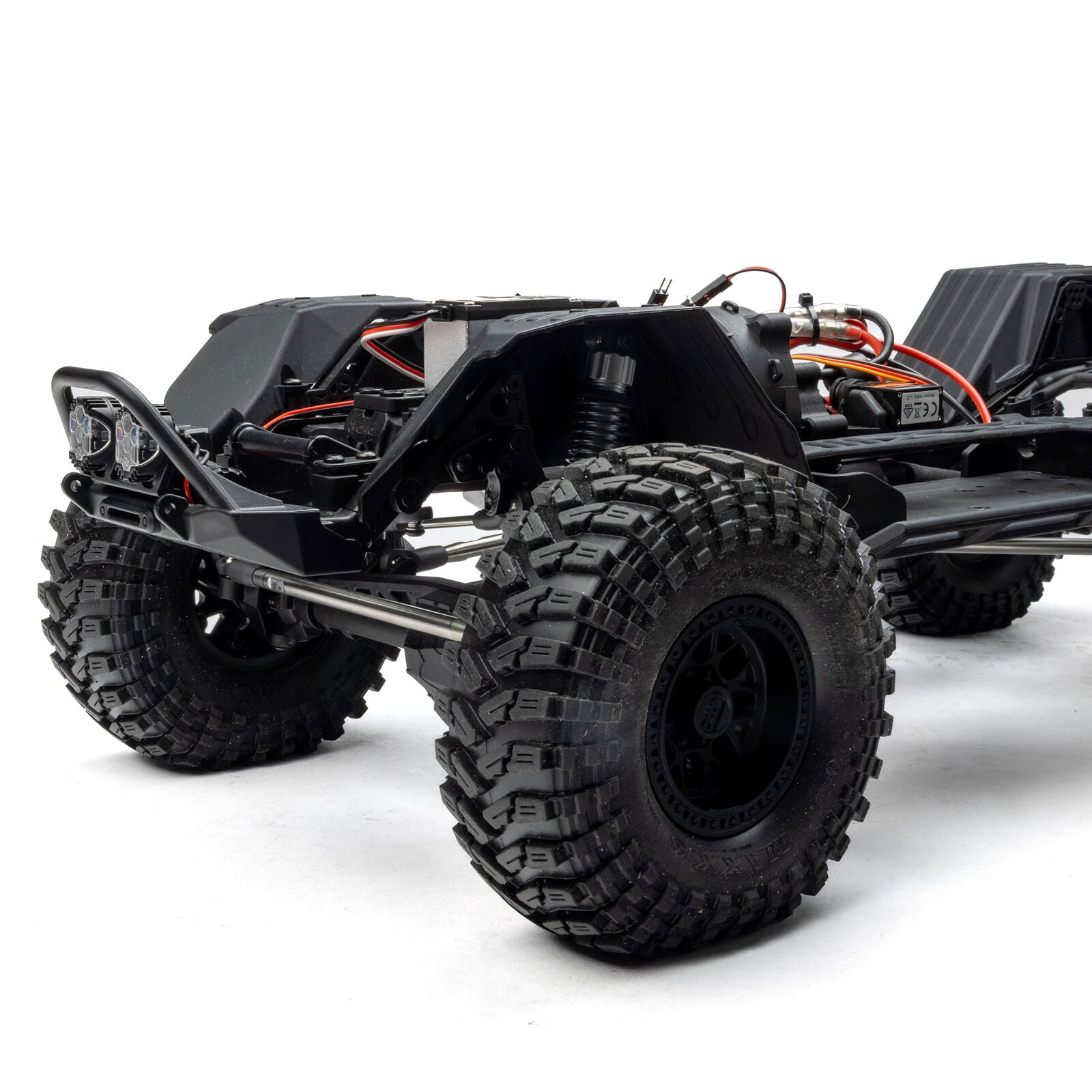

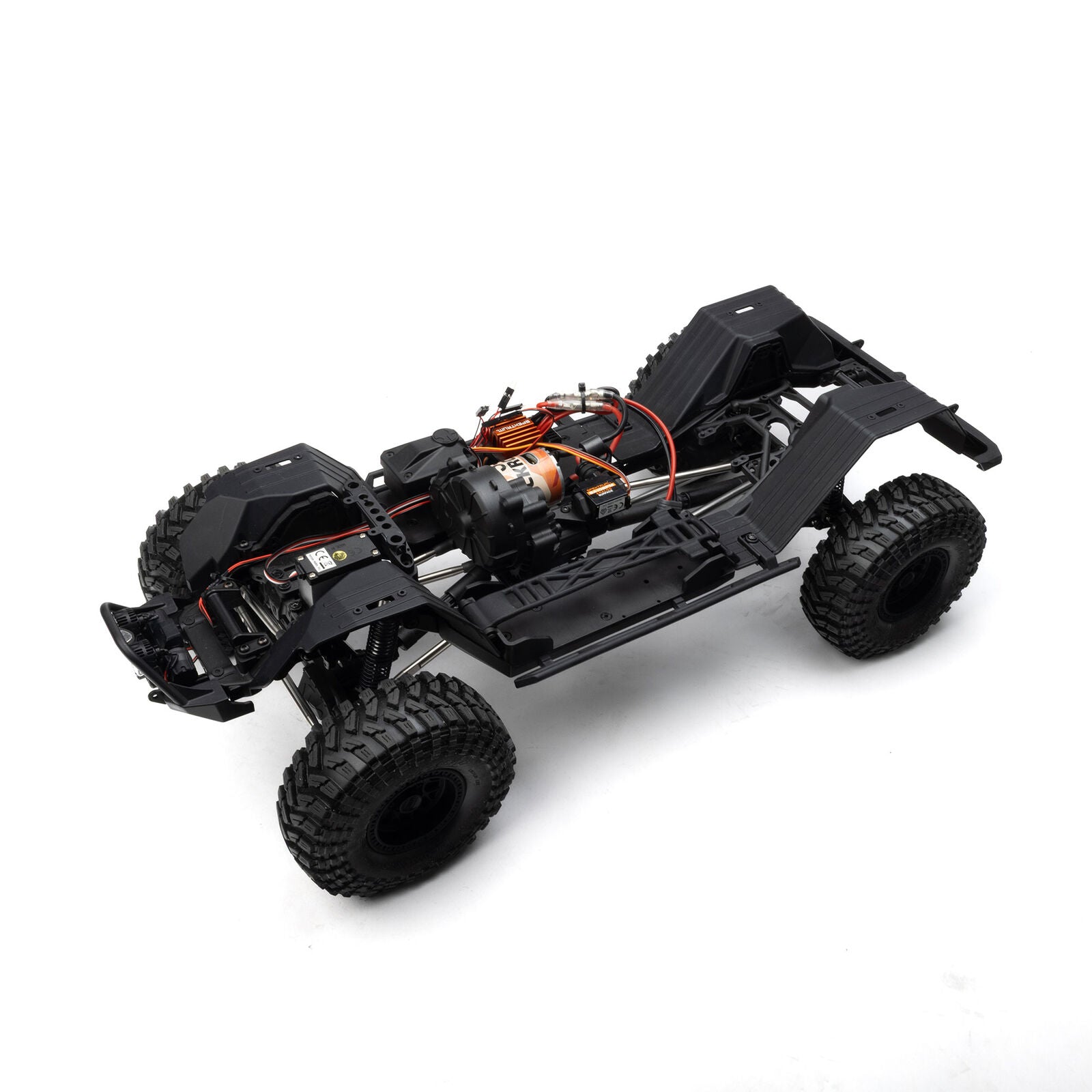

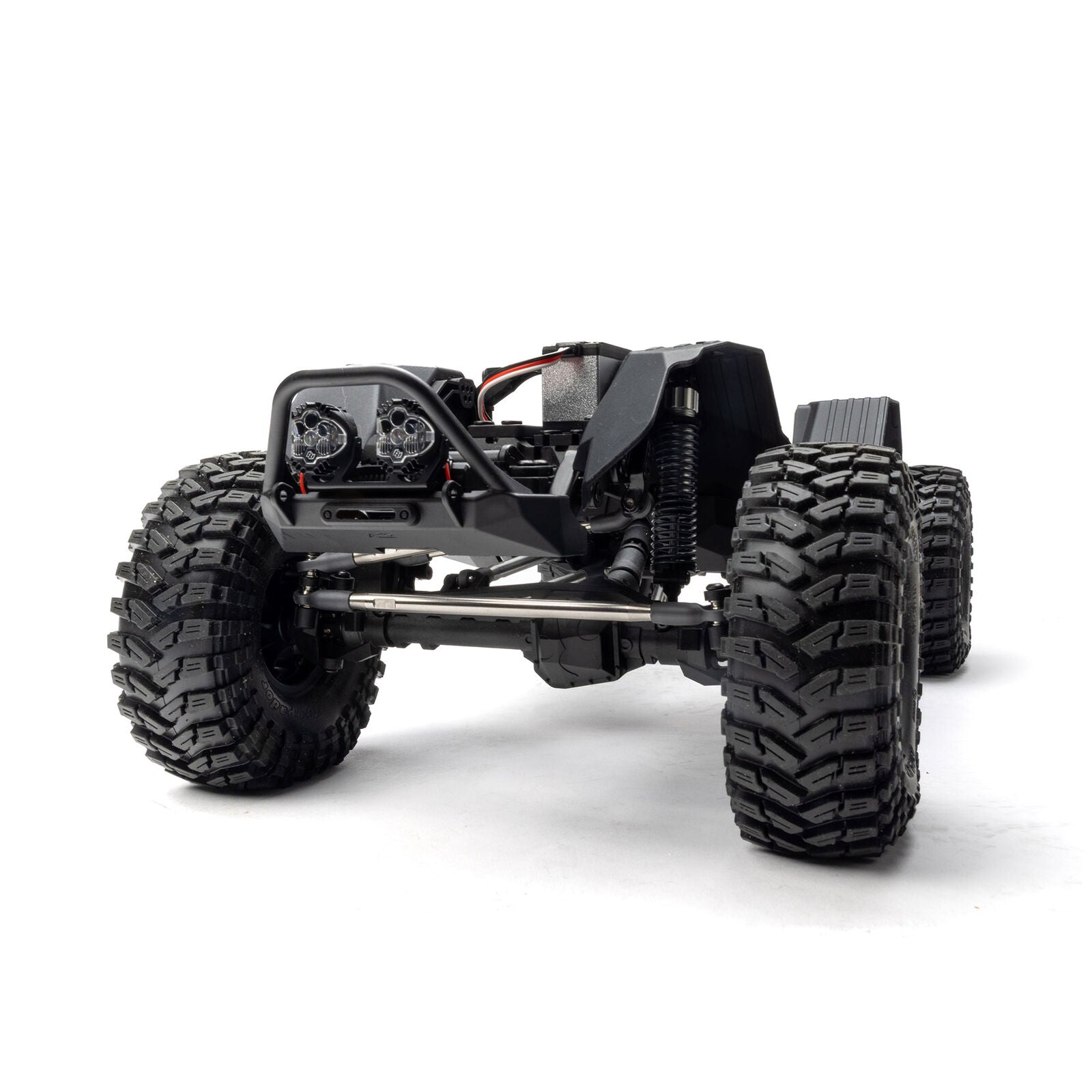

The chassis is as capable as it looks. Expandable steel C-channel rails with a 13.9" extended wheelbase reduce frame flex and improve suspension performance across demanding terrain, while the front 3-link and rear 4-link suspension with 6mm stainless steel links and stainless steel pivot balls deliver the articulation and durability that serious rock crawling requires. AR45 straight axles — with a driver-offset differential housing on the front axle for added scale realism — feed power through oil-filled aluminum-bodied coil-over shocks that are fully tunable for trail conditions. The improved SCX10 III Panhard bar mount features two-piece construction with double shear protection, and the skid plate offers multiple upper link mounting options to fine-tune suspension geometry and dial in anti-squat. The all-metal SCX10 III transmission with full ball bearings and multiple skid plate link positions keeps the drivetrain reliable and tuneable for any obstacle.

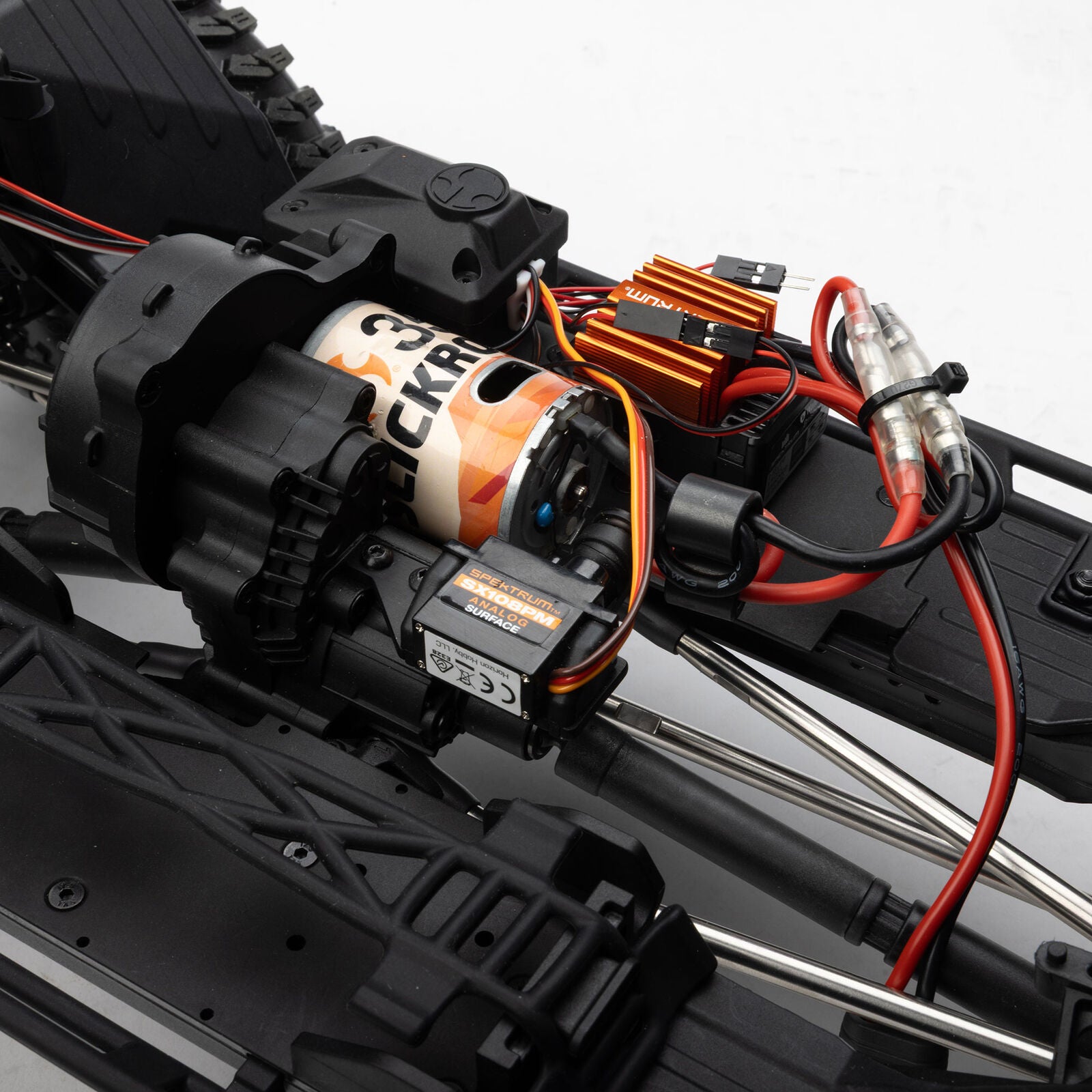

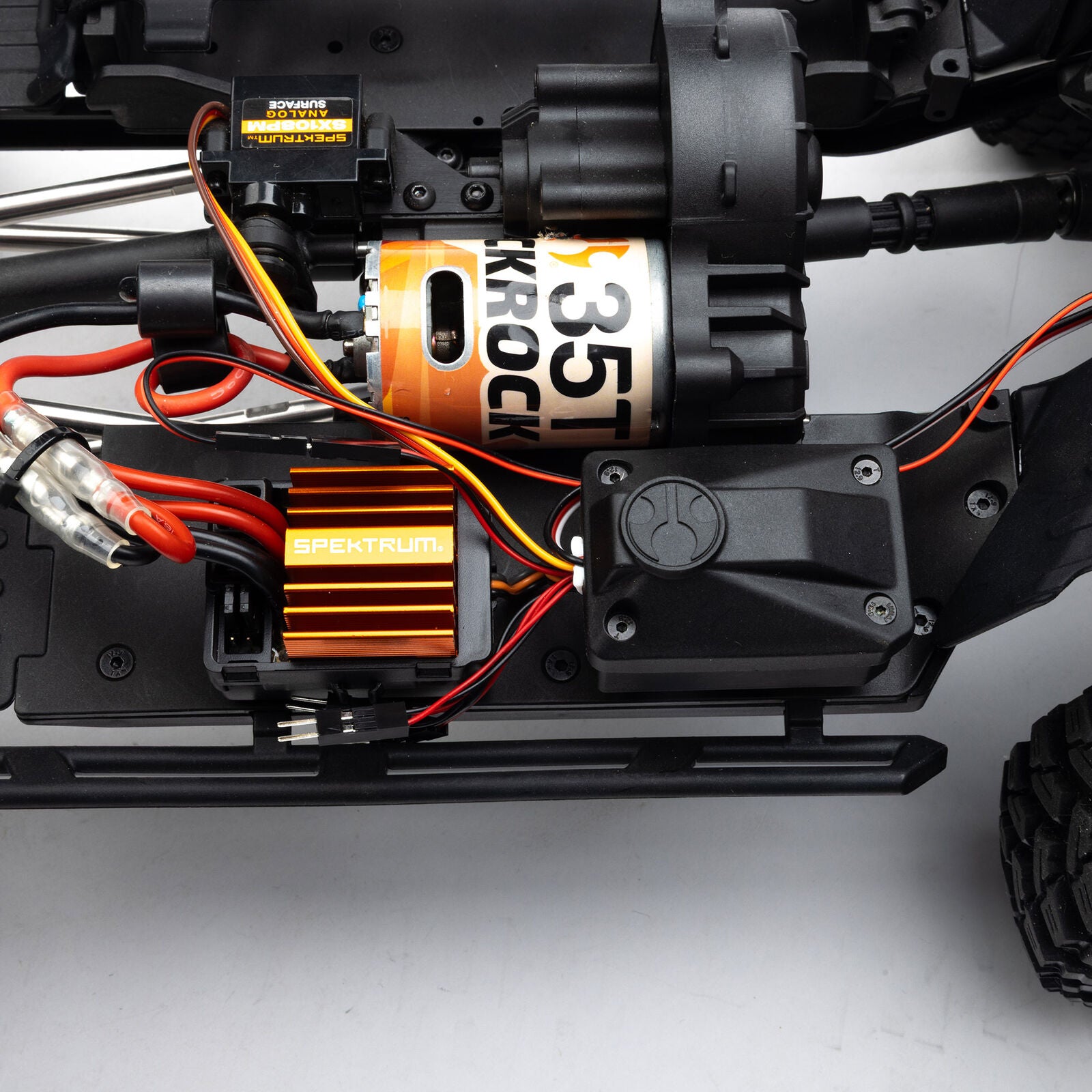

The Spektrum SLT3 3-channel transmitter controls the Firma 40A Brushed Waterproof ESC and Axial Slick Rock 35-turn brushed motor, while the third transmitter channel operates the factory-installed Dig function — locking the rear drivetrain and engaging front-wheel drive for precision navigation through the tightest technical sections. The S683 servo's 25T steel output gear handles demanding steering loads without failure. Silicone elastomer battery straps replace hook-and-loop for fast, convenient battery access, and the system accepts standard or shorty 2S or 3S LiPo packs.
Features:
Body & Scale Detail

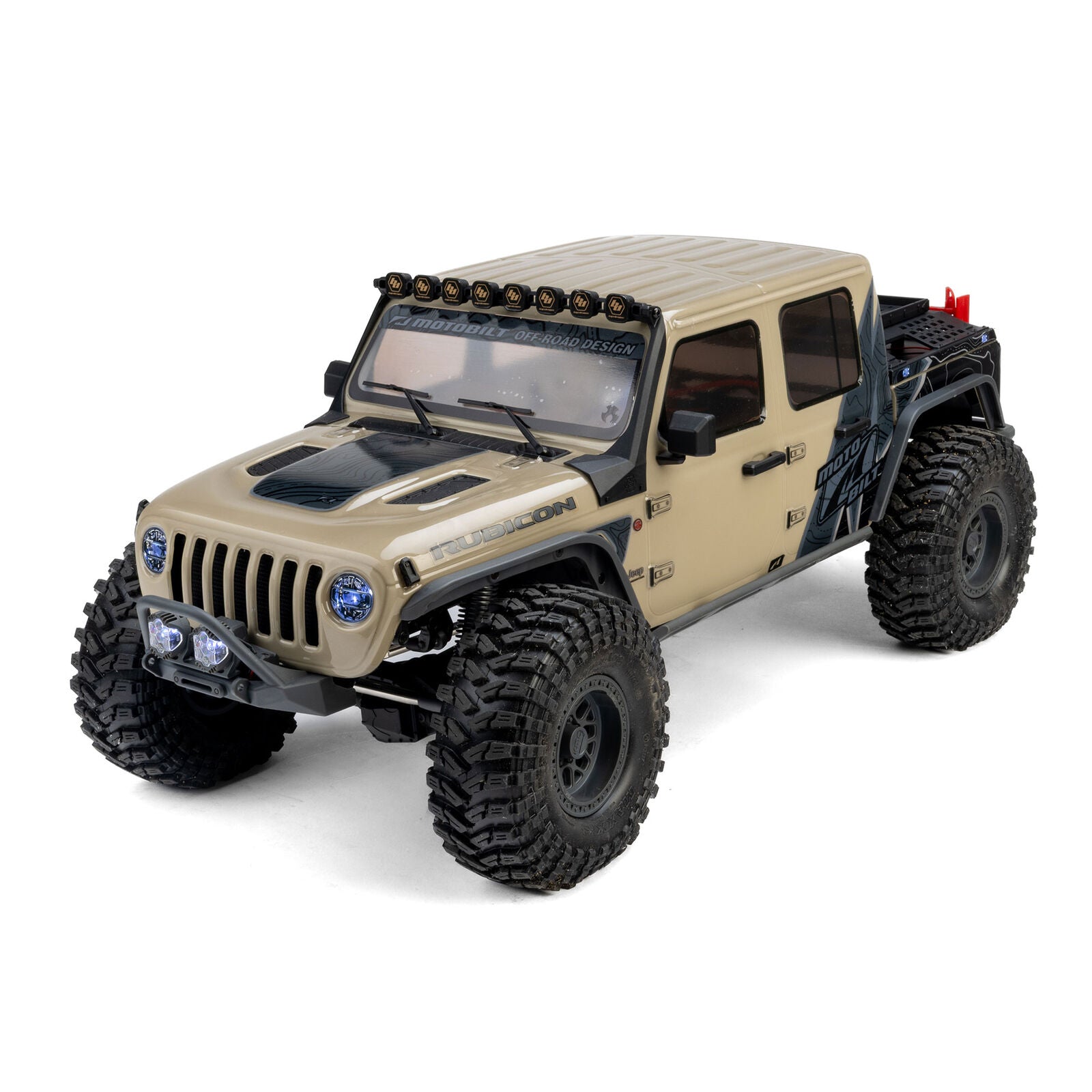

- Officially licensed Jeep JT Gladiator polycarbonate body — painted and assembled
- Jeep's authentic 7-slot grille, fender flares, door handles, hood vents, and side mirrors
- Inner fender wells for added scale realism
- Official Jeep production color scheme

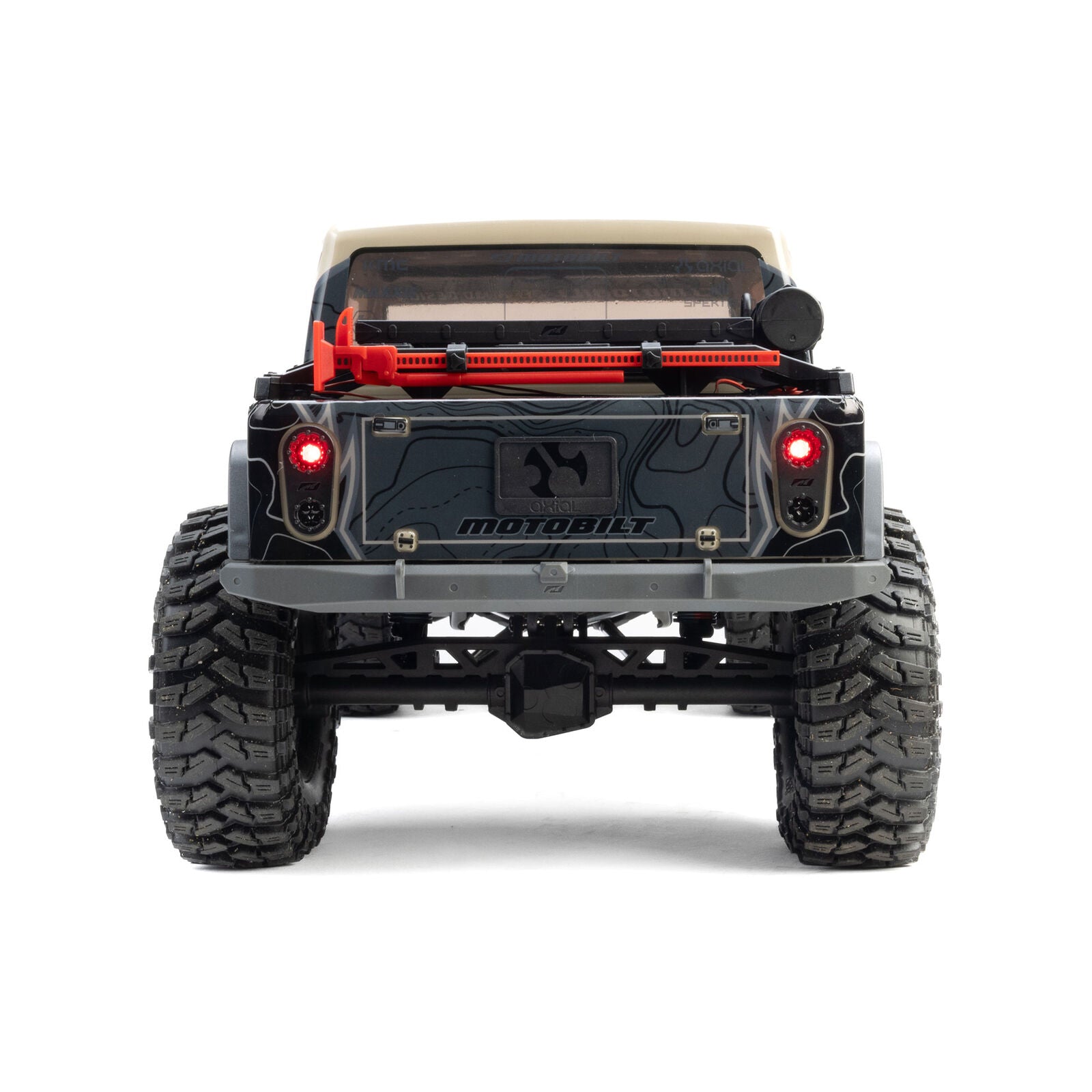

- Motobilt Waypoint trim specs: front and rear Motobilt bumpers
- Baja Designs LP6 bumper lights and S2 bed rail lights

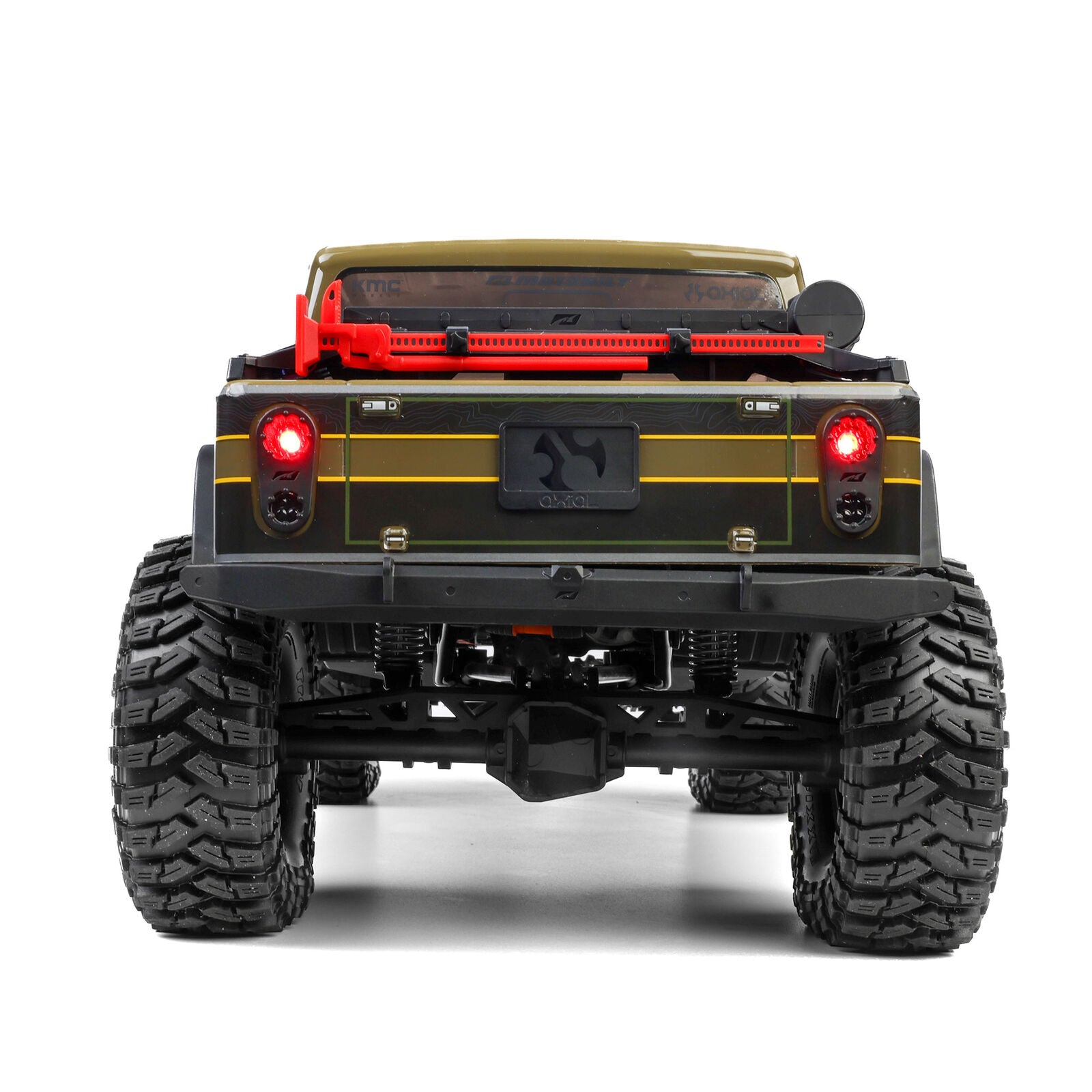

- Scale 15 lbs. CO2 tank and Hi-Lift jack in bed
- Bobbed bed design for improved departure clearance

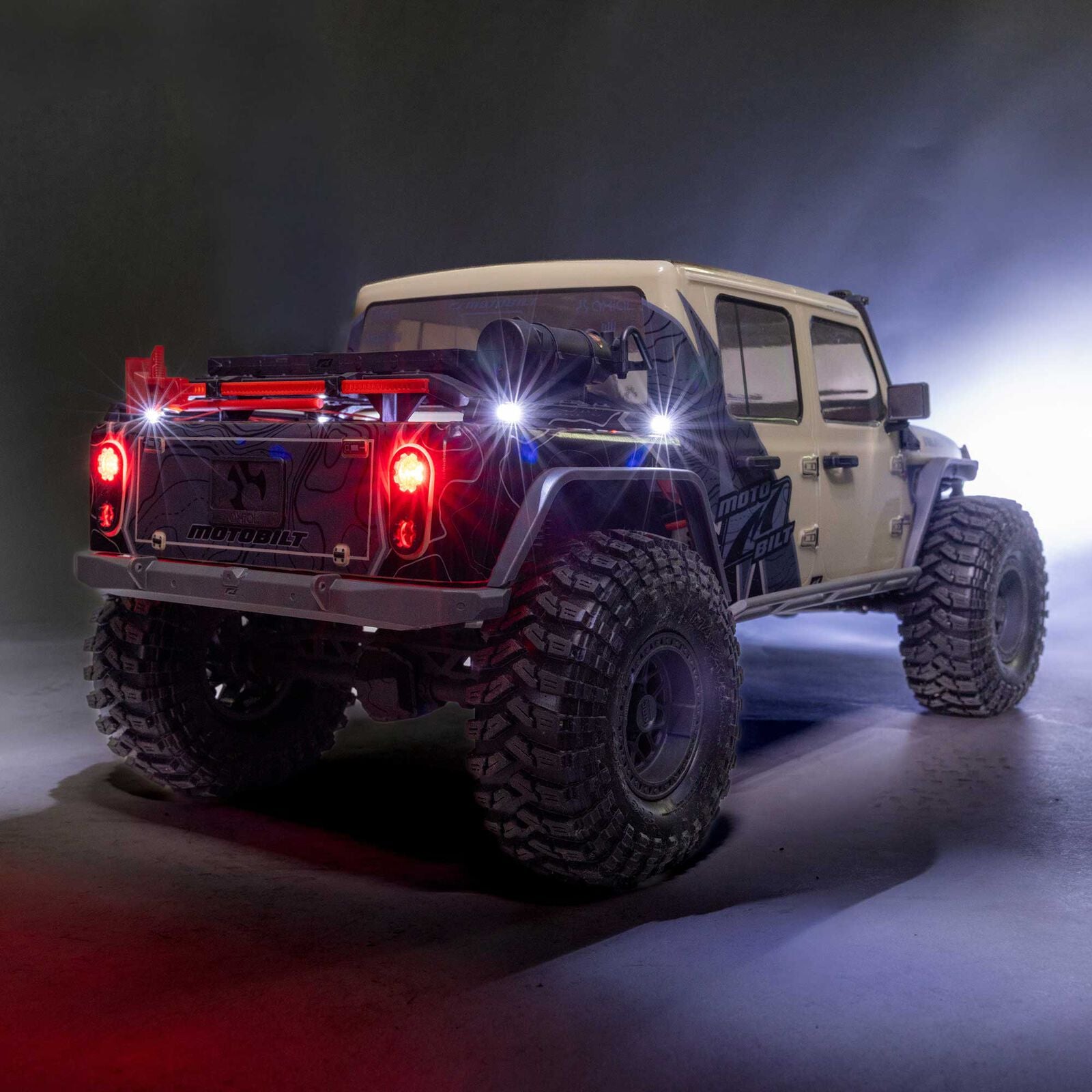

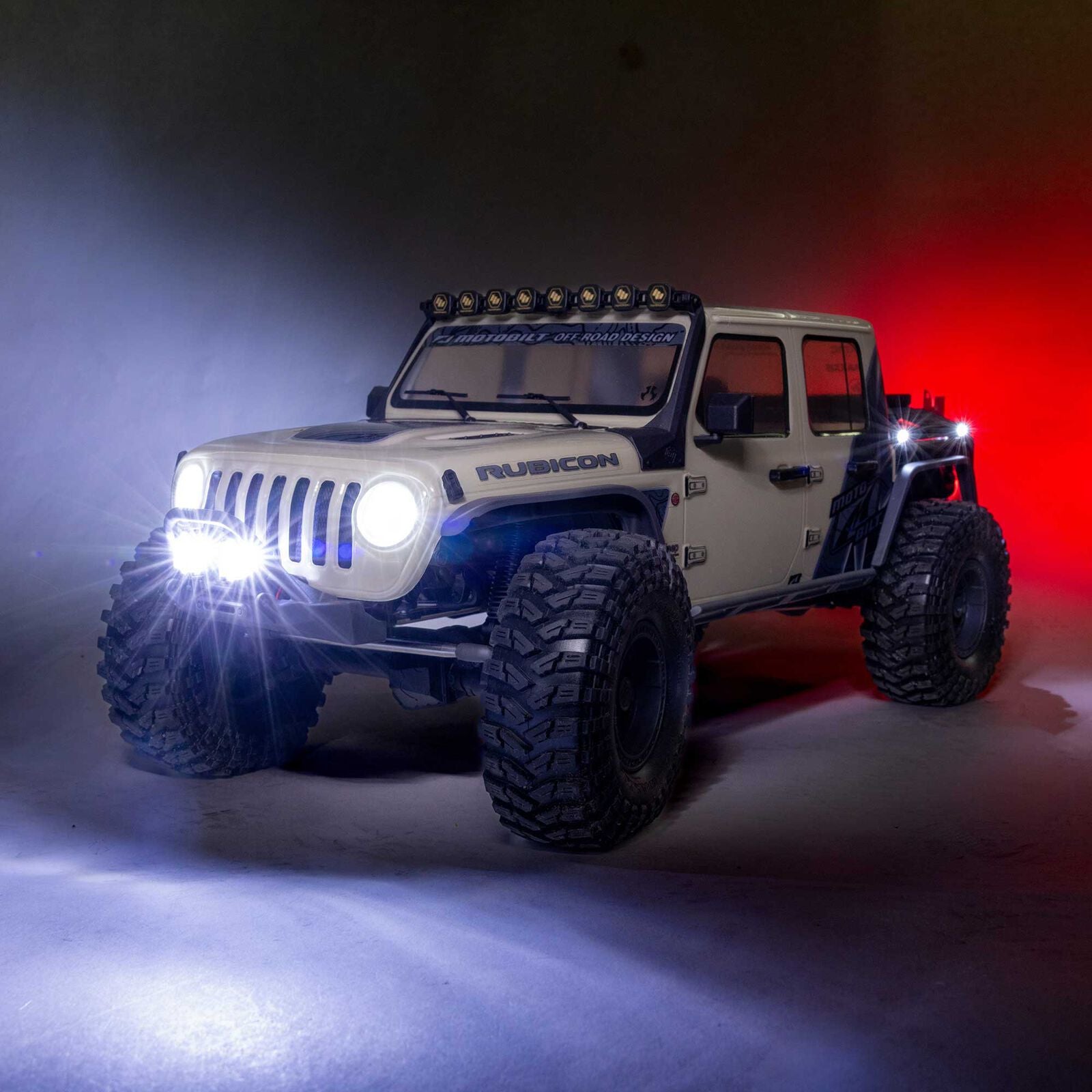

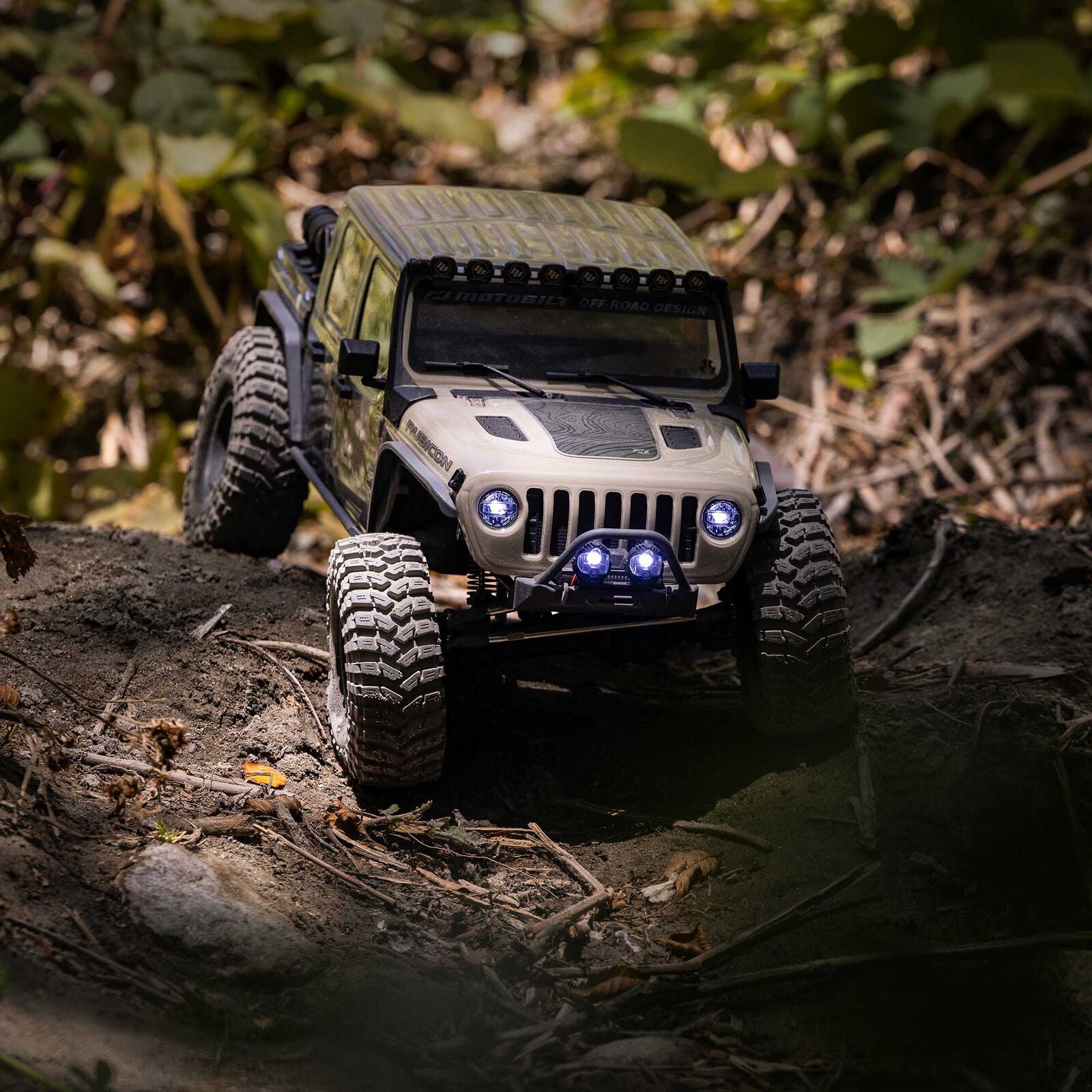

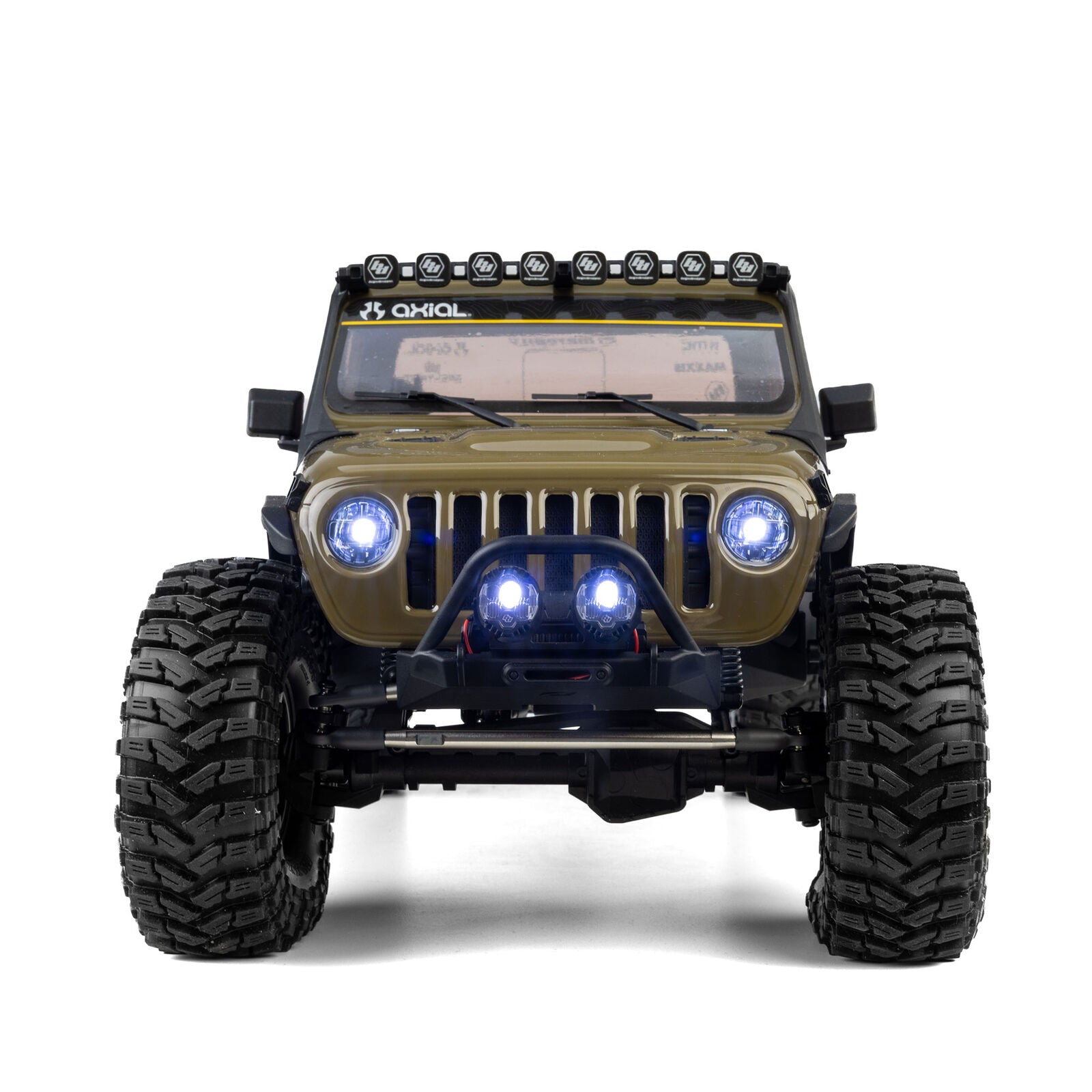

- LED lighting: bumper, headlights, taillights, and bed rack
Wheels & Tires
- Officially licensed KMC Grenade true beadlock wheels
- Maxxis Trepador tires in Axial's soft compound — aggressive tread and side lugs
- 12mm wheel hex size

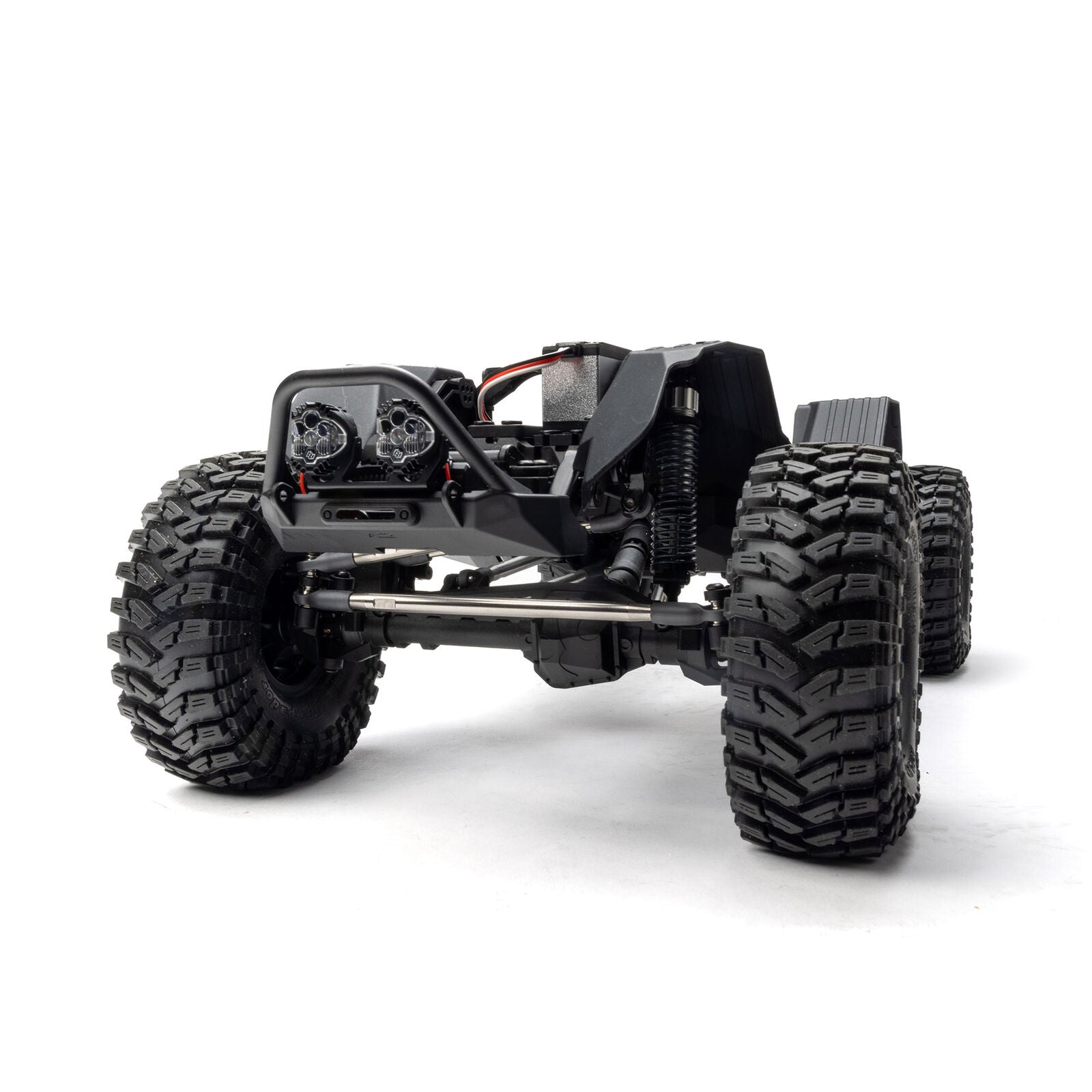

Chassis & Suspension

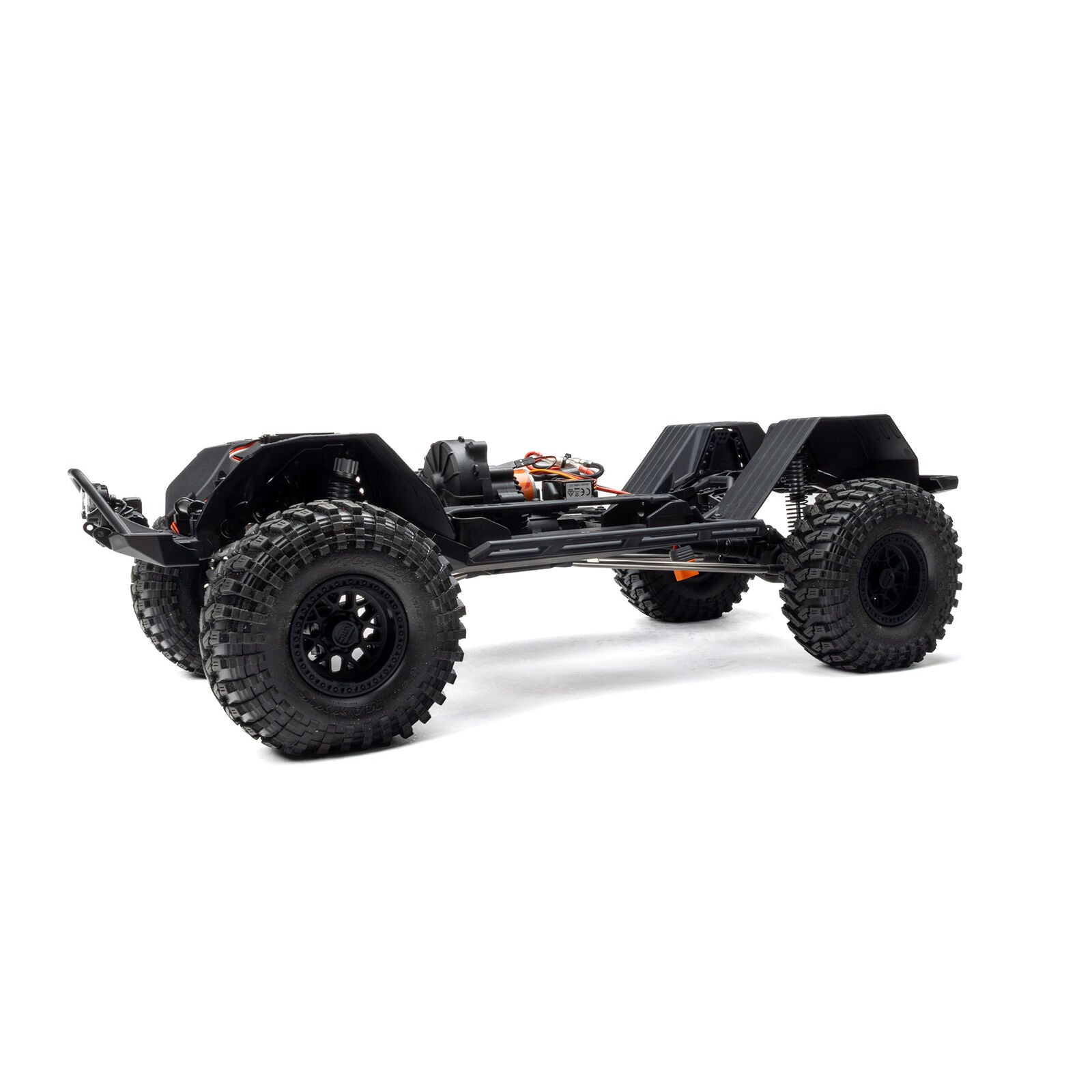

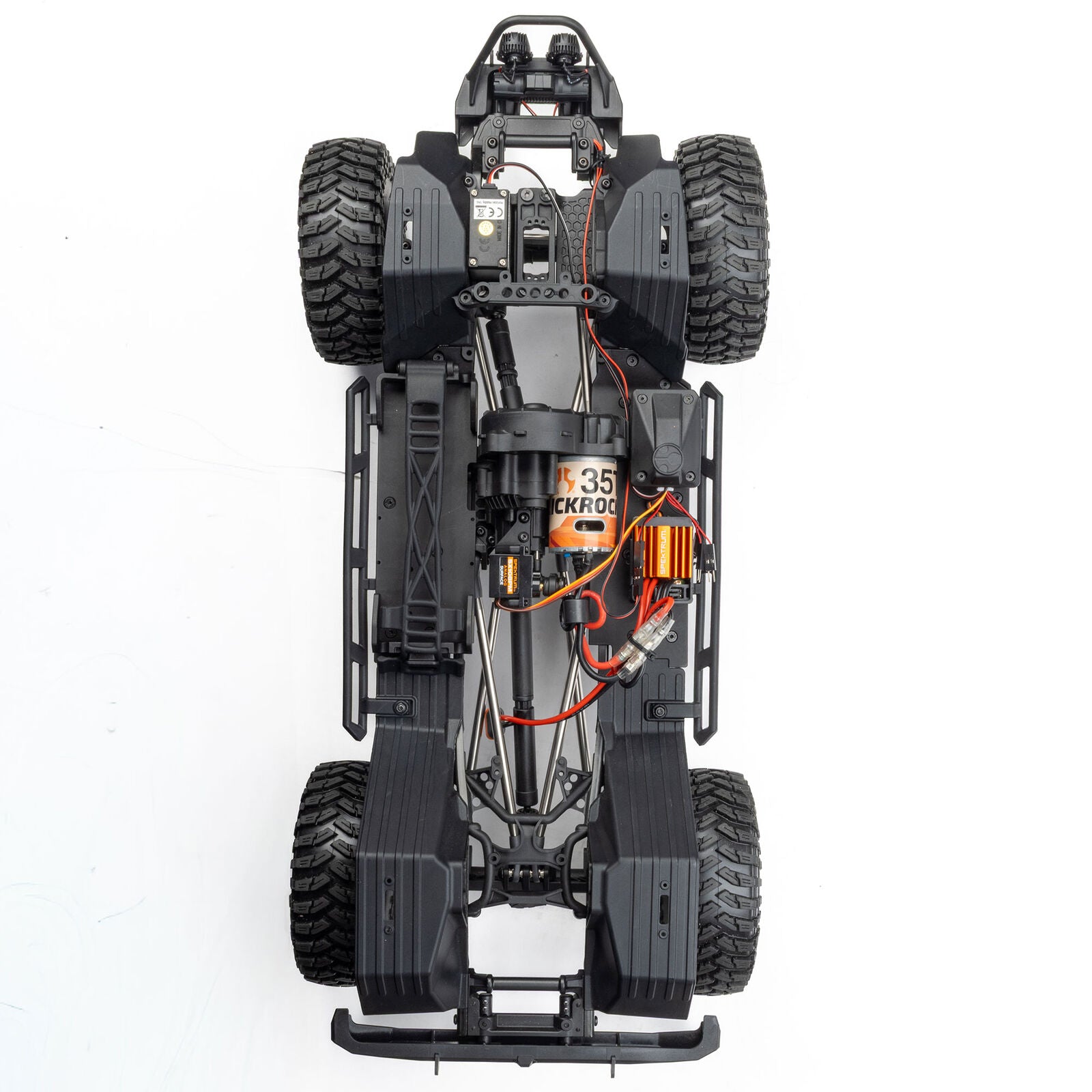

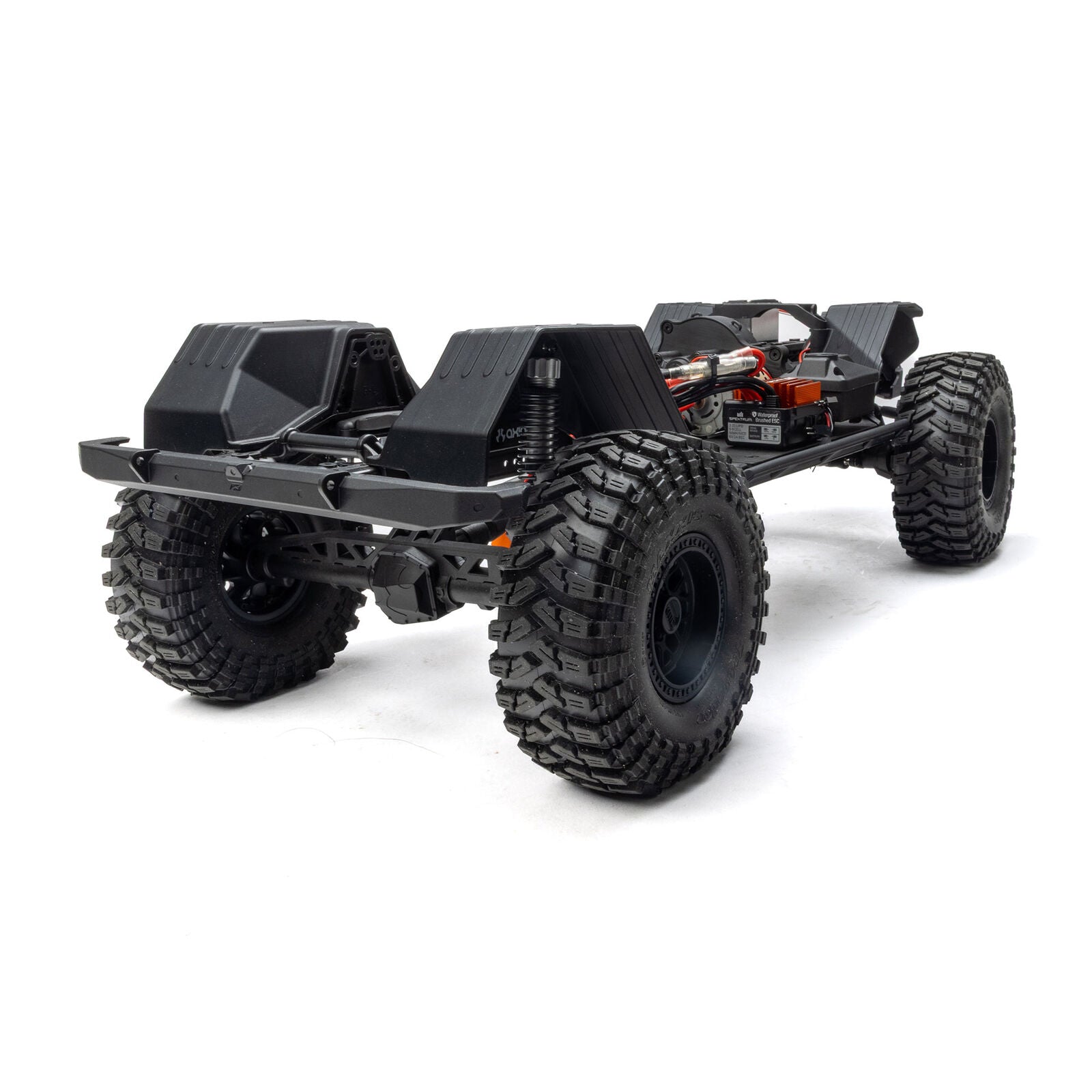

- Expandable steel C-channel chassis rails — 13.9" extended wheelbase

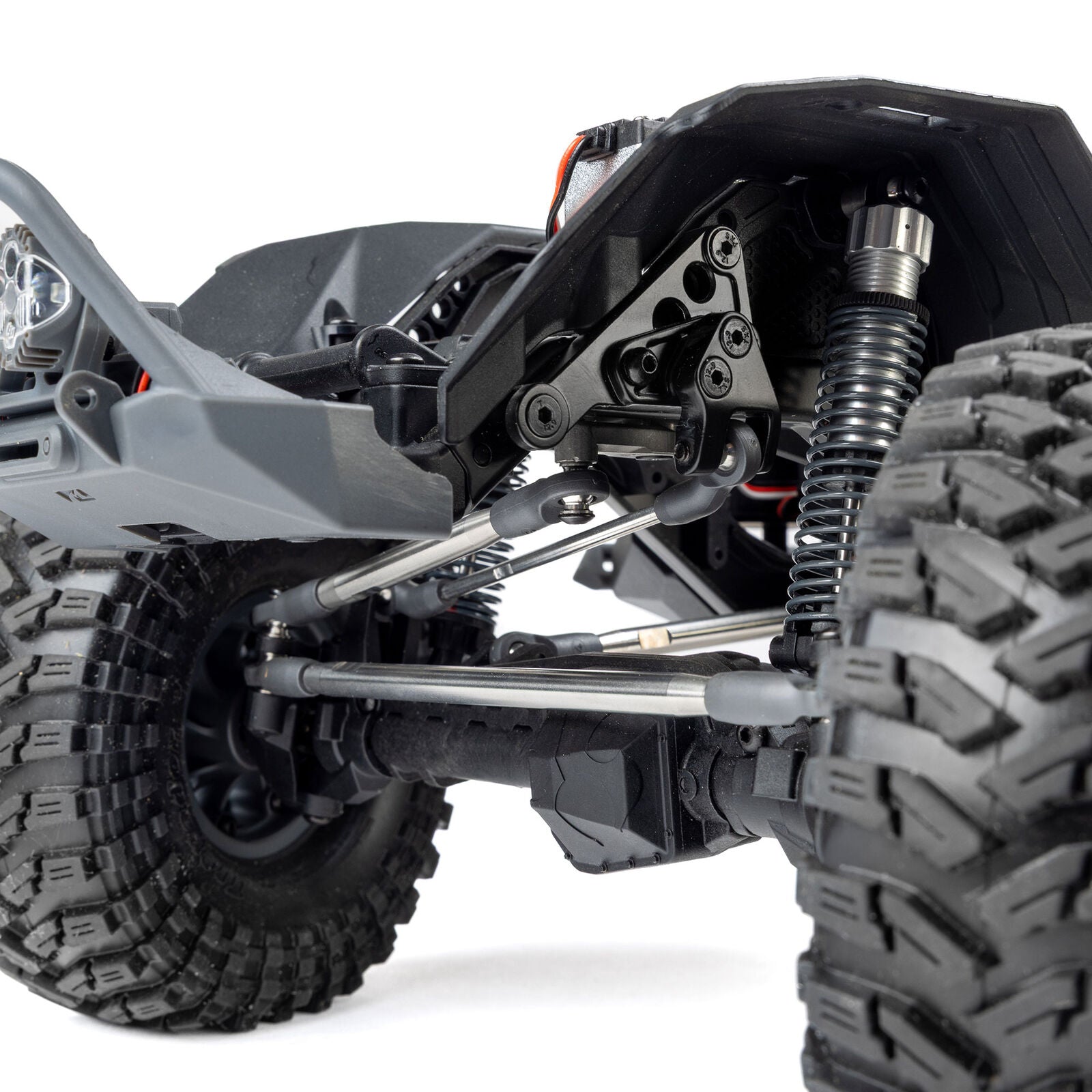

- Front 3-link suspension / Rear 4-link suspension
- 6mm stainless steel suspension links with stainless steel pivot balls on rod ends
- AR45 straight axles with driver-offset front differential housing
- Oil-filled aluminum threaded-body coil-over shocks — fully tunable
- Improved two-piece Panhard bar mount with double shear protection
- Skid plate with multiple upper link mounting options for adjustable geometry and anti-squat tuning
- Spool differential
Drivetrain & Transmission
- SCX10 III transmission with all-metal internal gears and full ball bearings
- 14T pinion / 56T spur — 11.80:1 internal / 47.20:1 final drive ratio
- Factory-installed Dig system — rear axle lock for front-wheel-drive precision maneuvering
- Dig operated via third channel on SLT3 transmitter
Electronics & Radio

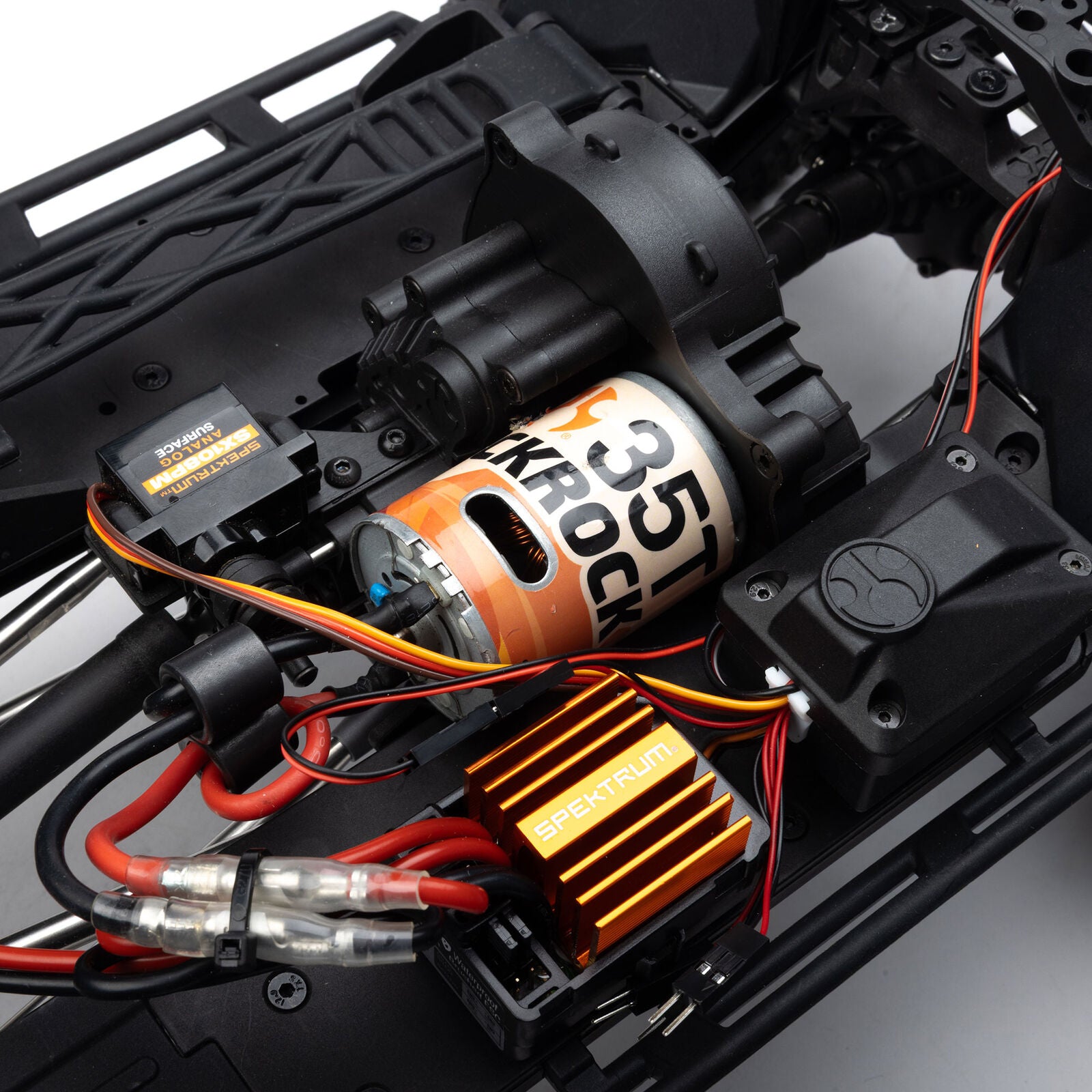

- Axial Slick Rock 35-Turn Brushed 540-size motor
- Spektrum Firma 40A Brushed Waterproof ESC with programmable brakes
- Spektrum SLT3 3-channel transmitter with third channel Dig control
- Spektrum SR515 receiver

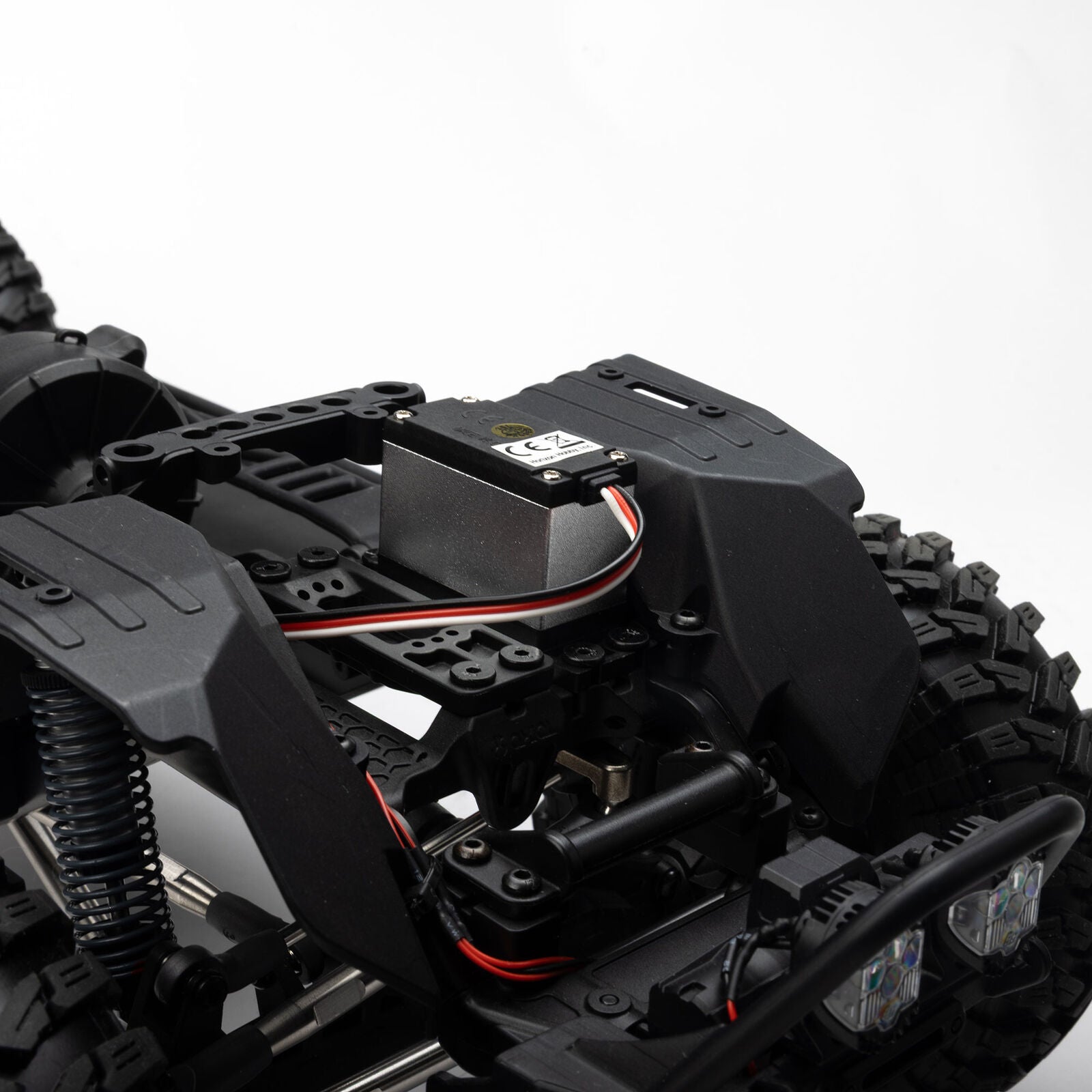

- S683 servo with 25T steel output gear for toughness under load
- SX108 Dig micro servo
Battery & Convenience

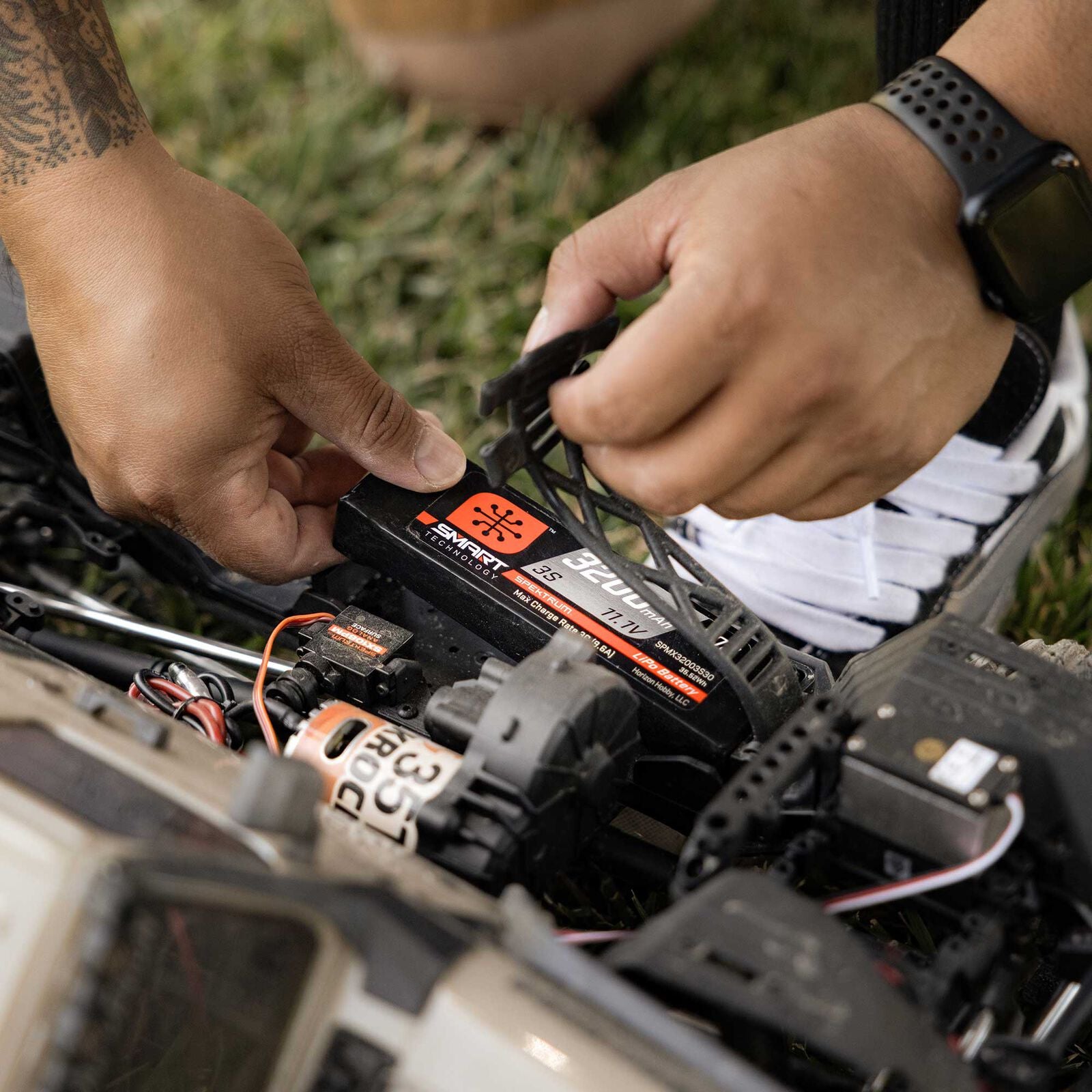

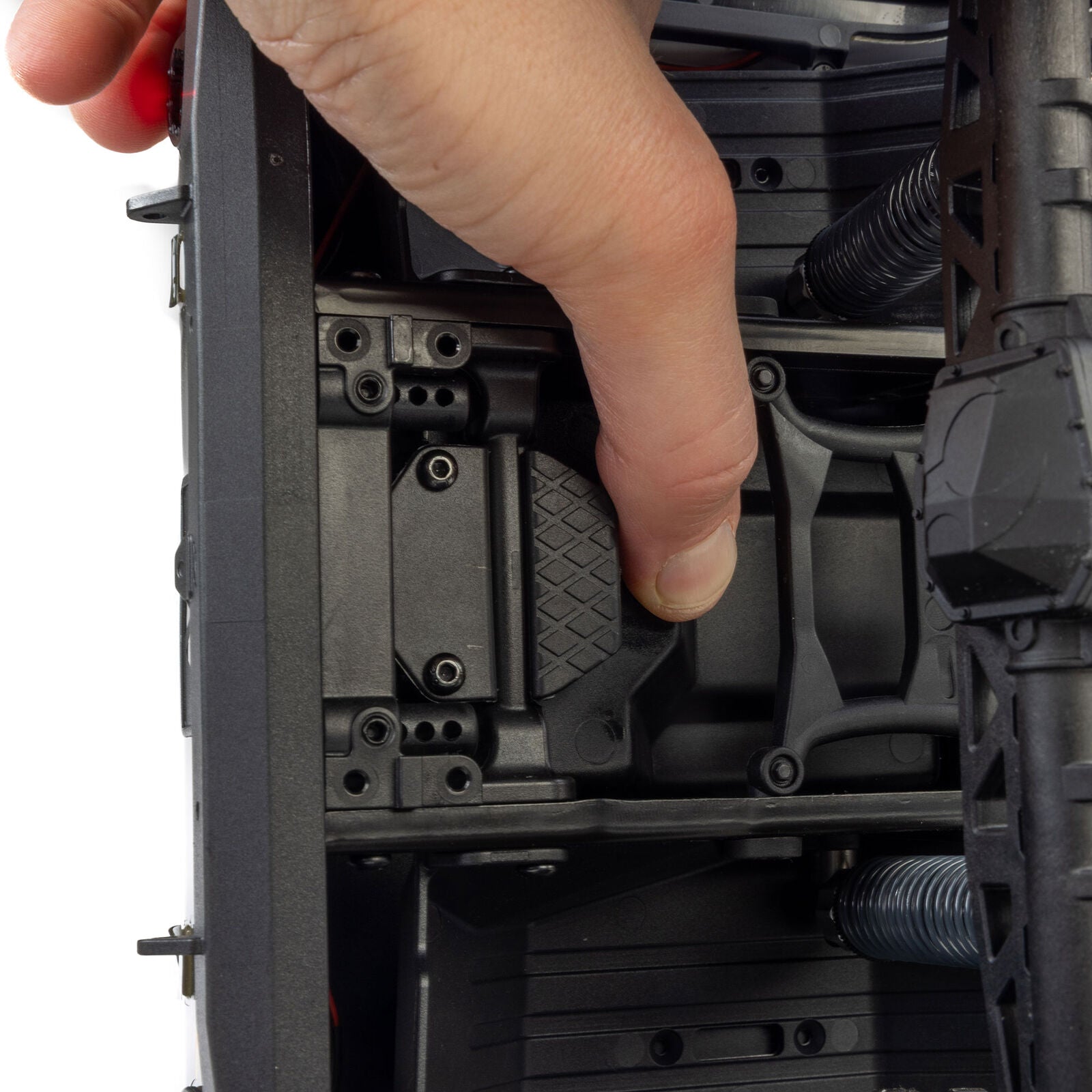

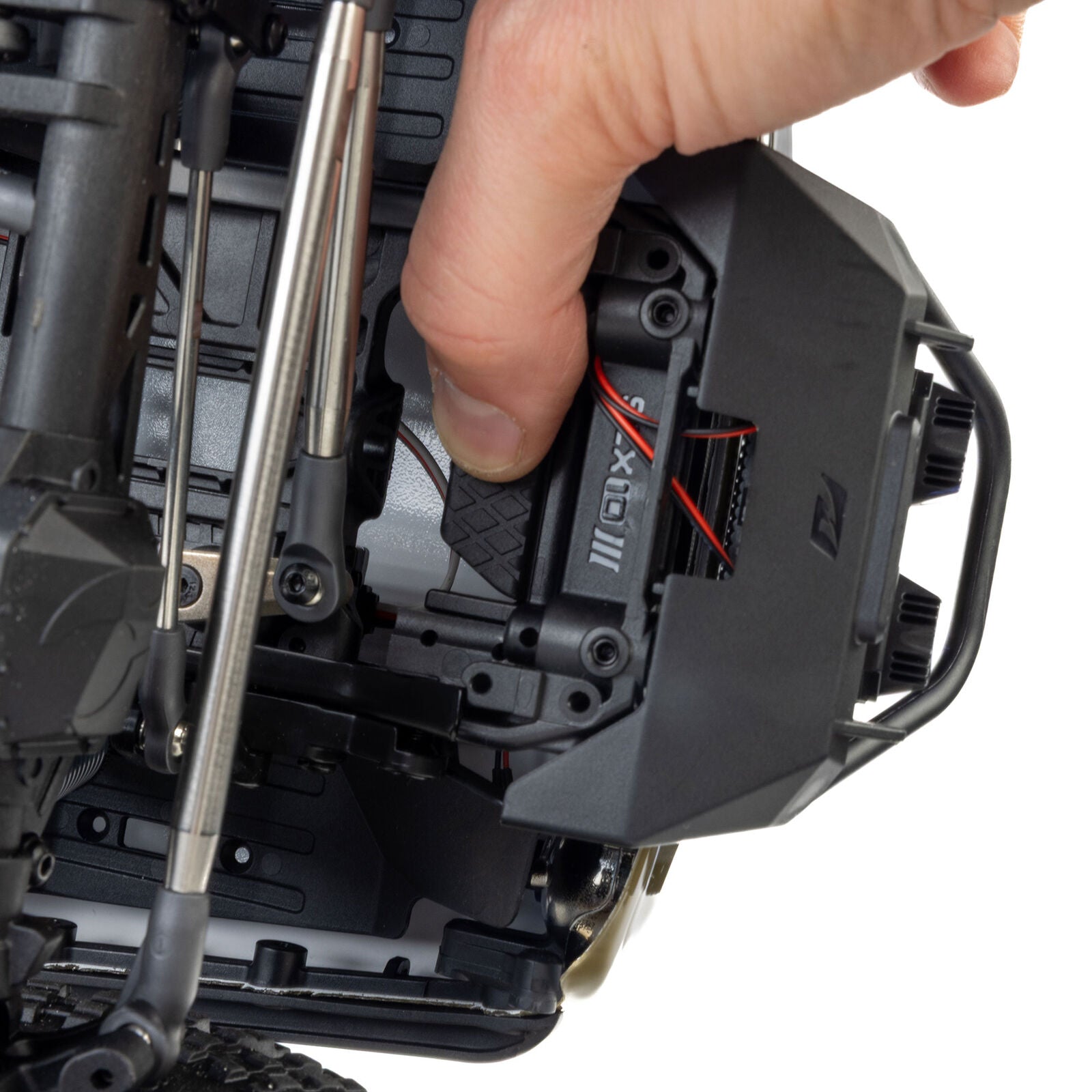

- Silicone elastomer battery straps for fast, tool-free battery access
- Compatible with standard and shorty 2S or 3S LiPo battery packs (IC3 connector)
- Max battery dimensions: 138 x 46 x 35mm
Specifications:
| Specification | Detail |
|---|---|
| Scale | 1/10 |
| Vehicle Type | Rock Crawler |
| Drivetrain | 4WD |
| Length | 21.7" (551mm) |
| Width | 9.9" (251mm) |
| Height | 9.2" (234mm) |
| Weight (without battery) | 6.7 lbs. (3.02kg) |
| Wheelbase | 13.9" |
| Motor | Axial Slick Rock 35T Brushed 540-Size |
| ESC | Spektrum Firma 40A Brushed Waterproof |
| Radio | Spektrum SLT3 3-Channel |
| Receiver | Spektrum SR515 |
| Servo | S683 with 25T Steel Output Gear |
| Dig Servo | SX108 Micro Servo |
| Suspension | Front 3-Link / Rear 4-Link |
| Shock Type | Oil-Filled Aluminum Threaded Body Coil-Over |
| Differential | Spool |
| Chassis | Steel C-Channel Expandable Rails |
| Pinion | 14T |
| Spur Gear | 56T |
| Internal Gear Ratio | 11.80:1 |
| Final Drive Ratio | 47.20:1 |
| Tire Type | Maxxis Trepador Soft Compound |
| Wheel Type | KMC Grenade Beadlock |
| Wheel Hex Size | 12mm |
| LiPo Compatibility | 2S, 3S |
| Connector Type | IC3 |
| Lighting | LED (Bumper, Headlights, Taillights, Bed Rack) |
| Completion Level | Ready-To-Run |
| Assembly Time | No Assembly Required |
In the Box:
| Qty | Item |
|---|---|
| 1 | Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 4X4 RTR Rock Crawler |
| 1 | Spektrum SLT3 3-Channel Transmitter |
| 1 | Spektrum SR515 Receiver |
| 1 | Spektrum Firma 40A Brushed Waterproof ESC |
| 1 | Axial Slick Rock 35-Turn Brushed Motor |
| 1 | S683 Servo with 25T Steel Output Gear |
| 1 | SX108 Dig Micro Servo |
| 4 | AA Batteries |
| 1 | Product Manual |
Needed to Complete:
| Qty | Item |
|---|---|
| 1 | 2S or 3S LiPo Battery with IC3 Connector |
| 1 | Compatible LiPo Charger |
Recommended: Spektrum 11.1V 3200mAh 3S 30C Smart G2 LiPo Battery with IC3 and Spektrum S2200 G2 AC 2x200W Smart Battery Charger for optimal performance.
