Description
Specifications
| Spec | Value |
|---|---|
| Scale | 1/10 |
| Completion Level | Ready-To-Run |
| Assembly Required | None |
| Vehicle Type | Rock Crawler |
| Vehicle Size | Standard |
| Body | Factory-Painted Pro-Line Coyote |
| Drivetrain | 4WD |
| Drive Type | Forward / Brake / Reverse |
| Suspension | Multi-Link Solid Axle |
| Shock Type | Oil-Filled |
| Tire Type | Officially Licensed Maxxis Trepador |
| Wheel Hex Size | 12mm |
| Motor Type | Brushed |
| Pinion | 14T |
| Spur Gear | 25T |
| Radio | Included |
| Receiver | Included |
| Servos | Included |
| Battery | Included |
| Charger | Included |
| Connector Type | IC3 |
| LiPo Compatibility | 2S, 3S |
| Power Type | Electric |
| Ball Bearings | Full |
| Product Length | 17.5 in (445mm) |
| Product Width | 9.25 in (235mm) |
| Product Height | 7.75 in (197mm) |
| Wheelbase | 12.3 in (312mm) |
| Product Weight | 5.25 lb (2.38kg) with 1300mAh battery |

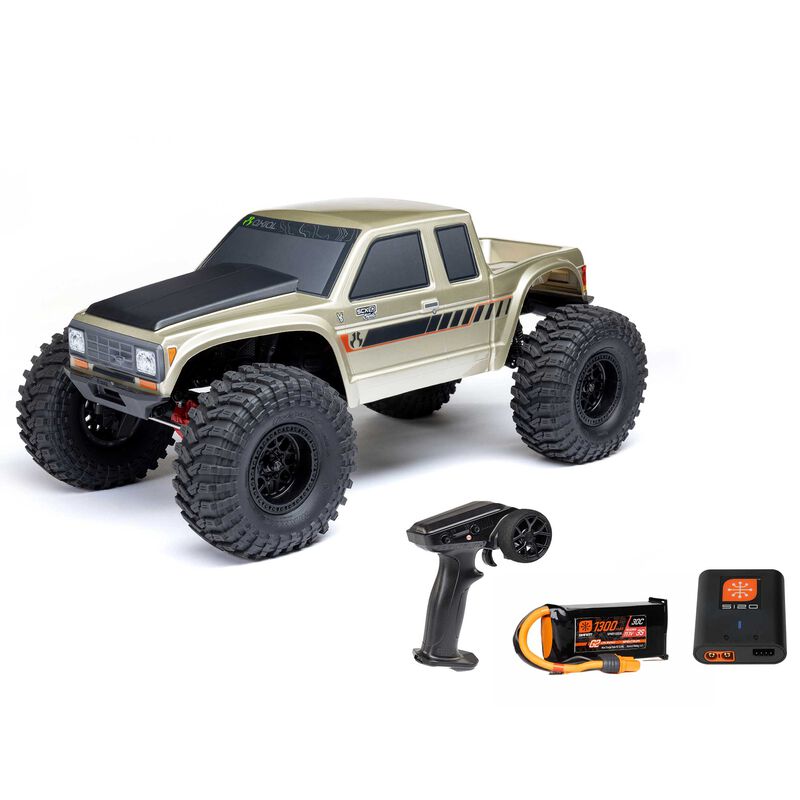

In the Box
| Item | Qty |
|---|---|
| Axial SCX10 III Coyote 1/10 Scale 4X4 RTR | 1 |
| Axial 35T 540 Brushed Motor | 1 |
| Spektrum SLT2 2-Channel SLT Radio | 1 |
| Spektrum SR515 DSMR 5-Channel Receiver | 1 |
| Spektrum S664 Waterproof Metal Gear 25T Servo | 1 |
| Spektrum 40A Waterproof Brushed ESC | 1 |
| Spektrum S120 USB-C Smart Charger 1x20W (SPMXC1020) | 1 |
| Spektrum 11.1V 1300mAh 3S 30C Smart G2 LiPo Battery (SPMX133S30) | 1 |
| AA Transmitter Batteries | 4 |
| Instruction Manual | 1 |
Needed to Complete
| Item |
|---|
| Absolutely nothing — all required components are included! |
- RTR+ includes battery and charger
- SCX10 III one-piece steel C-channel chassis
- Durable LCXU transmission
- High-clearance AR45P portal axles
- Factory-painted Pro-Line Coyote body
1/10 SCX10 III Coyote 4X4 RTR Rock Crawler (Battery & Charger Included), Gold Features
- Ready-to-run - nothing else required
- SCX10 III one-piece steel C-channel chassis
- Factory-painted Pro-Line Coyote body
- Clipless body mounting system
- High-clearance AR45P portal axles
- Overdrive gears in the front axle
- Durable LCXU transmission
- Multi-link solid axle suspension
- Oil-filled coil-over shocks
- New shock towers with more adjustability
- All-metal gears
- Full ball bearings
- Officially licensed KMC Grenade wheels
- Officially licensed Maxxis Trepador tires
- Dual-stage open cell foam tire inserts
- Axial 35T 540 brushed motor
- Spektrum SLT2 2-channel SLT radio
- Spektrum SR515 DSMR 5-channel receiver
- Spektrum S664 waterproof metal gear 25T servo
- Spektrum 40A waterproof brushed ESC
- Spektrum 11.1V 1300mAh 3S 30C Smart G2 LiPo battery
- Spektrum S120 USB-C Smart charger 1x20W

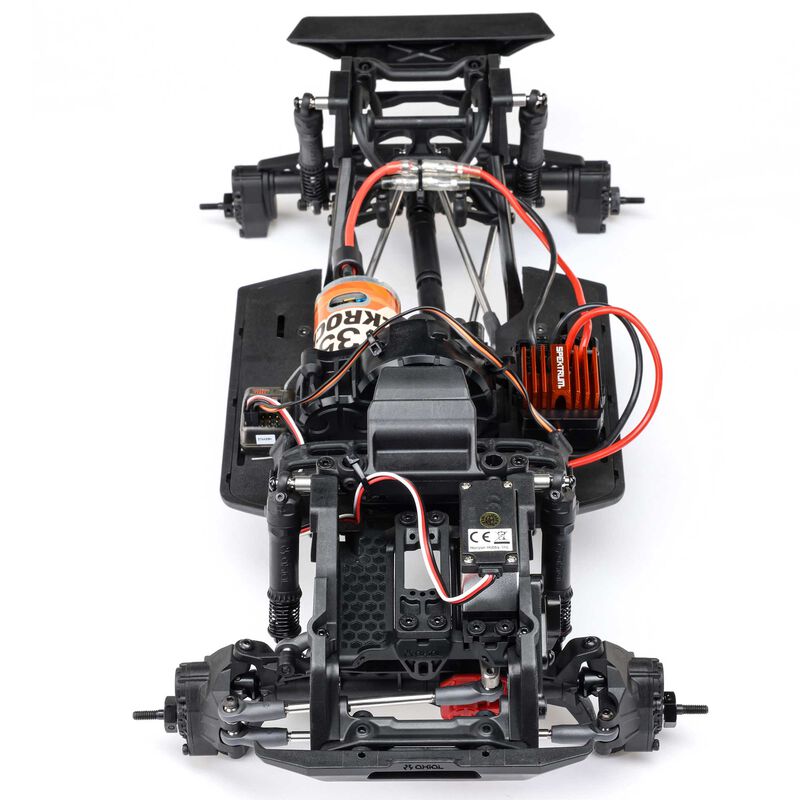

SCX10 III STEEL C-CHANNEL CHASSIS
The Coyote is built on the proven, realistic Axial SCX10 III platform. Its one-piece steel C-channel chassis is easy to work on, reduces frame flexing, and increases the precision of suspension movement.

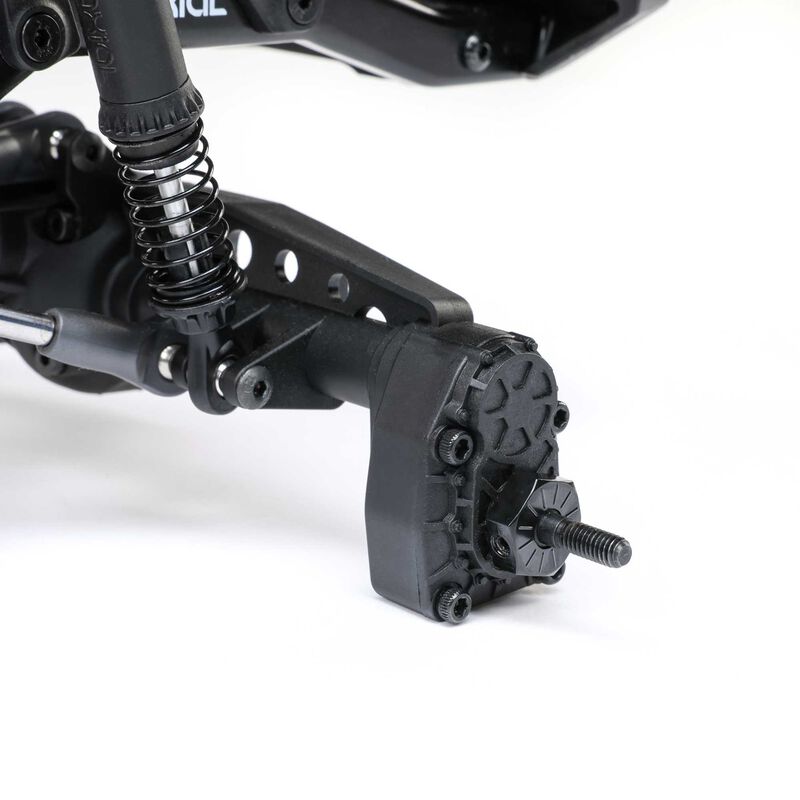

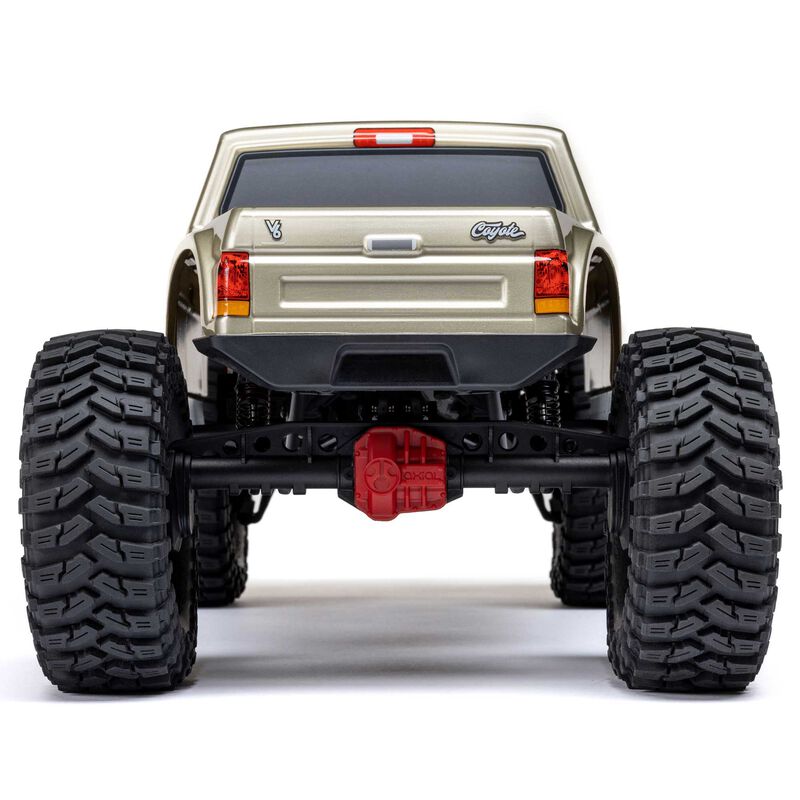

AR45P PORTAL AXLES
AR45P portal axles increase the SCX10 III Coyote’s ground clearance at the differential for easier off-road handling. The front axle features overdrive gears to improve climbing performance and maneuverability.
LCXU TRANSMISSION
The LCXU 4-wheel drive transmission is durable, simple, and works with standard and portal axles. It has a full set of ball bearings and all-metal internal gears for the strength and durability to conquer trails and competitors.

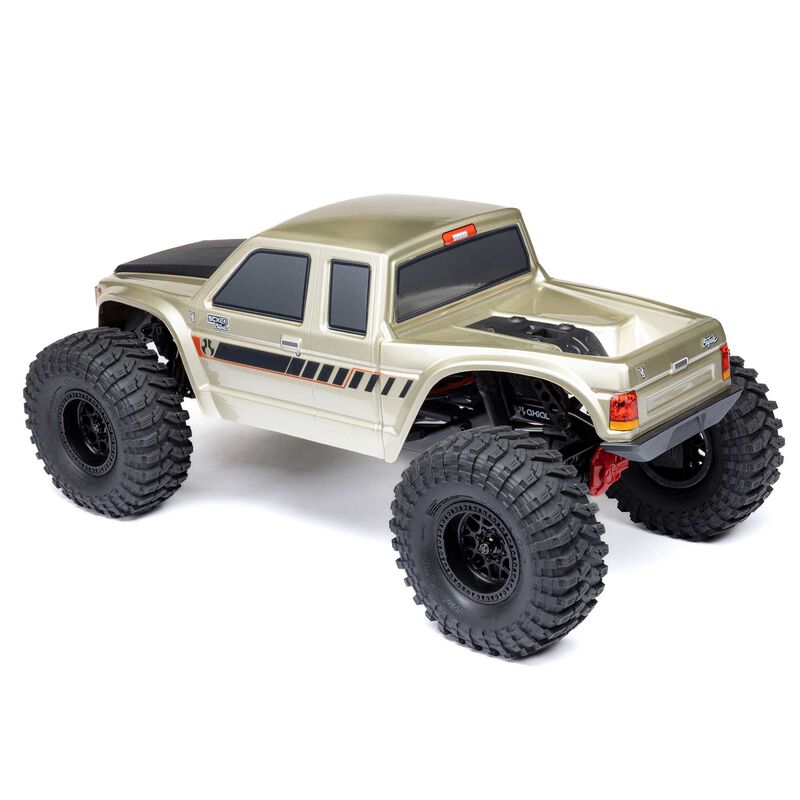

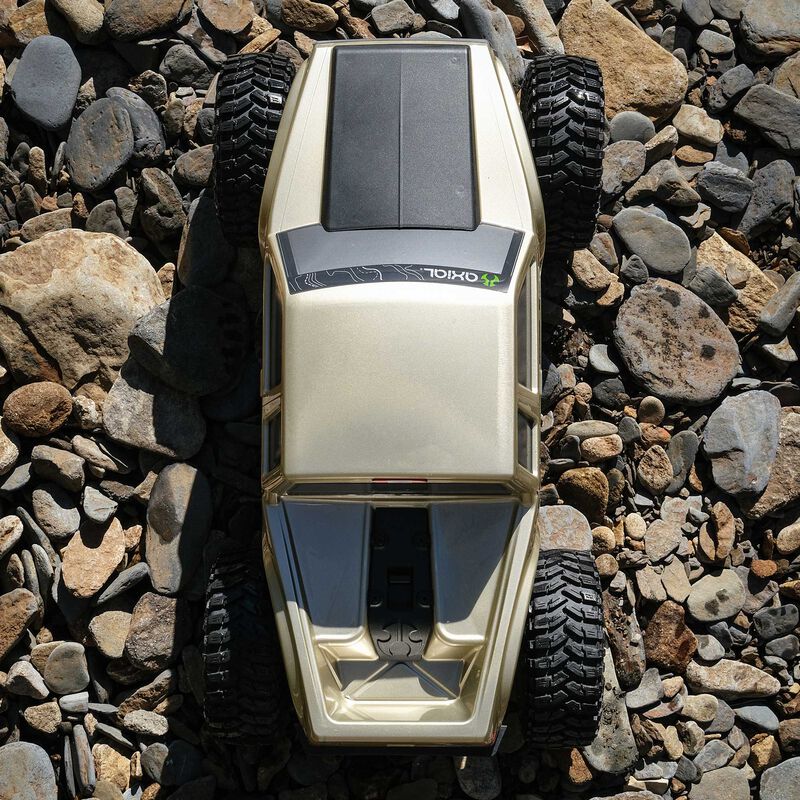

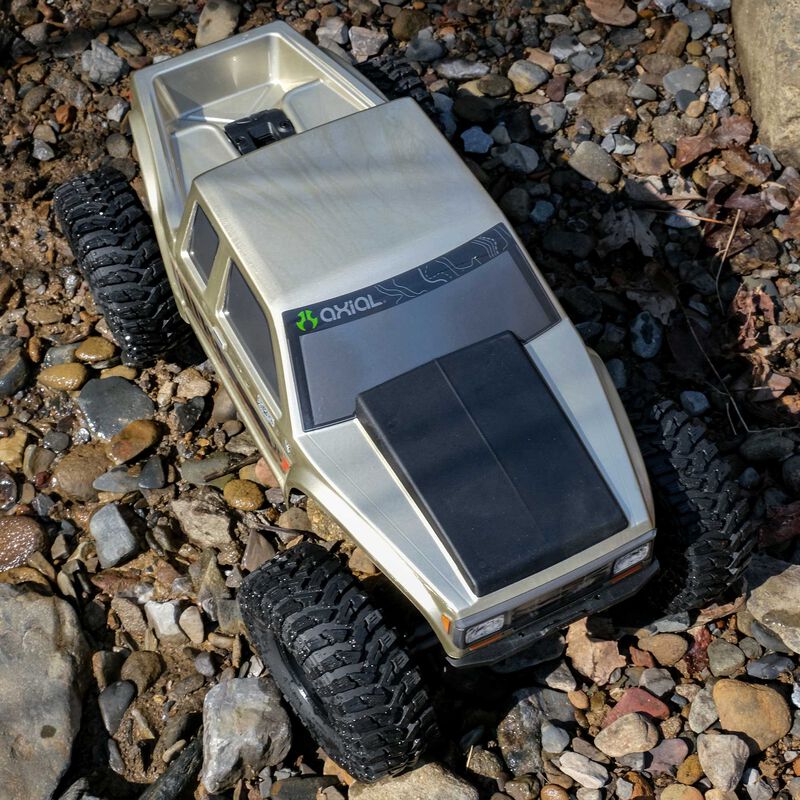

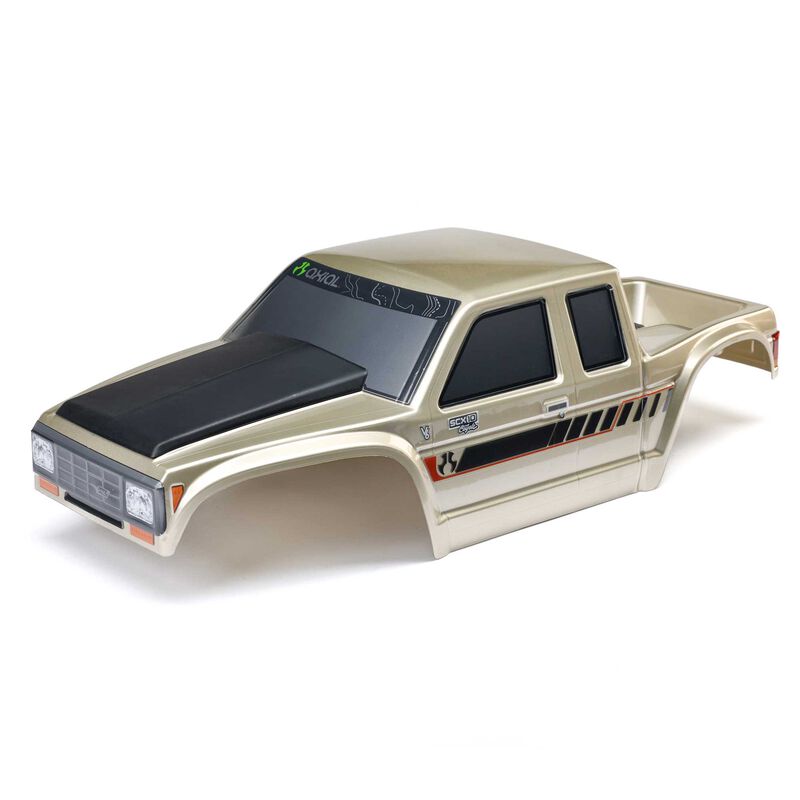

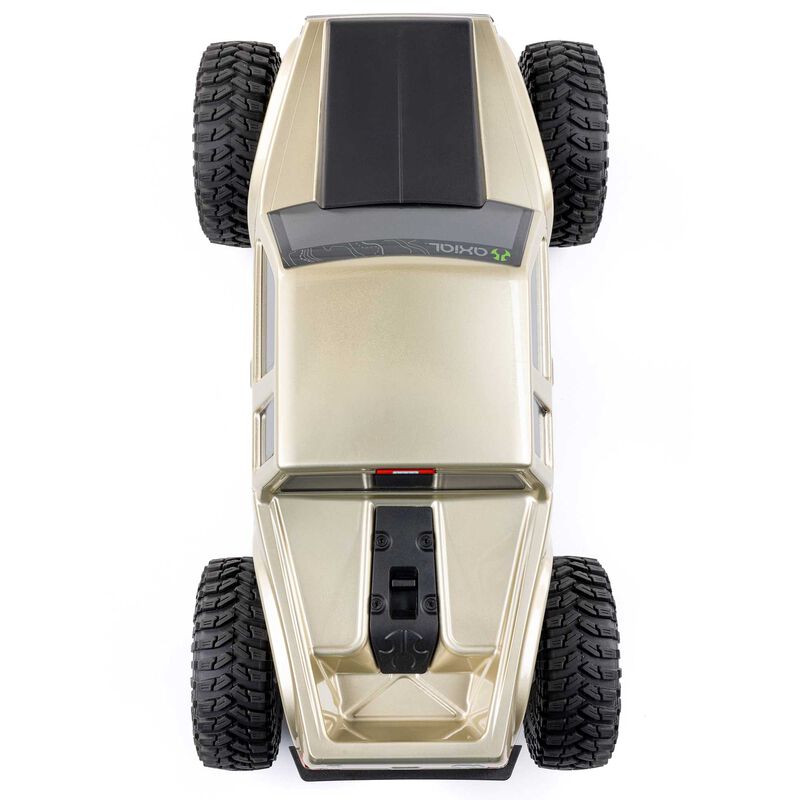

PRO-LINE COYOTE BODY
Created by Pro-Line, the factory-painted Coyote polycarbonate body offers more than trail- and comp-ready looks. It mounts without any body clips and can be completely removed for easy chassis access. The body is contoured to slip through obstacles and allow ample tire clearance and suspension articulation.

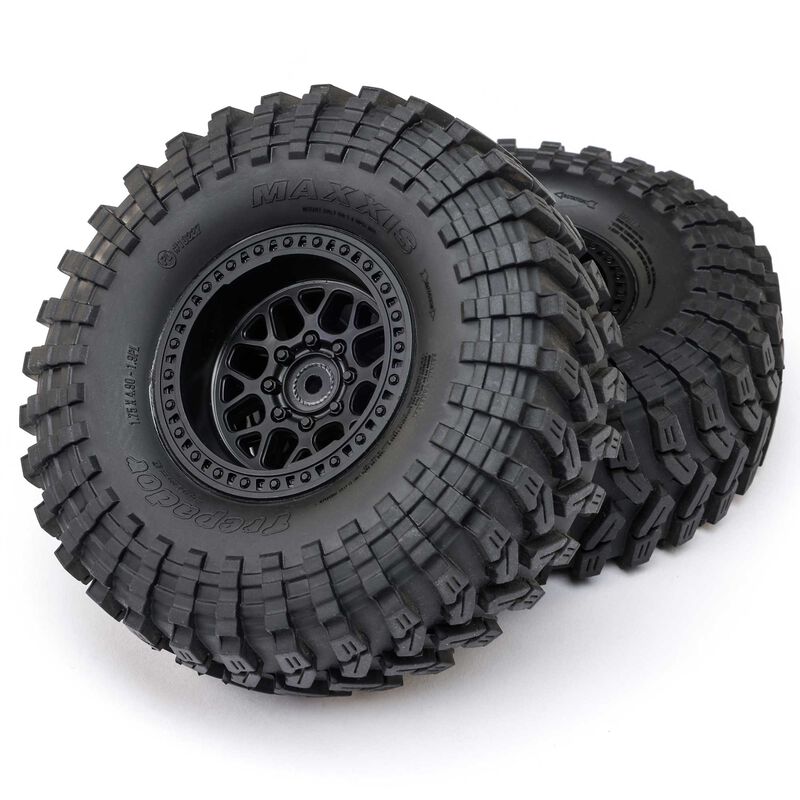

LICENSED MAXXIS TIRES & KMC GRENADE WHEELS
The Coyote’s officially licensed Maxxis Trepador tires add to the rig’s realistic looks and high-performance crawling capabilities. Dual stage, open cell foam inserts are included, with soft outer foam and firm inner foam to improve grip and sidewall support. KMC Grenade wheels are loaded with detail and their one-piece design is light weight and durable.

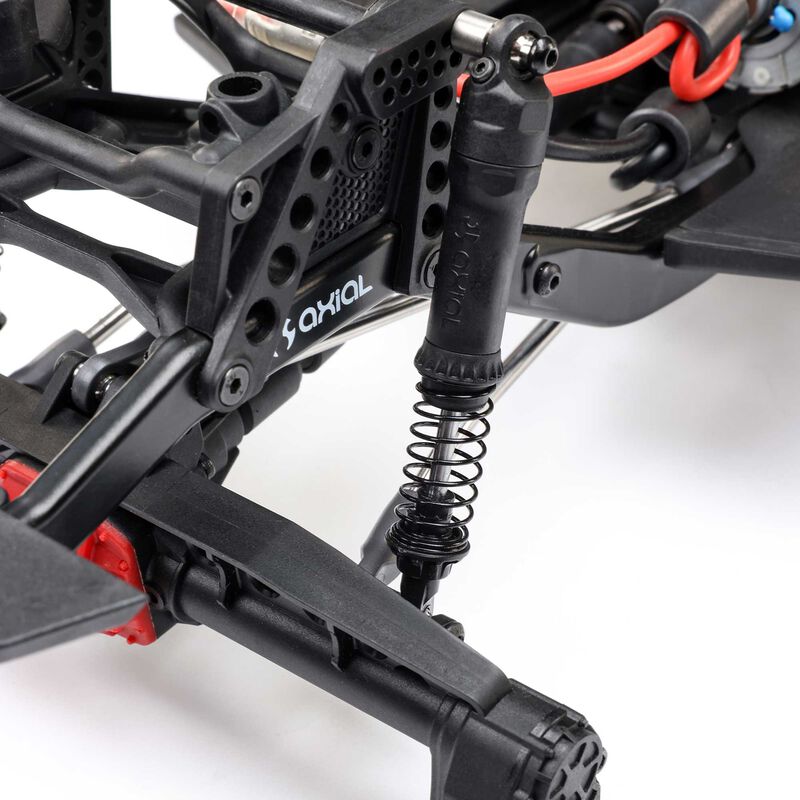

COIL-OVER SHOCKS
The competition-style composite smooth body shocks improve tire clearance and provide smooth, predictable handling over any terrain. These pro-inspired shocks combine the right amount of support and droop for a level of performance not typically seen in RTRs.

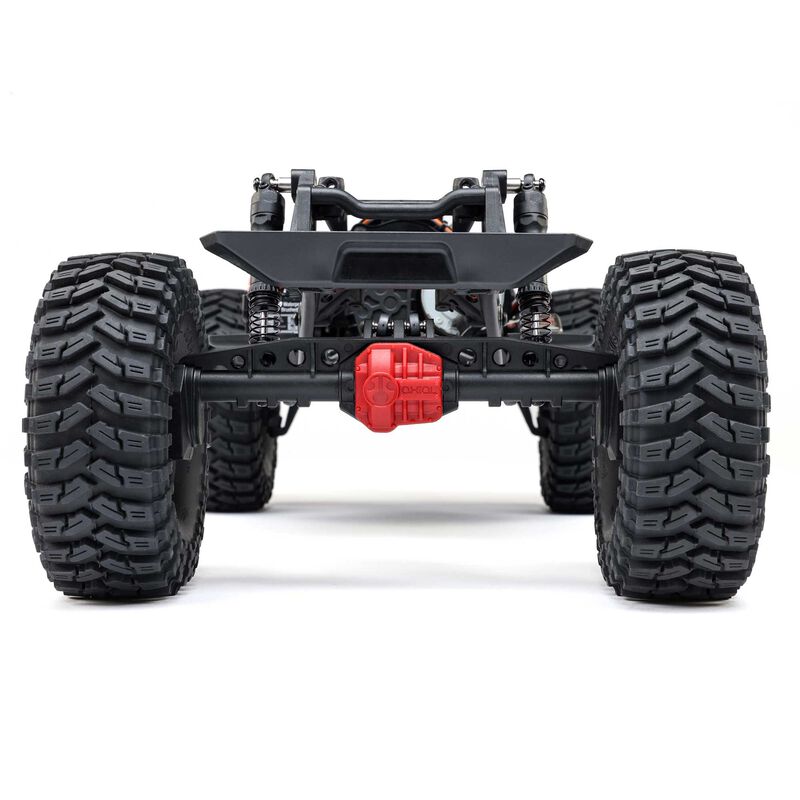

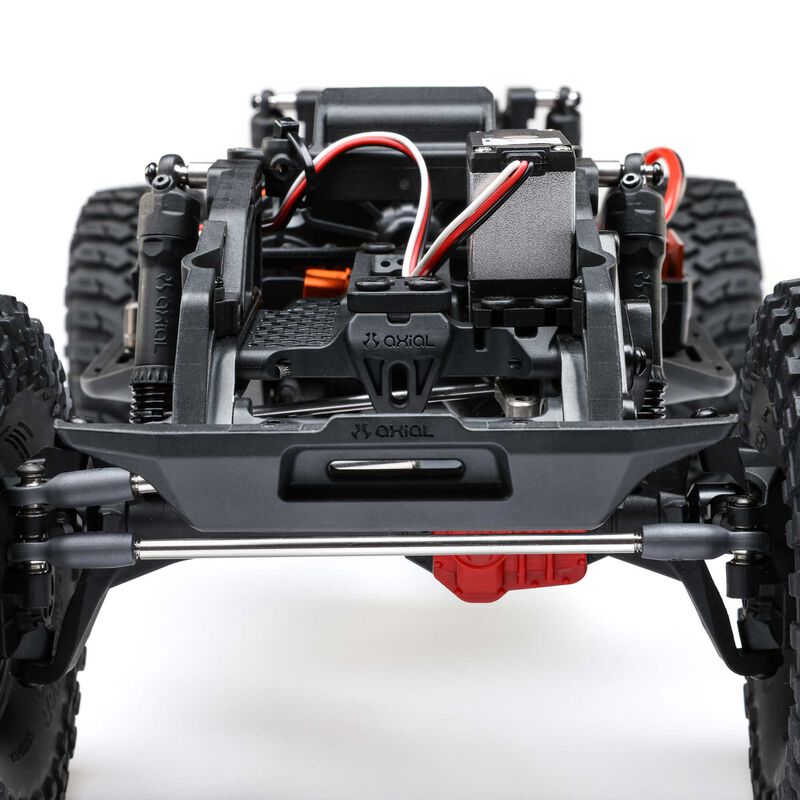

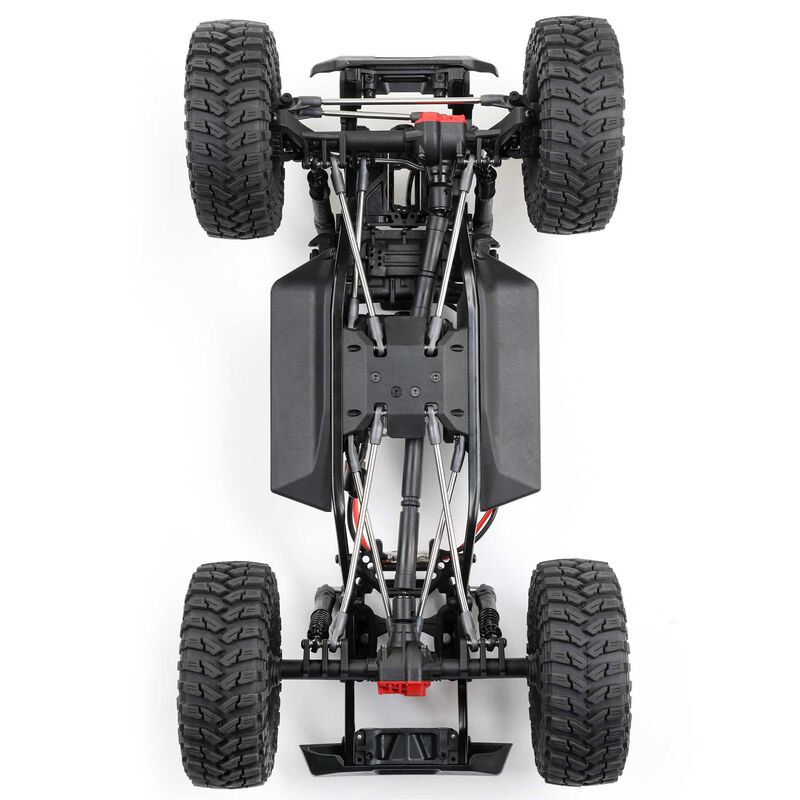

OPTIMIZED SUSPENSION
The SCX10 III Coyote’s multi-link, solid axle suspension features 6mm stainless steel links and all-metal pivot balls for off-road durability.

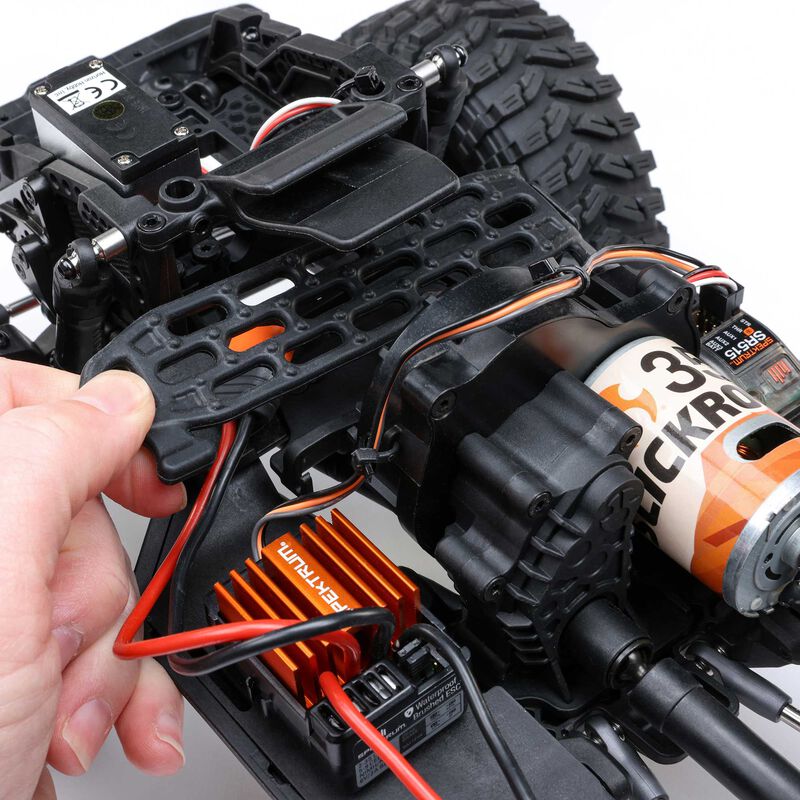

INSTALLED POWER SYSTEM
The Coyote’s factory-installed brushed power system features a 35T Axial 540 motor and waterproof Spektrum 40A ESC. A metal geared Spektrum S664 servo is included for strong, dependable steering.
SPEKTRUM SLT2 2.4GHz TRANSMITTER
The included Spektrum SLT2 transmitter is designed to help all drivers succeed on the trails. Its throttle limiting feature can limit the rig's maximum available speed to 50% or 75% until you're ready for it all. Four AA batteries are included.
NEW BATTERY MOUNT
A new battery mount on the SCX10 III Coyote allows the battery to be positioned in front of the transmission for improved weight distribution and balance.
READY-TO-RUN PLUS
There’s absolutely nothing more to buy with the SCX10 III Coyote RTR+. It comes fully equipped with a Spektrum 11.1V 1300mAh 3S 30C Smart G2 LiPo battery and Spektrum S120 USB-C Smart Charger.
