Disclaimer: This product includes an onboard Arduino Nano.  Basic knowledge of Arduino Nano programming is recommended for adjusting or uploading custom code.  Each unit is bench tested before shipping.

• Requirements:
  These units require a 5V power supply. We use this one from Amazon on our track. For bench testing, we use a Castle Creations BEC adjusted to 5V.
• We use 22awg wire to run the sensors in parallel, like this from Amazon.
• For running more than one sensor in parallel, we recommentd using Low Voltage T Tap Wire Connector

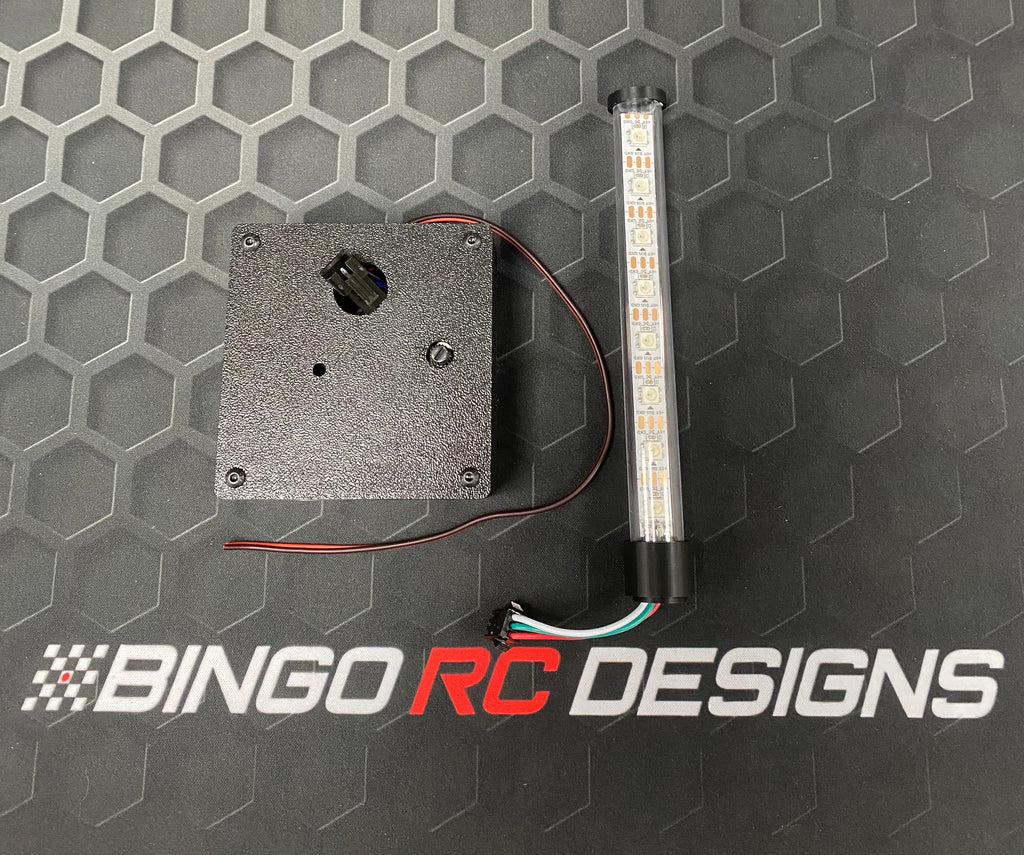

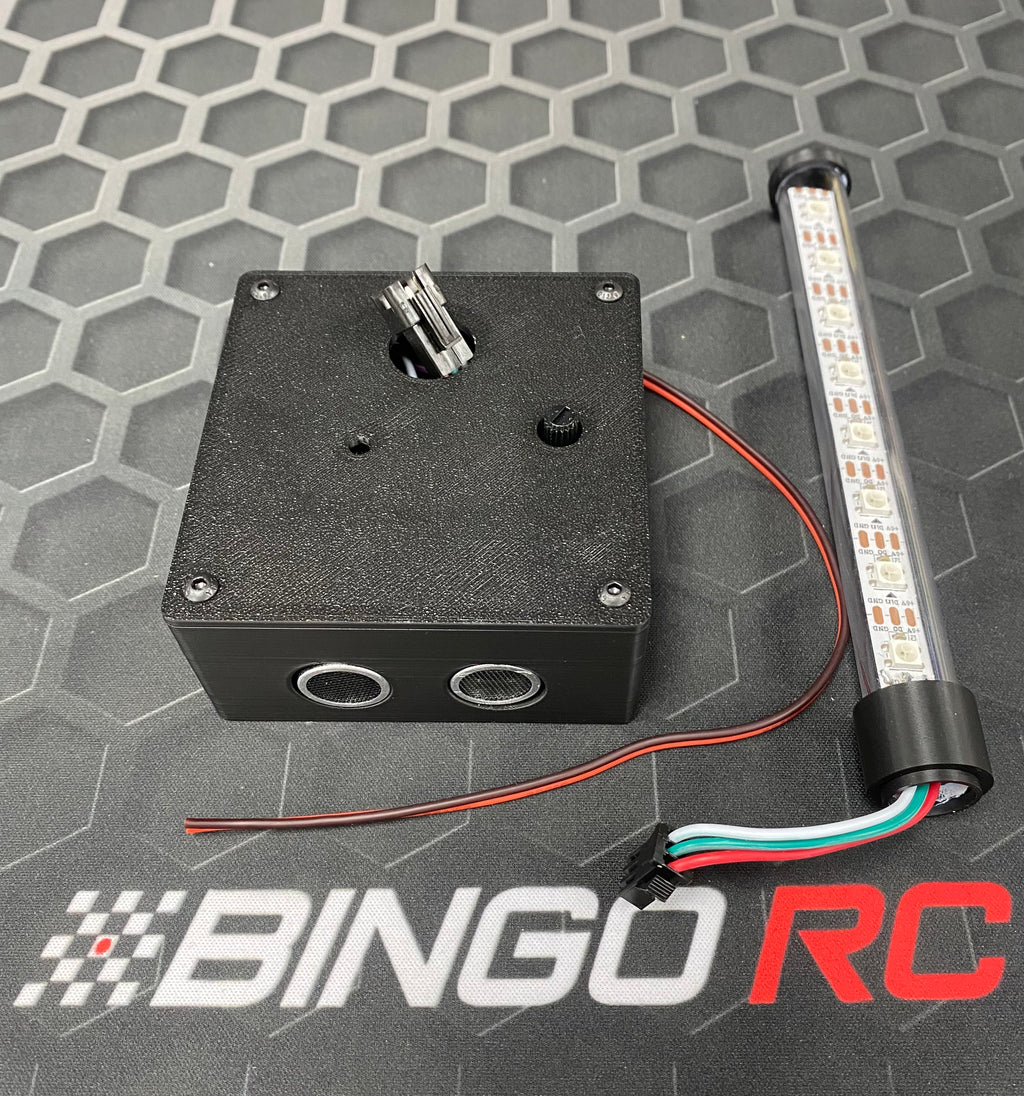

The LED strip is removed for shipping and can be easily plugged in. We recommend gluing the LED mast in place for added stability.

For more information please visit Ultasonic Clip Zone Sensor Page on Bingorcdesigns.com

Important: Running more than 5V can damage the unit! Reversing polarity can also cause permanent damage.

Due to the handmade/custom nature of this product, each unit may have small visual imperfections that do not affect functionality in any way. Each unit is tested to ensure full funtionality  before shipping and they are not warrantied beyond that.

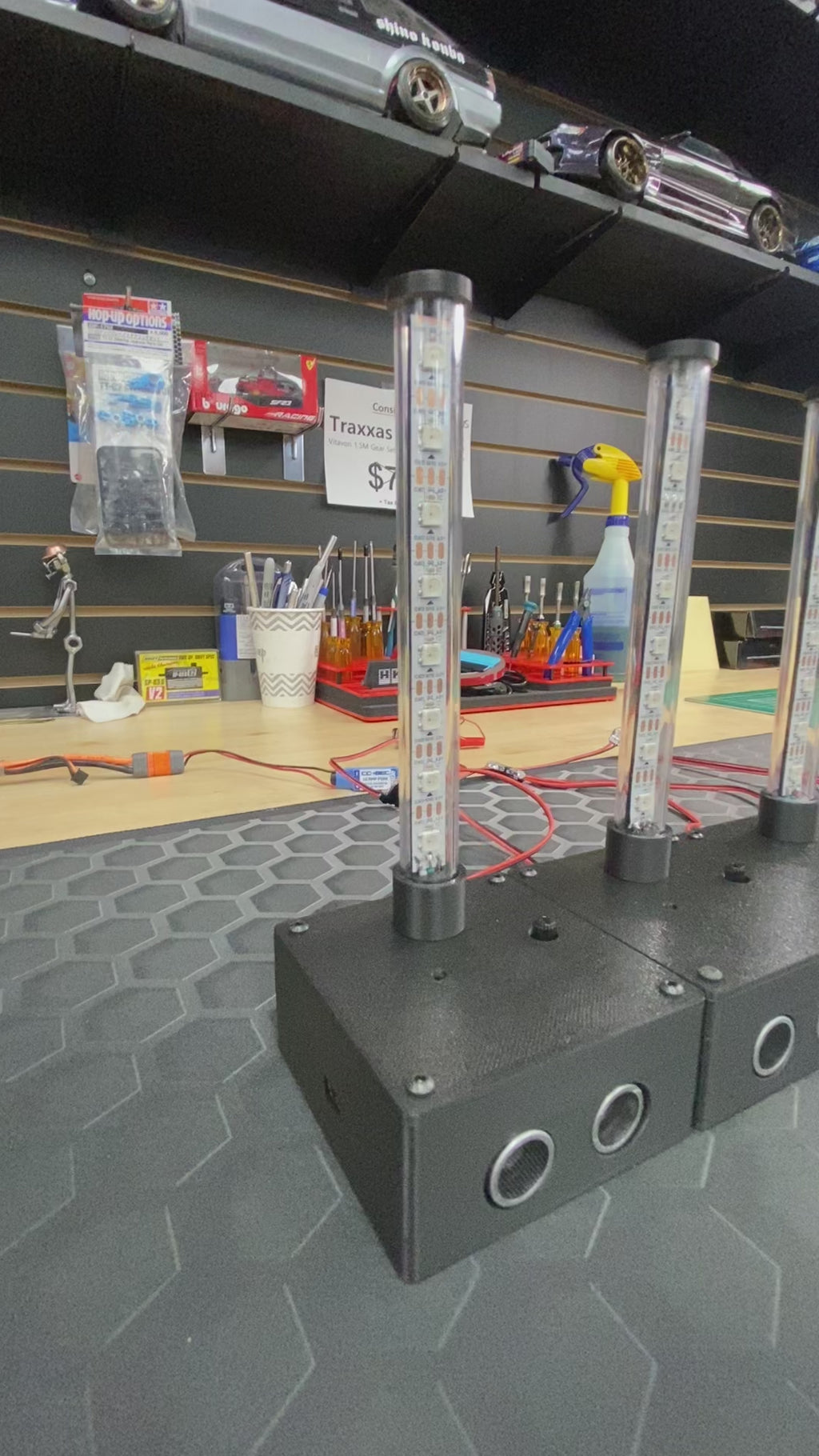

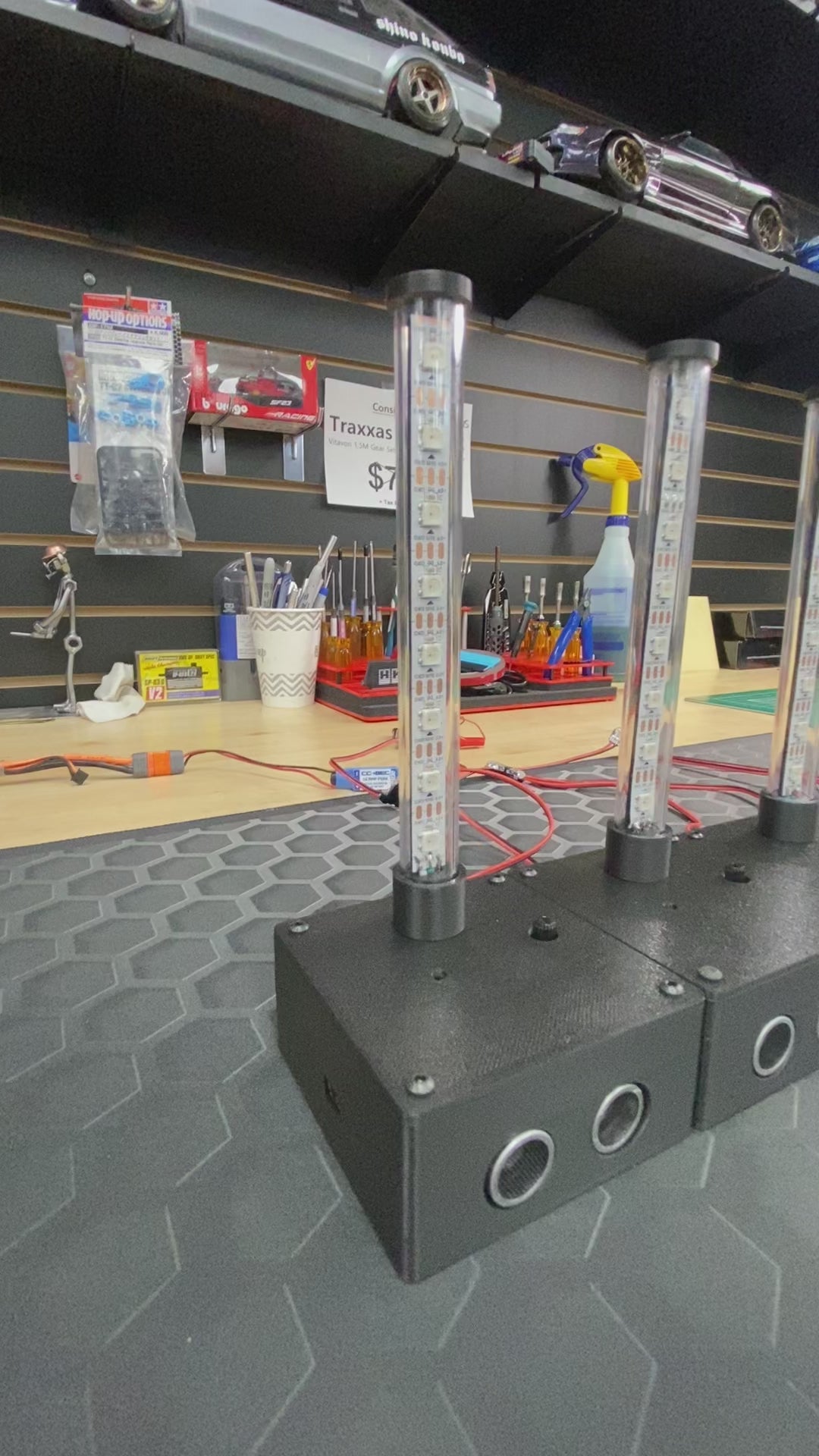

Adrenaline RC x Bingo RC Designs Ultrasonic Sensor

The Bingo RC Designs Ultrasonic Sensor is a 3D printed, handmade, all-in-one unit designed specifically for RC drift zone proximity detection. No complicated wiring or integration required — just power it up and instantly get visual feedback as your car enters the zone. Designed by Bingo RC Designs, assembled by Adrenaline RC Racing.

• Purpose-Built for RC Drifting: Detects how close your car gets to the wall or zone during drift runs.
• All-in-One Design: No external modules or coding needed — fully self-contained and ready to use.

• Potentiometer: The sensing range can be adjusted. The default nearest range is 100mm and the default farthest is 300mm (the sensing range can be greatly extended if desired). A variable offset is added to the nearest sensing range, controlled by a potentiometer, that adds 0-200mm to the closest sensing range.
• Visual Feedback: Built-in indicator lets you instantly see proximity during your run.
• Handmade Quality: 3D printed bases assembled and tested by hand for dependable performance and durability.
• Compact & Track-Friendly: Designed to sit on or near the zone without interfering with drifting.

Simple, effective, and built with the RC drift scene in mind — the Bingo RC Designs Ultrasonic Sensor helps take your precision to the next level.

Specifications:

• Box Dimensions: L: 80mm x W: 78mm x H: 36mm (3.14"x3.07"x1.41")
• LED Mast Dimensions: L:158mm x W: 16mm  (6.2"x.62")
• Power lead length: 200mm - 255mm (8"-10")
• Weight: 120g (.2lbs)

Bench Test Setup: 2s Lipo---> Castle CC BEC (Programmed to 5v)---> Ultrasonic Sensor
