ESC Overview:

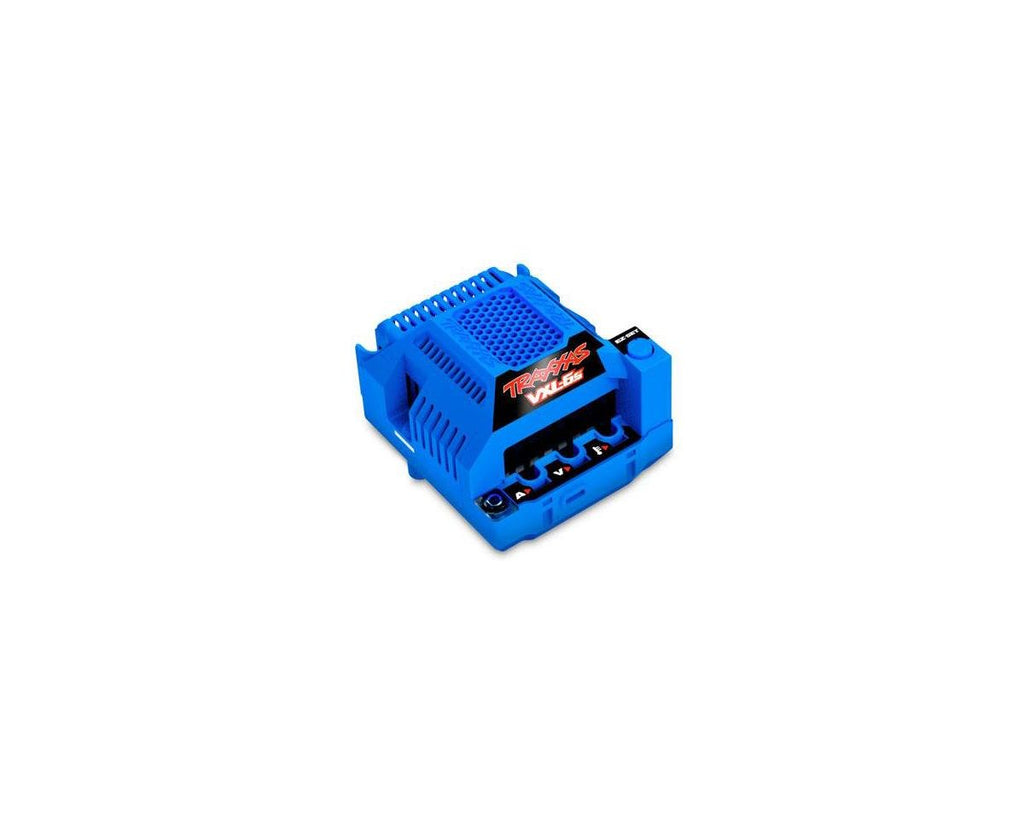

Traxxas Velineon VXL-6S Waterproof Brushless Sensorless ESC. This replacement VXL-6S ESC is intended for the Traxxas Sledge and Maxx Slash platforms.
Features:
- Water resistant case design
- Integrated telemetry for speed, RPM, voltage, and ESC temperature
- Bright LED status lights keep you informed with temperature and voltage warnings
- Two-stage thermal shutdown protection with integrated cooling fan protects the VXL-6S from overheating
- Capable of running up to 6S (22.2V)!
- Locked Rotor Protection™ prevents system damage by cutting power
- Battery Over-Voltage Protection
Specifications:
-
Type: Sensorless Brushless
-
BEC Voltage: 6.0V
-
BEC Continuous Current: 10A
-
BEC Peak Current: 20A
-
Motor Connectors: 6.5mm Bullet Connectors
-
Battery Connector: Traxxas High-Current Connector
-
Input Voltage: 3-6S (11.1-22.2V)
Includes:
- (1) Velineon VXL-6S Waterproof Brushless Sensorless ESC
