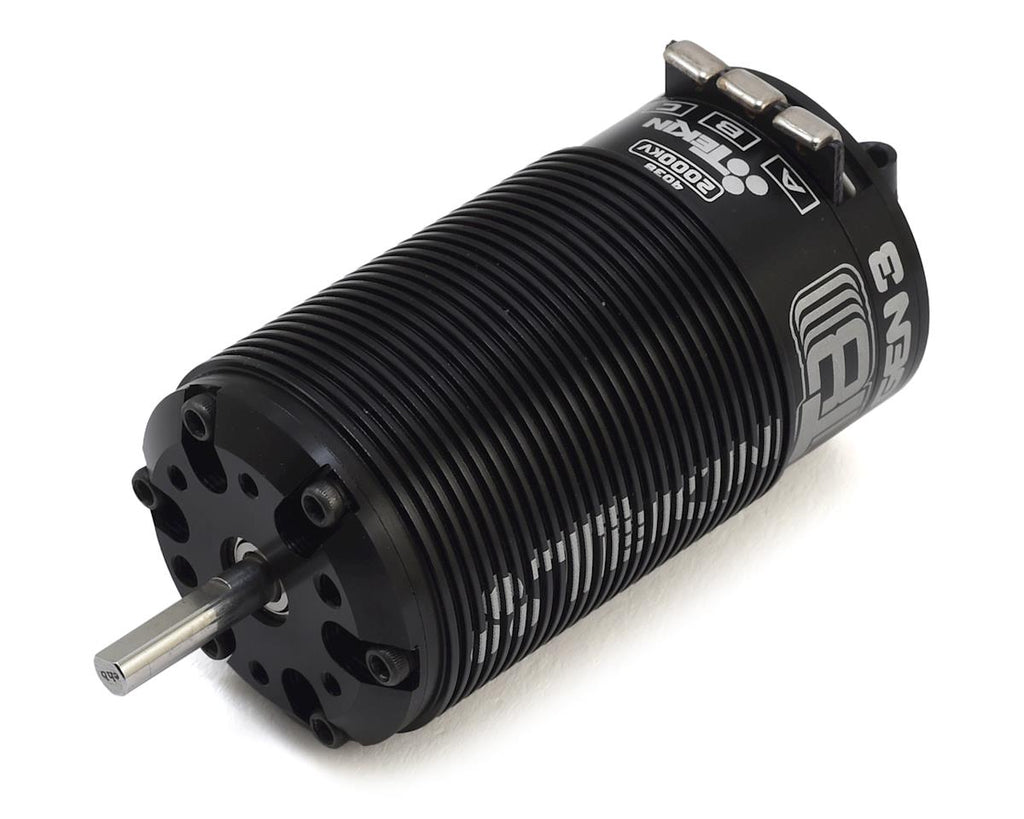

This is the Tekin Redline T8 GEN3 4038 Can, 2000kv Brushless Sensored Motor, made specifically for 1/8 Truggy use. Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, updated stack features and lower resistance, the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 (TEKTT2302) utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range.
Features:
- CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
- Matte Anodized for Maximum Corrosion Resistance
- Sensored and Sensorless Operation
- Low Resistance HD Solder Tabs
- Rebuildable Design
- Solderless Sensor PCB Replacement
- 4-Pole Neodymium Sintered Magnet

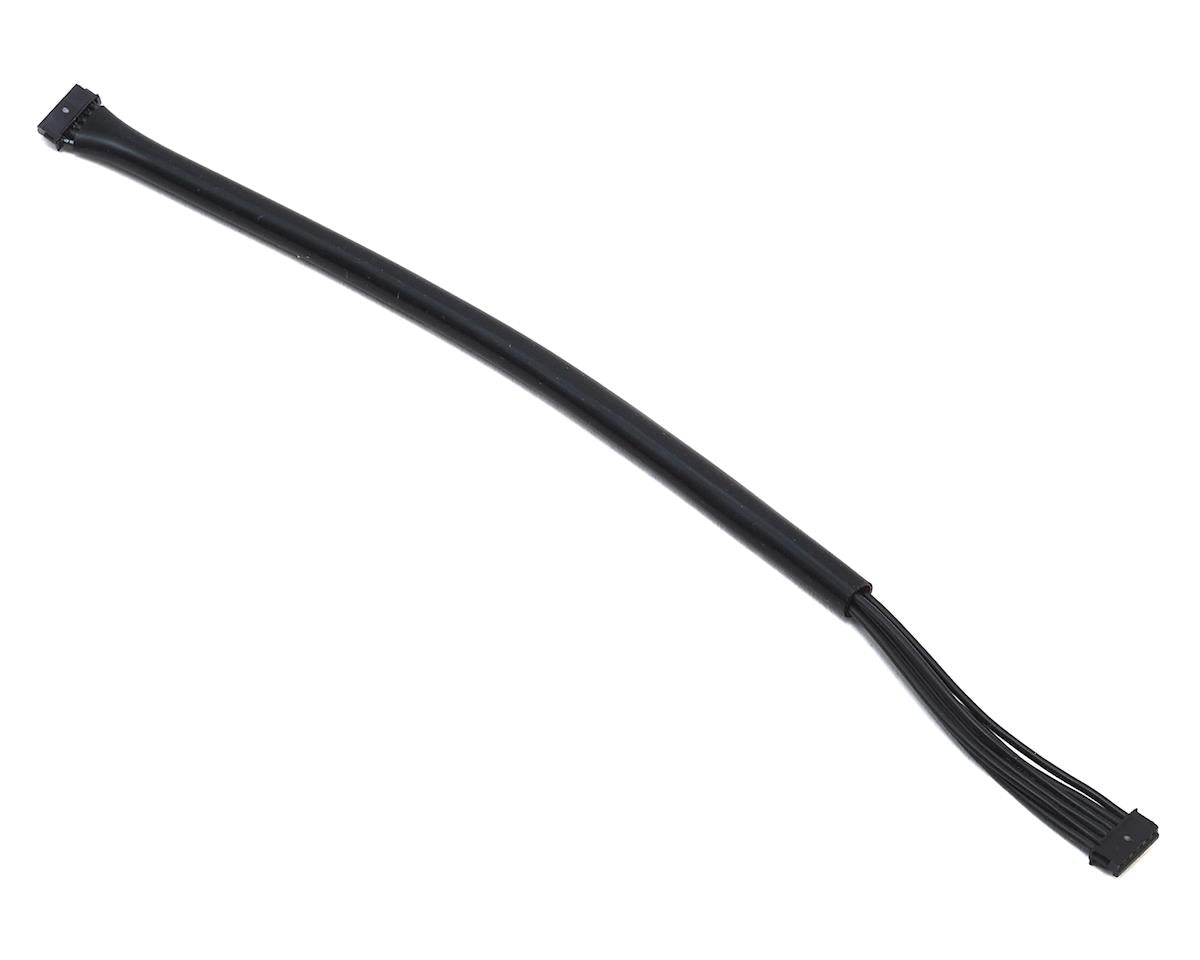

- Dual-Plug Sensor Wire Harness
- ABEC5 Precision High Speed Oversized Bearings
- Precision Engineered for Maximum Energy Conversion
- Designed to be paired with the RX8 GEN3 ESC
- ROAR Approved
- Recommended for 1/8 truggy and 1/8 monster truck applications
Specifications:
-
Input Voltage: (recommended kV for each popular voltage)
-
4S: 2250kV / 2000kV
-
5S: 1700kV / 1550kV
-
6S: 1350kv
-
Weight: 368g / 13oz
-
Shaft Dimensions: 5mm (.125") x 19mm
-
Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
-
Motor Length: 77mm / 3.03"
-
Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
-
Rotor Size: 18.5mm
-
Rebuildable: Yes
