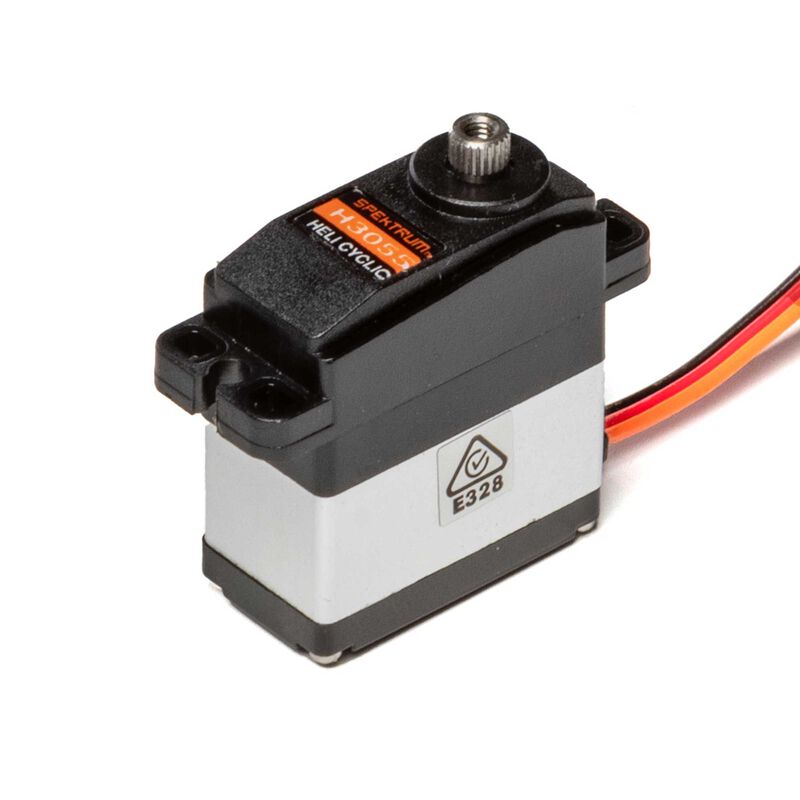

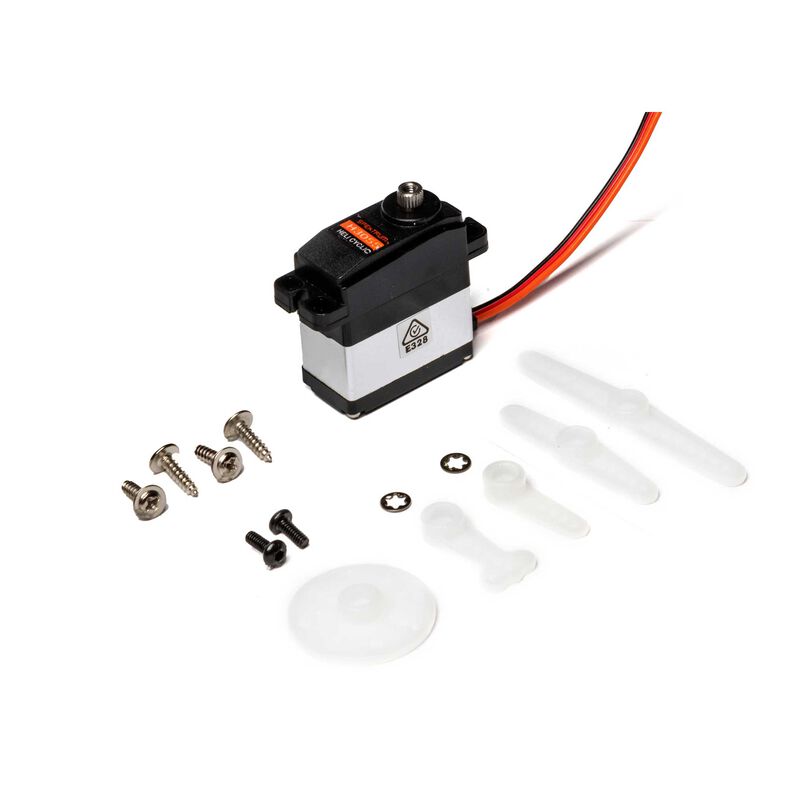

This is the H3055 Micro Cyclic Servo from Spektrum RC! Upgrade your 250-450 size heli cyclic servos with the high speed and accurate H3055 Servo. Touting a blazing fast .053 transit speed, impressive 36 oz-in torque and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor.
Application: 250 - 450 size heli, cyclic
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Gauge: 22 AWG
Connector Wire Length: 7.87" (200mm)
Gear Material: Metal alloy
Height: 1.17" (29.6mm)
Length: 0.91" (23mm)
Servo Type: Digital
Speed: 4.8V 0.067 sec/60Â°, 6V 0.053 sec/60Â°
Torque: 4.8V 29 oz-in (2.1kg-cm), 6V 36 oz-in (2.6kg-cm)
Type: Digital sub micro
Weight: 0.46 oz (12.9 g)
Width: 0.47" (12mm)
Note: This list may not be 100% accurate or up to date, and is meant to be used as a guideline for compatibility.
