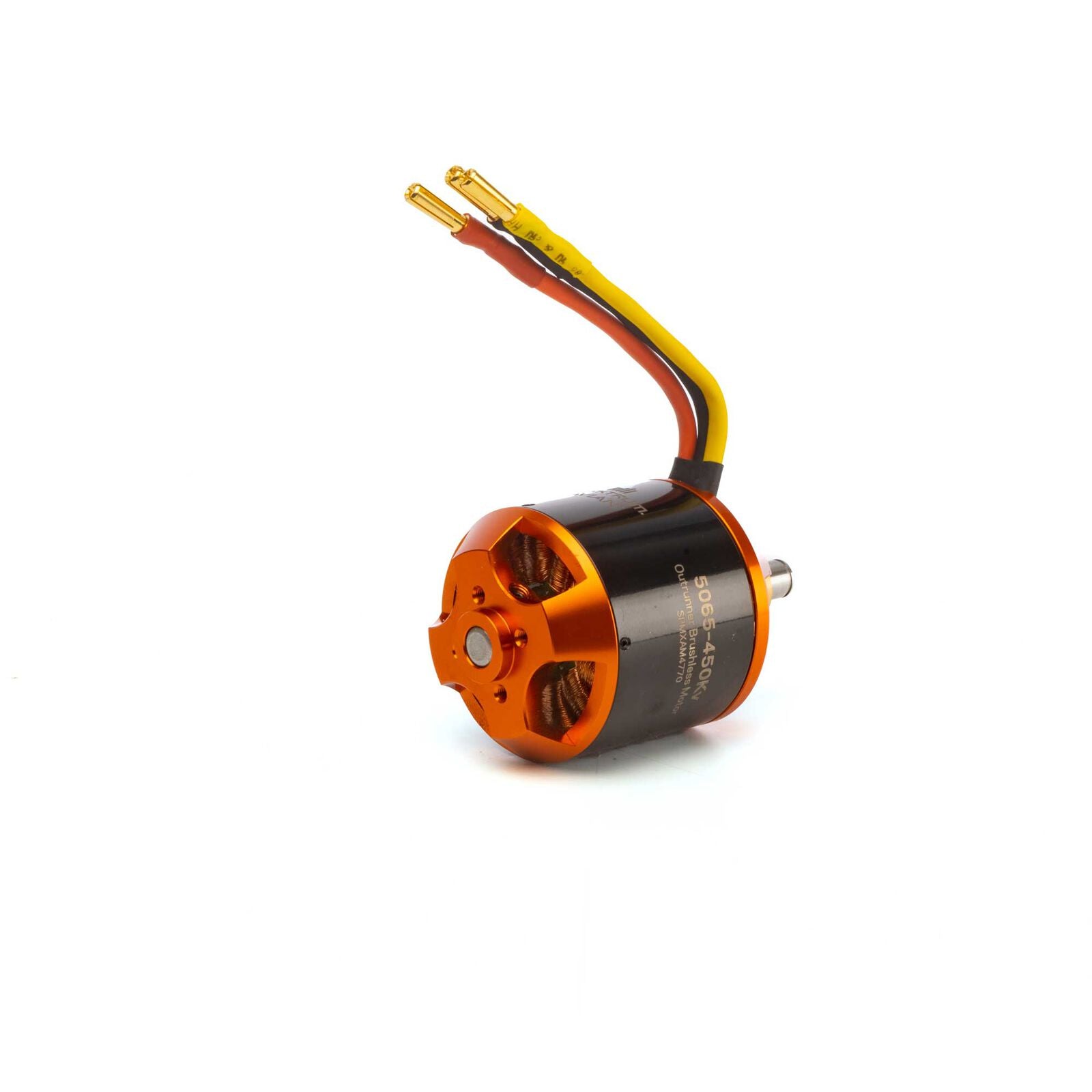

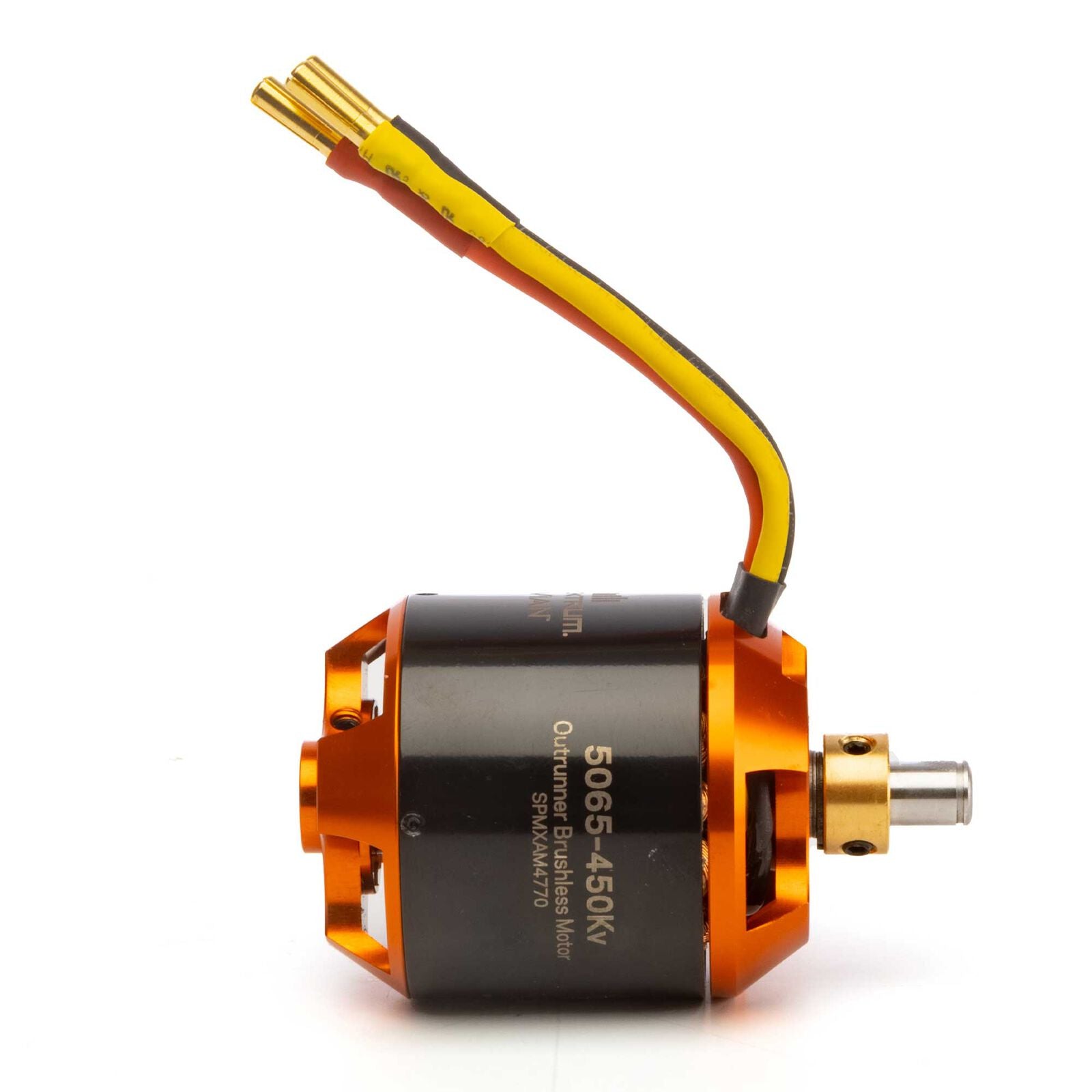

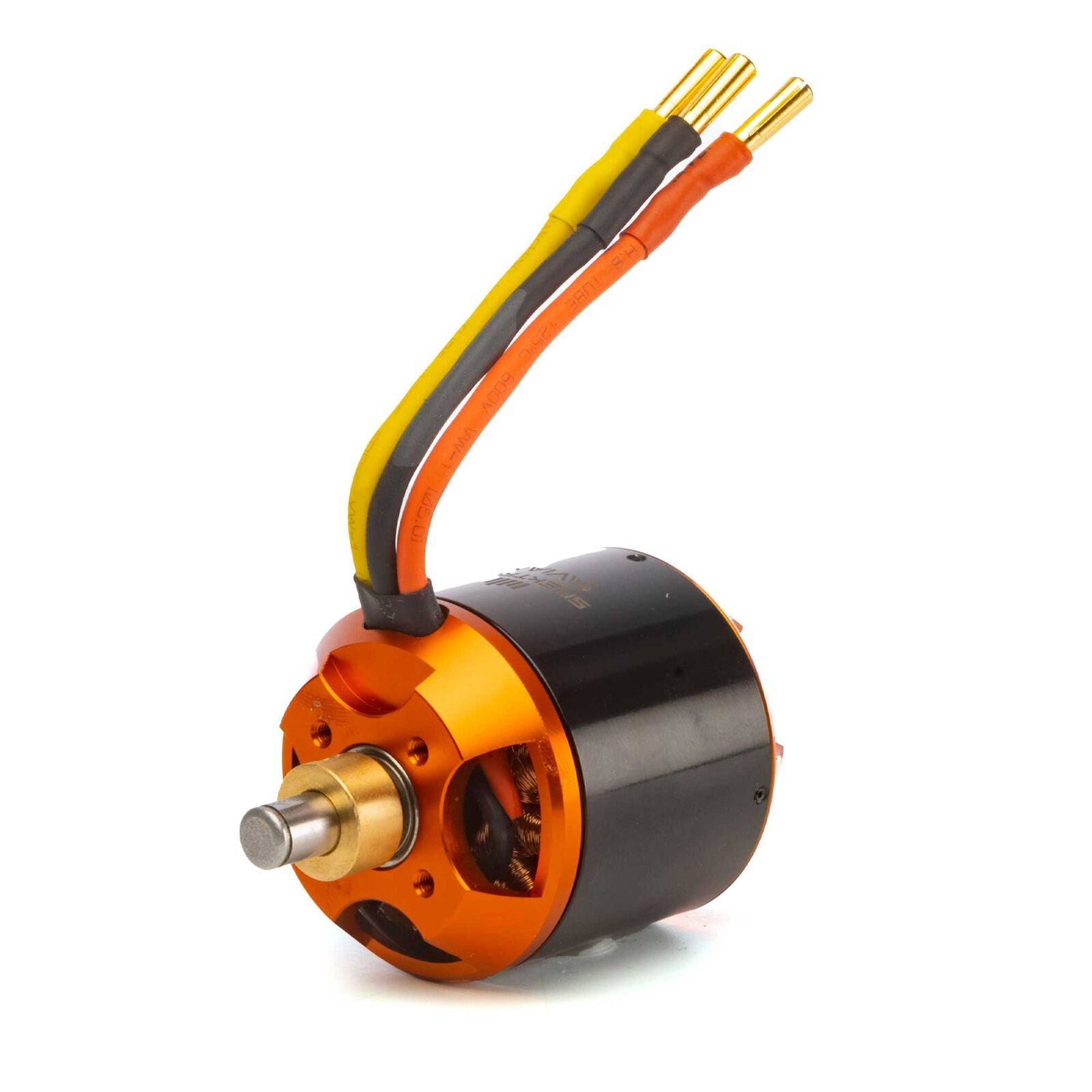

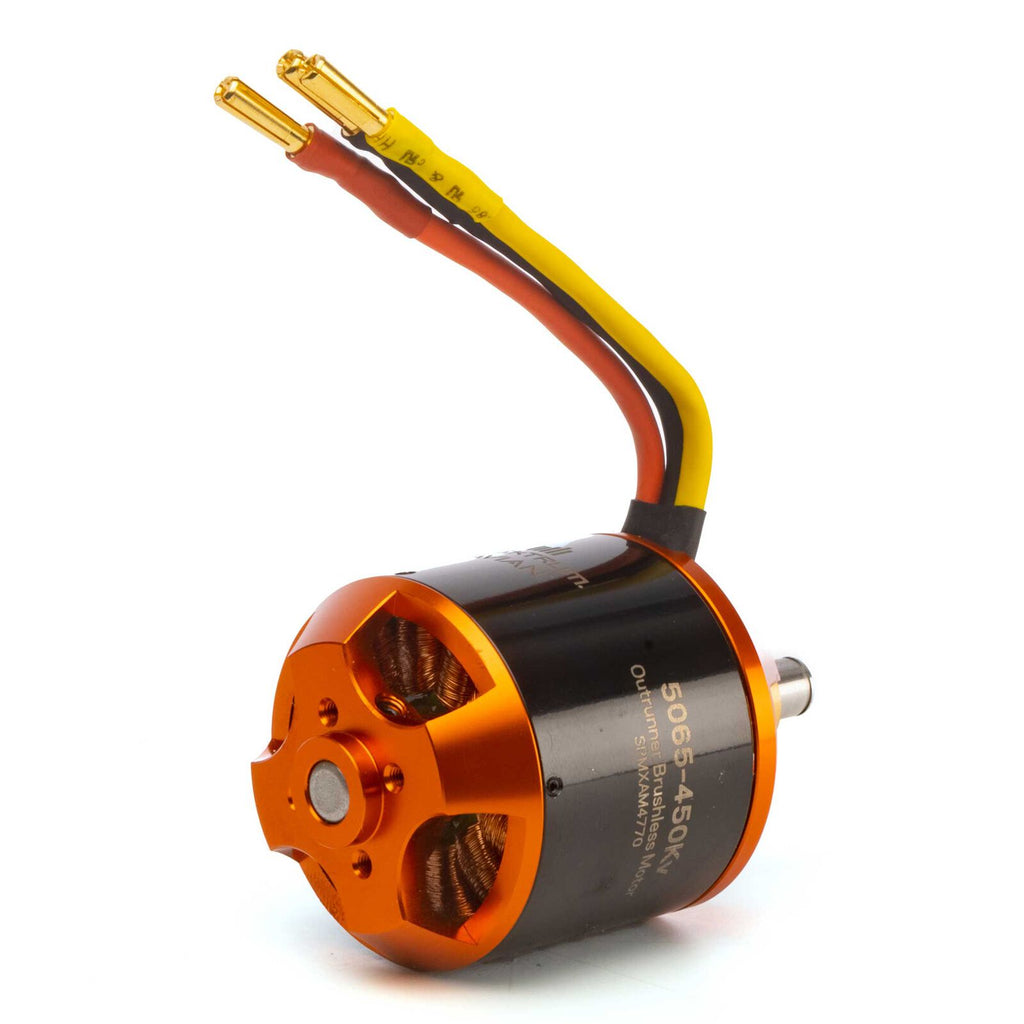

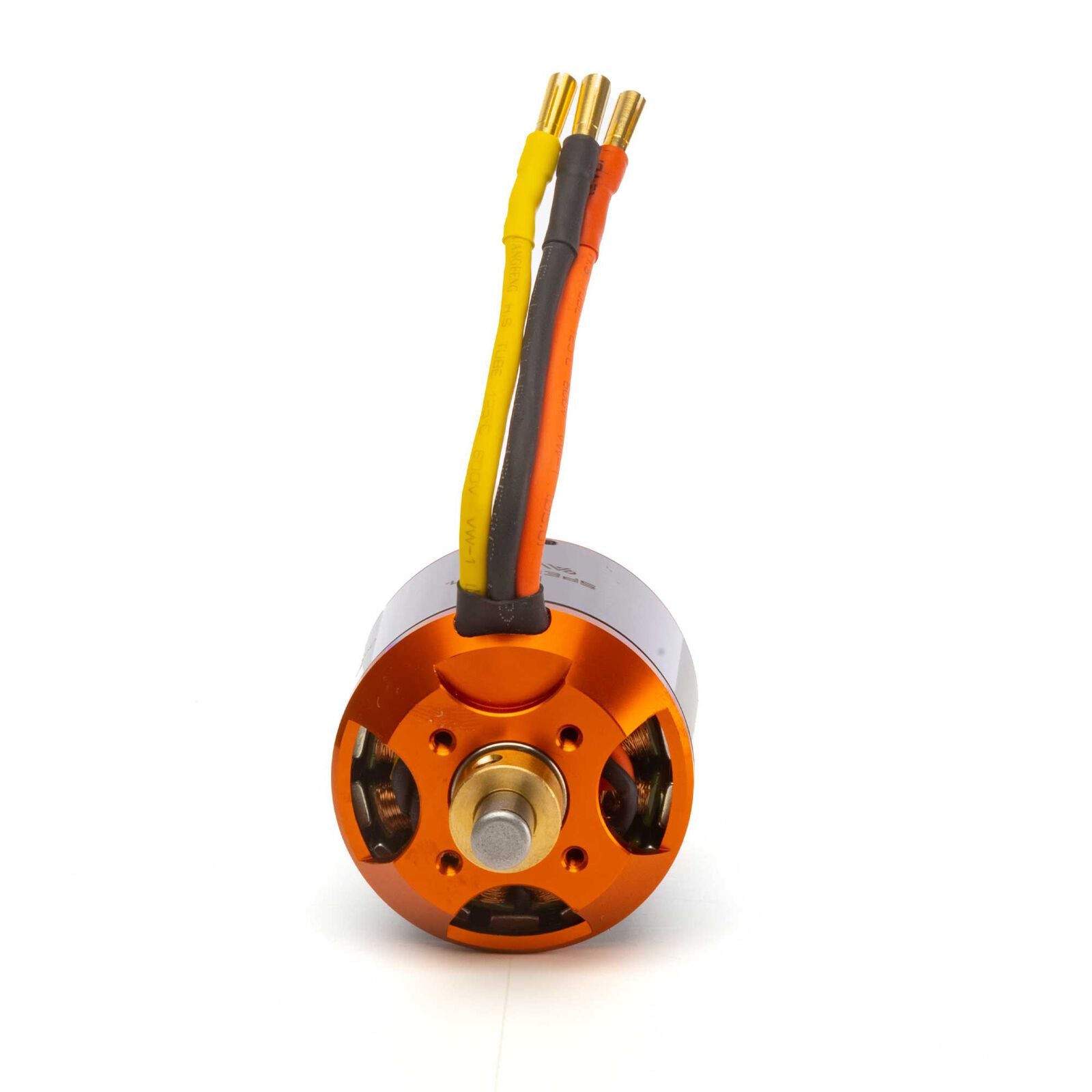

Spektrum RC Avian 5065 450Kv Outrunner Brushless Motor

SpektrumSKU: SPMXAM4770
No reviews

Price:
Sale price$ 145.99
Stock:
Only 1 unit left

Pickup available at Chantilly Store

Usually ready in 1 hour

📂 Manuals & Support

Description

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion

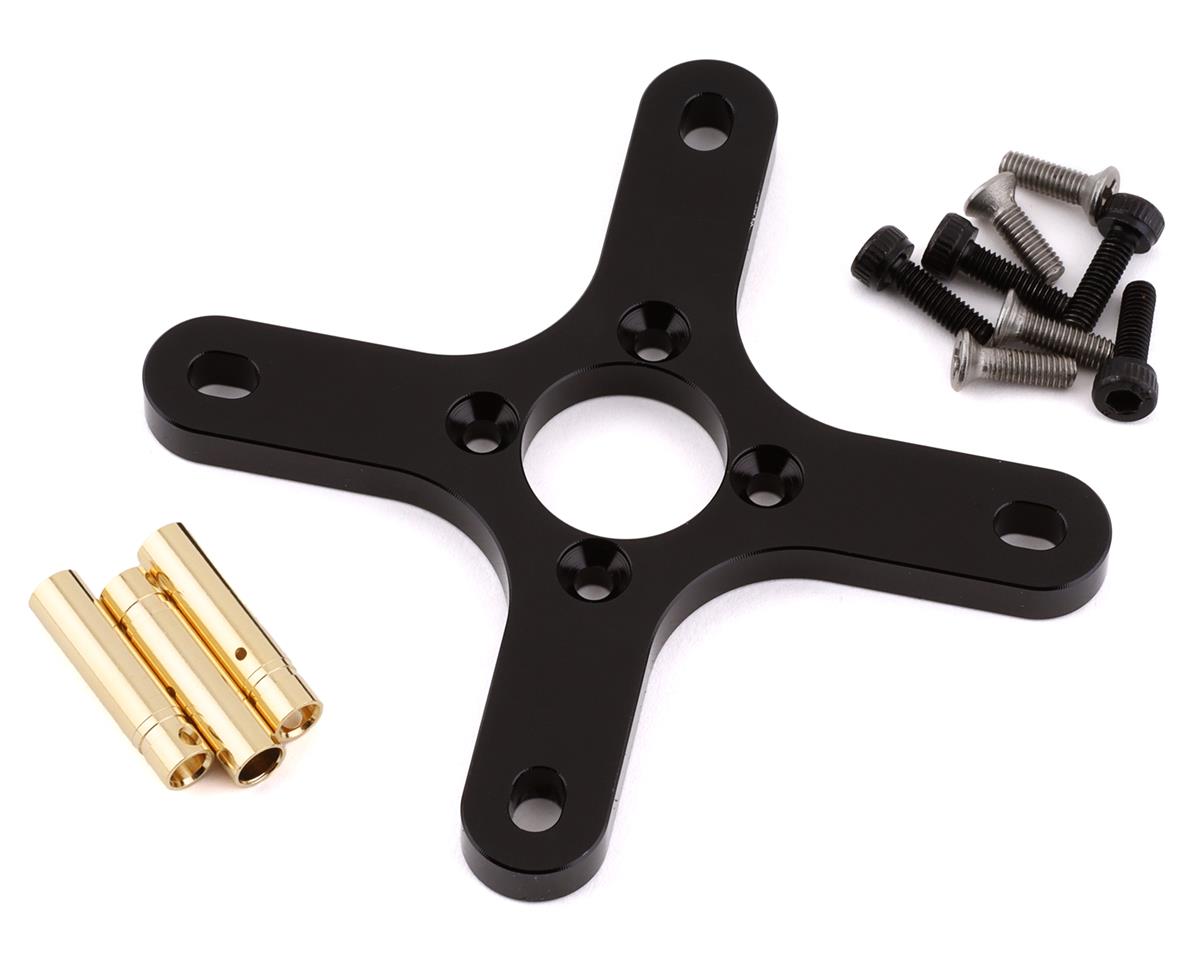

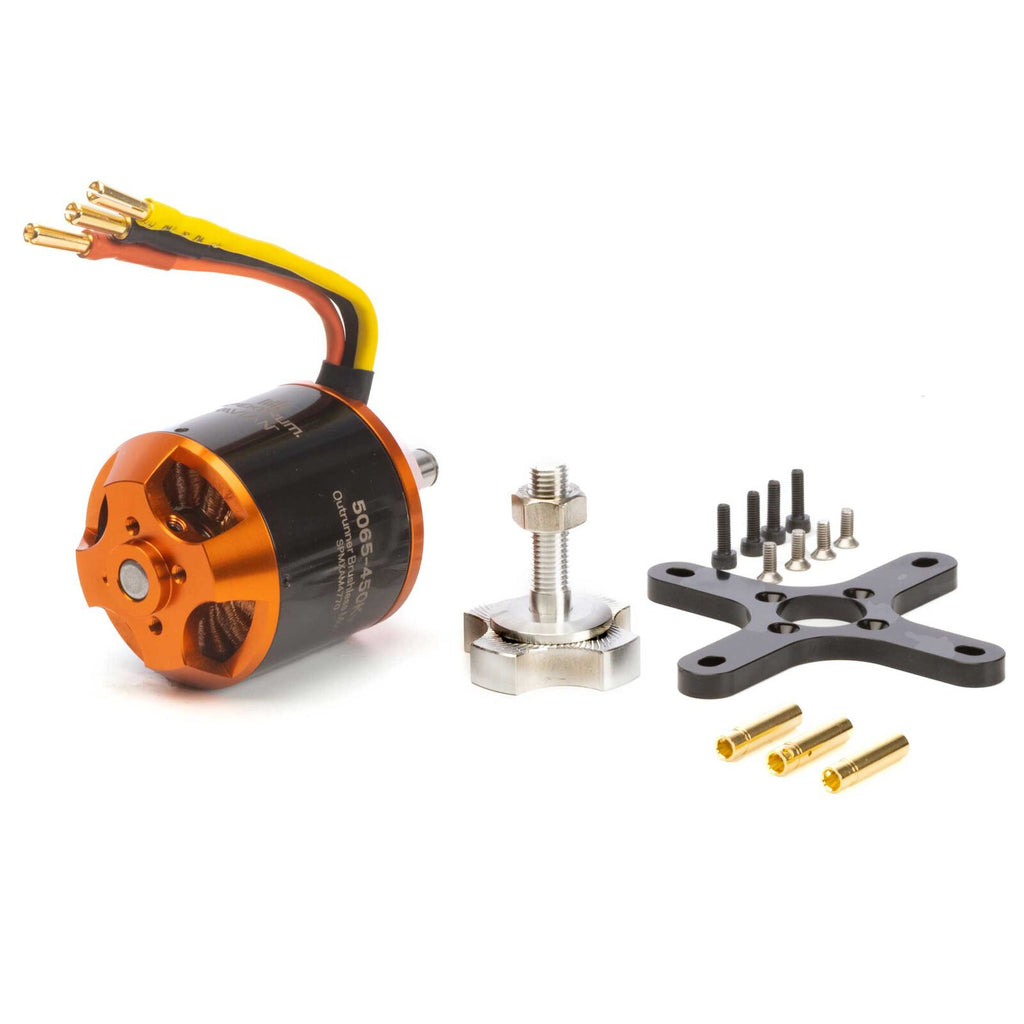

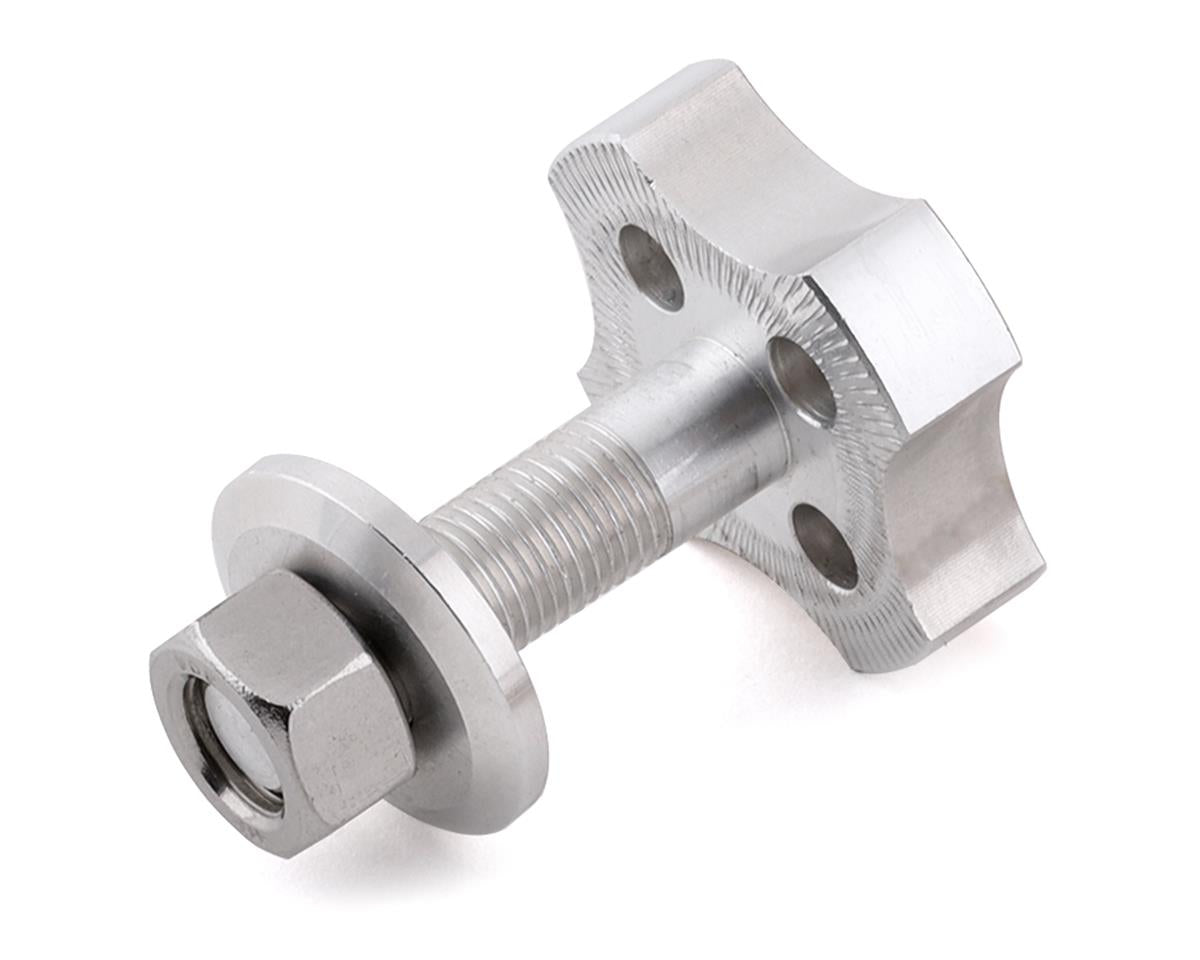

  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 100 amp ESC
  • Perfect electric conversion upgrade for 20cc size gas combustion power systems

Important Specs

  • Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo
  • Recommended Propeller Range – 16x6 to 17x8 Electric Propeller
  • Recommended Model Flying weight – 3D 4080 g (9 lbs) - Sport 6520 g (14.5 lbs)
  • Max Wattage – 1200w
  • Max Current – Max Burst Amps (85A) Max Continuous Amps (80A)

Product Specifications

Manufacturer # 605482102114
Motor Design Outrunner
Adjustable Timing No
Product Weight 14.1oz (400g)
Shaft Diameter 0.32" (8 mm)
Idle Current (Io) 2.3A
Input Voltage 18.5 - 22.1V
Recommended Speed Control 80A
RPM/Volt (Kv) 450
Shaft Length 0.79" (20 mm)
Outer Diameter 2" (51 mm)
Maximum Burst Current 80A
Maximum Continuous Current 50A
Motor Type Brushless
Connector Type 4mm Bullet
Product Length 2.6" (66 mm)
