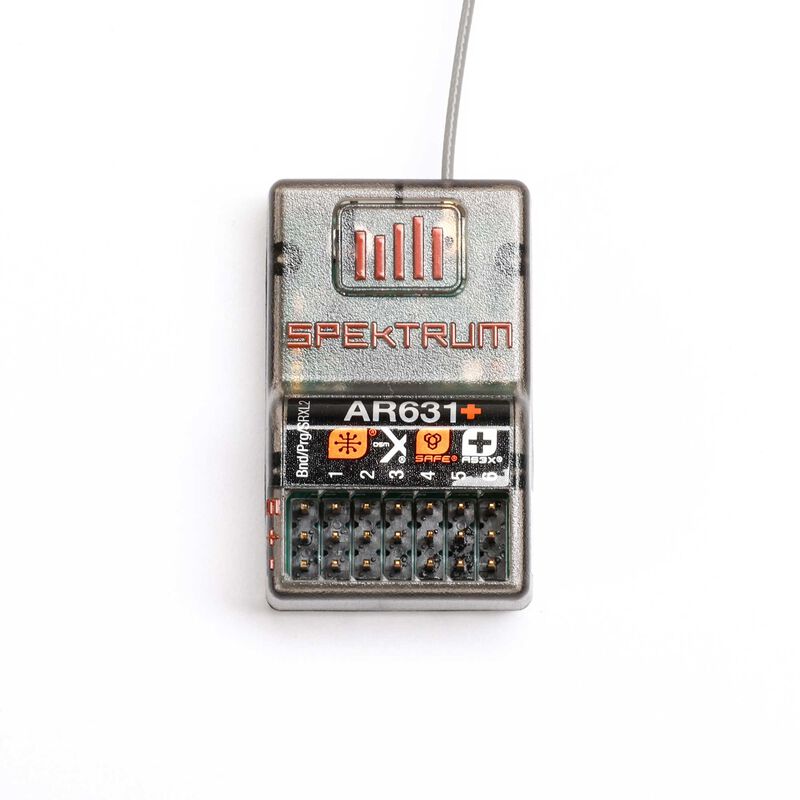

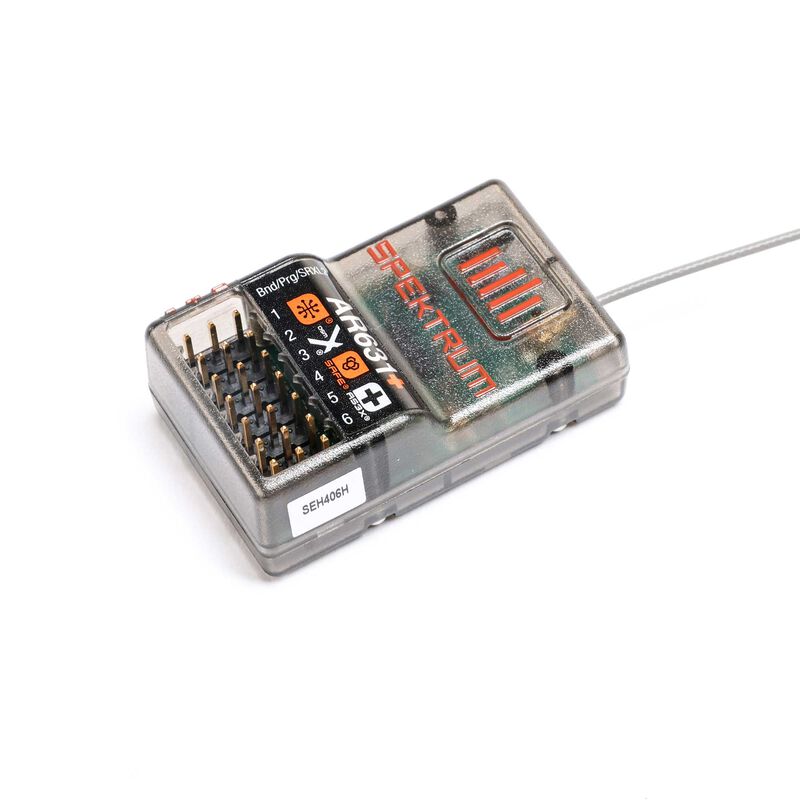

The Spektrum AR631+ AS3X+ Telemetry Receiver is a DSM2 and DSMX capable receiver. Its compact footprint is designed to fit in a wide range of aircraft models including park flyers and larger sport models. The AR631+ is a full range 6-channel receiver with built in AS3X+ and SAFE stabilization, which counters the effects of wind, turbulence and torque using 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.
In The Box
(1) AR631+ 6-Channel AS3X+ & SAFE Receiver
(1) Product ManualNeeded to Complete
(1) Spektrum Telemetry Capable Transmitter
Needed to Complete
(1) Spektrum Telemetry Capable Transmitter
Extra-long 230mm Antenna for more versatile installation options
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
DSMX protocol receiver with DSM2 backwards compatibility
Built in AS3X+ Stabilization System with SAFE flight envelope protection
AS3X+ and SAFE set up through forward programming directly from your Spektrum transmitter
Spektrum AR631+ 6-Channel AS3X+ & SAFE Receiver Features
Smart Transmitter File Download
230mm Antenna for more versatile installation options
Built in AS3X+ Stabilization System with SAFE flight envelope protection
AS3X+ and SAFE set up through forward programming directly from your Spektrum transmitter
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
Streamlined, top-pin design in a lightweight hard-case
Bind button allows for easy binding and eliminates the need for bind plug
DSMX protocol receiver with DSM2 backwards compatibility
Fly-by range telemetry support
Standard servo connectors
NEXT GENERATION IN FLIGHT STABILIZATION
The all-new AS3X+ features a vastly improved stabilization algorithm that has been rigorously tested by experts throughout the hobby. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until you get your aircraft locked in. We've been able to set up most aircraft in less than five minutes including the first flight tuning.
Key AS3X+ improvements include:
Stop Lock and Release Rate parameters
Heading Hold improvements
Improved gryo filtering
Canard and Thrust Vectoring support
SAFE®Technology
SAFE®(Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.
Long 230mm 2.4GHz Antenna
The AR631+ features an extra-long 230mm 2.4ghz antenna (approximately 9 inches), specifically engineered for use in tight installations. When installing your receiver into an aircraft where there is less then ideal space away from batteries and other devices, a long antenna is key. This allows users to install the receiver in tight spaces and isolate the antenna for optimal reception and link quality. When positioning your antenna, it is best to have it at least 75mm ( approximately 3 inches) away from batteries, electronic speed controls (ESC), ignition systems, and other electronic devices. Use the integrated flight log telemetry to perform a through range test to better evaluate your setup.
Forward Programming
You can configure the AR631+ receiver wirelessly, directly from any compatible Spektrum™transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.
SMART TRANSMITTER MODEL FILES SUPPORT
Smart Transmitter Model Files is a new feature on the AR631+ receiver that makes transmitter programming the easiest has ever been. It consists of a set of transmitter configuration parameters that are stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download said model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.
Smart Telemetry
To enjoy the full benefits of Smart™technology, use the AR631+ receiver with a Smart ESC and telemetry capable Spektrum DSMX®transmitter. The AR631+ features fly-by telemetry and will provide vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter. The AR631+ is not compatible with Spektrum telemetry sensors. For more information on Smart Technology please visit our Spektrum Smart Technology page.
Compatibility:
E-flite ElectroStreak 1.1m
E-flite Night Timber X
