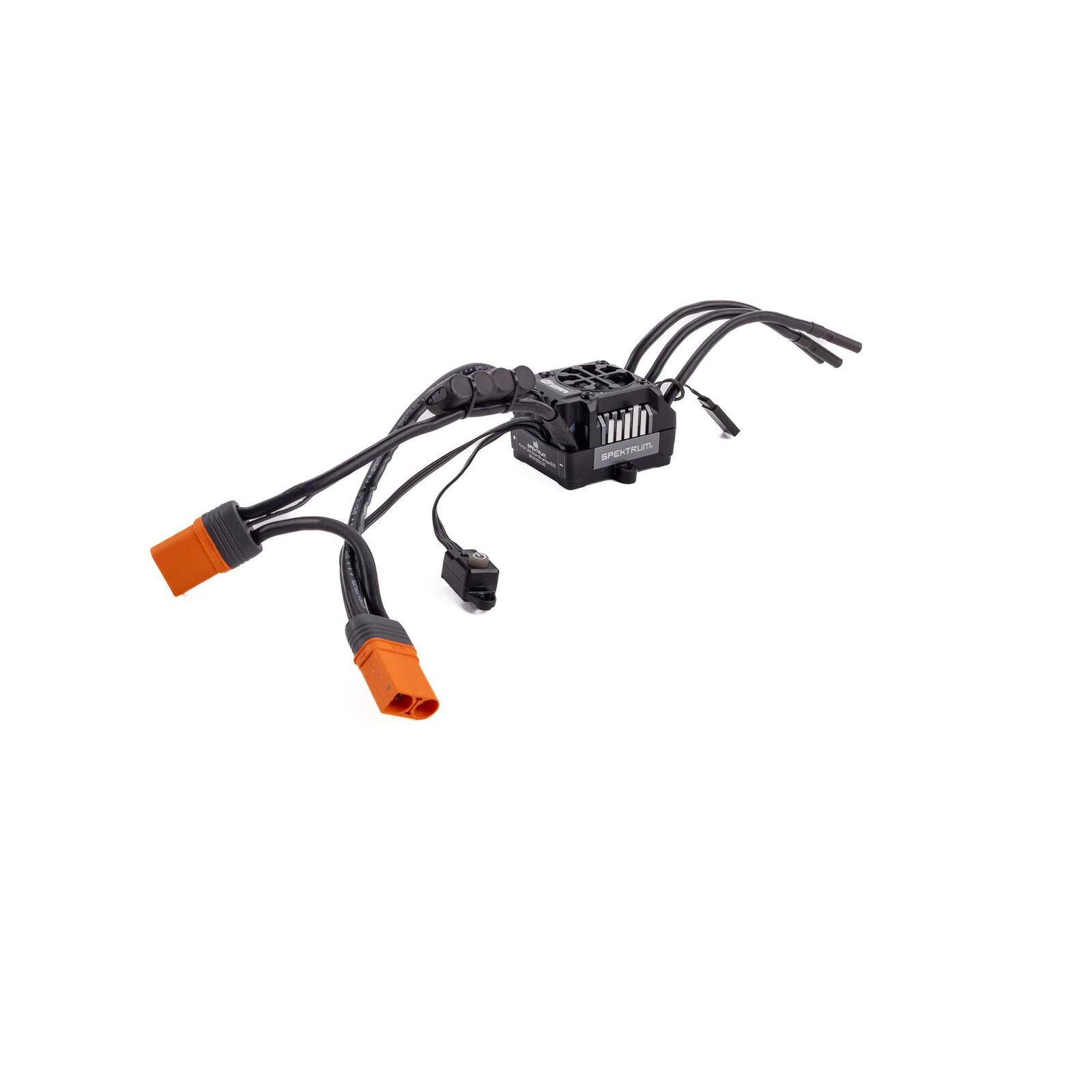

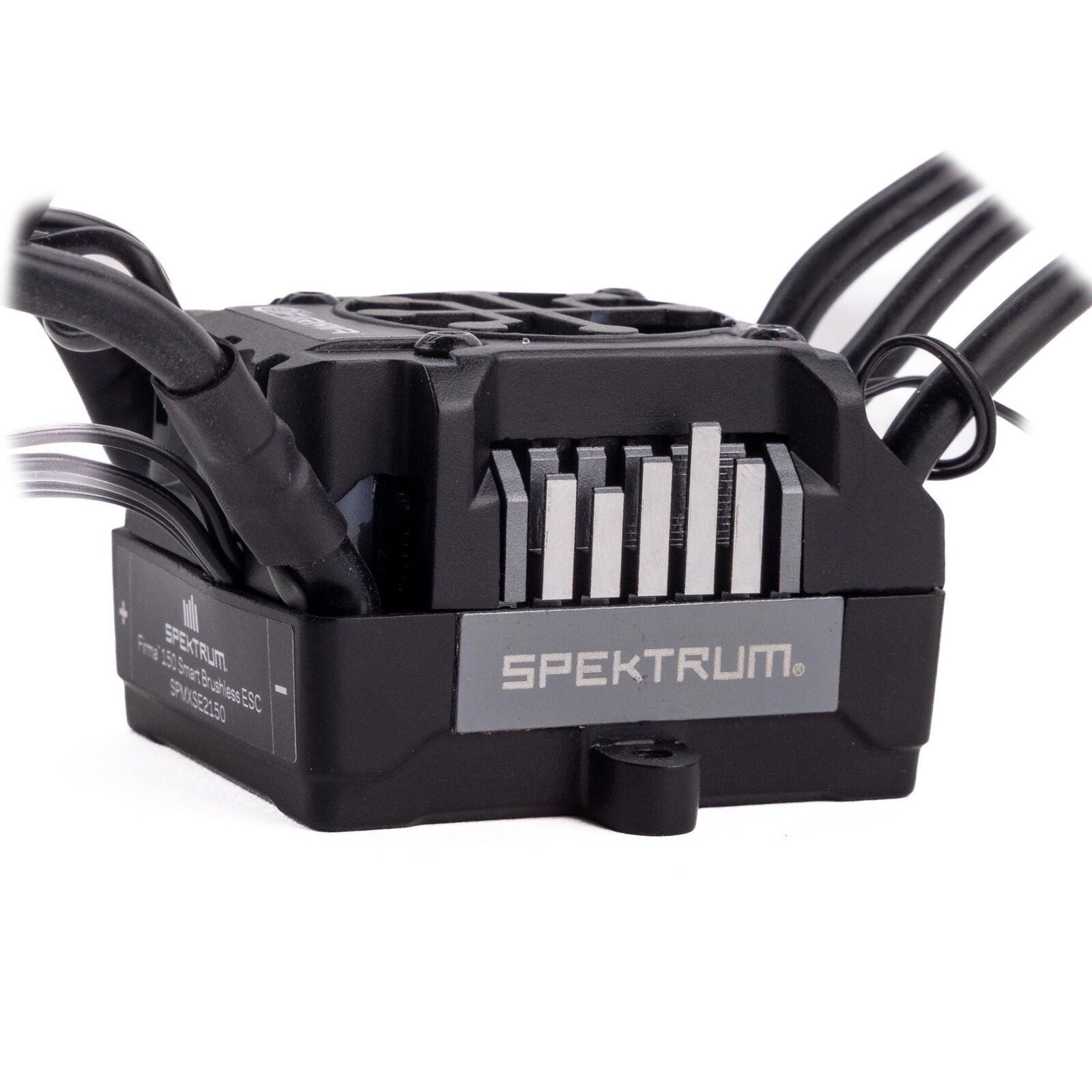

Spektrum Firma 150A Brushless Smart ESC V2, 3S–6S: Dual IC5
Part of the Spektrum Smart ecosystem, the Firma 150A Brushless Smart ESC V2 goes beyond basic speed control to function as a virtual engineer for your vehicle, delivering real-time telemetry like RPM, temperature, and battery voltage straight to your transmitter. Its single-wire Smart telemetry solution eliminates the need for extra wires, modules, or links, keeping installation clean while giving you live data you can act on mid-run instead of only reviewing after the fact. A fast 32-bit ARM M4 processor handles signal input and motor output with high precision, while a fully waterproof design lets the ESC perform through dust, gravel, snow, and water. With multiple programming options and no soldering required, the Firma Smart ESC is built for racers who want plug-and-play simplicity backed by serious performance data.
Features:
- Smart all-in-one telemetry with single-wire data transmission
- Fast, powerful 32-bit ARM M4 processor
- Fully waterproof design for all-weather performance
- Ready to install — no soldering required
- Multiple programming options: button programming, Smart ESC Programming Box, SmartLink USB app
- Multi-point protection: over-current, automatic LiPo low-voltage cutoff, thermal, and failsafe protection
- Compact design with rugged plastic case and mounting tabs
- Aluminum heat sink and cooling fan for high efficiency
- Adjustable high-power BEC
- Firmware updatable via the Smart ESC Programming Box
- High heat-resistant IC connectors, backward compatible with EC connectors
- Limited 1-year warranty
Specifications:
| Specification |
Detail |
| ESC Type |
Brushless |
| Technology |
Smart |
| Application |
Surface |
| Amperage |
120A or larger |
| Maximum Continuous Current |
150A |
| Maximum Burst Current |
950A |
| Input Voltage |
3S–6S LiPo |
| Max Input Voltage |
22.2V |
| Battery Input Lead |
IC5 |
| Connector Type |
IC5 |
| Motor Output Lead |
6.5mm |
| Output Connector |
4mm Bullet |
| BEC |
Yes |
| BEC Type |
Linear |
| BEC Voltage |
6V |
| BEC Continuous Current |
4A |
| Low-Voltage Cutoff Programmable |
Yes |
| Auto Cutoff |
Yes |
| Overload Protection |
Yes |
| Forward / Reverse / Brakes |
Yes |
| Programmable |
Yes |
| Programming Options |
Button, Programming Box, SmartLink App, On-Screen Text Gen |
| Product Height |
1.5" (38.5mm) |
| Product Length |
2.3" (58mm) |
| Product Width |
1.9" (47.5mm) without tabs, 2.3" (59.5mm) with tabs |
| Product Weight |
8.4oz (238g) |
In the Box:
| Item |
Qty |
| Spektrum Firma Smart ESC |
1 |
| Spektrum Smart Sticker Sheet |
1 |
| Product Manual |
1 |
Needed to Complete:
| Item |
| Spektrum Surface Receiver |
| Spektrum Smart Technology LiPo Battery |
| Spektrum Transmitter |
