SPMX726S120

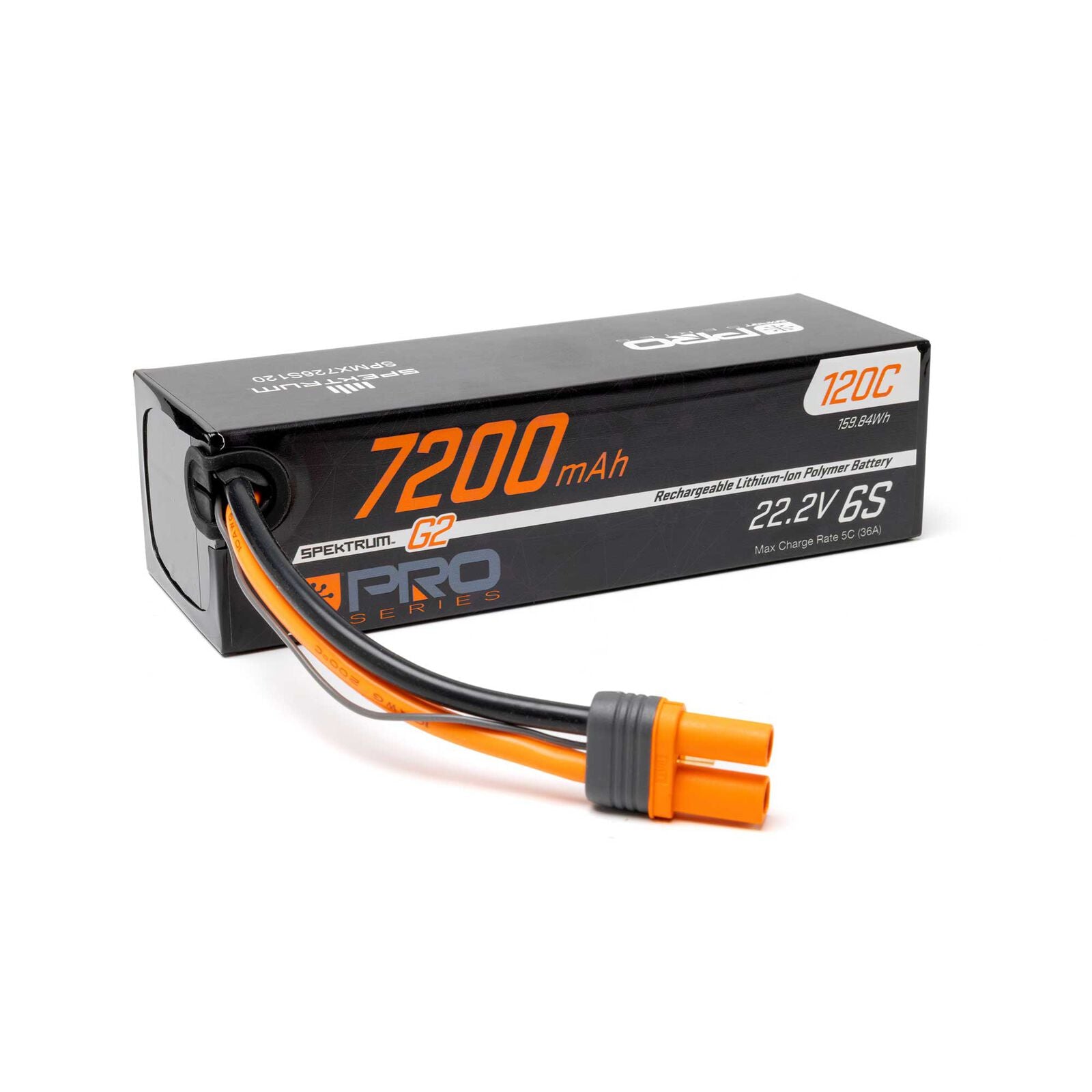

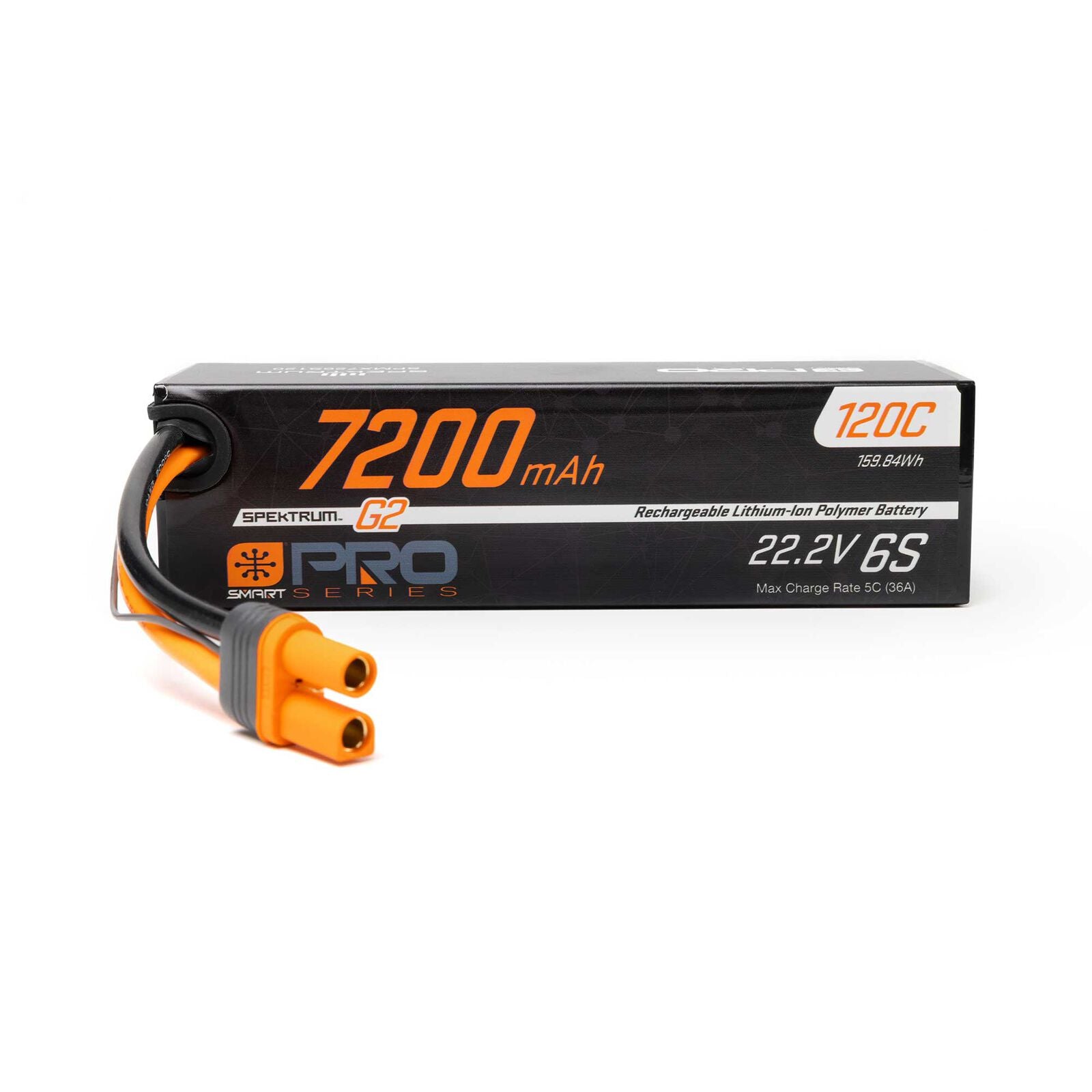

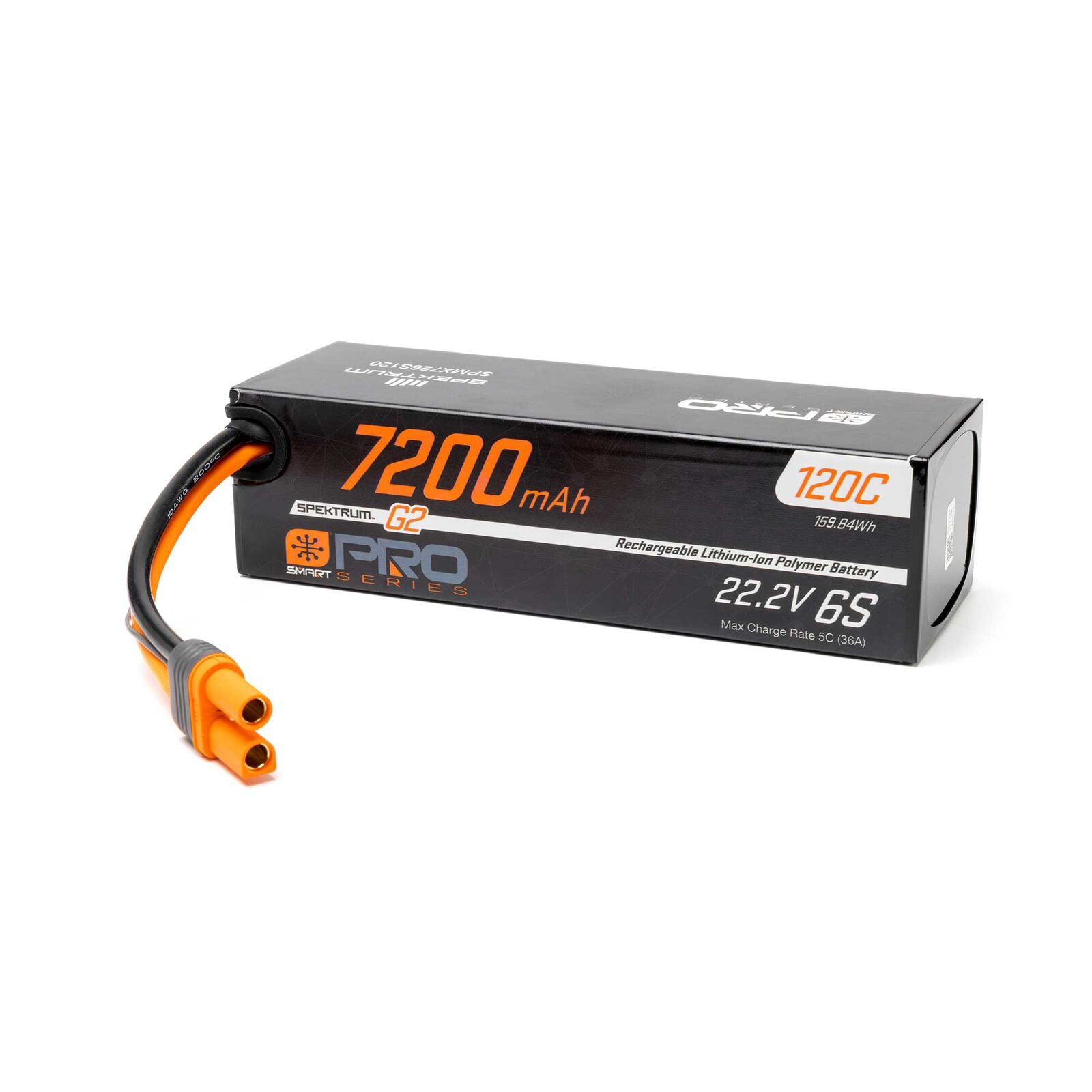

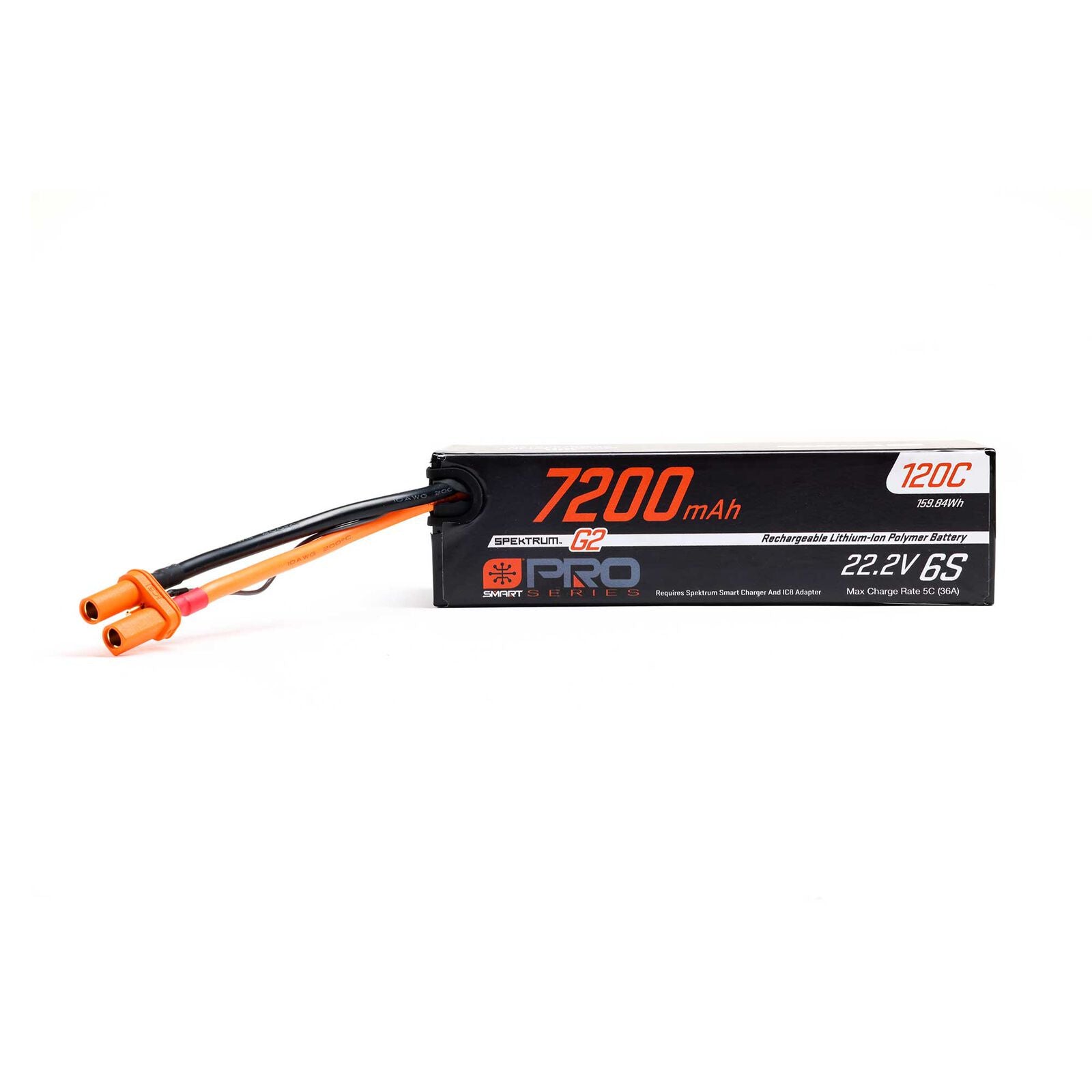

Spektrum 22.2V 7200mAh 6S 120C Smart PRO G2 LiPo Battery – IC5 (Losi 5IVE-TE 3.0)
When your Losi 5IVE-TE 3.0 demands a battery built specifically for its scale and power requirements, the Spektrum 22.2V 7200mAh 6S 120C Smart PRO G2 LiPo delivers exactly that. Custom-tailored in size, shape, and performance spec for the 5IVE-TE 3.0 platform, this pack brings a massive 7200mAh capacity, a blistering 120C discharge rating, and full Spektrum Smart G2 technology to one of the most demanding large-scale surface vehicles on the market. The IC5 connector integrates a data transfer wire that communicates directly with compatible Spektrum Smart chargers — uploading the battery's unique parameters automatically so charging is as simple as plugging in and pressing start.
Smart technology goes well beyond convenience. An integrated microchip stores and continuously updates critical battery data including cell voltage, temperature, charge and discharge cycle counts, internal resistance, and C rating. It also maintains an error log tracking overcharge, over-discharge, and overtemperature events, giving you a clear picture of your pack's health before every run. Smart Discharge automatically brings the pack down to your preset storage voltage after a programmable rest period of 12 to 240 hours — protecting cell chemistry and extending the overall life of the battery without any manual intervention. Charge rate settings are user-customizable and remembered by the microchip, so your preferred setup loads automatically every time the pack is connected to a Smart charger.
Features:
- Custom-designed in size, shape, and C-rating specifically for the Losi 5IVE-TE 3.0
- Spektrum Smart G2 technology with integrated microchip for automatic parameter upload to Smart chargers
- Auto Charge — Smart chargers recognize the pack and begin safe, accurate charging automatically
- Stores and uploads critical data: battery type, capacity, C-rating, cell voltage, temperature, cycle count, and internal resistance
- Maintains an error log of overcharge, over-discharge, and overtemperature events
- Smart Discharge automatically reduces pack to preset storage voltage after 12–240 hours of rest
- User-customizable charge rate settings stored and remembered by the microchip
- 120C continuous discharge rating for maximum power delivery in large-scale applications
- IC5 connector with integrated data transfer wire — no soldering required
- 5C maximum charge rate for fast turnaround between runs
Specifications:
| Specification |
Detail |
| Voltage |
22.2V |
| Capacity |
7200mAh |
| Cell Count |
6S |
| Discharge Rate |
120C |
| Maximum Charge Rate |
5C |
| Battery Type |
LiPo (3.7V per cell) |
| Connector Type |
IC5 |
| Application |
Surface |
| Length |
7.0" (178mm) |
| Width |
1.97" (50mm) |
| Height |
2.46" (62mm) |
| Weight |
1011g |
In the Box:
| Qty |
Item |
| 1 |
Spektrum 22.2V 7200mAh 6S 120C Smart PRO G2 LiPo Battery (IC5) |
Compatibility Note: This battery is custom-tailored for the Losi 5IVE-TE 3.0. Smart technology features require a compatible Spektrum Smart charger to access automatic parameter upload, Smart Discharge, and data logging functions.
