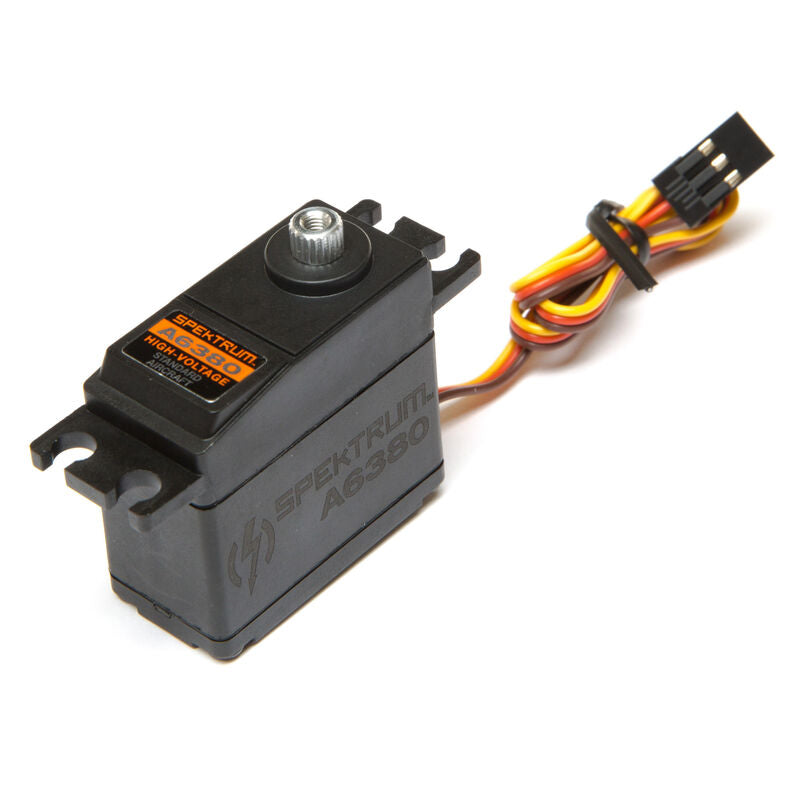

Spektrum A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo
Spektrum A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo

Spektrum A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo
SPMSA6380~

SPMSA6380~

Regular price $ 34.99 Sale price $ 29.99 Save $ 5.00
/
Shipping calculated at checkout.

Only 1 items in stock!

Overview

The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.

Product Specifications

Servo Size Category Standard
Programmable No
Connector Wire Length 11.8 in (299.7mm)
Product Width 0.74 in (19mm)
Servo Operating Voltage 6.0 - 8.4V (HV)
Bearing Dual
Bushing Or Bearing Bearing
Gear Type Metal
Maximum Servo Speed 0.100-0.149 sec
Wire Gauge 22 AWG
Application Aircraft
Max Servo Torque 100-199 oz-in
Product Weight 1.5 oz (42.5 g)
Spline Count 23 - Tooth
Connector Type Universal
Product Length 1.52 in (39mm)
Maximum Servo Torque 102 oz-in (7.3 kg-cm) @ 6.0V, 160 oz-in (11.5 kg-cm) @ 8.4V
Product Height 1.47 in (37mm)
Servo Type Digital
