Key Features
- High torque both on HV and non-HV applications
- Allows BECs of adjustable BEC ESCs to be set higher to increase performance
- Acts as a heat sink for the motor and ESC
- Low deadband, high resolution, with impressive holding torque for unmatched performance
- Durable high performance finish
Overview

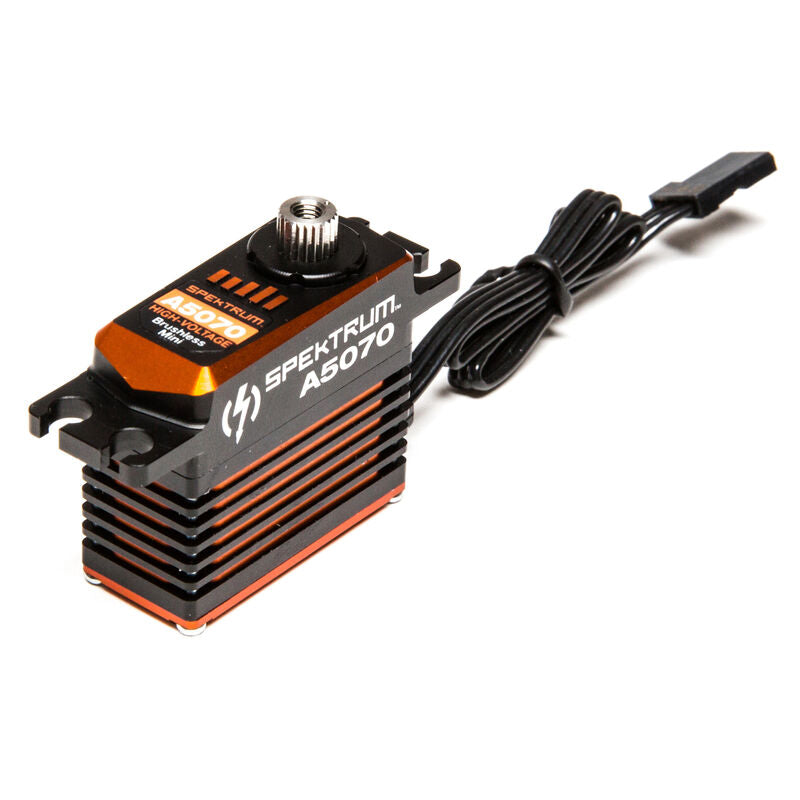

Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate.
The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.
Specifications
- Application
- Airplane or Heli
- Bearing
- Dual
- Bushing Or Bearing
- Bearing
- Connector Type
- Universal
- Connector Wire Length
- 11.8 in (300mm)
- Deadband
- 2?s
- Gear Type
- Metal
- Maximum Servo Speed
- 0.050-0.099 sec
- Maximum Servo Torque
- 100-199 oz-in
- Overload Protection
- Yes

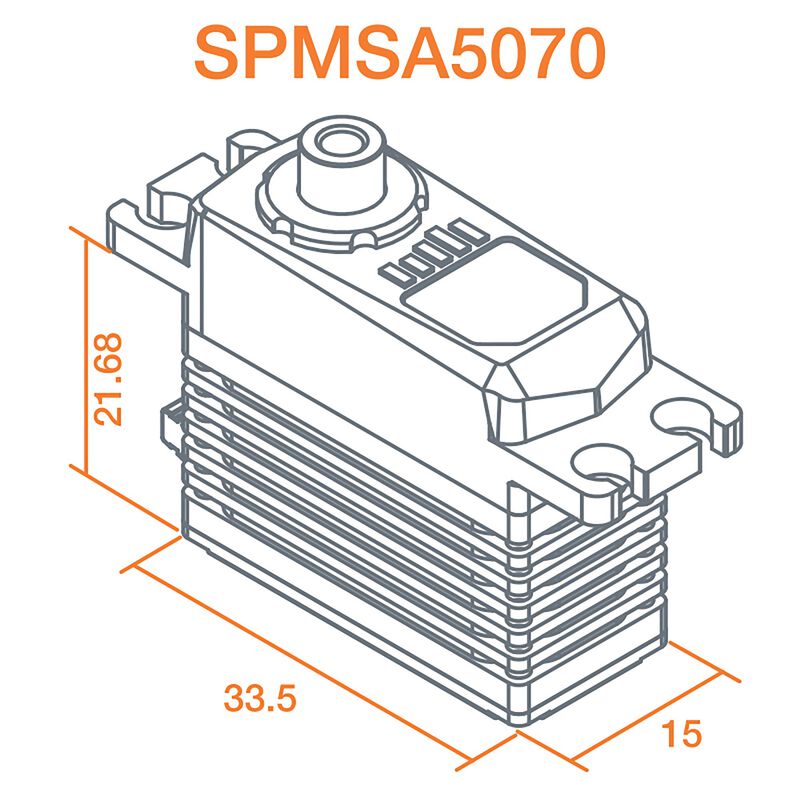

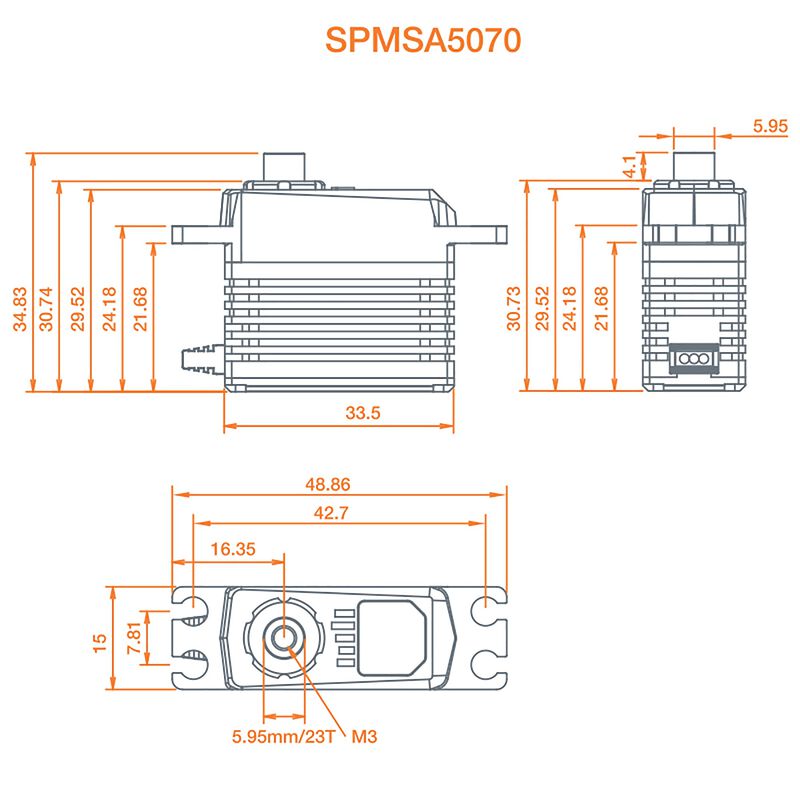

- Product Height
- 1.16 in (29.4mm)
- Product Length
- 1.32 in (33.5mm)
- Product Weight
- 1.4 oz (40g)
- Product Width
- 0.59 in (14.9mm)
- Programmable
- No
- Rotation Range
- 120?
- Servo Operating Voltage
- 6.0 - 8.4V (HV)
- Servo Size Category
- Mini and Micro
- Servo Type
- Digital
- Speed
- 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V
- Torque
- 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
- Wire Gauge
- 22 AWG
