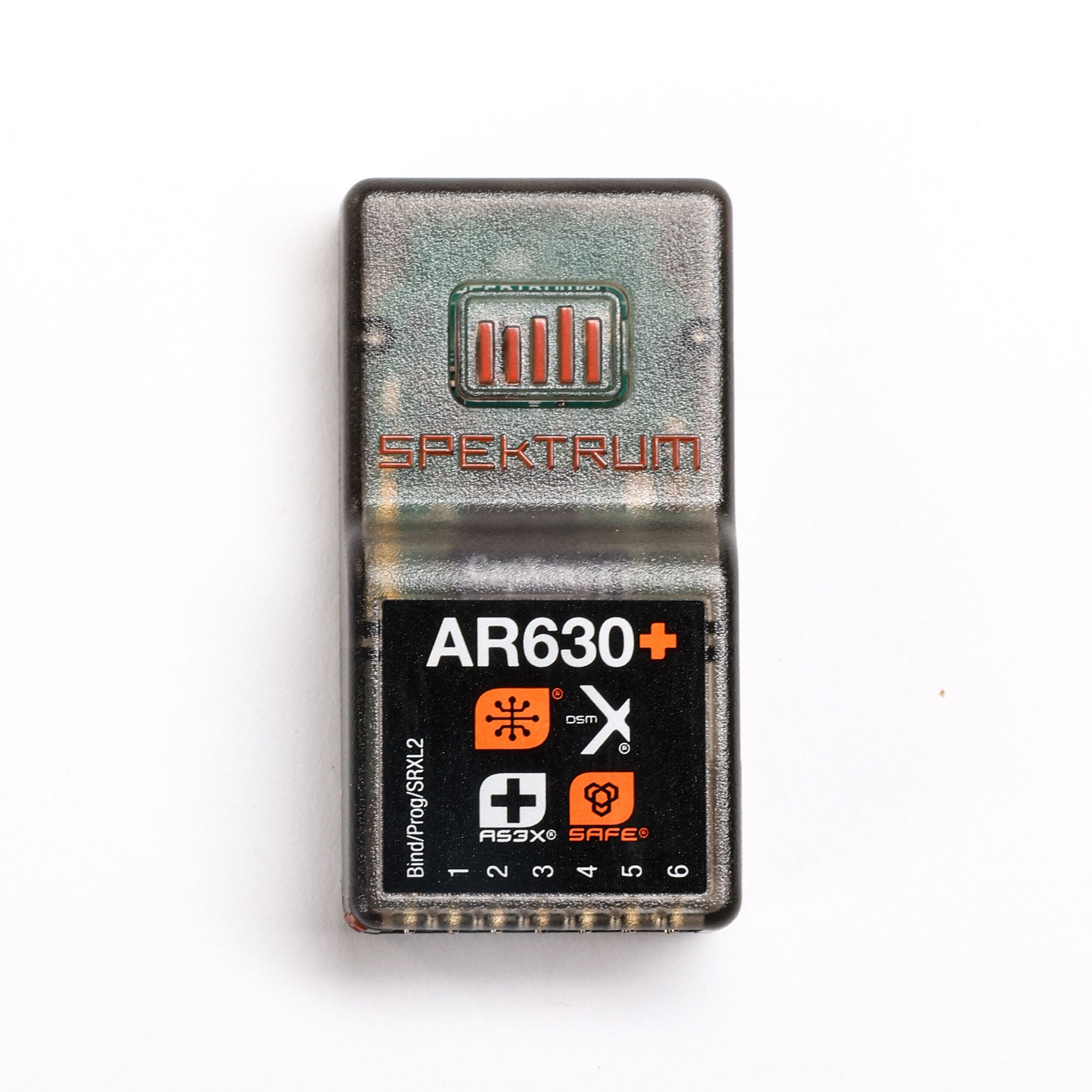

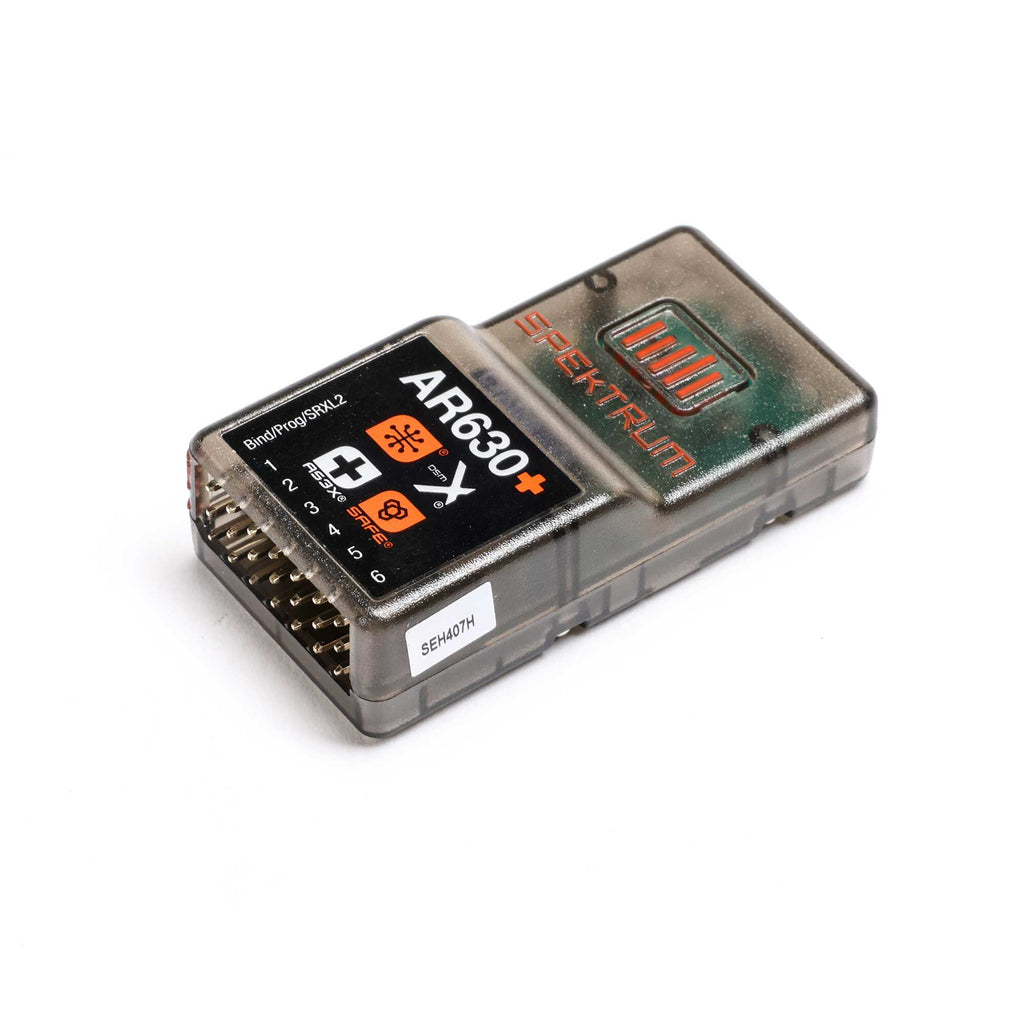

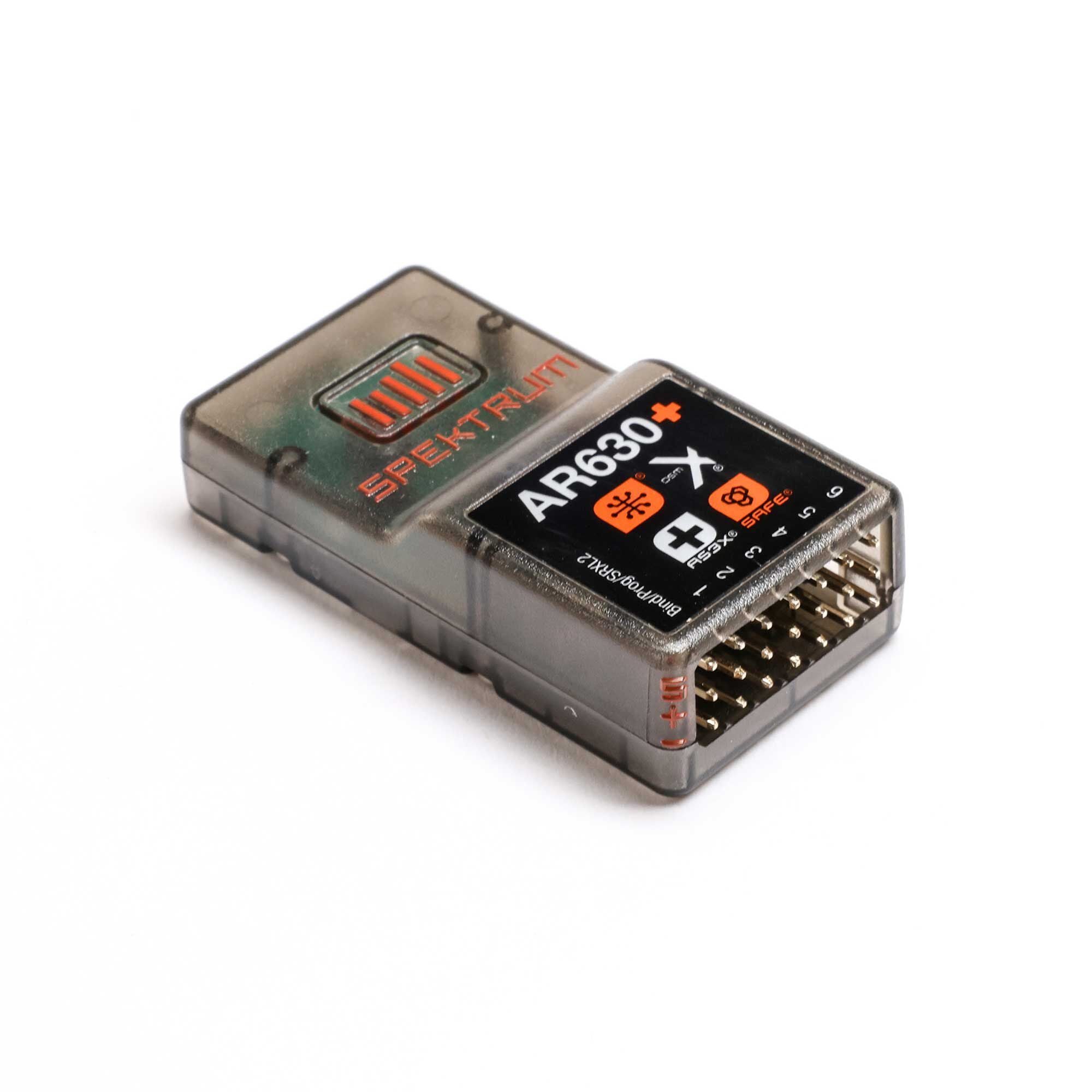

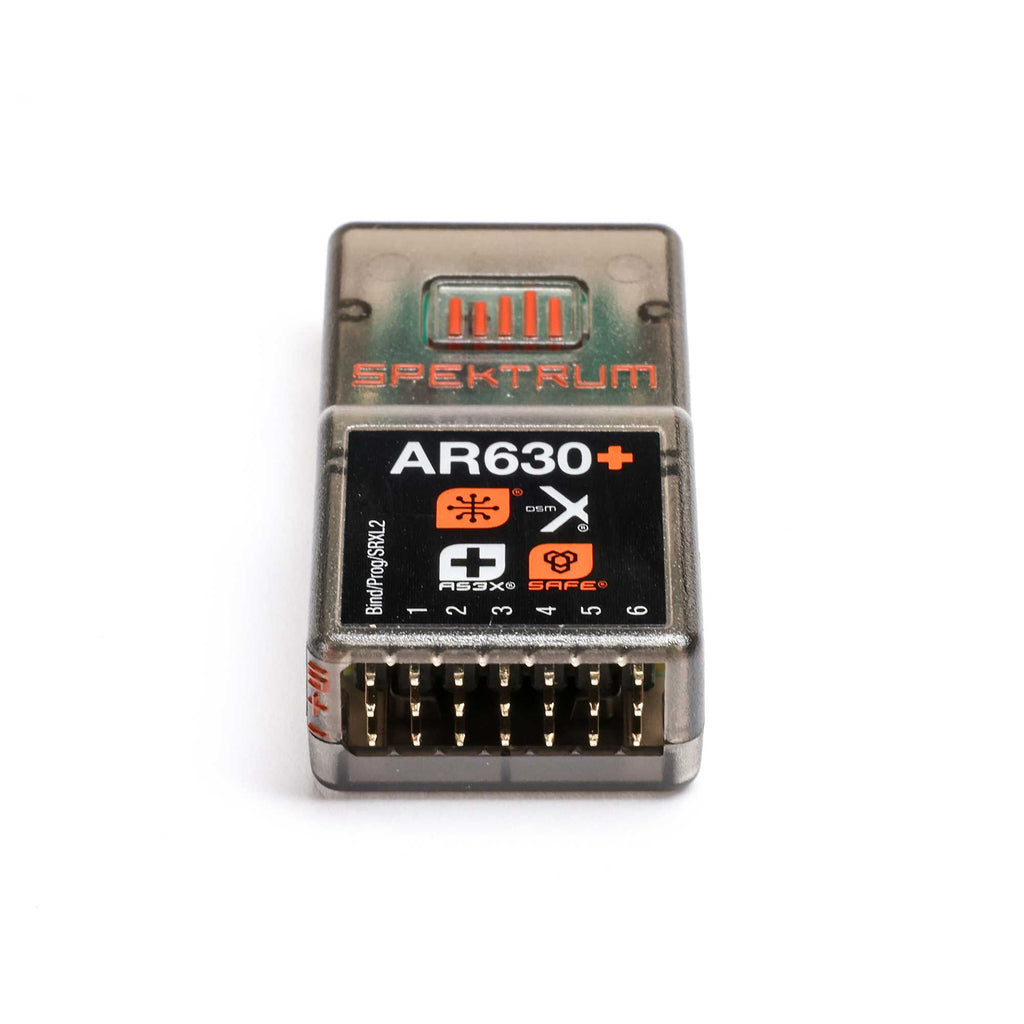

Spektrum AR630+ 6-Channel AS3X+ & SAFE Receiver Overview
The AR630+ features fly-by-range telemetry, a bind button for easy binding with no plugs necessary, SmartSafe technology, Hold Last, and preset failsafe types set through Forward Programming. It also features Smart Telemetry support and Smart Throttle support. Additionally, Smart Model Files allow BNF models to be stored on the receiver to automatically set the model at bind.
With Smart Technology, the normal servo connector delivers the throttle signal to the ESC, and the ESC sends telemetry data like voltage and current back to the receiver. The AR630+ receiver throttle port (Channel 1 port only) will automatically detect when a Smart-compatible ESC is connected. ESCs with Smart and IC series connectors can also pass along battery data from compatible Spektrum Smart batteries. Spektrum Avian ESCs are compatible with the AR630+ receiver for Smart Technology features.
For Smart to function, you must have a Smart ESC paired with a Smart Telemetry receiver and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. See www.spektrumrc.com to register and update your transmitter. If a standard ESC or servo is plugged into the throttle port on the AR630+ receiver, the throttle port will operate normally (PWM signal) like any conventional RC system.
Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, non-computer transmitters.
Spektrum AR630+ 6-Channel AS3X+ & SAFE Receiver Features
- Streamlined, end-pin design in a lightweight hard case
- Bind button allows for easy binding and eliminates the need for a bind plug
- Fly-by range telemetry support
- Standard servo connectors
NEXT GENERATION IN-FLIGHT STABILIZATION
The all-new AS3X+ features a vastly improved stabilization algorithm that experts throughout the hobby have rigorously tested. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until your aircraft is locked in. We have been able to set up most aircraft in less than five minutes, including the first flight tuning.
Key AS3X+ improvements include:
- Stop Lock and Release Rate parameters
- Heading Hold improvements
- Improved gyro filtering
- Canard and Thrust Vectoring support
SMART TRANSMITTER MODEL FILES SUPPORT
Smart Transmitter Model Files is a new feature on the AR630+ receiver that makes transmitter programming the easiest it has ever been. It consists of a set of transmitter configuration parameters stored within the receiver's model file. When binding to a receiver containing one of these model files, the user will be prompted to download the model file and overwrite the currently selected transmitter model with the one stored on the receiver. This will provide the user with an easy and simple way to acquire a transmitter model setup for their BNF model without the need to set it up themselves or search for and download the corresponding model online.
Note: Supported transmitters currently are the iX20, iX14, and NX transmitters with the latest firmware updates.
SAFE® TECHNOLOGY
SAFE® (Sensor Assisted Flight Envelope) Technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X+ to deliver normal flight performance but with limited bank and pitch angles to prevent the aircraft from getting into extreme attitudes.
ANTENNA-LESS
The AR630+ features an internal antenna design that offers superior full-range performance. Installation is easier than ever, and there's no longer a risk of failure due to long-term wire exposure or abuse.
SMART TELEMETRY
To enjoy the full benefits of Smart™ Technology, use the AR630+ receiver with a Smart ESC and a telemetry-capable Spektrum DSMX® transmitter. The AR630+ features fly-by telemetry and will send vital telemetry data such as current, voltage, temperature, and RPM directly to your transmitter. However, it is not compatible with Spektrum telemetry sensors.
FORWARD PROGRAMMING
You can configure the AR630+ receiver wirelessly, directly from any compatible Spektrum transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.
Specifications
- Application
- Air
- Band
- 2.4GHz
- Bind Method
- Bind Button
- Channels
- 6
- Dimensions
- 1.85 x 0.98 x 0.51 in (47 x 25 x 13 mm)
- Failsafe
- Yes
- Forward Programming
- Yes
- Input Voltage
- 3.5 - 9V
- Integrated Variometer
- No
- Modulation
- DSMX/DSM2
- Product Application
- Air
- Product Height
- 0.51" (13 mm)
- Product Length
- 1.85" (47 mm)
- Product Weight
- 0.34 oz (9.5 g)
- Product Width
- 0.98" (25 mm)
- Range
- Full
- Remote Receiver Ports
- 0
- Resolution
- 2048
- Serial Out
- SRXL2
- Technology
- AS3X+, SAFE
- Telemetry
- Yes
- Telemetry Range
- Fly-By
