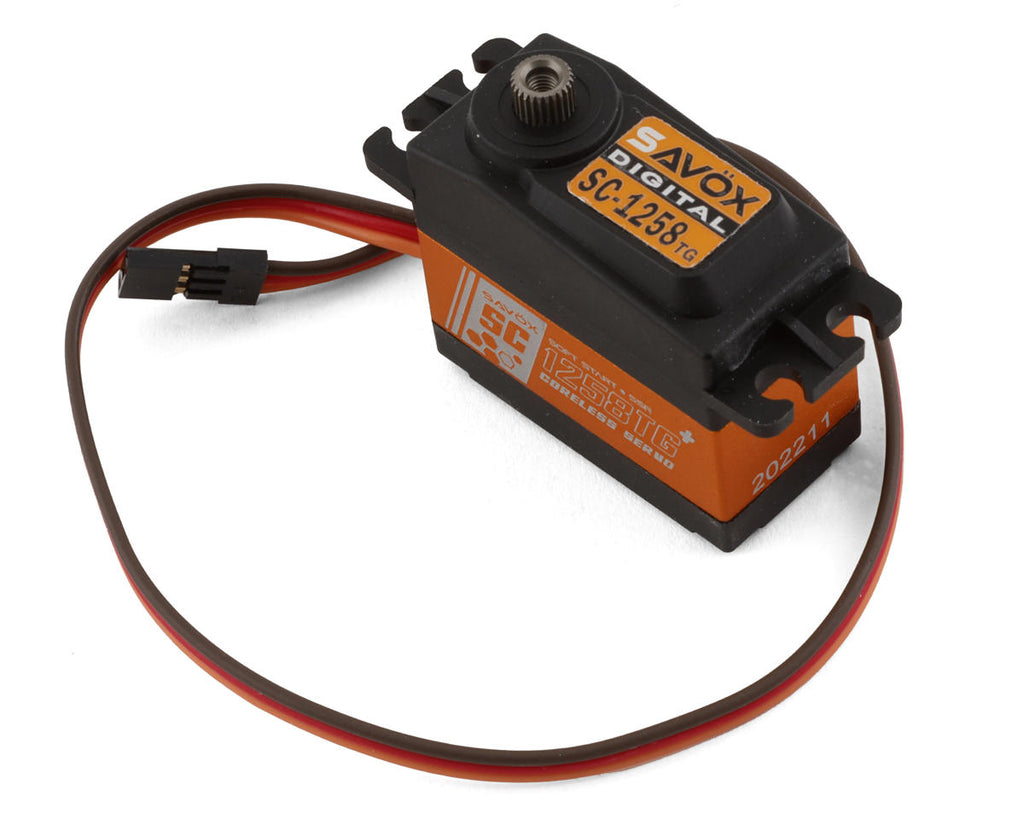

The SC1258TGP is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation. It is ideal for applications requiring high speed.
NOTE: "Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
- Extremely strong titanium gears ensure long-life, durability, and light weight.
- Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
- Aluminum middle case allows for cooler operating temperatures.
Specifications:
-
Torque:
-
@4.8v: 9.6kg/133.3oz-in
-
@6.0v: 12.0kg166.6oz-in
-
Speed:
-
@4.8v: 0.10 sec/60 deg
-
@6.0v 0.08 sec/60 deg
-

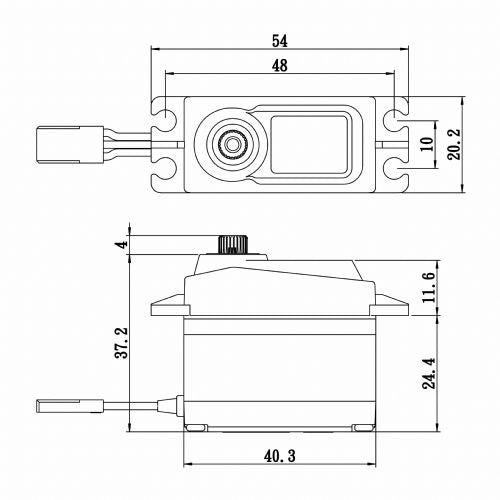

Dimensions (LxWxH) 40.3 x 20.2 x 37.2
-
Weight: 64g
Includes:

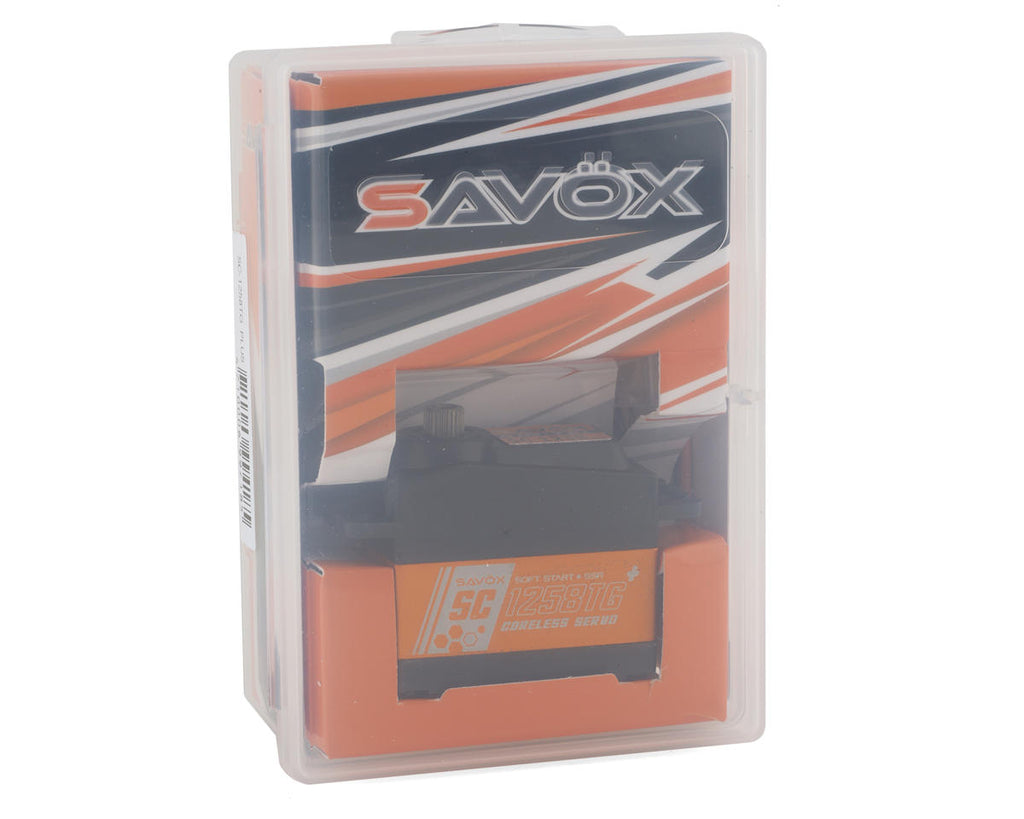

- (1) SC-1258TGP Standard Digital "High Speed" Titanium Gear Servo
- (1) Plastic Servo Arms and Hardware
