SAVSC0252MGP
Standard Digital Servo with Soft Start, 0.19sec / 145oz @ 6.0V

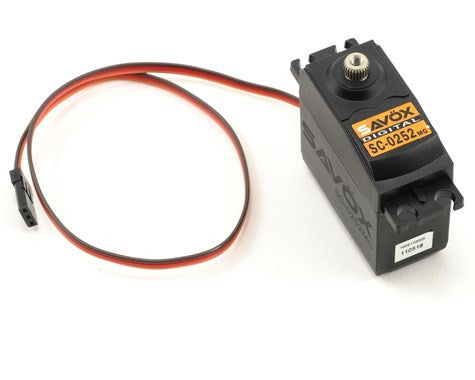

The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
- Metal gear train ensures durability under harsh situations.
- Higher torque output than standard servos.
- Ideal for 30-60 size aircraft, and some car applications.
Specifications:
- Torque @ 4.8v - 7.2kg/100.0oz-in
- Torque @ 6v - 10.5kg/145.8oz-in
- Speed @ 4.8v - 0.23 sec/60 deg
- Speed @ 6v - 0.19 sec/60 deg

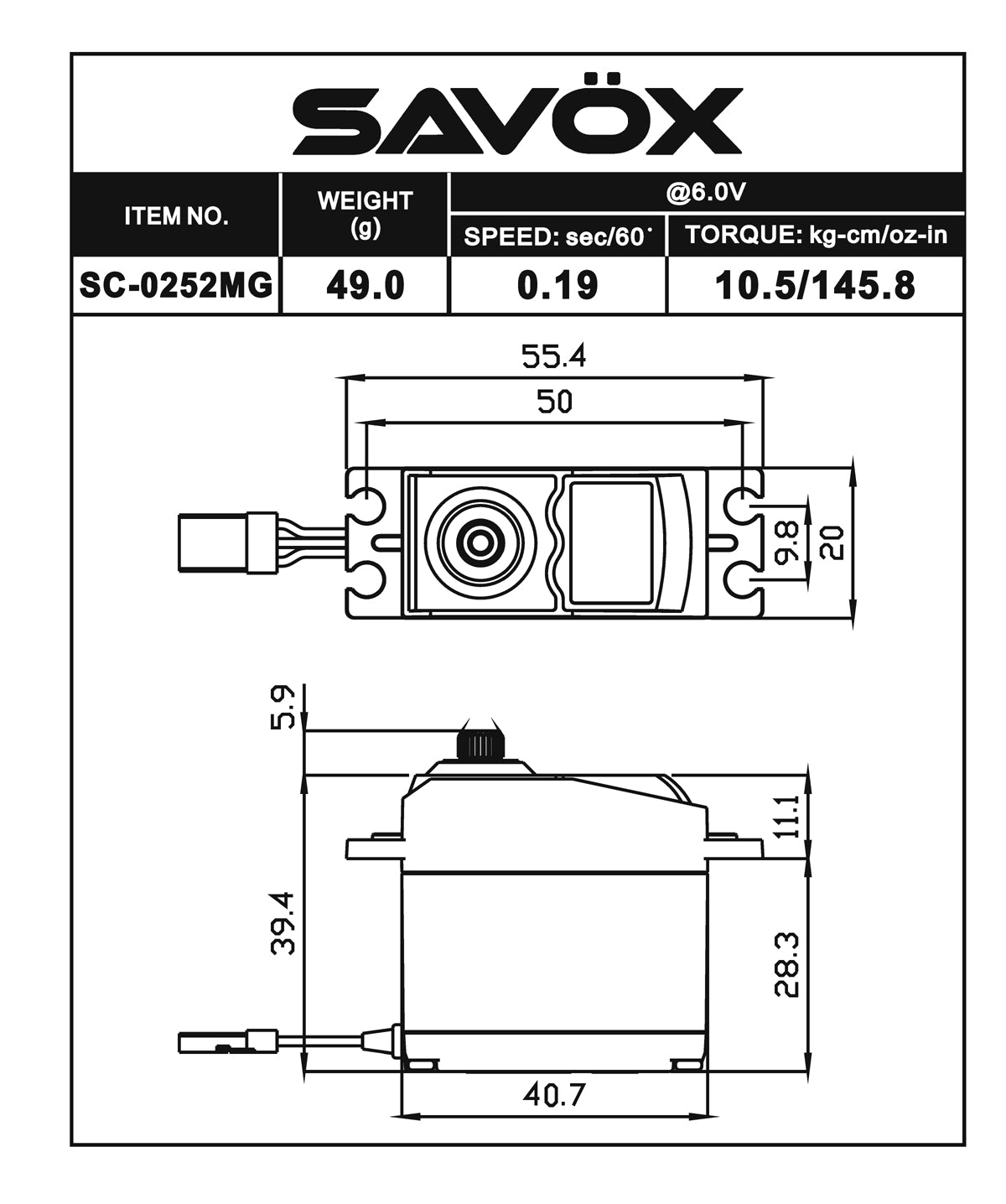

- Dimensions L x W x H (mm): 40.7 x 19.6 x 39.4
- Weight: 49.0g
-
Speed @ 6.0V: 0.19 sec/60°
-
Torque @ 6.0V: 145 oz-in / 10.5 kg-cm
-
Weight: 49g
-
Bearing: Dual
-
Type: Standard
-
Gear: Metal
-
Case: Plastic
-
Output Shaft: 25T Spline (Futaba)
-
Case Size (LxWxH): 40.7x20x39.4
