Reefs RC 900 Smart Servo & Winch

Reefs RC 900 Smart Brushless Servo & Winch – Submarine Waterproof

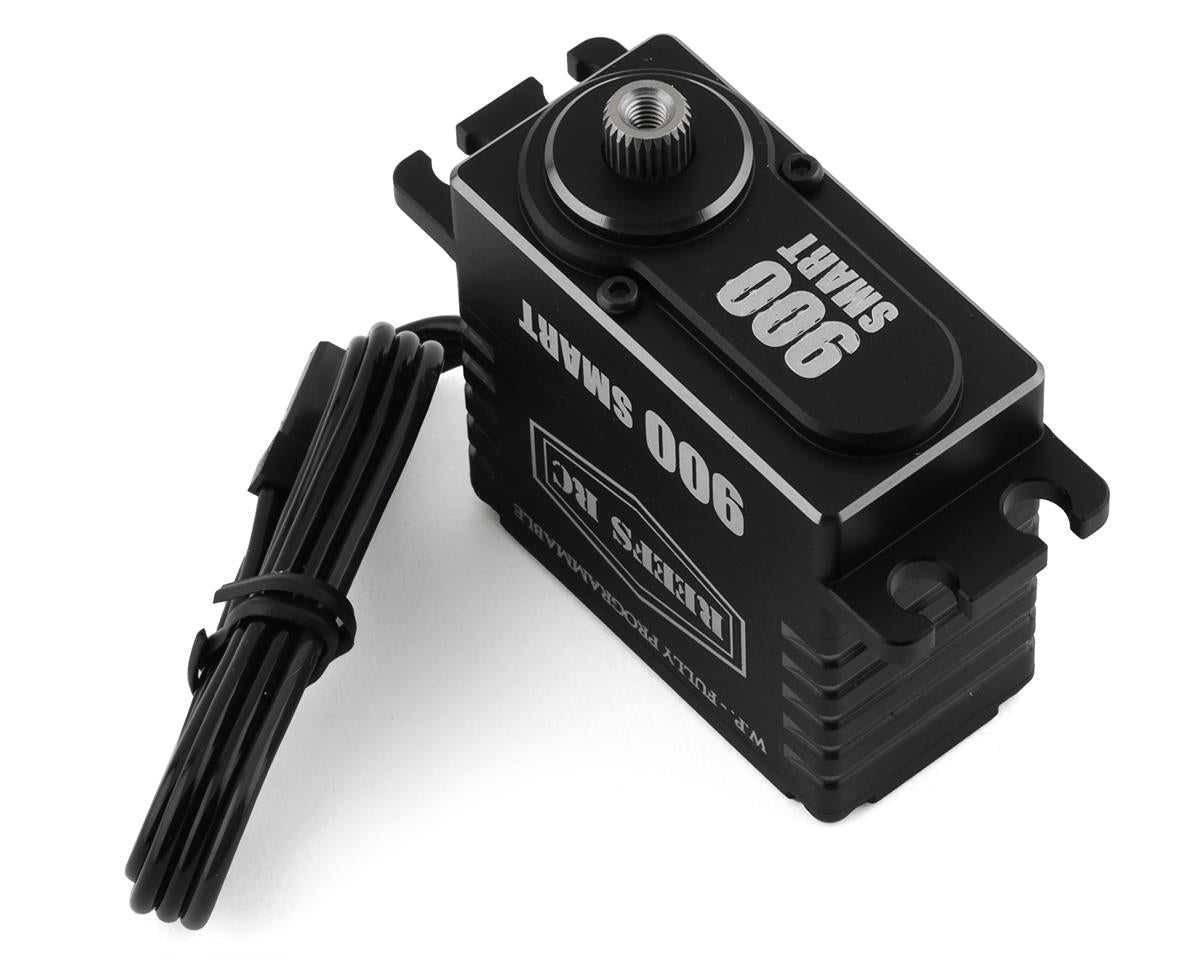

The Reefs RC 900 Smart is one of the most capable and versatile servo/winch combinations available for serious RC crawling and scale builds — delivering massive torque, high speed, and genuine submarine waterproofing in a compact CNC aluminum package. Out of the box it functions as a high-torque, high-speed brushless servo, and with the Reefs Link and software (sold separately) it can be reconfigured as a winch with a built-in preprogrammed winch controller — no external winch controller required. At up to 940 oz-in of torque at 8.4V and a blistering 0.10 sec/60° at 8.4V, the 900 Smart has the muscle and speed to handle the most demanding steering, winching, and accessory applications.

The 4-pole brushless motor drives through internal steel gears in a full CNC machined aluminum case for maximum durability and precision. A magnetic angle sensor replaces traditional potentiometers for longer life and more consistent positioning, and four ball bearings support smooth, reliable operation under sustained heavy loads. Seven-point submarine sealing with a gray heatsink finish provides genuine waterproof protection for full immersion applications. The 25T spline output is compatible with a wide range of servo horns and hardware.

Features:

• Functions as high-torque brushless servo out of the box
• Converts to winch mode via Reefs Link and software (sold separately)
• Built-in preprogrammed winch controller — no external controller needed for winch operation
• 4-pole brushless motor for high performance and efficiency
• Internal steel gears for maximum durability
• Full CNC machined aluminum casing
• Magnetic angle sensor for long-lasting, consistent positioning
• 4 ball bearings for smooth, reliable operation under load
• Submarine waterproof — 7-point sealing with gray heatsink finish
• 25T spline output
• 2μs dead band width
• Pulse Width Modulation control
• REEFS LINK required for programming and winch mode configuration

Specifications:

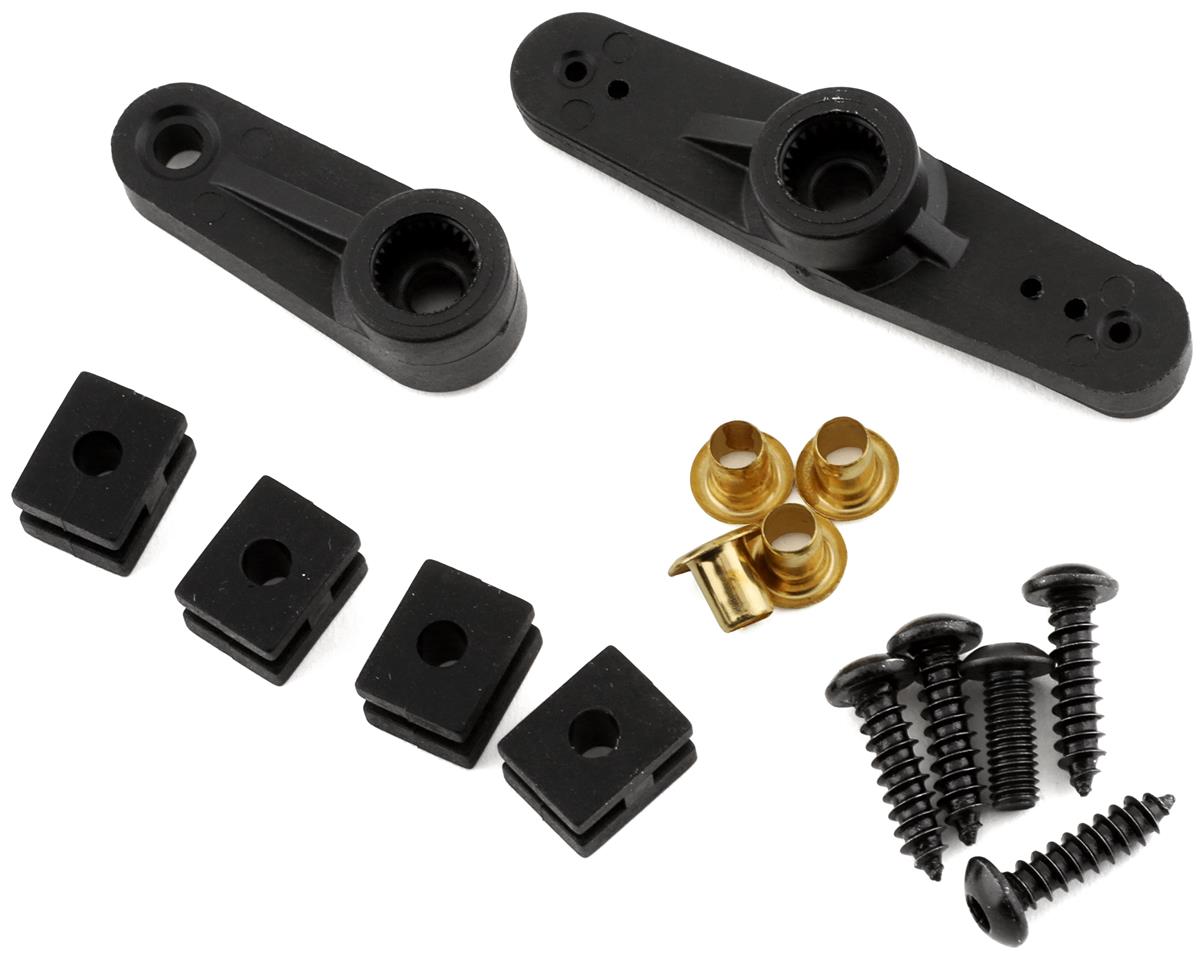

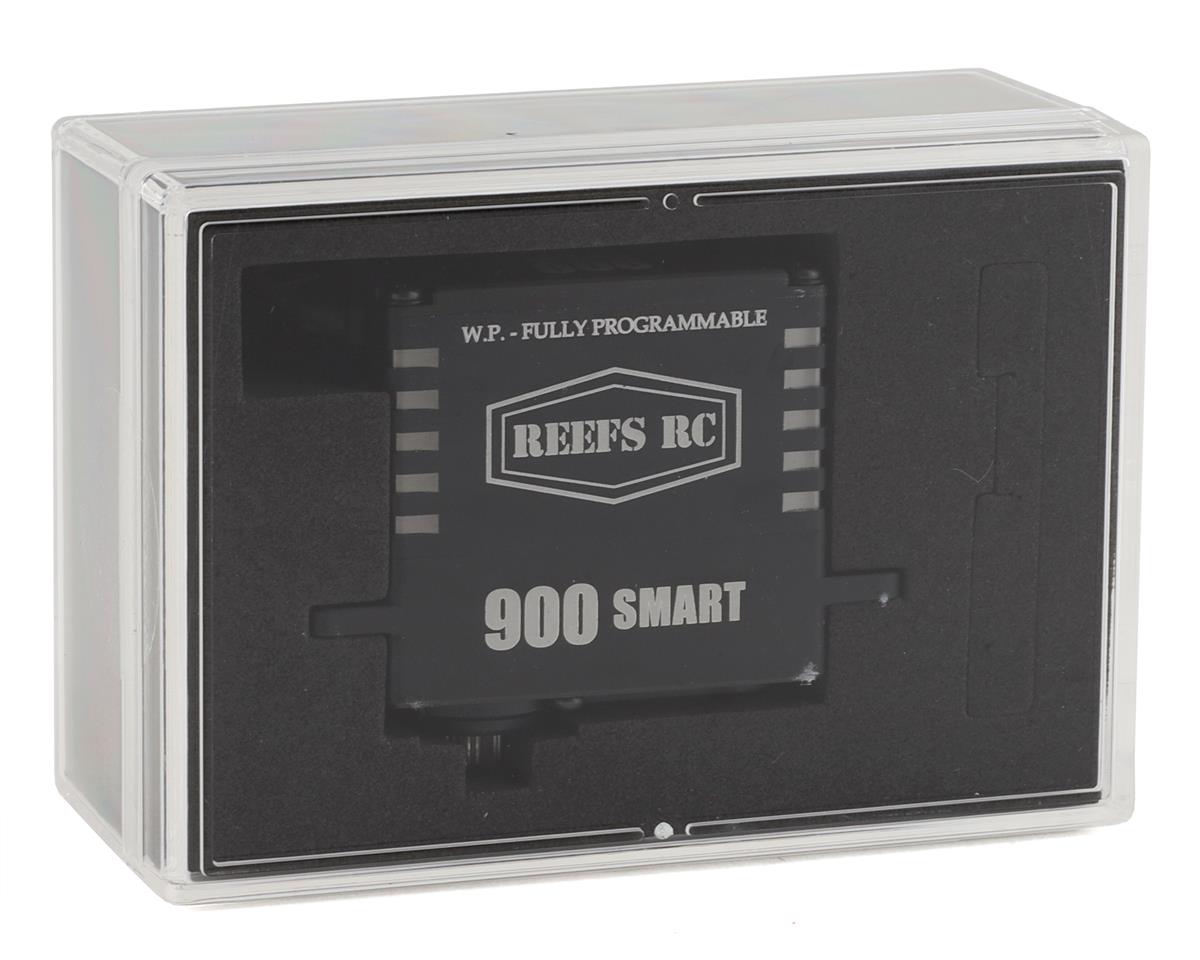

In the Box:

Note: REEFS LINK (sold separately) is required for programming and to convert the servo to winch mode. BEC not required but recommended for maximum performance.
