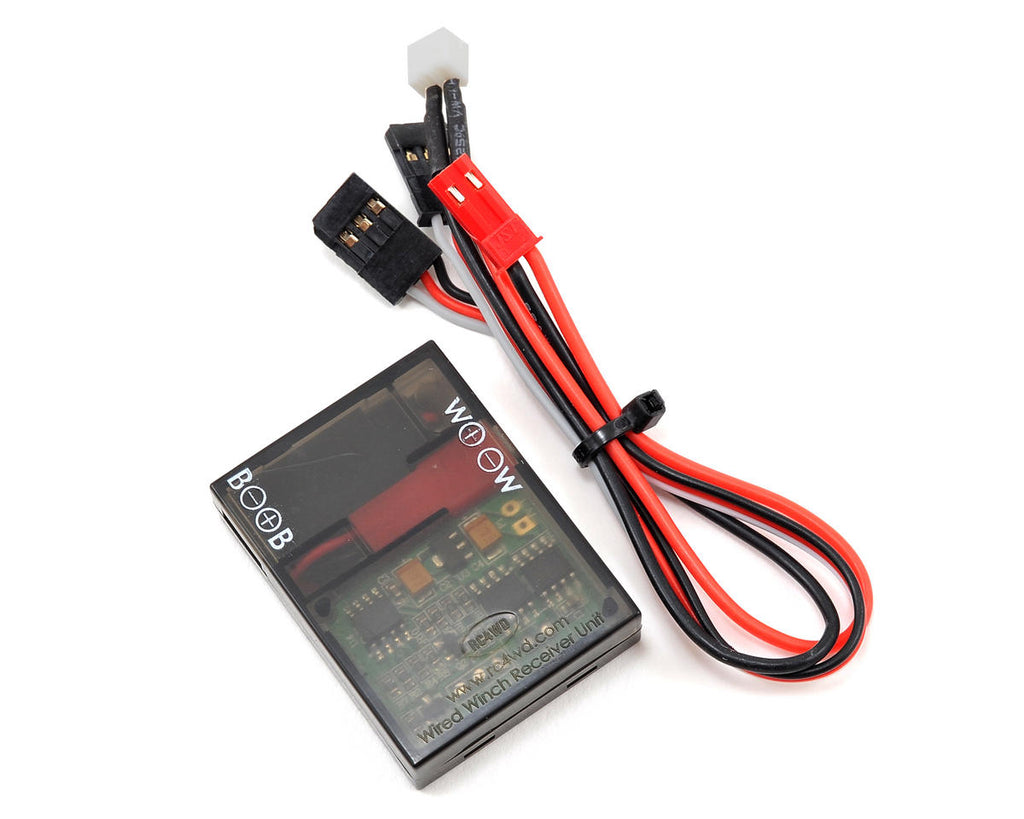

This is an optional RC4WD Wired Winch Control Unit. This wired Winch Control Unit allows functional operation from your radio and receiver. This will allow you to control a winch with your remotes third channel.
Features:
- Small Compact Size
- 2 and 3 cell Lipo Compatible
- Operating Voltage 6V to 11.1V
- Requires 3 position Third Channel
- Easy Plug and Play
- Instruction Included
Specifications:
Length: 1.6in (41mm)
Width: 1.2in (31mm)
Height: 0.39in (10mm)
Weight: 0.35oz (10g)
Wire Length: 6in (150mm)
Wire Weight: 0.14oz (4g)
Includes:
- (1) Wired Control Unit
- (1) 6" Receiver/Receiver Power Wire
- (1) 6" Receiver/Winch Control Wire
Notes:
- You will need a radio with a third channel to operate this controller.
- Your third channel needs to be a three position switch (on/off/on).
- If your radio does not have a three position switch, you can purchase a wireless controller unit (RC4ZS1092).
- This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
- If for any reason you cut the wires on the control box, this will void the warranty.
