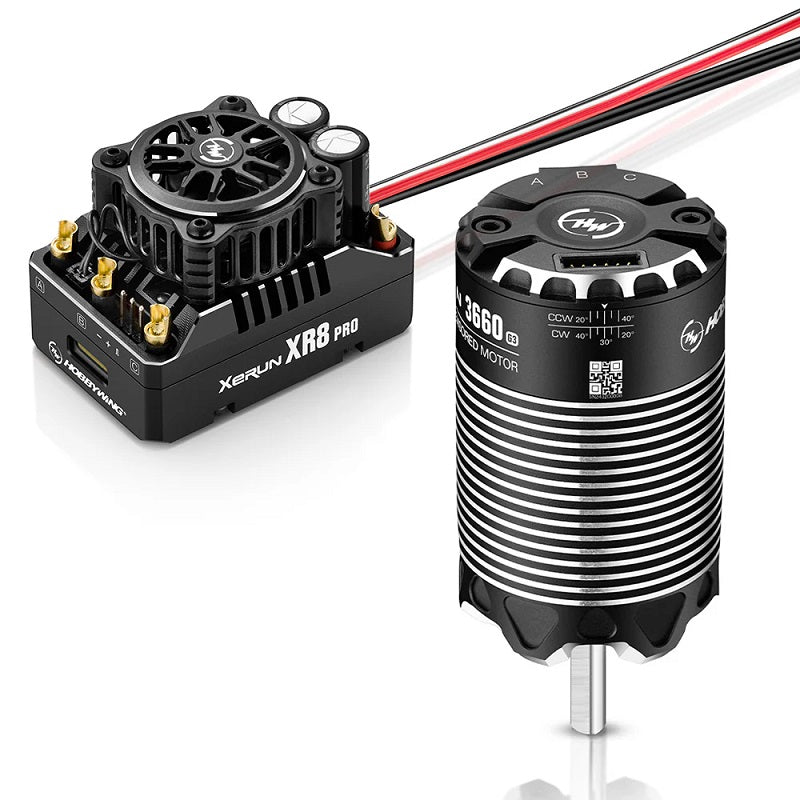

Hobbywing XeRun XR8 PRO G3 ESC & SD Brushless Motor Combo – 1/8 Scale
The Hobbywing XeRun XR8 PRO G3 is one of the most feature-rich and competition-capable 1/8 scale ESCs on the market, and this combo pairs it with your choice of XeRun SD brushless motor for a complete, matched power system ready to drop into your 1/8 off-road or on-road build. Three pre-loaded racing profiles cover the full spectrum of 1/8 competition use — Zero Timing Blinky Mode for class-legal racing, 1/8 Off-Road Racing Mode, and 1/8 On-Road Racing Mode — so you can select the right profile and get on track immediately. Beyond the presets, 32 built-in adjustable parameters give experienced tuners deep control over power delivery, braking, and throttle feel, with easy import/export functionality that makes sharing setups between drivers straightforward.
The XR8 PRO G3 pushes 200A continuous and 1080A peak current capacity, backed by a switch-mode BEC delivering up to 12A output at either 6V or 7.4V to support high-torque servos and demanding accessories. Built-in reverse connection protection safeguards the ESC from wiring mistakes, while the data logging function pairs with the HW LINK app via optional OTA Bluetooth module to give you real-time and post-run performance analysis. Firmware updates are supported via the Multifunction LCD G2 Programming Box, OTA Programmer, or Tunalyzer, keeping your ESC current with the latest Hobbywing enhancements long after purchase.
Features:
- Three pre-loaded racing profiles: Zero Timing Blinky Mode, 1/8 Off-Road Racing Mode, and 1/8 On-Road Racing Mode
- 32 built-in adjustable parameters with import/export functionality for easy setup sharing
- 200A continuous / 1080A peak current rating
- Switch-mode BEC with 12A maximum output — adjustable 6V or 7.4V for servo and accessory compatibility
- Compatible with both sensored and sensorless brushless motors
- Built-in reverse connection protection circuit
- Data logging function compatible with HW LINK app via optional OTA Bluetooth module
- Firmware upgradeable via Multifunction LCD G2 Programming Box, OTA Programmer, or Tunalyzer
- BEC-powered cooling fan
- Supports 2–4S LiPo battery configurations
ESC Specifications:
| Specification |
Detail |
| Continuous / Peak Current |
200A / 1080A |
| Motor Compatibility |
Sensored / Sensorless Brushless |
| LiPo Cell Count |
2–4S LiPo |
| Motor Limit (3S LiPo) |
KV < 4000, 3660 Size Motor |
| Motor Limit (4S LiPo) |
KV < 3000, 4268 Size Motor |
| BEC Output |
6V / 7.4V Adjustable, 6A Continuous (Switch-Mode) |
| Max BEC Output |
12A |
| Applications |
1/8 Off-Road, 1/8 On-Road, 1/10 Short Course & Monster Truck |
| Programming |
Multifunction LCD G2 Program Box, OTA Programmer |
| Dimensions |
54.8 x 36.8 x 38.8mm |
| Weight |
102.8g |
In the Box:
| Qty |
Item |
| 1 |
Hobbywing XeRun XR8 PRO G3 ESC |
| 1 |
XeRun SD Brushless Motor (choice of KV) |
