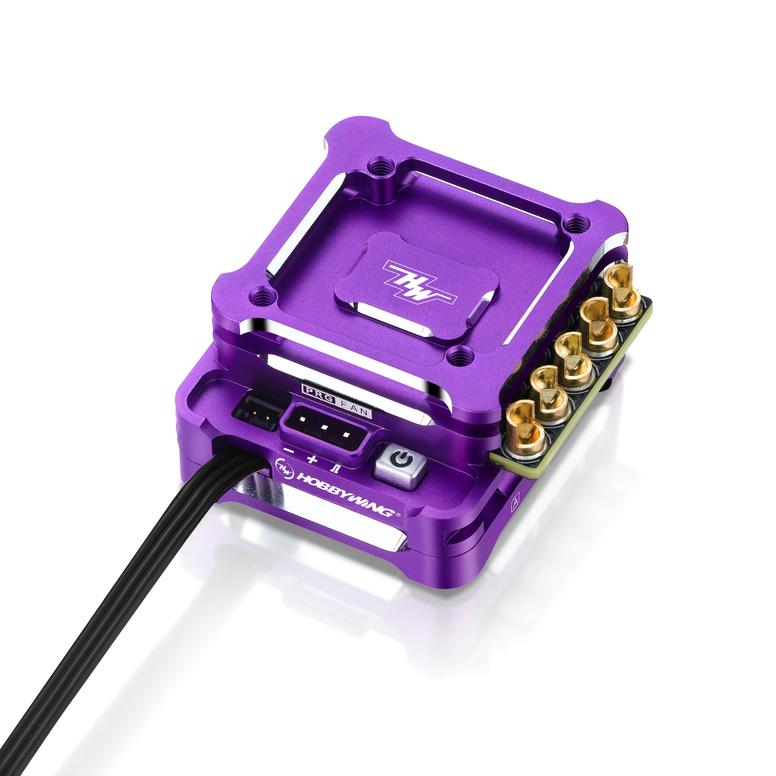

HobbyWing Xerun XD10 Pro ESC Purple
HobbyWing Xerun XD10 Pro ESC Purple
HobbyWing Xerun XD10 Pro ESC Purple
HobbyWing Xerun XD10 Pro ESC Purple

HobbyWing Xerun XD10 Pro ESC Purple


No reviews
Regular price $ 311.00 Sale price$ 219.99 Save $ 91.01
Shipping calculated at checkout.

  • In stock, ready to ship

What comes in the box?
All editions come with

  • XD10 PRO ESC
  • (2) Input wires & (3) Output wires (PRE-SOLDERED)

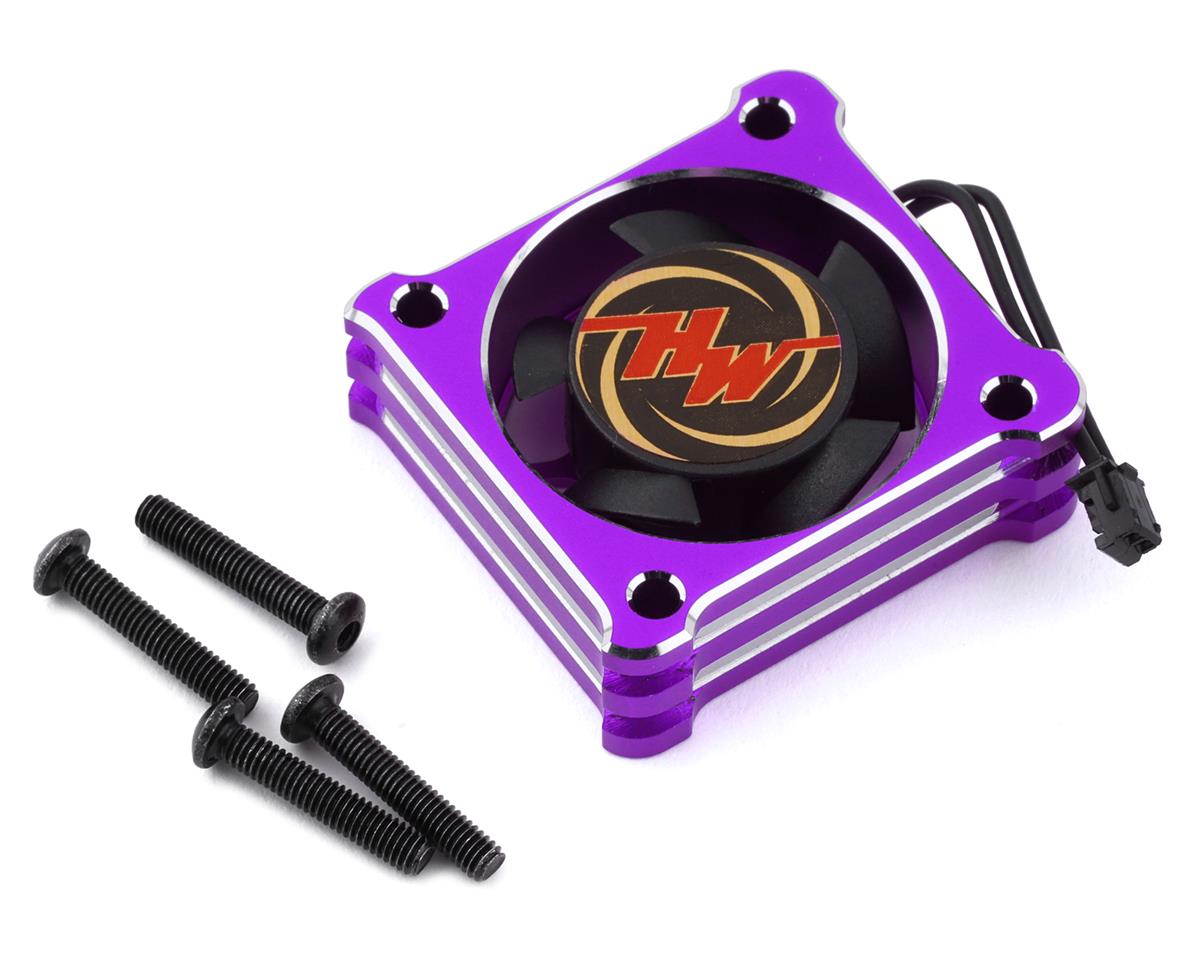

  • (1) x cooling fan
  • Decals
  • Bonus parts: heat tubes, double tape, nylon cable zap traps

Why you want this:

  • Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
  • A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
  • Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
  • Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
  • Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
  • Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)



30112614 (Stealth) |30112615 (Passion)

30112616 (Spirit)

Application 1/10th drift car
Cont./Peak Current 100A/800A
Input Voltage 2S LiPo/4-6S NiMH
BEC Output 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)
Wires & Connectors Standard: 13AWG 200mm
Programming device LCD program box
OTA programmer (Available through Firmware update)
Firmware LCD Program box via USB software (PC only)
OTA  (iOS / Android)
Size & Weight 40.7x35.0x32.0mm (w/Fan)
Weight 95g (w/ wires)
Motor Limit*

Brushless Motor Limit with 2S LiPo/6S NiMH:
KV Rating/T Count ≥8.5T


Best paired with..

  • Hobbywing D10 Motor
  • OTA Programmer
