HWI38030211

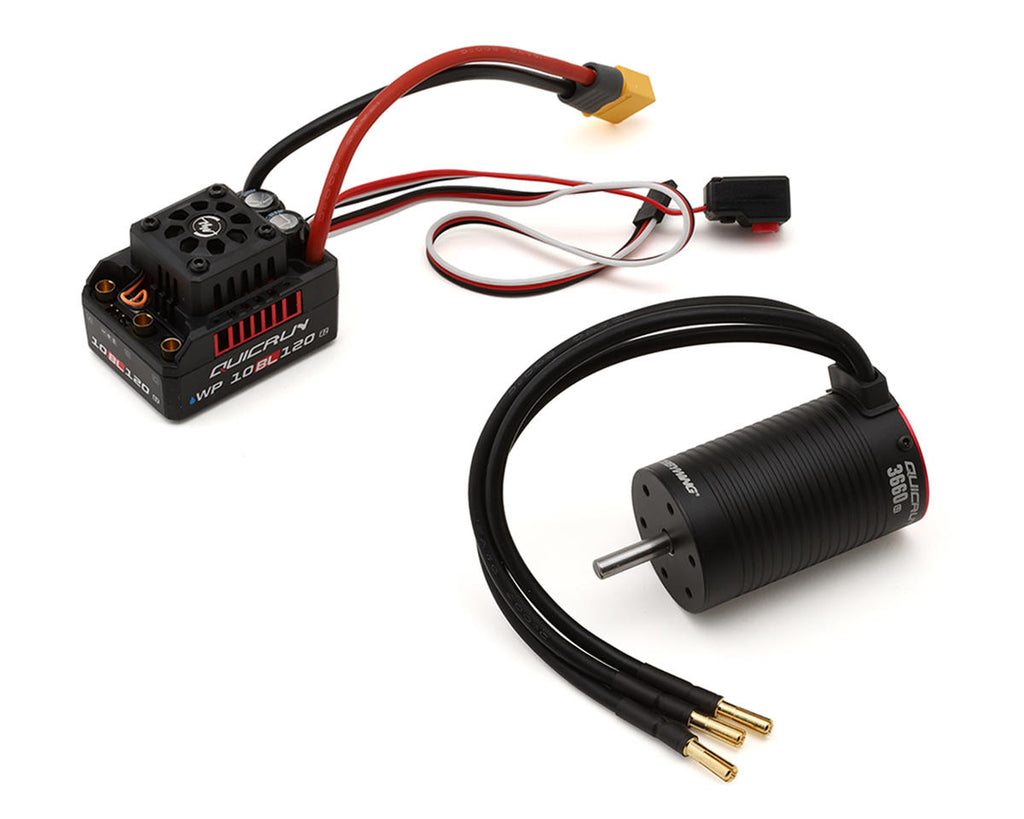

Hobbywing QuicRun 10BL120 G2 120A ESC & 3660SL G2 Motor Combo
Engineered for high performance and durability, the Hobbywing QuicRun 10BL120 G2 ESC and 3660SL G2 motor combo delivers powerful sensorless brushless performance for 1/10 scale RC vehicles. This combo features a robust, dust-resistant motor and a fully waterproof ESC (rated IP67), making it a reliable option for a variety of off-road and on-road applications. With built-in capacitors, smart thermal protection, and advanced freewheeling technology, this combo provides consistent power and enhanced efficiency.
ESC Features (QuicRun 10BL120 G2):
-
Sensorless brushless design
-
Intelligent freewheeling for smoother operation
-
Capacitor thermal protection to reduce overheating
-
Integrated capacitor for better stability and brownout protection
-
Powerful internal BEC: 6V/7.4V at 5A
-
Fully waterproof (IP67 rated)
-
Efficient heat dissipation with an advanced cooling system
Motor Features (QuicRun 3660SL G2 - 3700kV):
-
High-efficiency 4-pole rotor for better torque and throttle response
-
Over 10% increase in power and efficiency compared to earlier models
-
Runs cooler under load for improved longevity
-
0.2mm silicon steel laminations and high-temp resistant windings
-
Reinforced rotor and premium-grade bearings for extra durability
ESC Specifications:
-
Application: 1/10 scale
-
Type: Brushless, Sensorless
-
Waterproof: Yes (IP67)
-
Continuous Current: 120A
-
Peak Current: 760A
-
Input Voltage: 2S–4S LiPo
-
BEC Output: 6V/7.4V @ 5A
-
Connector Type: 4.0mm bullets
-
Dimensions: 52.8x39.8x38.2mm (2.07x1.56x1.50")
-
Weight: 119g (4.19oz)
Motor Specifications:
-
Input Voltage: 2S–3S LiPo
-
KV Rating: 3700kV
-
Poles: 4
-
Diameter: 36mm (1.42")
-
Length: 60mm (2.36")
-
Shaft Diameter: 5mm (0.20")
-
Shaft Length: 18.5mm (0.73")
-
Front Bearing: D16D5T5
-
Rear Bearing: D13D5T4
-
Weight: 273g
