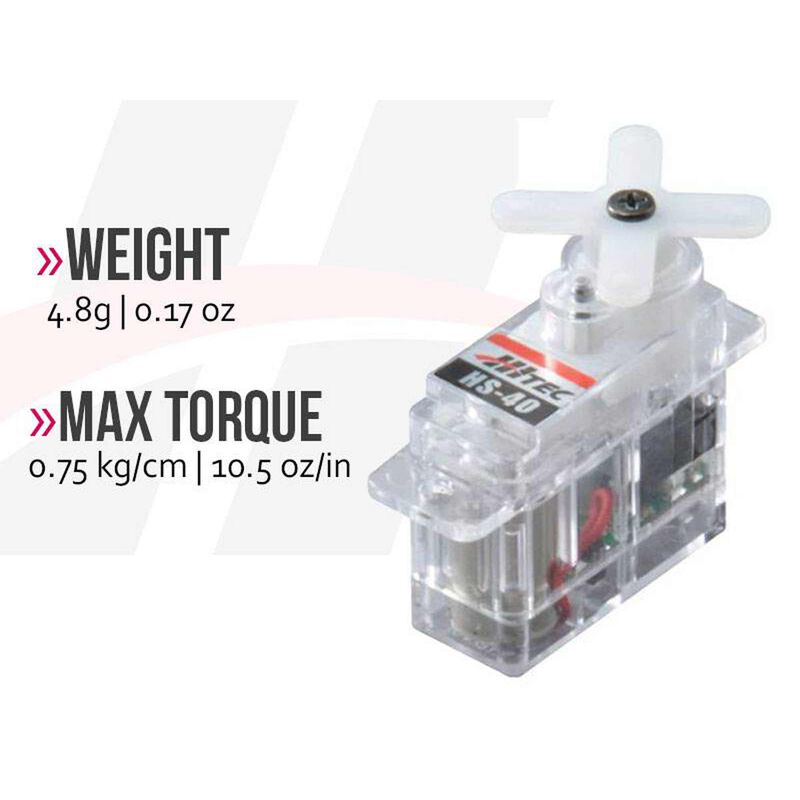

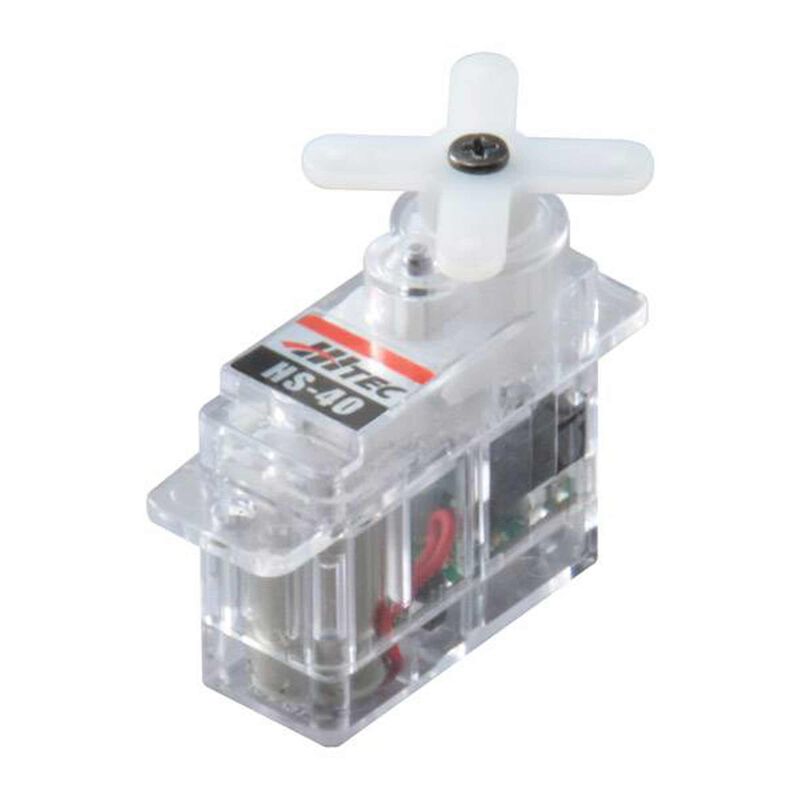

Hitec's research department and engineers work tirelessly at developing economical servo technology that outperforms the competition and the new HS-40 nano analog servo delivers just that. With a three-pole cored motor and resilient nylon gears, this affordable servo is a dream come true for micro aircraft, sailplane and helicopter pilots. Slightly larger than the popular HS-35HD with an operating range of 4.8 to 6.0 volts, the HS-40 is a solid performer that is easy on your wallet!
- Nylon Gears
- Three-Pole Motor
- 4.8 & 6.0V Operation
- Economically Priced
- Speed: @4.8V .12sec/60' / @6.0V .96sec/60'
- Torque: @4.8V 8.37oz/in / @6.0V 10.47oz/in
Product Specifications
| Programmable |
No |
| Servo Size Category |
Nano |
| Current Draw Idle |
8 mA |
| Product Width |
0.34" (9 mm) |
| Connector Type |
Universal |
| Maximum Servo Speed |
0.12 sec/60 deg @ 4.8V, 0.10 sec/60 deg @ 6.0V |
| Product Length |
0.79" (20 mm) |
| Maximum Servo Torque |
8.4oz/in @ 4.8V, 10.5oz/in @ 6.0V |
| Application |
Micro Aircraft |
| Product Weight |
0.17 oz (4.8g) |
| Water-Resistant |
No |
| Current Draw Stall |
460mA |
| Motor Type |
Brushed |
| Servo Operating Voltage |
4.8 - 6.0V |
| Deadband |
5µs |
| Input Voltage |
4.8V - 6.0V |
| Product Height |
0.67" (17 mm) |
| Servo Type |
Analog |
| Bearing |
Bushing |
| Bushing Or Bearing |
Bushing |
| Gear Type |
Nylon |
| Wire Gauge |
28 AWG |
