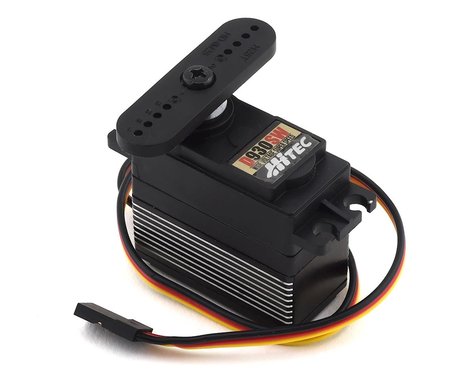

This is a Hitec High Voltage D930SW Ultra Torque Titanium Gear Digital Servo, a technologically-advanced servo that is powered by Hitec 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. This products unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW is the perfect upgrade from Hitec's popular HS-8330SH servo.
Features:
Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline
Coreless Metal Brush Motors
Nylon Reinforced Plastic Upper and Lower Case
Diamond Cut Aluminum Heat Sink Center Case
Dust Resistant and Splash Proof Case
Programmable Functions:
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save/Load
Program Reset
Accessories:
3 Steel Alloy Gears Set | Link |
Metal/Karbonite 1st Gear Set | Link |
Plastic/Aluminum Case Set | Link |
Applicable Horns & Screws
Specifications:
Operating Voltage Range (Volts DC):4.8V ~ 7.4V
Speed (Second @ 60°):0.11 ~ 0.07
Maximum Torque Range oz./in.:112 ~ 182
Maximum Torque Range kg./cm.:8.0 ~ 13.0
Current Draw at Idle:30 mA
No Load Operating Current Draw:500 mA
Stall Current Draw:5,200 mA
Dead Band Width:1 µs
Dimensions (Inches):1.57 x 0.78 x 1.46
Dimensions (Metric):40.0 x 20.0 x 37.0
Weight (Ounces):2.33
Weight (Gram):66.0
Circuit Type:32bit Programable Digital
Motor Type:Coreless Metal Brush
Gear Material:MK 1st Gear & 3 Steel Alloy Gears
Bearing Type:Dual Ball Bearing
Output Shaft (type / Ømm):H25T
Case Material:Plastic/Aluminum
Dust/Water Resistance Splash Proof:Yes
Connector Gauge (AWG)/Strand Count:20/80
