Overview

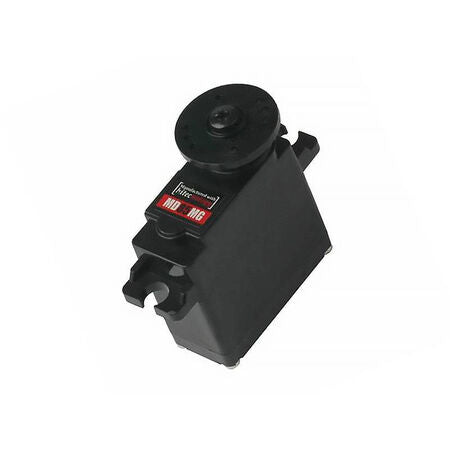

Engineered with our state-of-the-art D-Series technology, this “micro but mighty” servo is an upgrade from the popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.
Specifications
- Application
- 50oz park flyers, 42-50oz sport planes, 2M/DLG sailplanes, 1:16 scale on-road, buggies & SC trucks, 1:16 scale power boats
- Bearing
- Single
- Bushing Or Bearing
- Bearing
- Current Draw Idle
- 3mA
- Current Draw Stall
- 2,150mA
- Deadband
- 2 ?s
- Gear Type
- Metal
- Max Servo Torque
- 40-99 oz-in
- Maximum Servo Speed
- 0.100-0.149 sec
- Product Weight
- 0.77 oz (21.9g)
- Programmable
- Yes
- Servo Operating Voltage
- 4.8 - 6.0V
- Servo Size Category
- Micro
- Servo Type
- Digital
- Spline Count
- 24 Teeth
