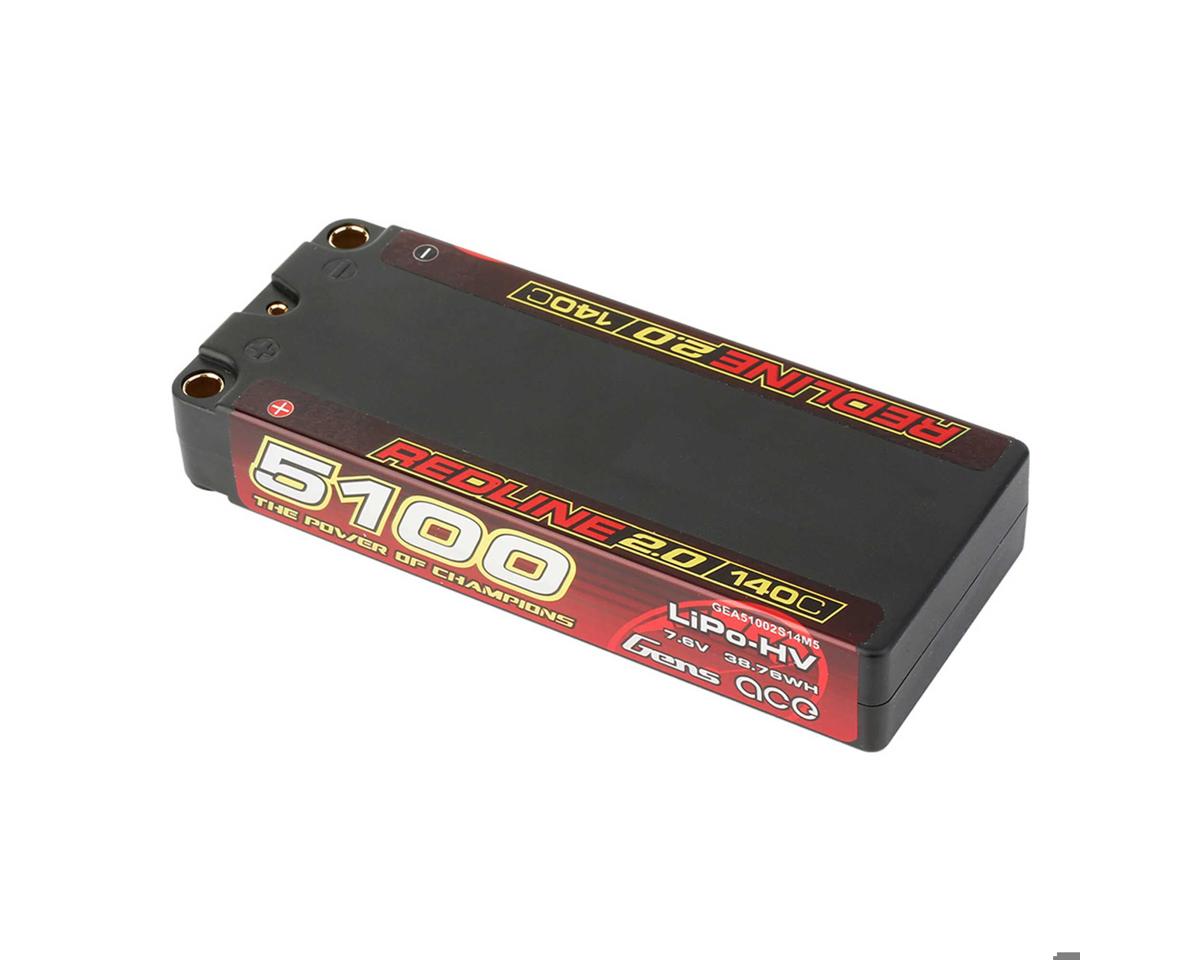

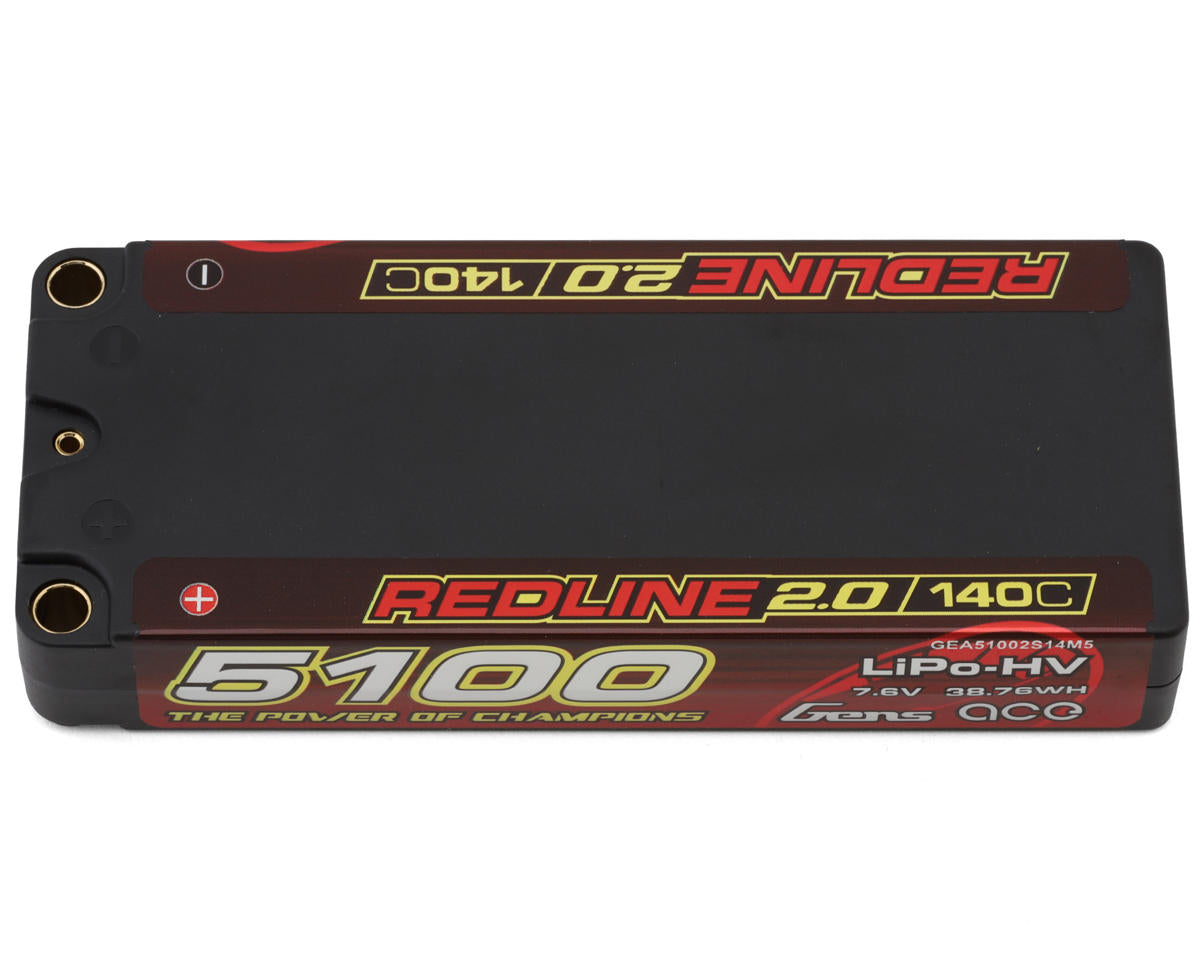

Gens Ace Redline 2.0 7.6V 5100mAh 2S Shorty 140C LiHV Battery – 5mm Bullets
When race day demands the absolute best, the Gens Ace Redline 2.0 2S Shorty LiHV delivers. Built on Gens Ace's most stringent factory cell matching process — selecting each cell based on capacity, voltage, resistance, and discharge curve — this high-voltage shorty pack is engineered for the racers who refuse to compromise on consistency or output. The 7.6V LiHV chemistry provides a higher nominal voltage than standard 2S LiPo packs, translating directly to increased motor RPM and sharper throttle response for a competitive edge on the track. At 140C continuous discharge, the Redline 2.0 delivers the current output that high-demand race applications require without voltage sag degrading your performance mid-run. Low internal resistance keeps voltage stable from the first lap to the last, and the low-profile shorty form factor at just 6.59oz keeps weight and CG exactly where you want them for maximum handling balance.
Features:
- Gens Ace strictest factory cell matching: capacity, voltage, resistance, and discharge curve
- 7.6V LiHV chemistry for increased voltage and motor RPM over standard 2S LiPo
- 140C continuous discharge rating for maximum current delivery under race conditions
- Low internal resistance for stable, consistent voltage output throughout the discharge cycle
- Stable automatic stacking technology for reliable cell construction
- Low-profile shorty form factor — lightweight at 6.59oz for optimal CG placement

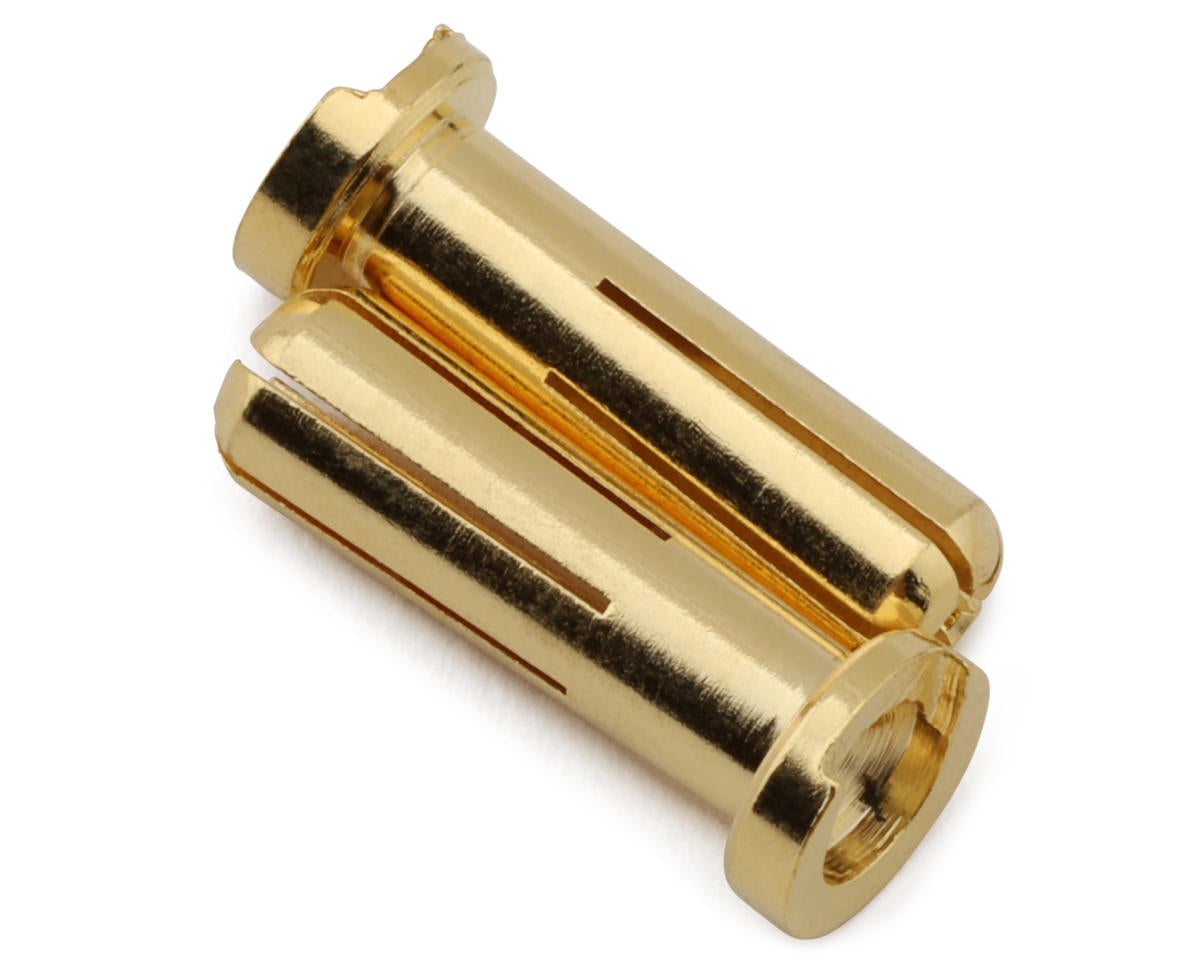

- 5mm bullet battery connector
- 2mm bullet balance connector
- ROAR status: N/A
Specifications:
| Specification |
Detail |
| Nominal Voltage |
7.6V (2S LiHV) |
| Capacity |
5100mAh |
| Cell Configuration |
2S1P |
| Continuous Discharge Rate |
140C |
| Maximum Charge Rate |
1C (5.3A) |
| Watt Hours |
38.76Wh |
| Battery Connector |
5mm Bullet |
| Balance Connector |
2mm Bullet |
| Dimensions (LxWxH) |
4.42 x 1.83 x 0.74" (112.5 x 46.5 x 18.8mm) |
| Weight |
6.59oz (187g) |

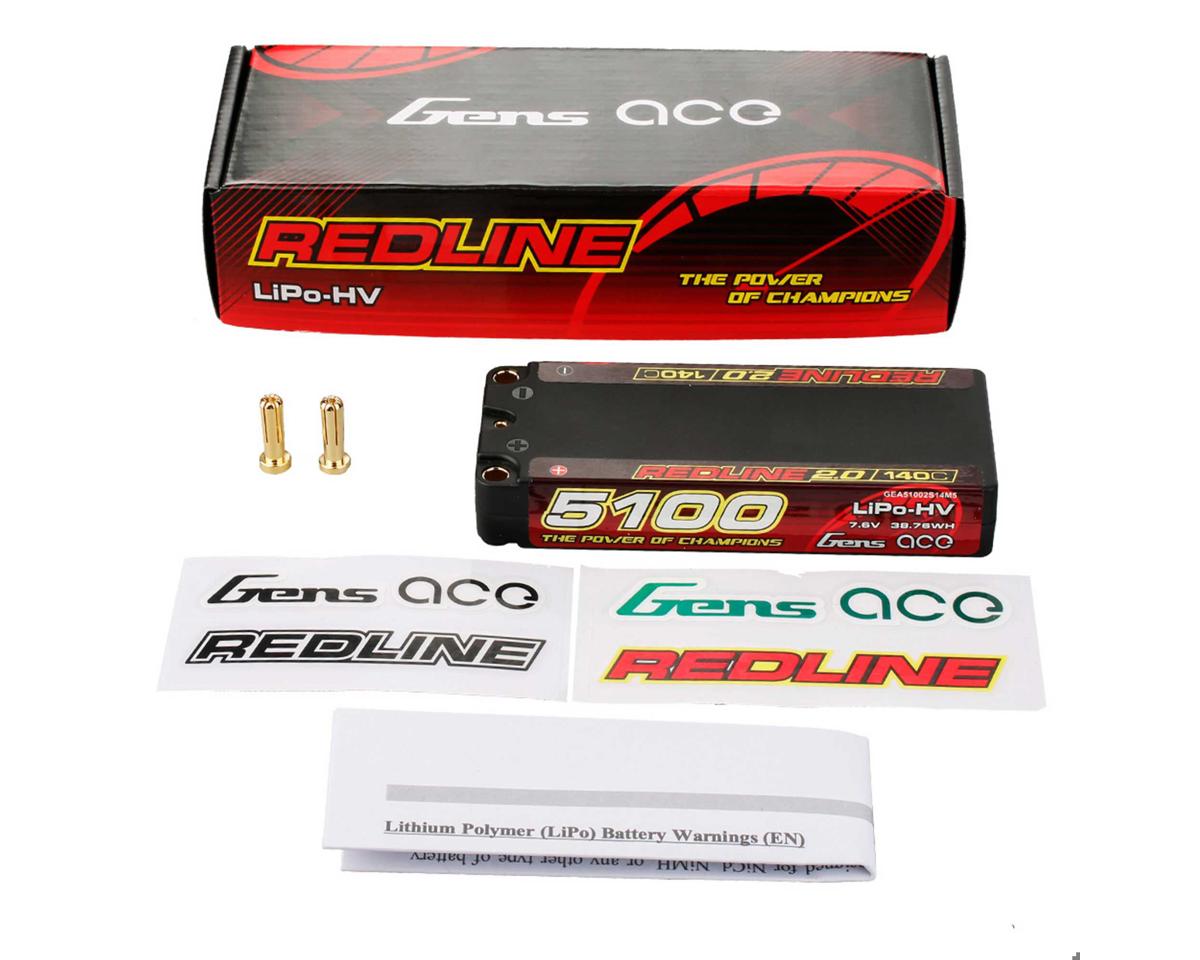

In the Box:
| Qty |
Item |
| 1 |
Gens Ace Redline 2.0 7.6V 5100mAh 2S Shorty 140C LiHV Battery (5mm Bullets) |
⚠️ LiHV Safety — Please Read Before Use
- Never leave a battery in your model while charging
- Never leave LiPo/LiHV batteries unattended during charging
- Always balance charge LiHV batteries
- Always use a LiPo-safe charging bag or box
- Use only a LiPo/LiHV-specific charger — NiMH/NiCd chargers are not compatible
- Never over-discharge — minimum end voltage is 3.2V per cell
- Do not expose to direct sunlight or store/charge above 35°C
- Allow battery to cool completely after hard use before recharging
- New packs: charge fully before first use, discharge no more than 50% for the first 5 cycles
- Do not discharge beyond 80% of maximum capacity to ensure optimal cycle performance
