GEA42002S14D5
Redline 2.0 Shorty LiHV Battery Overview:
The Gens Ace Redline 2.0 series is built for RC enthusiasts who demand power, consistency, and reliability. Known for their precision manufacturing, Gens Ace batteries are engineered with exceptional cell matching and low internal resistance (IR), ensuring stable voltage output and dependable performance throughout each run.
Features:
-
Advanced automatic stacking process for stability and precision
-
Strict matching of individual cell capacity, voltage, resistance, and discharge characteristics
-
High energy density with strong discharge performance
-
Compact, low-profile, and lightweight design
Lithium Polymer Battery Safety Guidelines:
-
Never charge the battery while installed in your RC model
-
Do not leave LiPo batteries unattended during charging
-
Always use balance charging and a LiPo-safe charging bag or box
-
Use only a LiPo-compatible charger (NiMH/NiCd chargers are not suitable)
-
Avoid over-discharging or over-charging the pack
-
Carefully review and follow all safety instructions before use
Usage & Care Tips:
To maintain battery health and longevity, do not exceed 80% of total capacity during discharge. Fully charge new packs before initial use, and for the first 5 cycles, discharge only up to 50%. Always monitor voltage—avoid dropping below 3.2V per cell—and use low-voltage alarms when racing. Store and charge batteries in a cool, dry place below 35°C and never leave them inside vehicles or under direct sunlight. Allow at least 20 minutes of cool-down time before recharging after use.
Includes:
Specifications:
| Specification |
Details |
| Nominal Voltage |
7.6V (2S) |
| Capacity |
4200mAh |
| Max Charge Rate |
1C (5.3A) |
| Continuous Discharge |
140C |
| Configuration |
2S1P |
| Watt Hours |
31.92Wh |
| ROAR Approved |
N/A |

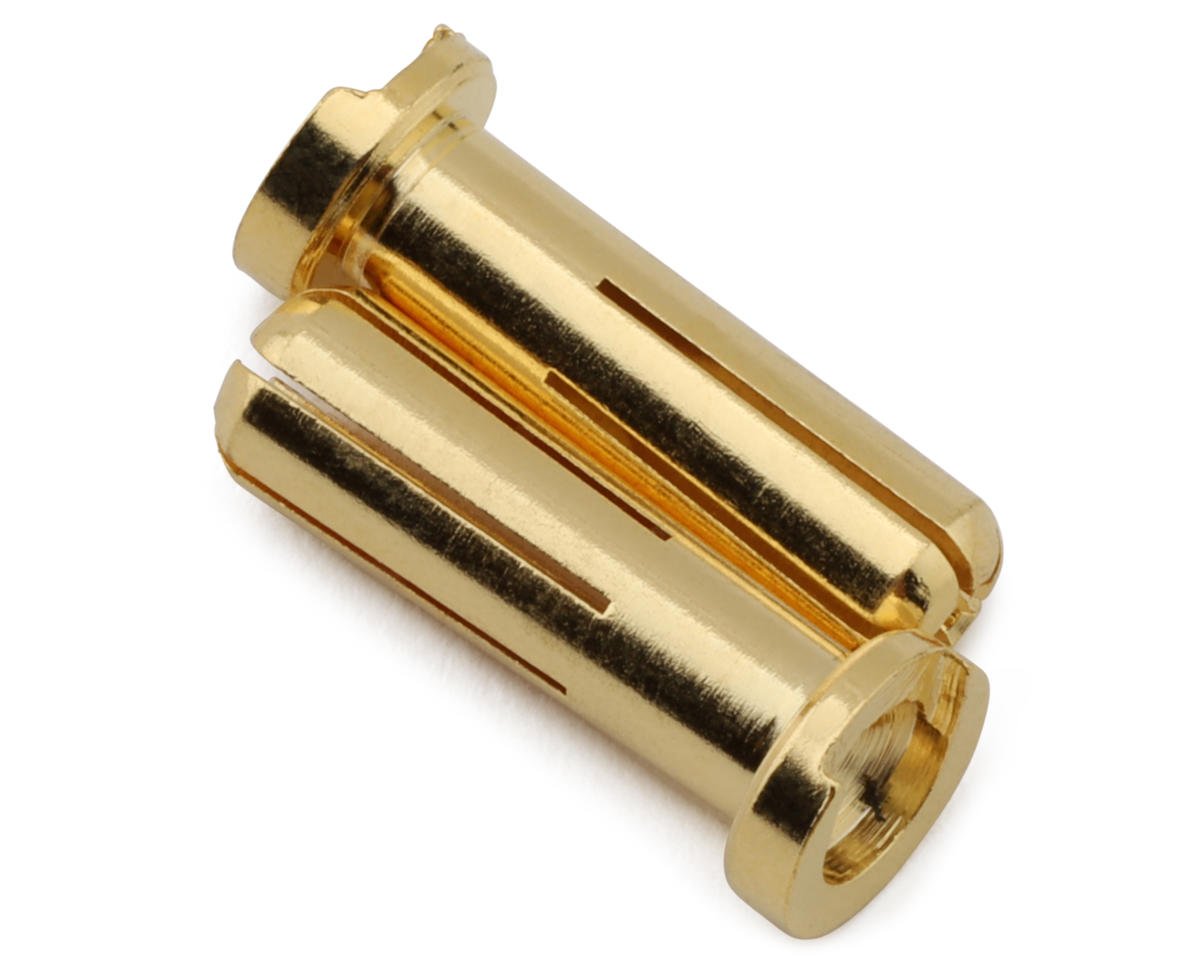

| Battery Connector |
5mm Bullet |
| Balance Connector |
2mm Bullet |
| Dimensions (LxWxH) |
96 x 47 x 18.5mm (3.78 x 1.85 x 0.72in) |
| Weight |
157g (5.536oz) |
