Furitek SCX24 Komodo Brushless Conversion Set (Motor, Motor Mount, Spur, & Pinion Gear)
Furitek SCX24 Komodo Brushless Conversion Set (Motor, Motor Mount, Spur, & Pinion Gear)

Furitek SCX24 Komodo Brushless Conversion Set (Motor, Motor Mount, Spur, & Pinion Gear)
FTK-FUK-2052

FTK-FUK-2052

Regular price $ 52.99
/
Shipping calculated at checkout.

FEATURES:
CNC Brass Pinion 12T 3mm hole for easy mount outrunner motor 2204
CNC aluminium spur gear 32 Tooth 0.5 Mod Pinion Gear
Plastic motor mount support 2204 outrunner motor, 2030, 2040, 2345 inrunner motor...

Features Motor:


14 Pole 12 slot hi-torque motor design.
High purity and higher temperature single copper winding --- lower copper losses, very good heat dissipating--maximizes efficiency.
Super thin (0.2 mm) stator laminations --- lower eddy losses --- maximizes efficiency.
Japansese NMB-- High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.

Specifications:
KV (RPM/Volt): 1400
No-load Current(@10v): 0.5A
Watt: 180W
Battery: 2-4S
Resistance: 0.24ohm
Max Current: 15A
Slot/Pole: 12S14P
Motor Size: Ø 28 * 19 mm
Stator Size: 2204
Weight(g): 29.5g

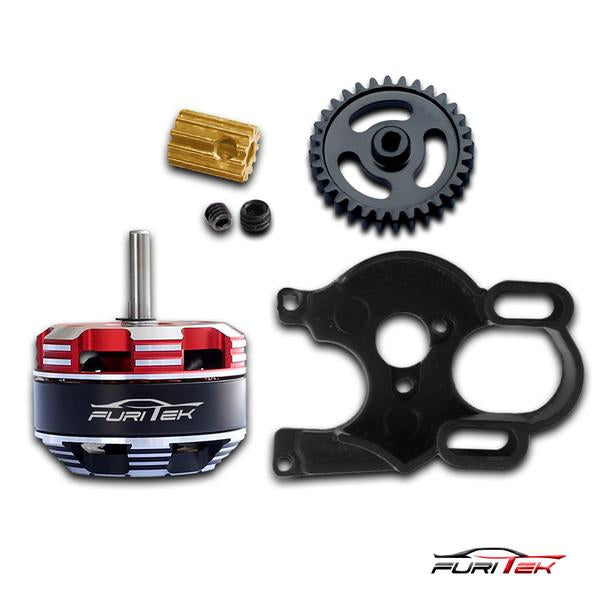

Package includes:
- 1x FURITEK motor mount for brushless motors
- 1x Conversion for scx24 - 0.5M spur gear and 12T pinion gear
- 1x Furitek KOMODO 2204 1400kv brushless motor
- 2x M3x14 Round Head Hex Screws
