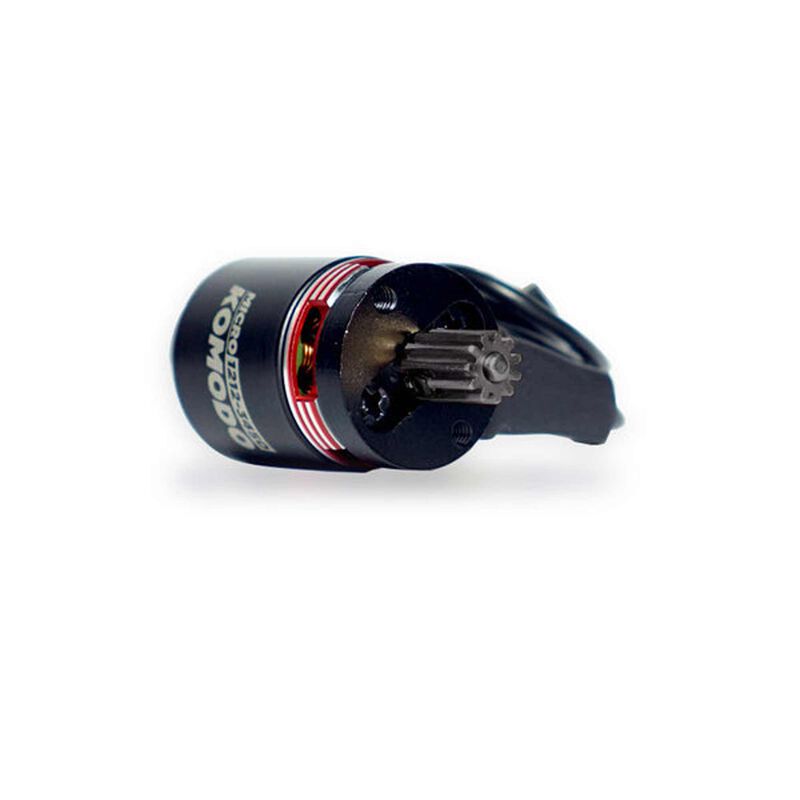

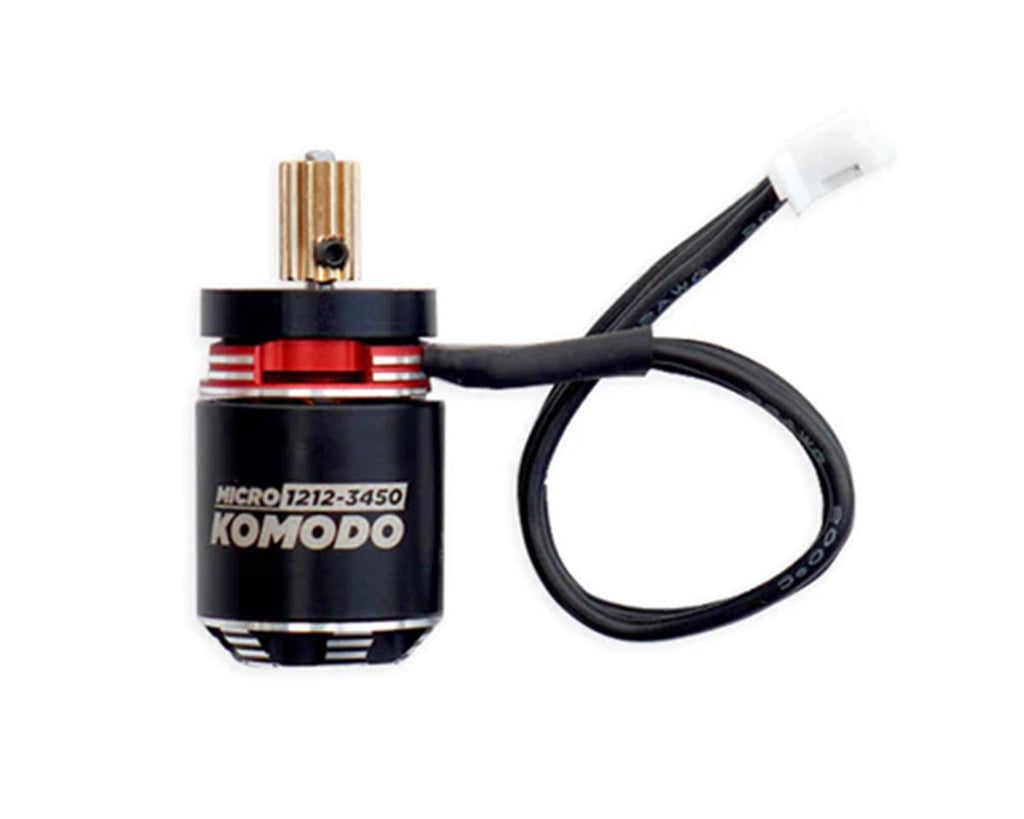

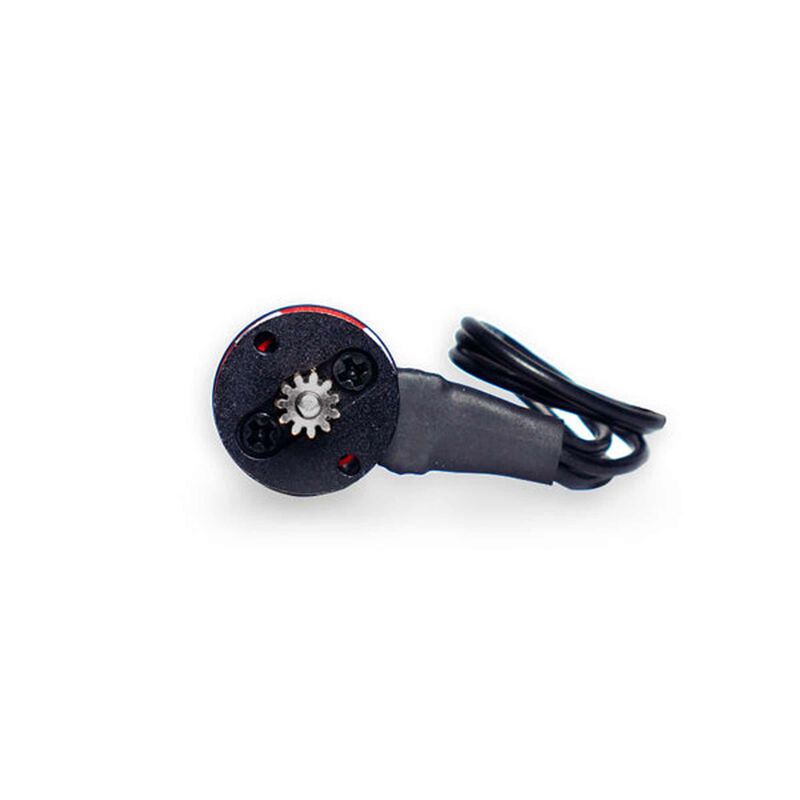

This is the Furitek TRX-4M Micro Komodo Brushless Motor. This smaller size and lightweight Micro Komodo 1212 3450kV brushless motor offers incredibly high torque with incredible low speed control helping you get the ultimate performance out of your TRX-4M.
Note: Lizard v2, Lizard PRO and Lizard Ultimate Electronic Speed Controllers are highly recommended to pair with this micro Komodo motor.
Features:
- Perfect fit for the the stock TRX-4M transmission
- 11T Brass pinion gear
- 12 Pole hi-torque motor design
- High quality Japanese NMB ball bearing
- Precision balanced rotor with supreme smoothness for extreme reliability and maximum RPM
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity and higher temperature single copper windings
- Excellent heat dissipating to maximize efficiency

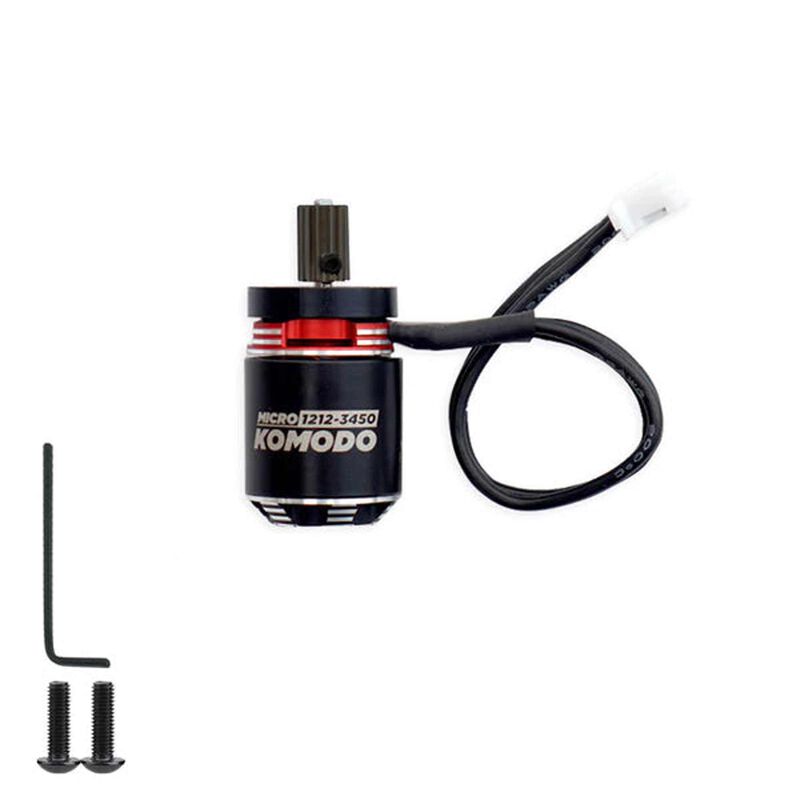

Includes:
- (1) Furitek TRX-4M Micro Komodo Brushless Motor
- (1) Pre-Installed 11T Brass Pinion
Product Specifications
| Product Length |
0.81" (21 mm) |
| Idle Current (Io) |
0.7A |
| Input Voltage |
2-3S |
| RPM/Volt (Kv) |
3450Kv |
| Shaft Length |
0.23" (6 mm) |
| Application |
TRX-4M |
| Product Weight |
0.61 |
| Resistance |
0.16 Ohms |
| Shaft Diameter |
0.07" (2 mm) |
| Outer Diameter |
0.61" (15 mm) |
| Maximum Burst Current |
10A |
| Motor Type |
Brushless |
| MFR # |
FRU2259
|
