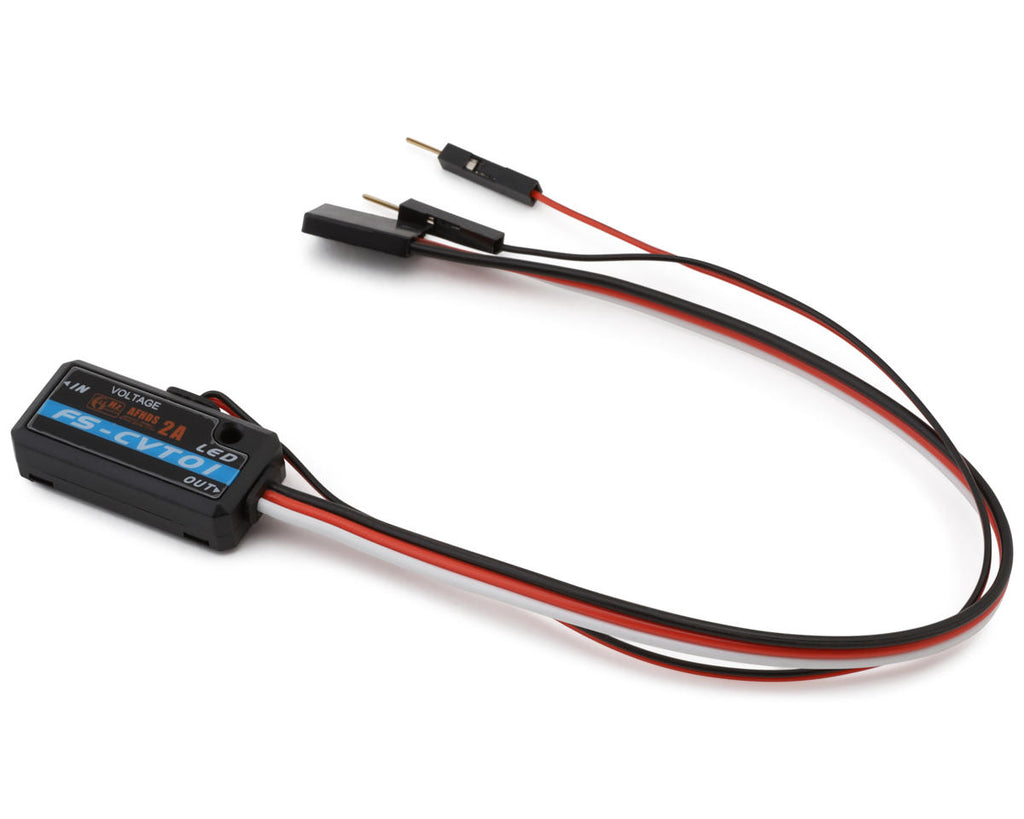

Flysky FS-CVT01 i-BUS Voltage Sensor
Monitor your RC system’s battery voltage and power levels in real time with the Flysky FS-CVT01 Voltage Sensor. Compatible with Flysky’s i-BUS interface, this compact sensor integrates directly with compatible Flysky receivers for seamless real-time voltage telemetry without additional wiring complexity. A wide measurement range of -100V to +100V DC covers virtually every RC power system configuration, while the 4.0–8.4V operating voltage range provides broad compatibility across different setups. Matching the FS-CTM01 temperature sensor in both footprint and weight, the FS-CVT01 installs cleanly alongside other i-BUS sensors in any chassis layout for a complete real-time telemetry picture.
Features:
- Real-time DC voltage monitoring via Flysky i-BUS interface
- Wide measurement range: -100V to +100V DC
- Compatible with Flysky i-BUS equipped receivers
- 4.0–8.4V operating voltage range for broad power system compatibility
- Compact 31x15x8.5mm dimensions for easy chassis installation
- Lightweight at just 0.21oz (6g)
Specifications:
| Specification |
Detail |
| Voltage Range |
-100V to +100V DC |
| Input Voltage |
4.0–8.4V |
| Protocol |
i-BUS |
| Dimensions |
1.22 x 0.60 x 0.34" (31 x 15 x 8.5mm) |
| Weight |
0.21oz (6g) |
In the Box:
| Qty |
Item |
| 1 |
Flysky FS-CVT01 i-BUS Voltage Sensor |
