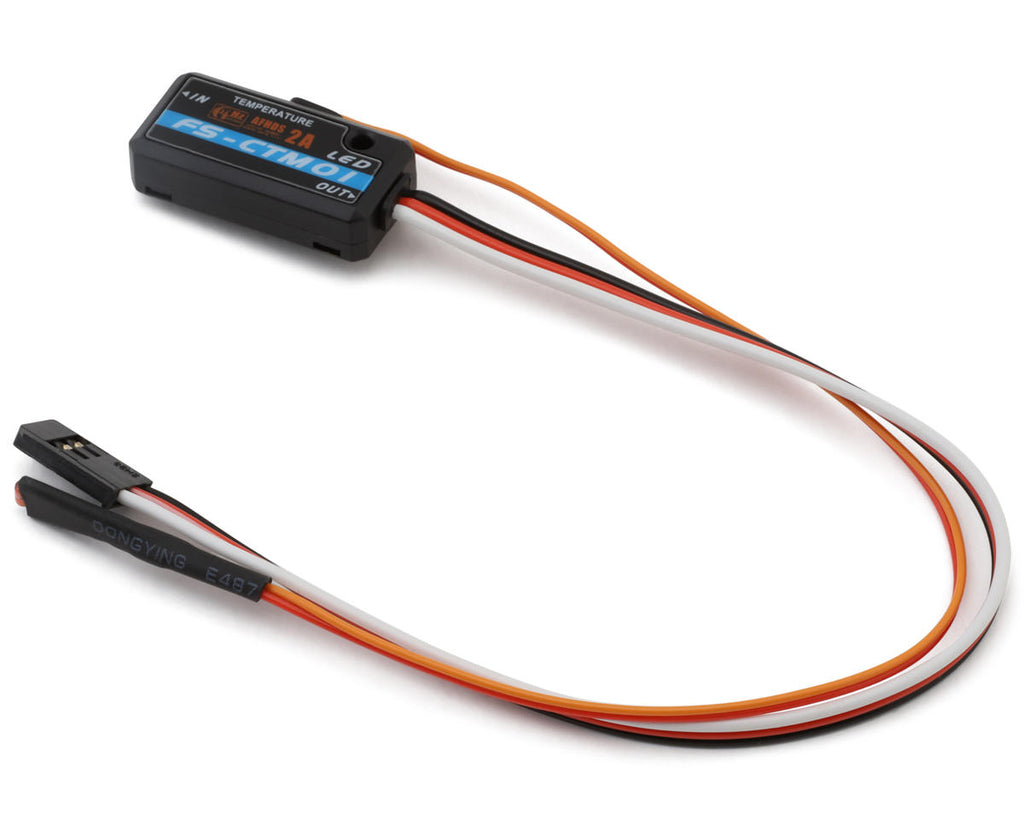

Flysky FS-CTM01 i-BUS Temperature Sensor
Monitor your RC vehicle’s motor, ESC, or electronics temperatures in real time with the Flysky FS-CTM01 Temperature Sensor. Compatible with Flysky’s i-BUS interface, this compact sensor connects directly to compatible Flysky receivers for seamless, real-time temperature data transmission without additional wiring complexity. A wide measurement range of -40°F to 482°F (-40°C to 250°C) covers the full thermal spectrum of RC electronics — from cold-weather starts to high-heat bashing and racing conditions — while the 4.0–8.4V operating voltage range provides broad power system compatibility. At just 0.21oz and measuring 31x15x8.5mm, it installs cleanly in virtually any chassis layout without adding meaningful weight or taking up valuable space.
Features:
- Real-time temperature monitoring via Flysky i-BUS interface
- Wide measurement range: -40°F to 482°F (-40°C to 250°C)
- Compatible with Flysky i-BUS equipped receivers
- 4.0–8.4V operating voltage range for broad power system compatibility
- Compact 31x15x8.5mm dimensions for easy chassis installation
- Lightweight at just 0.21oz (5.9g)
Specifications:
| Specification |
Detail |
| Temperature Range |
-40°F to 482°F (-40°C to 250°C) |
| Input Voltage |
4.0–8.4V |
| Protocol |
i-BUS |
| Dimensions |
1.22 x 0.60 x 0.34" (31 x 15 x 8.5mm) |
| Weight |
0.21oz (5.9g) |
In the Box:
| Qty |
Item |
| 1 |
Flysky FS-CTM01 i-BUS Temperature Sensor |
