FSY-FGR8B

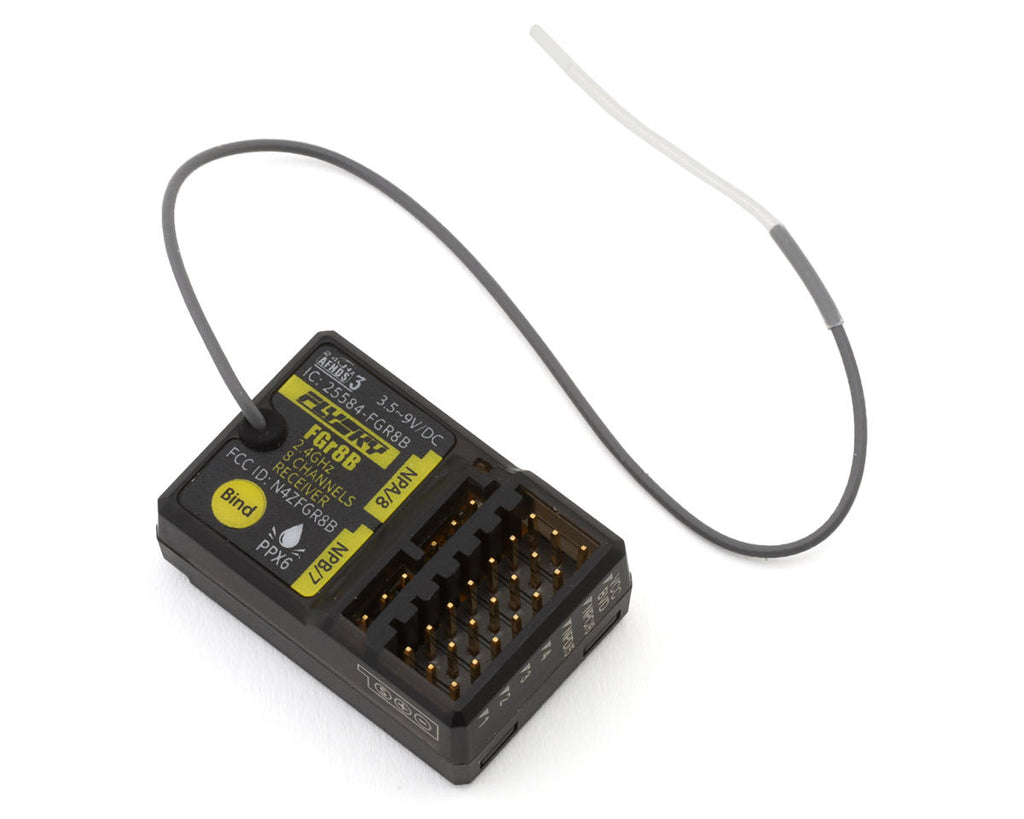

FGr8B 8-Channel Receiver Overview:
The FGr8B is an advanced 8-channel receiver built for use with AFHDS3 protocol systems. Compact and highly adaptable, this receiver features bi-directional communication and a waterproof rating of PPX7, making it a dependable option for both land and aquatic RC applications.
It comes equipped with a single external antenna for reliable signal strength and includes versatile Newport function interfaces that accommodate a variety of input and output configurations. The integrated BVD (battery voltage detection) further enhances functionality by allowing real-time voltage monitoring.
Designed to work seamlessly with any transmitter or RF module that utilizes the AFHDS3 system, the FGr8B offers consistent performance and durability in demanding conditions.
Key Features:
-
8-channel receiver compatible with AFHDS3 protocol
-
Waterproof rating of PPX7 for rugged use
-
Bi-directional and unidirectional signal support
-
External antenna for stable, long-range connectivity
-
Newport function ports for flexible I/O configurations
-

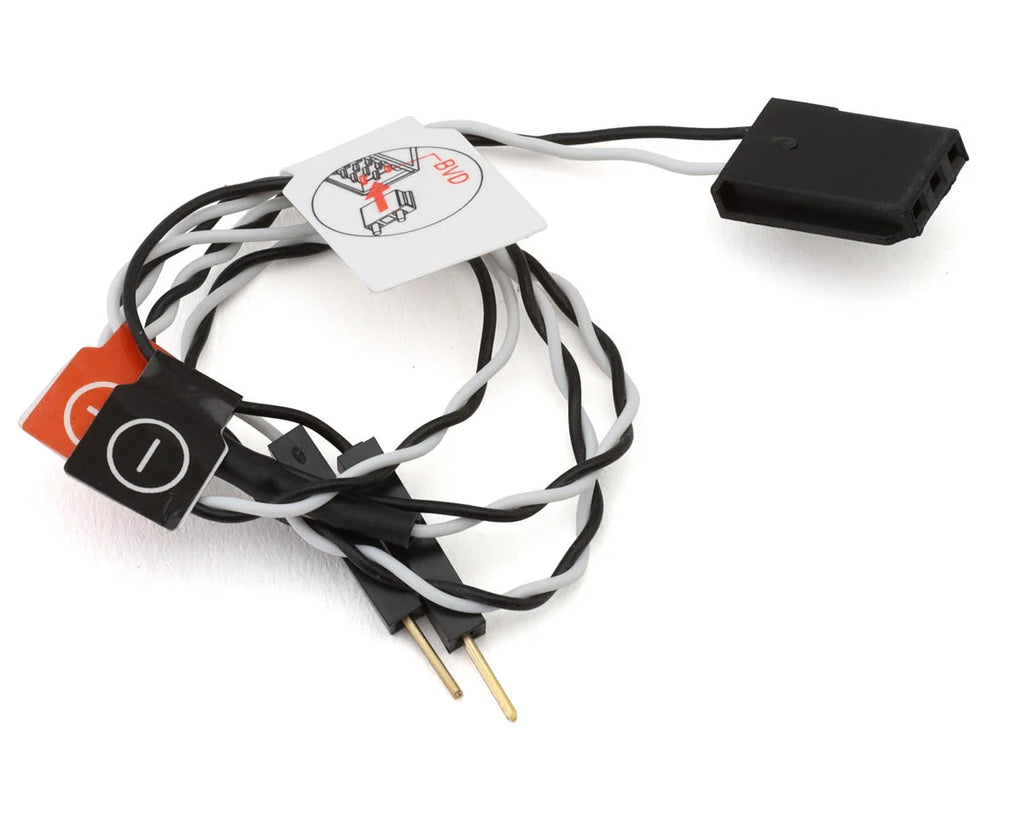

Built-in battery voltage detection (BVD)
Compatible Transmitters:
-
PL18EV / PL18EV Lite
-
PL18 / PL18 Lite
-
EL18
-
FRM303
-
NB4 Pro / NB4 / NB4 Lite
Technical Specifications:
-
Intended Use: Surface vehicles
-
Operating Frequency: 2.4GHz
-
Channels: 8 PWM outputs
-
Protocol: AFHDS3
-
Input Voltage: 3.5V–9V DC
-
Waterproofing: PPX7
-
Dimensions: 35 x 23.3 x 13mm (1.37 x 0.91 x 0.51 in)
-
Weight: 9.4g
Includes:
