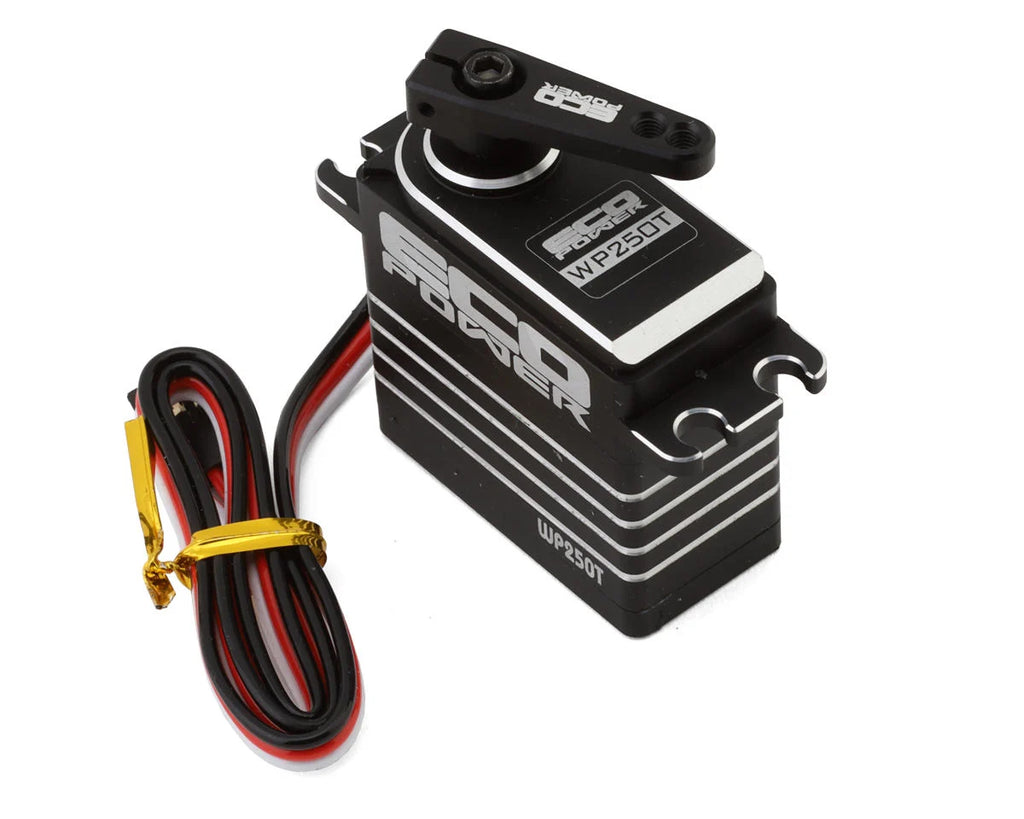

EcoPower WP250T High Torque Waterproof Brushless Servo
EcoPower WP250T Brushless Waterproof High Torque Metal Gear Servo was developed specifically for crawlers, bashers and RTR applications. Heavy 2.2 class rigs, U4 racers, lightweight and heavyweight 1.9 comp builds and ultra-detailed scalers can all benefit from the feature set that the WP250T delivers. Pushing over 681 oz-in of stump-pulling torque and .12 speed at 7.4V, the WP250T will move heavy 2.2 tires with ease, no matter how much weight you put in them.
All this power means nothing without durability. By combining this incredible power with a specialized gasket system, the WP250T is waterproof up to 1-meter and will stand up to anything mother nature can throw at it. A full steel gear train, 25T output shaft and full aluminum machined heat sink case make the WP250T extremely tough. The WP250T delivers the excessive power that crawlers demand - with durability and reliability that make it a must have servo for crawlers that expect the most from their rigs.
Features:
Ideal for any 1.9 to 2.2 Crawlers and 1/10 or 1/8 Off-Road
Waterproof up to 1 meter
574 oz-in of torque @ 6.0V, and .14 transit speed
681 oz-in of torque @ 7.4V, and .12 transit speed
758 oz-in of torque @ 8.4V, and .10 transit speed
Brushless motor
High voltage circuitry
Full steel gears for maximum durability and reliability
Full aluminum black anodized heat sink case for enhanced heat dissipation
Dual ball bearings
280mm servo lead
Specifications:
Servo Model
WP250T
Recommended Application
1/10 to 1/8 Scale Crawler & Bashers
Operating Voltage
4.8V - 8.4V
Operating Temperature
14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V
0.14/60° sec
OperatingSpeed @ 7.4V
0.12/60° sec
OperatingSpeed @ 8.4V
0.10/60° sec
Dynamic Torque @ 6.0V
574 oz-in (41.3 kg-cm)
DynamicTorque @ 7.4V
681 oz-in (49.0 kg-cm)
DynamicTorque @ 8.4V
758 oz-in (54.5 kg-cm)
Motor Type
Brushless Digital
Output Shaft
25 Tooth
Gears
Steel
Weight
82g
Pulse/Frequency
1520 / 330hz
Dimensions
40.2x20x44.5mm
Length (Bottom to Mount)
27.5mm
Includes:

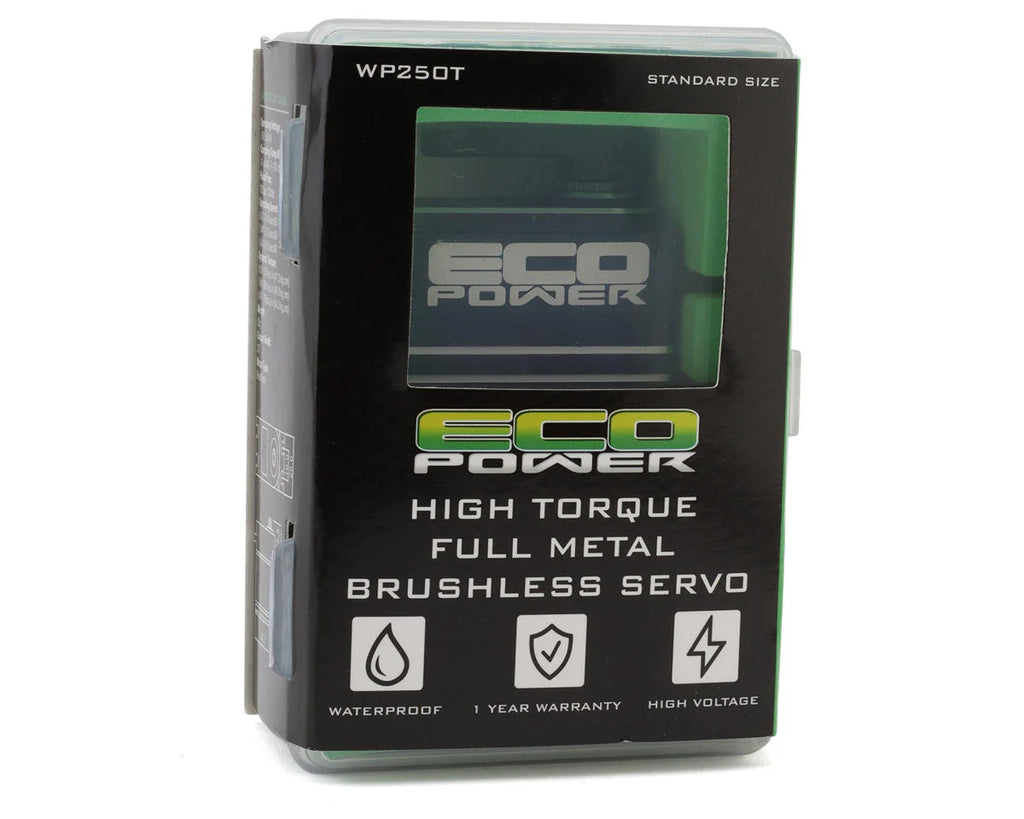

(1) WP250T Brushless Waterproof High Torque Metal Gear (High Voltage) Servo
Composite servo horns
Mounting Screws
NOTE: Requires a servo extension lead for a drop-in TRX-4 fit.
Compatibility:
Arrma Felony 6S BLX
Arrma Fireteam 6S BLX
Arrma Infraction 6S BLX
Arrma Infraction V2 6S BLX
Arrma Kraton 6S BLX
Arrma Limitless
Arrma Mojave 6S BLX
Arrma Outcast 6S BLX
Arrma Typhon 6S BLX
Axial Capra
Axial SCX10 II
Axial SCX10 III
Axial SCX10 Pro
Element RC Enduro
Element RC Enduro Gatekeeper
Losi Baja Rey
Losi Baja Rey 2.0
Losi Hammer Rey
Losi Hammer Rey U4
Losi LMT
Losi RZR Rey
SSD Trail King
Traxxas E-Revo
Traxxas Sledge
Traxxas Summit 1/10
Traxxas TRX-4
