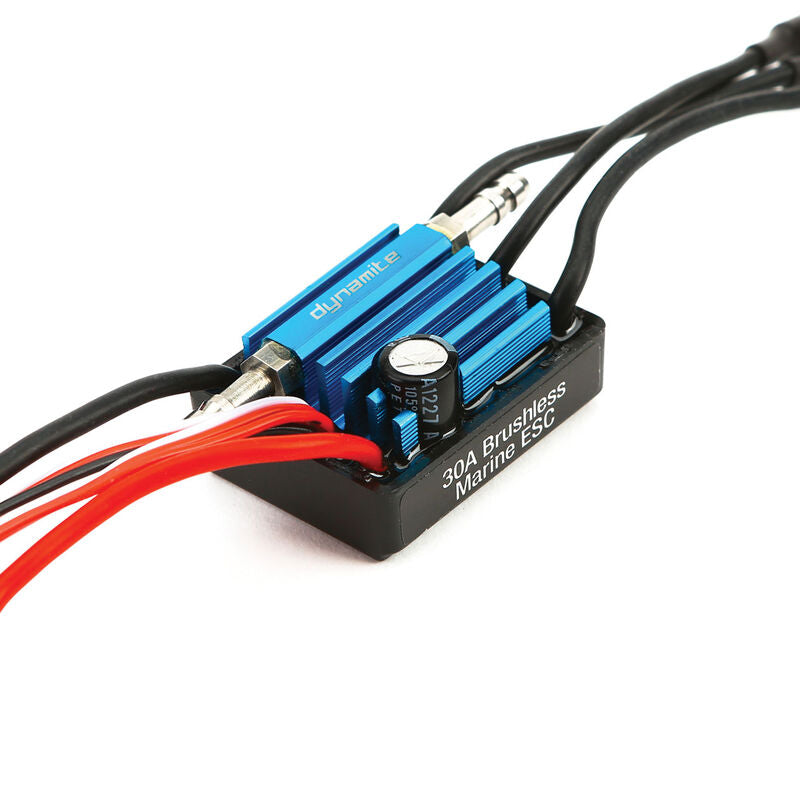

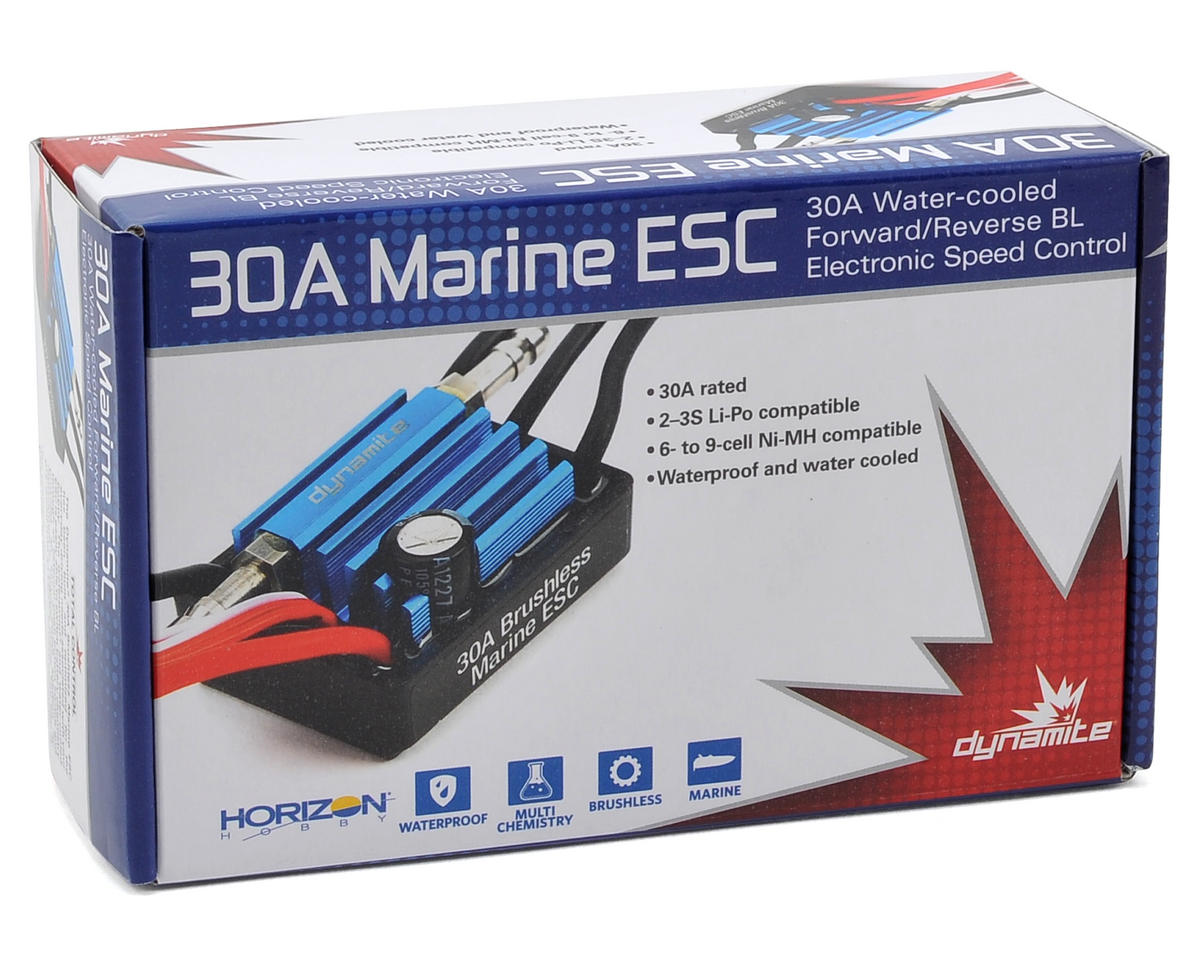

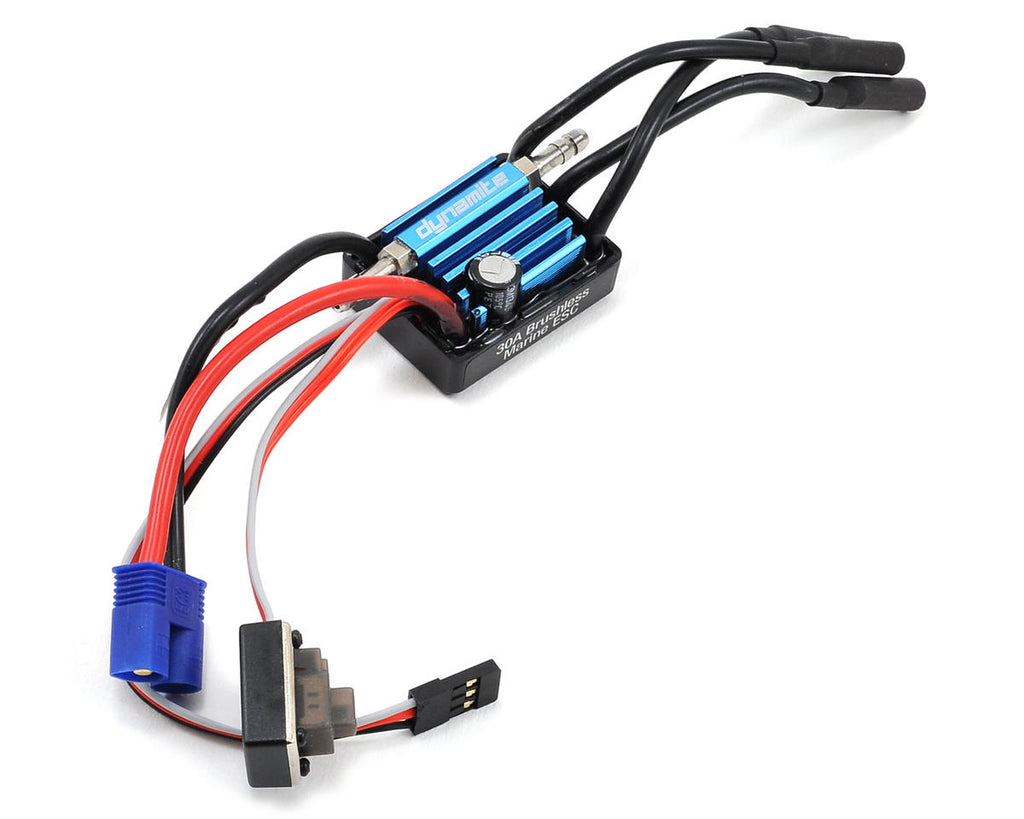

This is the Dynamite 30A Brushless 2-3S Marine ESC. The Dynamite 30A Brushless Marine ESC has been built and optimized for the everyday driving needs associated with your hobby. The waterproof and water-cooled ESC is easily able to switch battery chemistry through an external push button switch and provides an easy-to-install solution for replacement or upgrade needs. The ESC is pre-wired with an EC3 battery connector.
Features:
- 30A rated
- 2-3S LiPo compatible
- 6-9 cell NiMH compatible
- Waterproof and water cooled
Product Specifications
| Manufacturer # |
605482574973 |
| Forward |
Yes |
| Reverse |
Yes |
| BEC Type |
Linear |
| Resistance |
0.002 ohms |
| Overload Protection |
Yes |
| Output Connector |
4mm Bullet |
| BEC Continous Current |
1A |
| Low-Voltage Cutoff Programmable |
Yes |
| Auto Cutoff |
Yes |
| Time Delay Brake |
Yes |
| BEC |
Yes |
| BEC Maximum Burst Current |
2A |
| BEC Voltage |
6V |
| Input Voltage |
2-3S LiPo, 6-9 cells NiMH |
| Motor Output Lead |
14 AWG, 2.95 in (75mm) |
| Part Type |
Electronics |
| Connector Type |
EC3 |
| Brakes |
Yes |
| Battery Input Lead |
14 AWG, 4.33 in (110mm) |
| Maximum Burst Current |
180A |
| Speed Control |
Marine Brushless
|
