Efficient cooling system
The frameless fan design is a patented technology. Rapid transmission of internal heat to the integrated housing radiator is made possible by high airflow from the side of the fan, and a copper thermal conduction sink on the internal power plate. These are built into high-reliability thermal systems to ensure that the ESC is always in good thermal condition.
1/8th Brushless System Turbo Technology

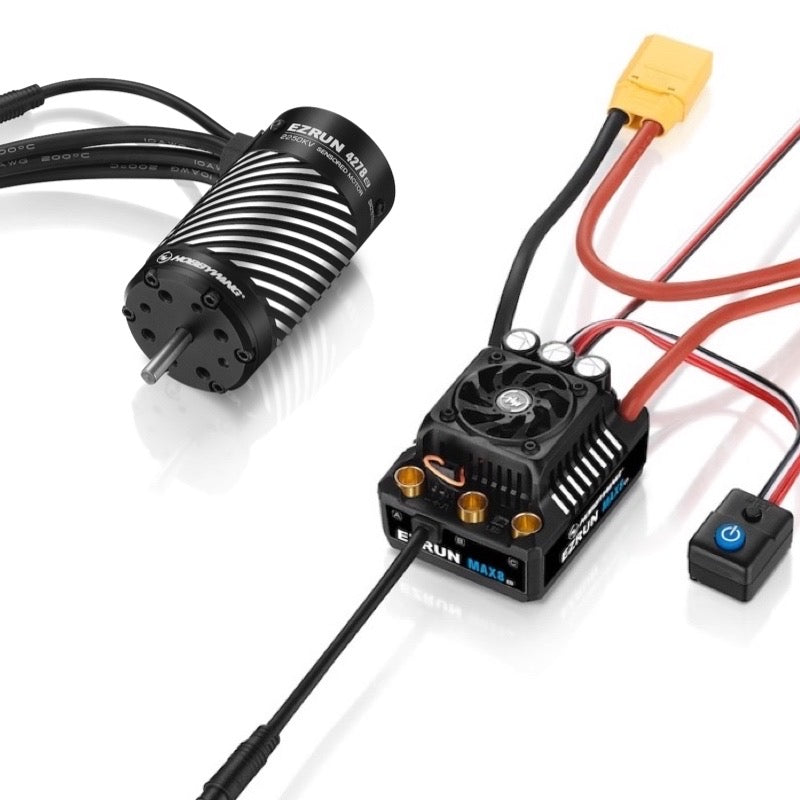

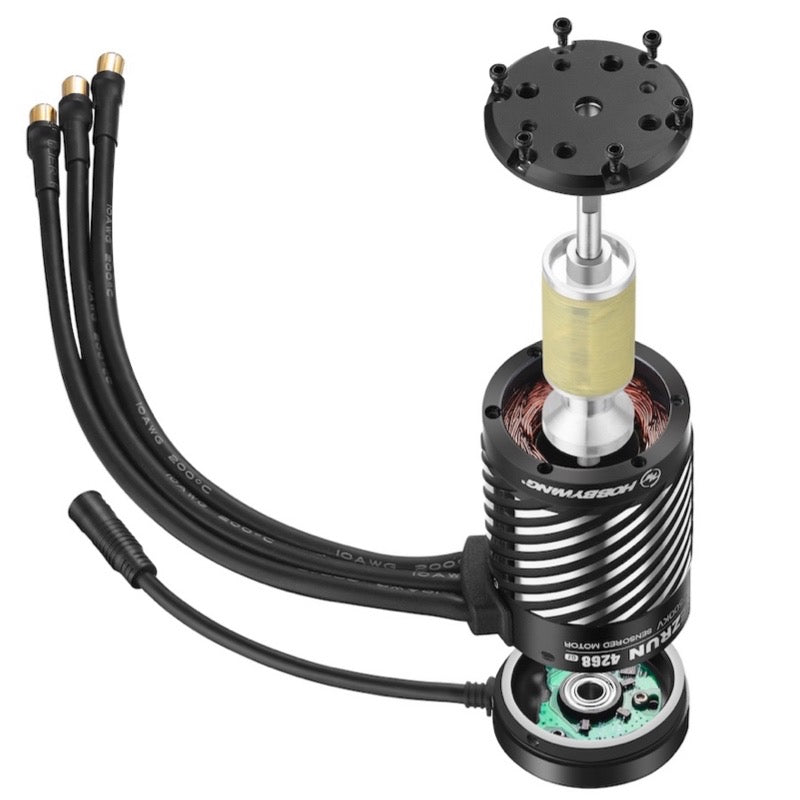

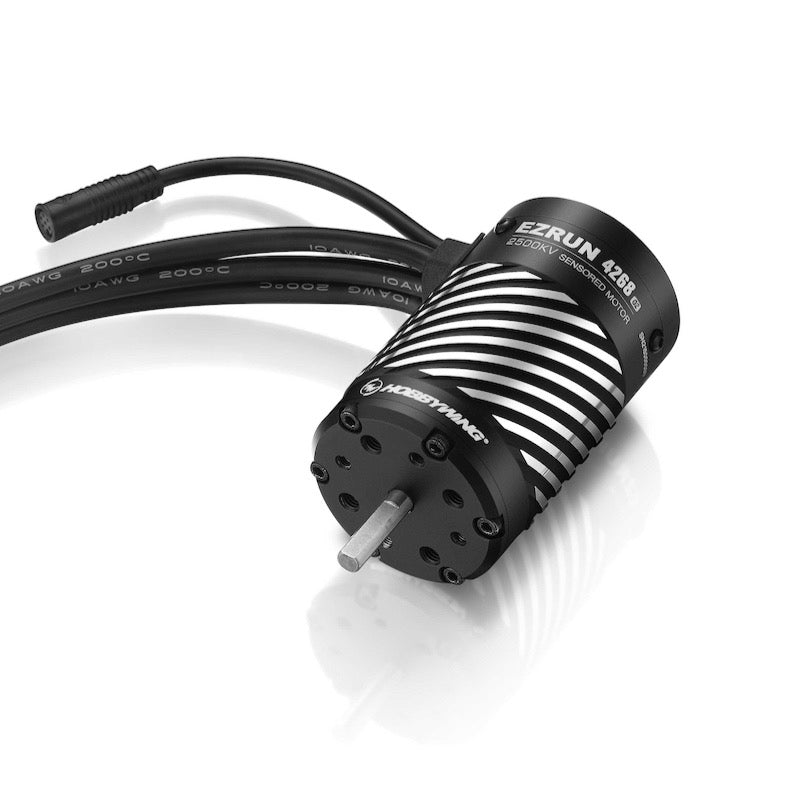

The ESC is best paired with the EzRun 4278/4268SD G2 motor to achieve maximum performance.
Turbo parameters are adjustable from up to 32 degrees, and the speed is significantly increased by up to 25%.
Capacitor Thermal Protection
Capacitor thermal protection implemented by the ESC prevents irreversible damage to the ESC due to overload.
Super Internal BEC
The built-in switch mode BEC features a maximum output of 15A,
and is voltage adjustable from 6V to 8.4V (step:0.1V). This allows
the use of various standard and high voltage servos.
The ESC has three built-in 680uF capacitors, which increases
the performance by 74% (870uF) compared to the MAX8 ESC.
The ultra-large capacitors built onto the ESC also ensure users do not need to install external capacitors on their vehicles.
Real-time data & data logging function,
Easy to get the power running status. After connecting the OTA module box, turn on the real-time data recording function to access the operating status.
New sensored cable interface

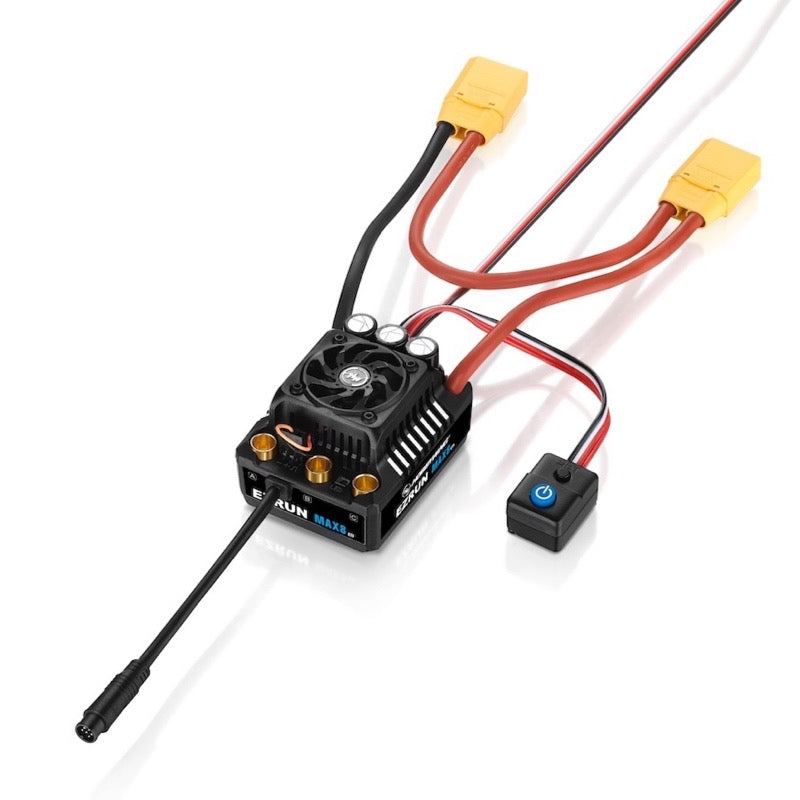

The Max8 G2 ESC is equipped with a new type of sensored cable interface.
It is high recommended to use the motors from Hobbywing, as the waterproof protection level is at the highest level (IP67).
