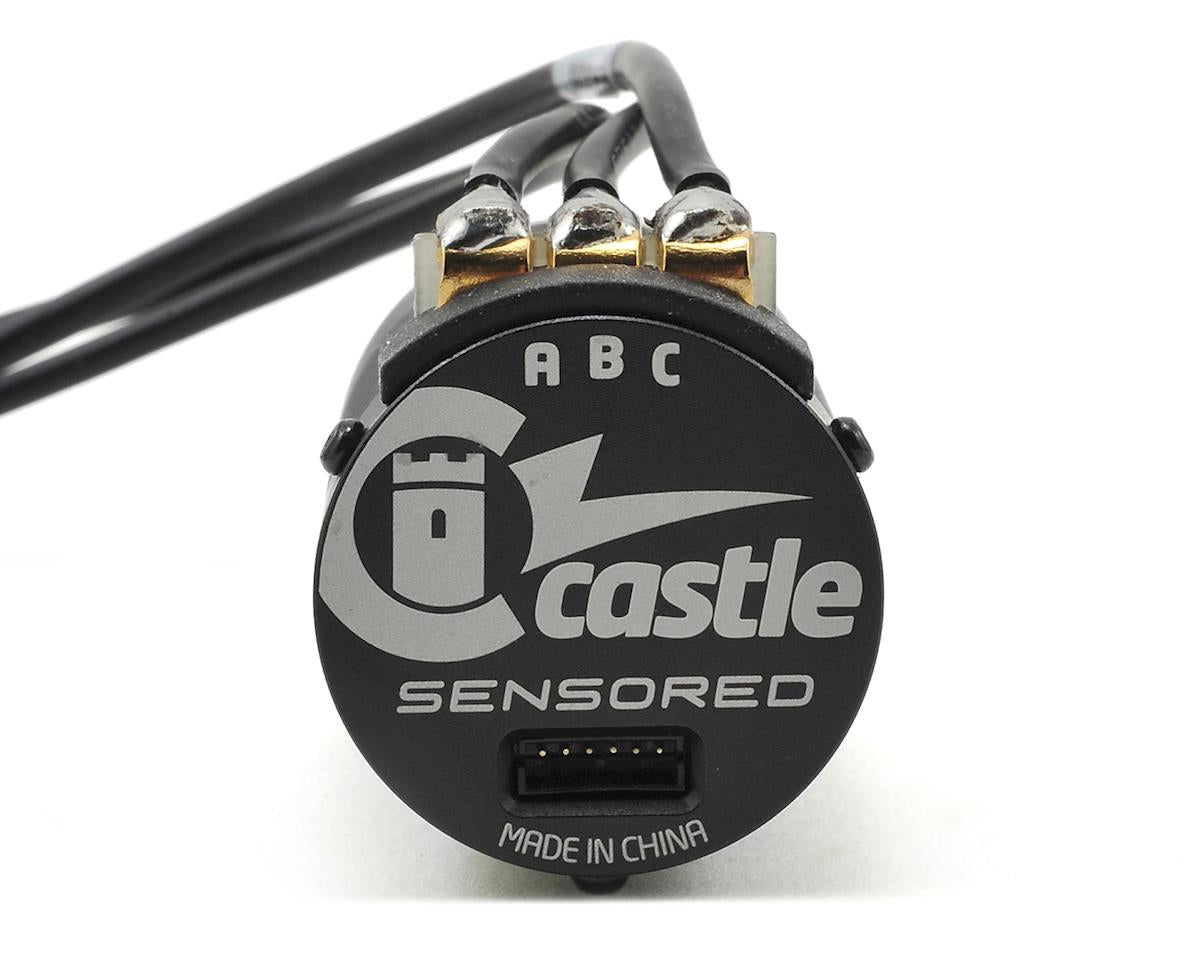

Castle “Slate” 1406 Sensored 4-Pole Brushless Crawler Motor
Built for serious crawling and trail adventures, the Castle Slate 1406 motor delivers ultra-smooth startup, precise low-speed control, and dependable power for both trail runs and high-speed Ultra 4 events. Designed with Castle’s sensored technology, it’s ready to perform wherever your rig takes you.
Specifications
-
Input Voltage Range: 2S–4S LiPo
-
Kv Rating: 2280
-
Maximum RPM: 100,000
-
Can Length: 49.5 mm
-
Can Diameter: 36 mm
-
Weight (with wires): 197 g / 6.9 oz
-
Shaft Length: 15 mm
-
Shaft Diameter: 1/8″ (3.17 mm)
-
Mounting Pattern: M3 @ 25 mm
-
Cooling Fan: Optional – coming soon
-

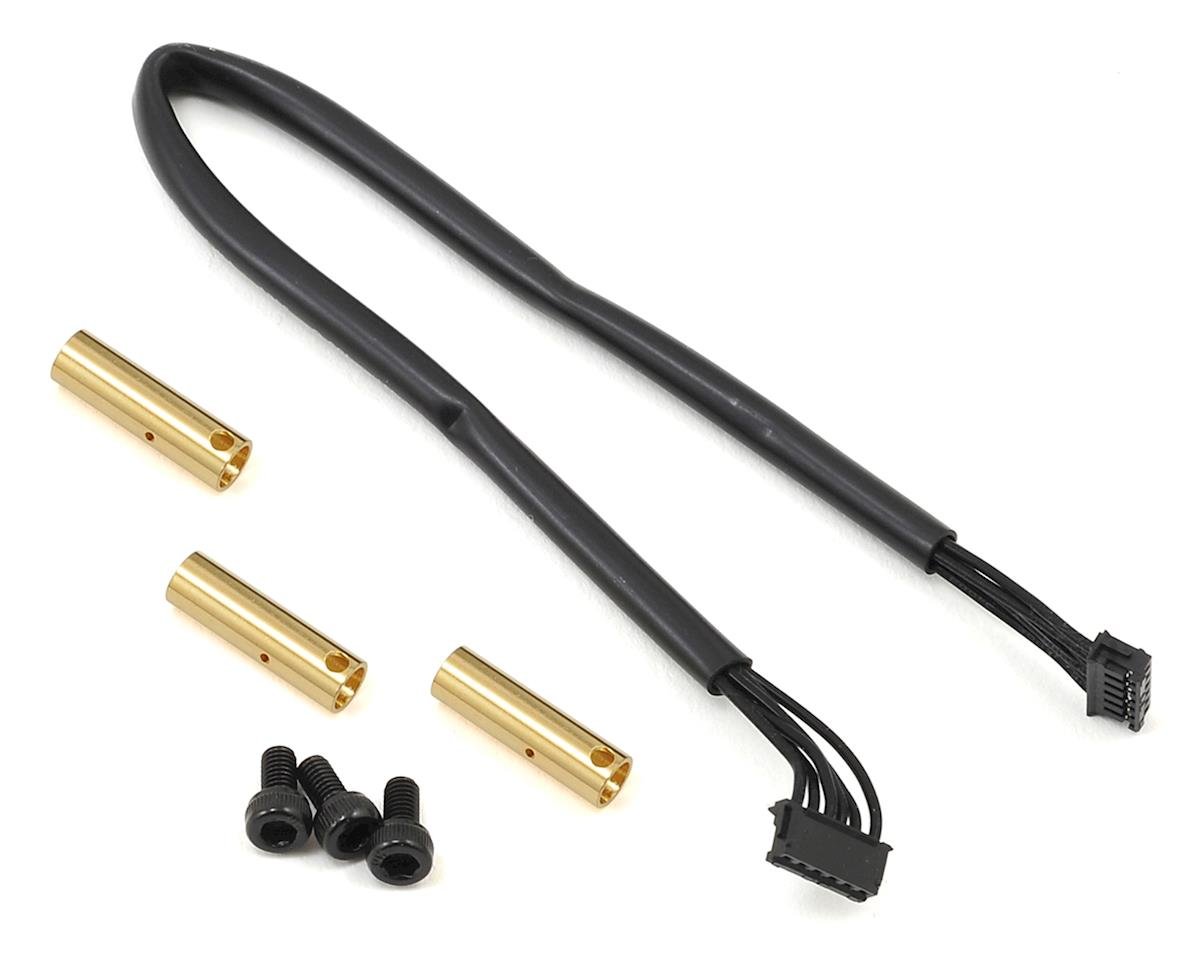

Connectors: 4 mm male Castle bullet connectors with replaceable 13-gauge wire and a 210 mm sensored lead
Required for Use
Ideal Applications
Perfect for 1/10-scale vehicles such as rock crawlers, trail trucks, buggies, stadium trucks, and touring cars running on 2S–4S setups with proper gearing.
Recommended ESC Options
Mamba Max Pro, Mamba X, Mamba Micro X
Operating Modes
SMARTSENSE™, full sensored, or sensorless when paired with a Castle sensored ESC.
Water-Resistant Design
The internal sensor board is protected with a silicone conformal coating to guard against moisture. However, the external sensor connections themselves are not fully waterproof—exposure to water may cause signal interruptions and affect sensored performance. Castle advises applying dielectric grease to the sensor connections after installation and performing regular maintenance following wet runs. For more details, see the care guide in the product’s resources section.
CSE060-0069-00
